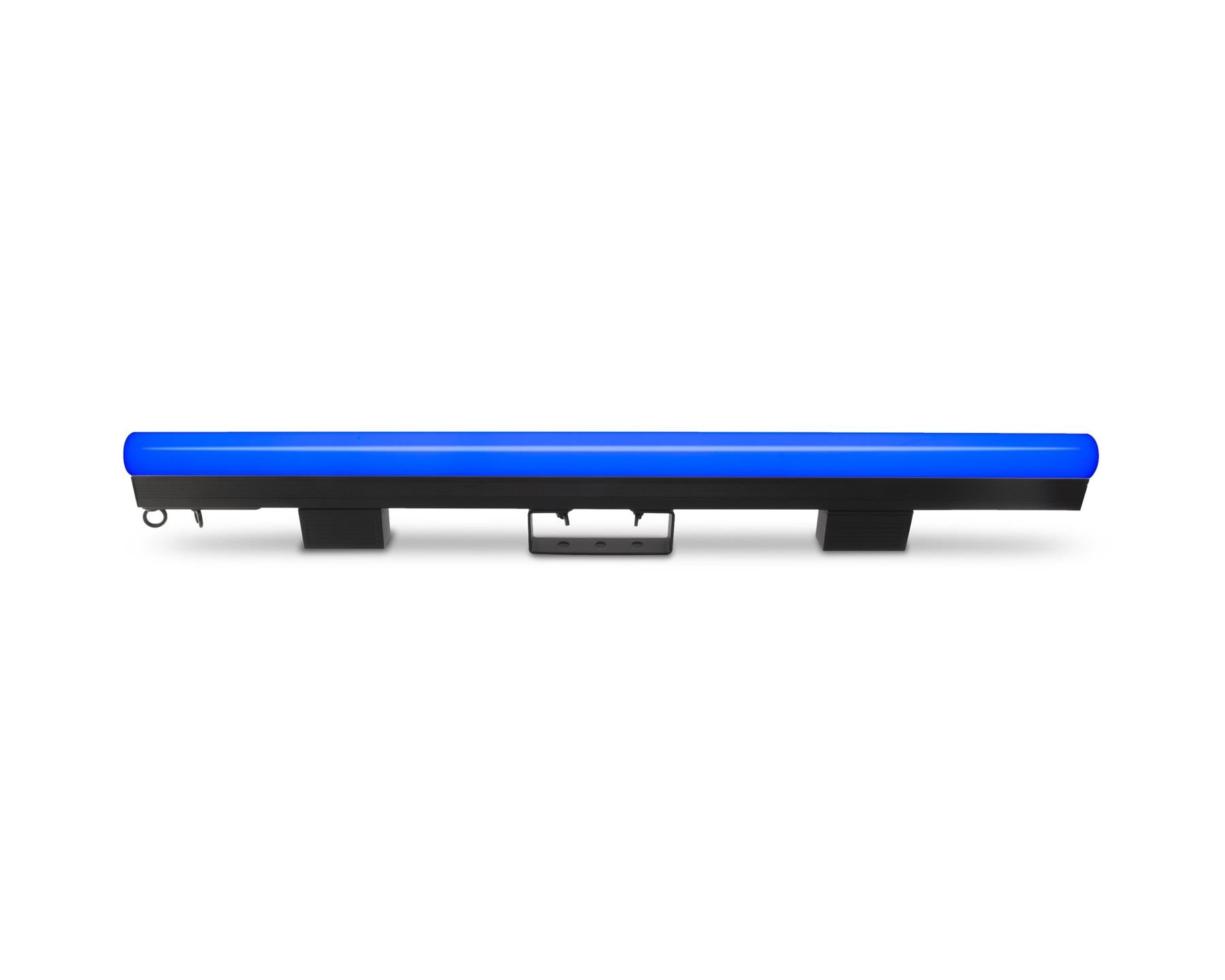

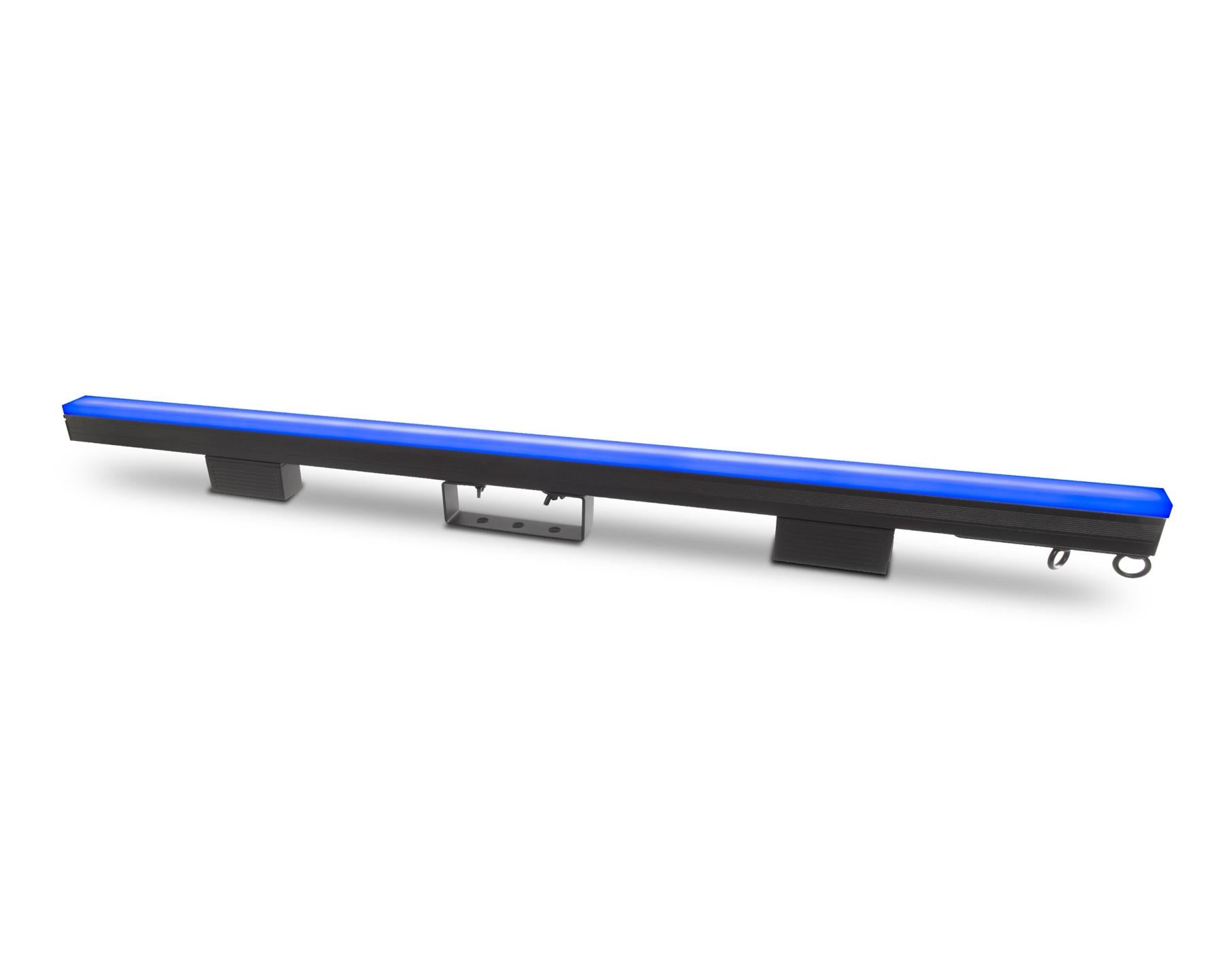

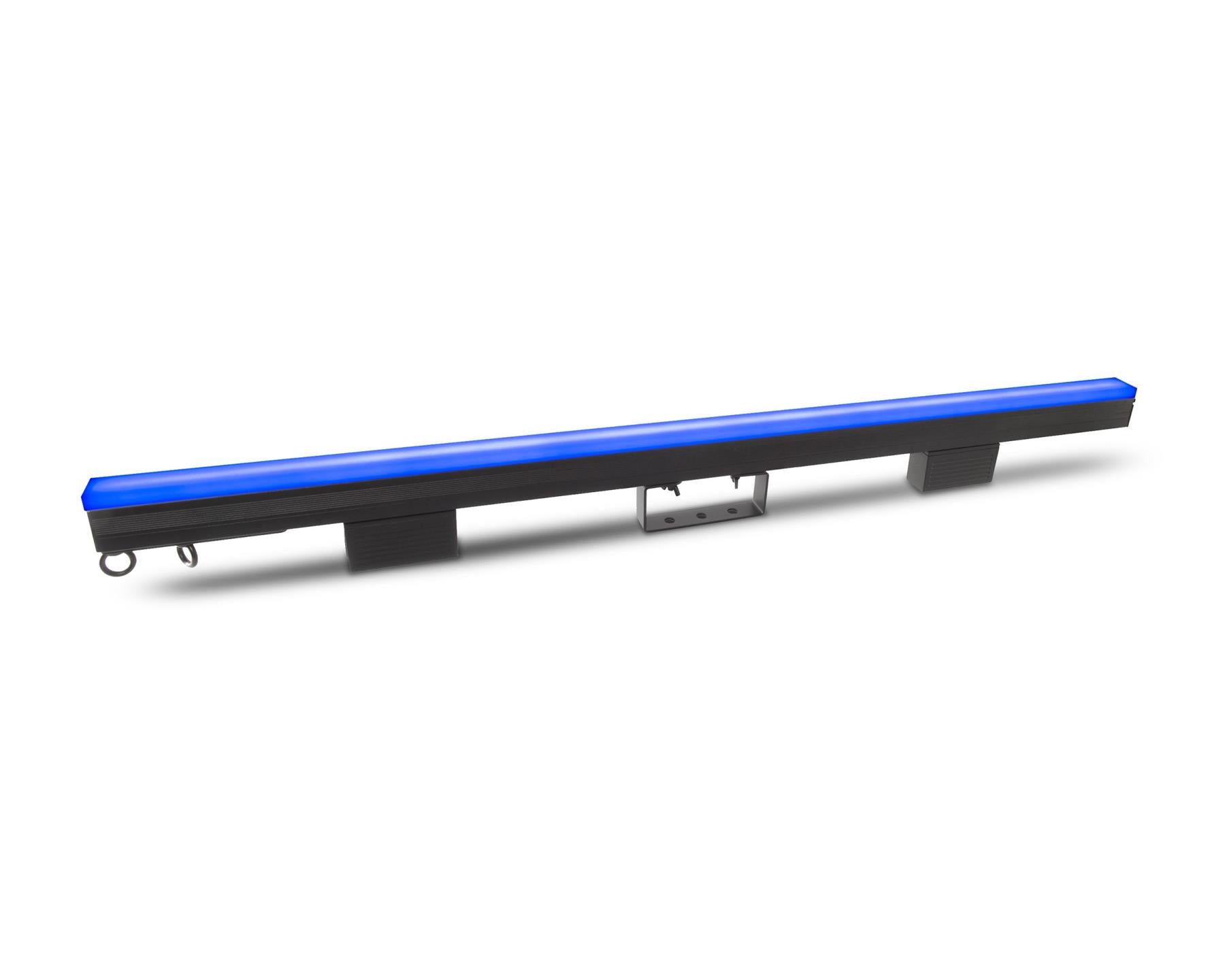

Chauvet Professional EPIX Strip IP Pixel Mapping Bar 100 x RGB LEDs 1.0m (IP65 rated)

Description:

Chauvet Professional - EPIX Strip IP Pixel Mapping Bar 100 x RGB LEDs 1.0m IP65

Épix Strip IP is a dynamic IP65 outdoor-rated, pixel-mapping 1-meter LED strip fixture featuring 100 LEDs in a row. Ideal for festivals, concert touring, and installations, this versatile fixture comes with dome and flat accessories and stunning pre-built content to allow you to easily configure and program shows in minutes with minimum time/effort for sizzling looks. Power and control it through CHAUVET Professional's new Épix Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN).

Features:

Pixel-mapping 1-meter 100 x 1 IP65 rated LED strip for showing video and/or motion graphics
Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
Reduce programming time and increase application by using the alternate personalities of 7, 8 channels, 5, 10, 20, and 50 sections, or use the Pixel personality for use with video servers
Increase viewing angle by using the included dome accessory
Epix Drive 2000 IP required for operation

Specifications:

Optical
Light Source: 100 LEDs (tri-colour RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle (with installed square milky filter): 160°
Viewing Angle (with optional dome filter): 160°
Pixels: 100 x 1
Pixel Pitch: 10 mm
Refresh Rate: 4800 Hz
Construction / Physical
Dimensions (with installed square milky filter ): 39.37 x 3.93 x 1.33 in (1000 x 100 X 34 mm)
Dimensions: (with included black stealth filter) 39.37 x 3.46 x 1.33 in (1000 x 88 x 34 mm)
Dimensions (with optional dome filter): 39.37x 5.03 x 1.77 in (1000 x 128 X 45 mm)
Weight: 6 lb (2.7 kg)
Exterior Colour: Black
Housing Material: Aluminum
Connections
Data Connectors: 4-pin XLR
Physical Linking: 10 inline Epix Strip IP per port of Drive 2000IP
Total max. cable length (shielded cables) between Epix Drive 2000 IP and last Epix IP fixture: 210 ft (64 m)
Max. cable length (shielded cables) between Epix Drive 2000 IP and first Epix IP fixture: 65 ft (20 m)
Max. cable length (shielded cables) between Epix IP fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between Epix Drive 2000 IP and last Epix IP fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between Epix Drive 2000 IP and first Epix IP fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between Epix IP fixtures: 100 ft (30 m)
Control
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels (Art-net, sACN): 7, 8, 15, 30, 60, or 300
Electrical
Power and Current: 35 W, 0.292 A @ 120 V, 60 Hz
Power and Current: 44 W, 0.210A @ 208 V, 60 Hz
Power and Current: 44 W, 0.195 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
