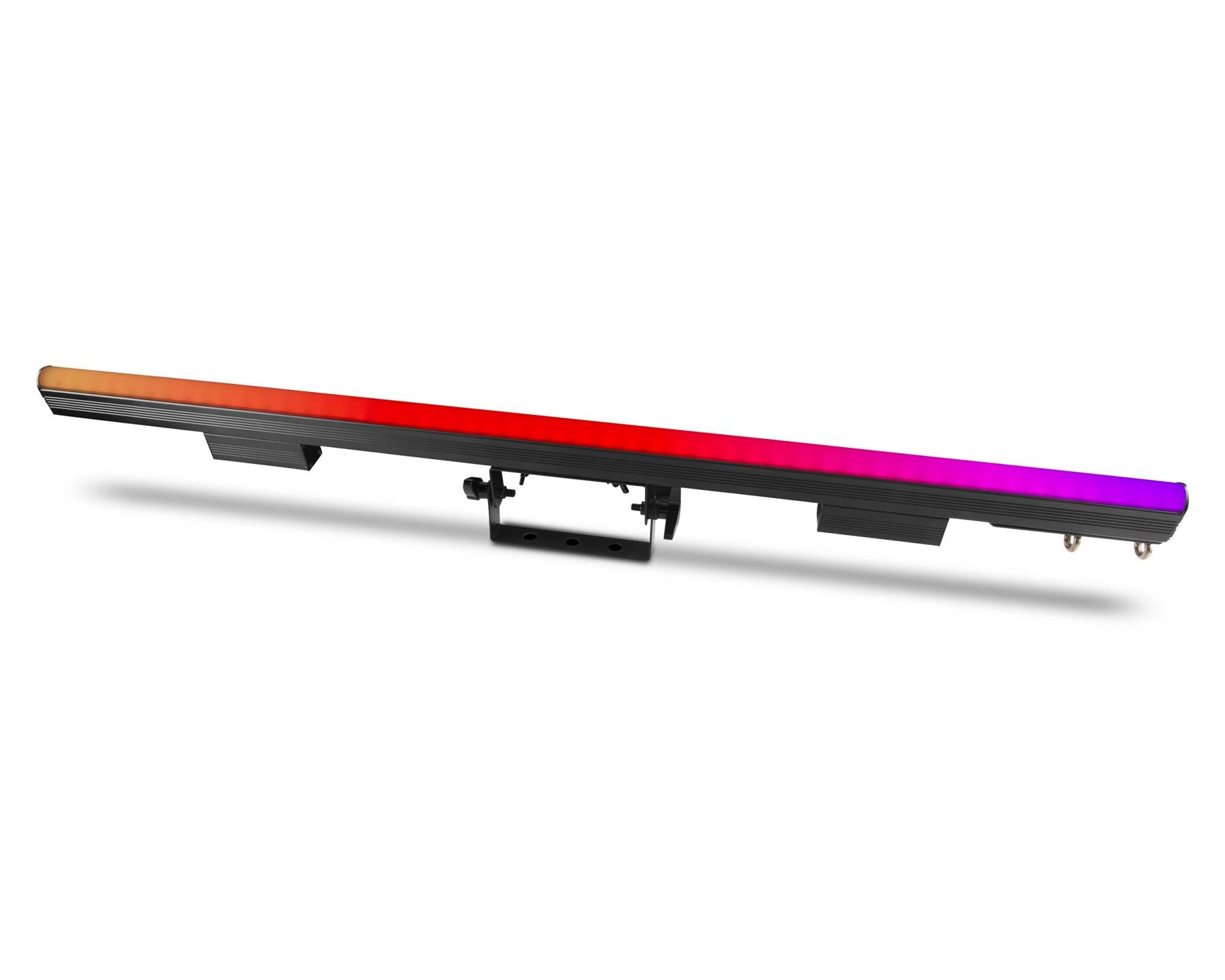

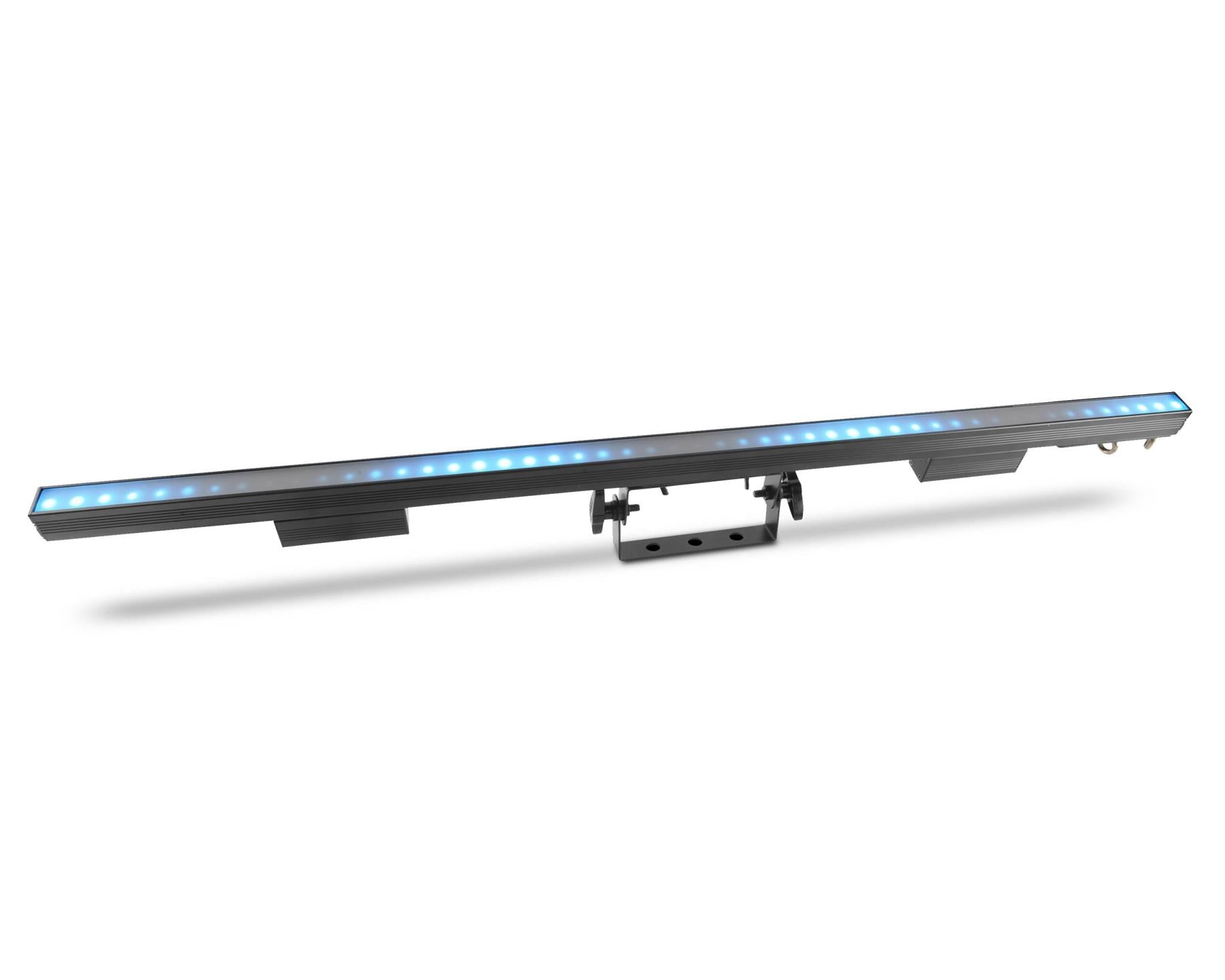

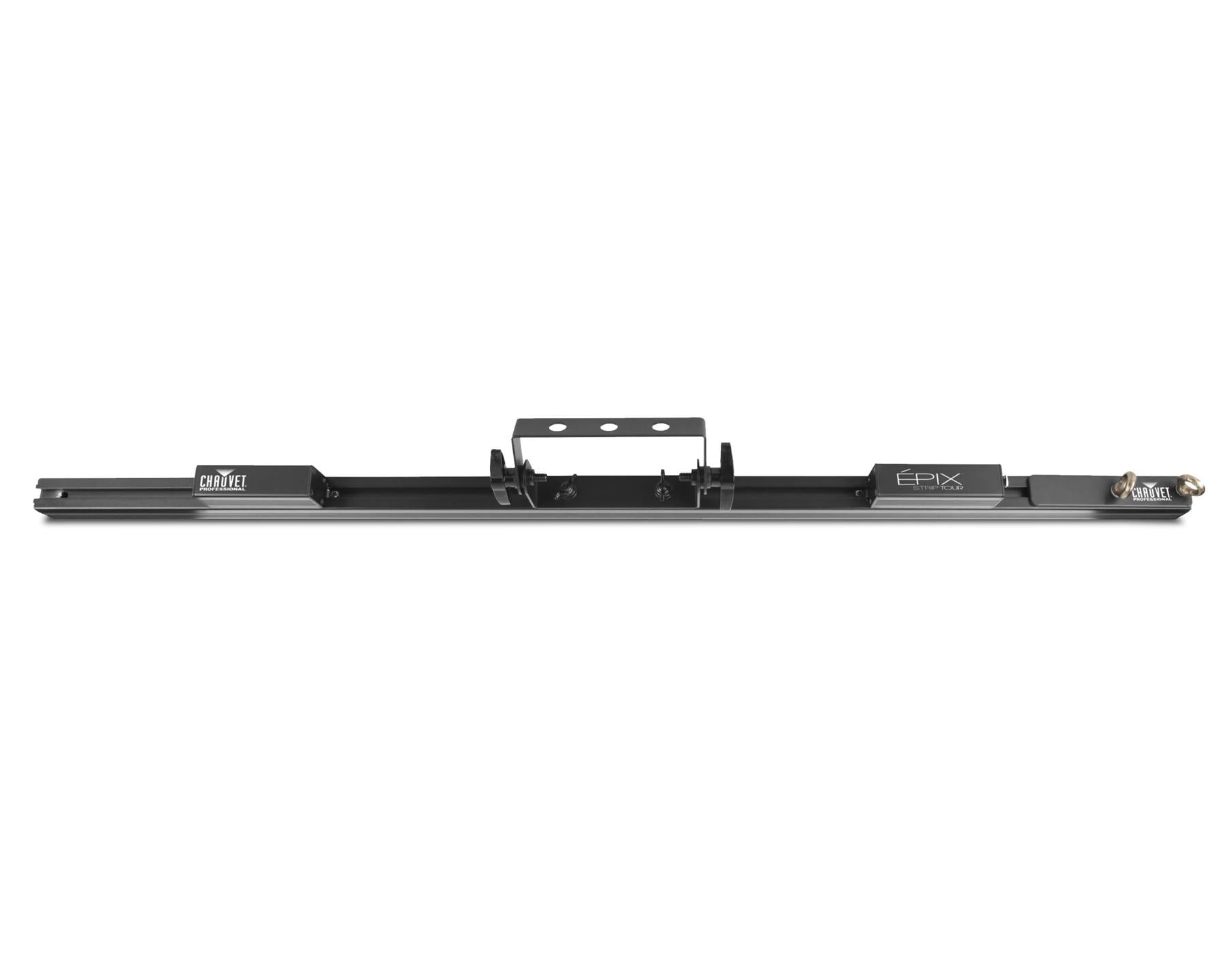

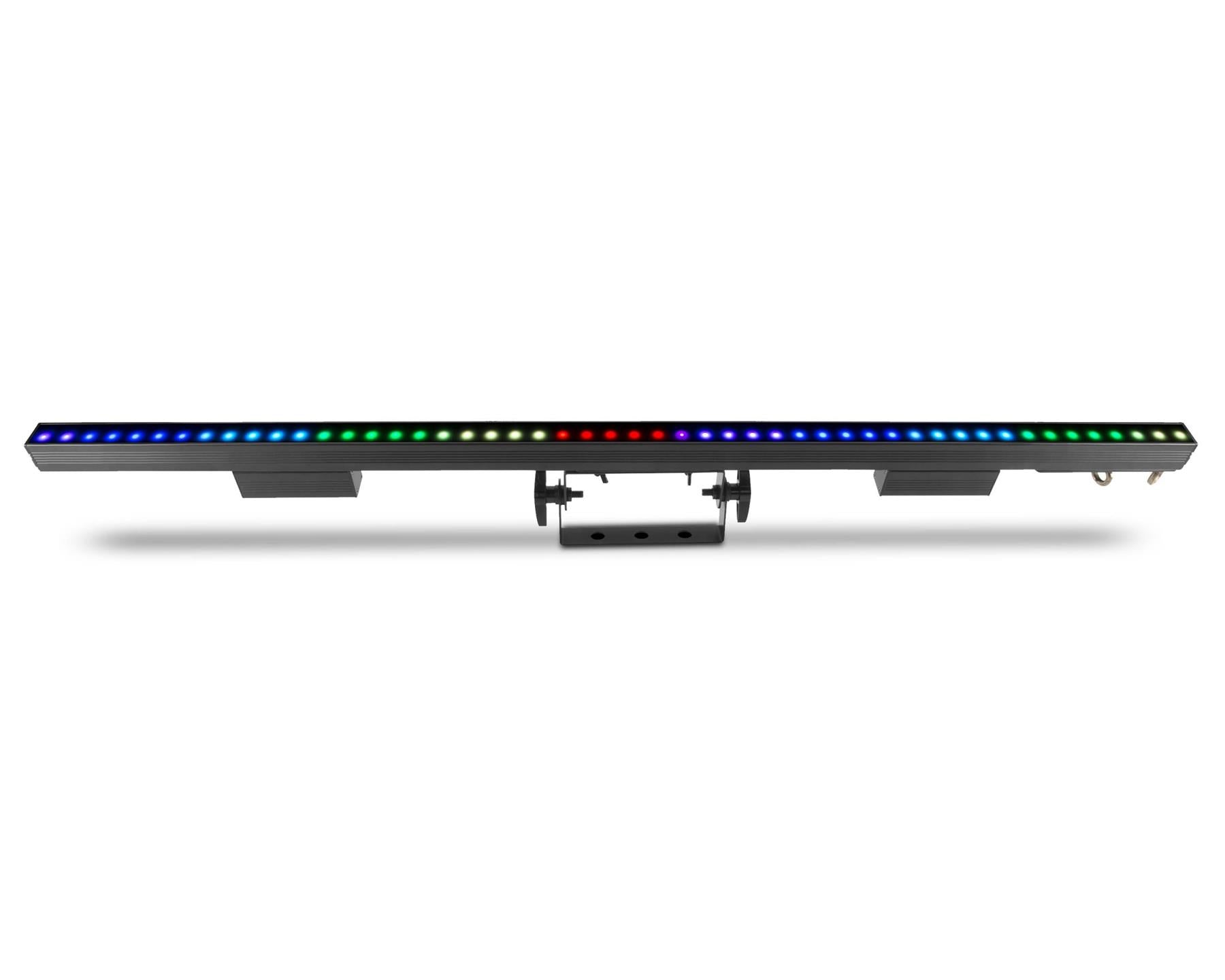

Chauvet Professional EPIX Strip Tour Pixel Mapping Bar 50 x RGB LEDs 1.0m

Description:

Épix Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125-degree viewing angle. Power and control it through the Épix Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN). For added versatility and more creative options, a dome accessory is available to widen the viewing angle to up to 180 degrees.

Features:

Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics
Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
Increase viewing angle by using the optional dome accessory
ÉPIX Drive 900 required for operation

Specifications:

Optical
Light Source:  50 LEDs (tri-colour RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle:  125°
Viewing Angle (with optional dome accessory):  180°
Illuminance (white frost filter installed):  1,094 NITS
Illuminance (with optional dome accessory):  701 NITS
Illuminance (black stealth filter installed):  267 NITS
Pixels:  50 x 1Pixel Pitch:  20 mm
Refresh Rate:  4,700 Hz
Connections
Data Connectors:  4-pin XLR
Physical Linking:  18 inline Epix Strip Tour
Minimum required device linking cable size:  4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture:  64 m
Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture:  20 m
Max. cable length (shielded cables) between Epix Tour fixtures:  18 m
Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture:  91 m
Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture:  45 m
Max. cable length (unshielded cables) between Epix Tour fixtures:  30 m
Control
Control Protocol:  Art-Net, Kling-Net, sACN
Control Channels:  150
Electrical
Power and Current:  17 W, 0.14 A @ 120 V, 60 Hz
Power and Current:  17 W, 0.08 A @ 208 V, 60 Hz
Power and Current:  17 W, 0.07 A @ 230 V, 50 Hz
Cable
4PXLREXT16IN
4PXLREXT5FT
4PXLREXT50FT
Physical & Dimensions
Dimensions:  1000 x 120 x 30 mm
Dimensions (with optional dome accessory):  1000 x 135 x 30 mm
Weight:  1.56 kg
Weight (with optional dome accessory):  1.59 kg
Exterior Colour:  Black
Housing Material:  Aluminium
Certifications / Qualifications
CE, METIP Rating:  IP20, dry location
Temperature (Ambient):  20 °C to 45 °C
