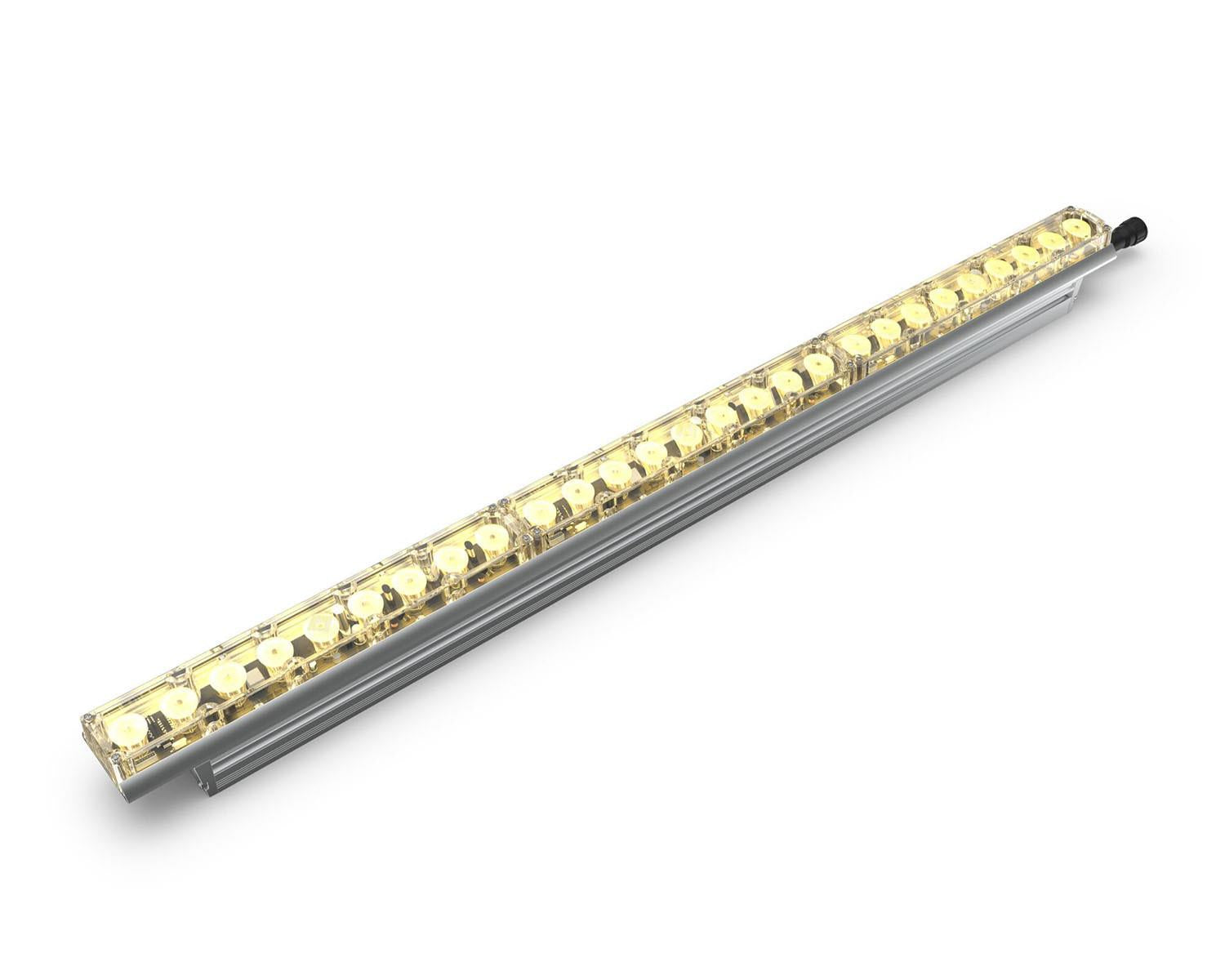

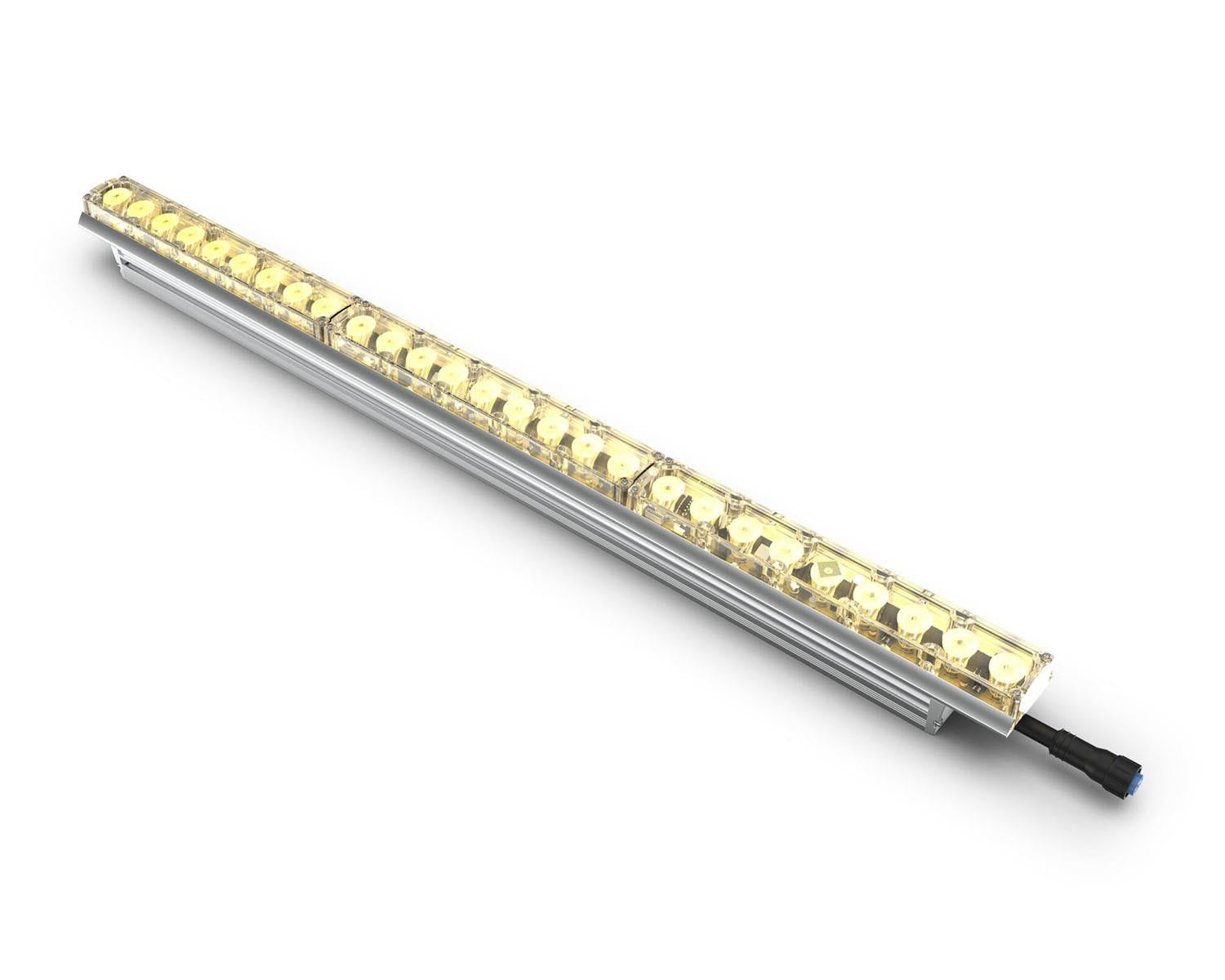

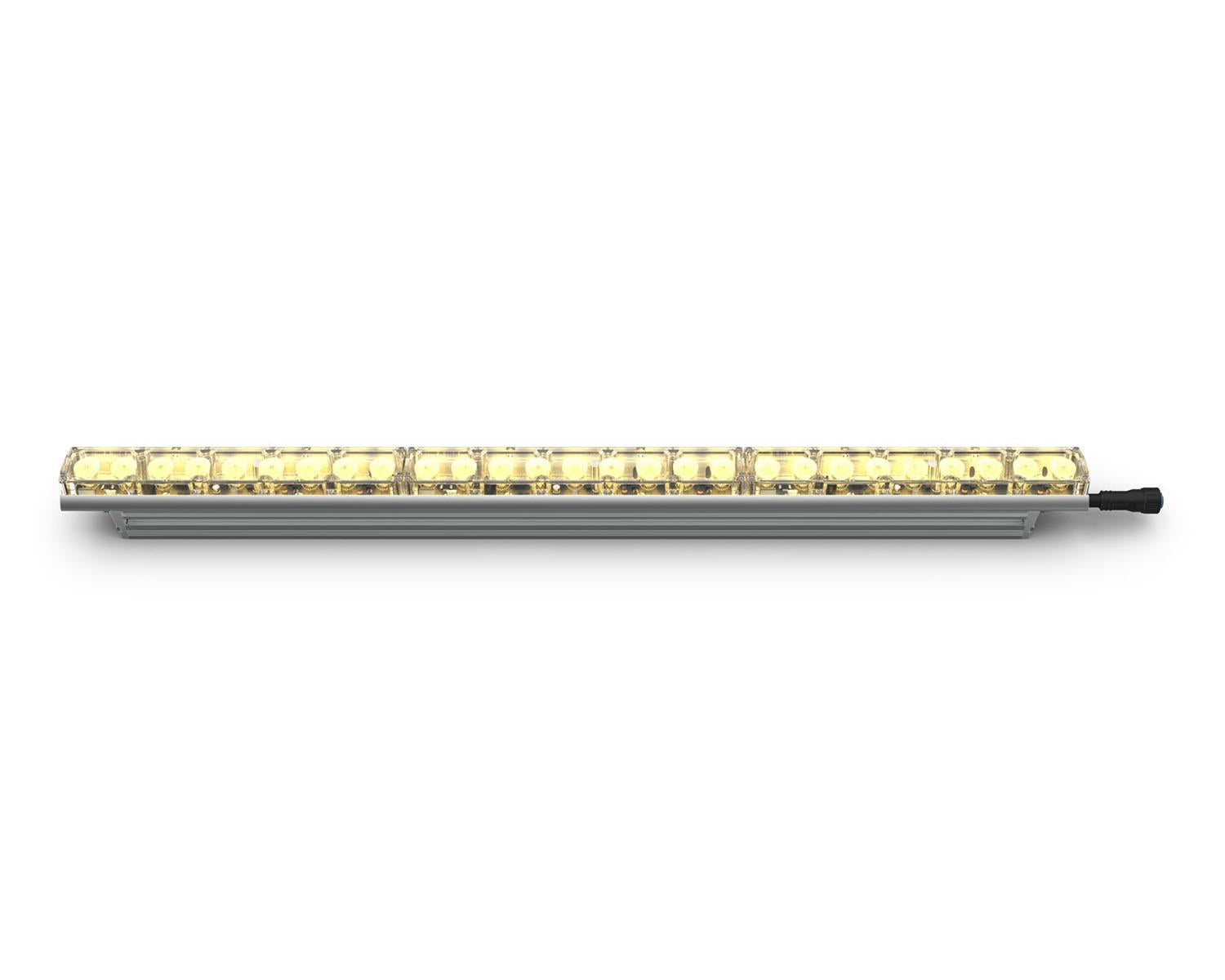

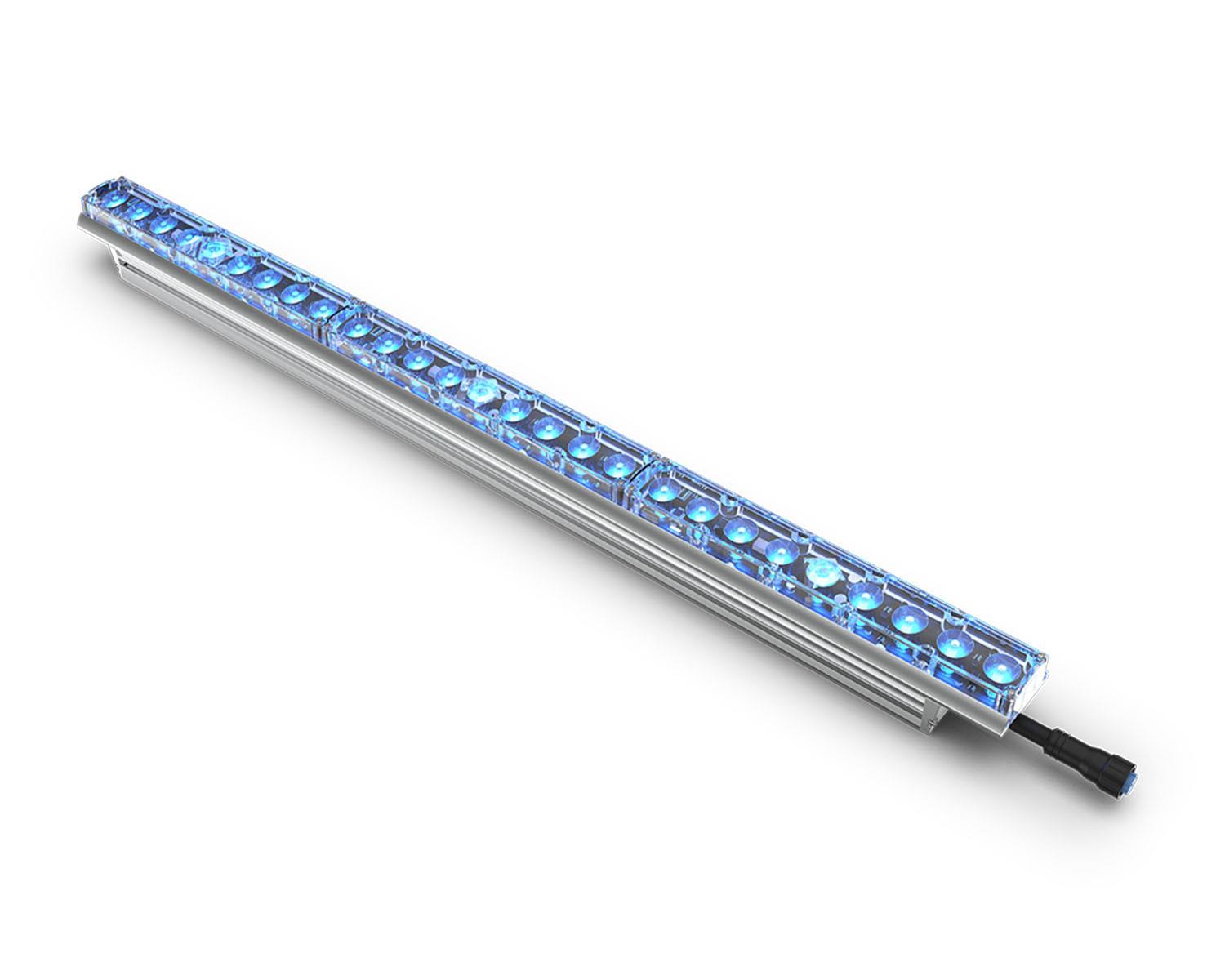

Chauvet Professional Ilumiline ML Outdoor-Rated Linear LED Batten 27x RGBL LEDs IP66

Description:

Ilumiline ML Outdoor-Rated Linear LED Batten 27x RGBL LEDs IP66

Ilumiline ML is an outdoor-rated linear battens with a sleek, low profile and RGBL color mixing. Like all Ilumi series products, it features plug-and-play installation with an optical system that delivers stunning, fully-mixed colors. The three-foot version is perfect for fitting into available space, while interchangeable, easy-to-install beam spread filters to help the fixture adapt to various applications and throw distances. Additionally, the lime emitter allows Ilumiline ML to create not only brilliant saturated colors, but crisp and clear whites to beautify any building, in any weather conditions.

Features:

4-in-1 RGBL Colour Mixing
Three Feet in Length
50,000 hour LED Lifespan
Beam angle: 13.3°, or change with optional Beam Filters
Illuminance: 752 lux @ 5 m
IP Rating: 66
Optional Beam Spread Filters can be applied without breaking IP Seal

Specifications:

Light Source and Optical Specifications
Light Source: 27 LEDs (quad-colour RGBL) 3.5 W, (200 mA)
Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications.
Installed Optics: 12°
Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
Beam Angle: 13.3°
Field Angle: 29.7°
Cutoff Angle: 49.9°
Lumens: 2,432
Base Illuminance: 752 lux @ 5 m
Efficacy @ Full: 34 lm/W (installed optics)
Colour Temperature Presets: 1,800K – 10,000 K
Construction & Physical Specifications
Dimensions: 36 x 3.03 x 3.43 in (915 x 77 x 87 mm)
Weight: 8.2 lb (3.8 kg)
Fixture Colour: Brushed aluminium
Housing Material: Extruded aluminium
Lens Cover: ABS plastic
Mounting Options: 2 Brackets
Control Specifications
Control Protocol: USITT DMX-512a, RDM
Operating Modes: Selectable personalitiesSolid (1-Channel)
Arc 1 (3-Channel)
Arc 1+D (4-Channel)
Arc 2 (4-Channel)
Arc 2+D (5-Channel)
Arc Full (8-Channel)
Special 1 (15-Channel)
Special 2 (9-Channel)
Standalone Control: Yes
Fixture setup: RDM Only
Data Connection: 3.7 ft (1.13 m) proprietary waterproof cable
Electrical System Specifications
Input Voltage: 100 to 277 VAC, 50/60Hz (auto-ranging)
Power and Current:66 W, .569 A @ 120 V, PF: 96
64 W, .338 A @ 230 V, PF: 83
65 W, .321 A @ 277 V, PF: 73
Power Supply: Electronic internal
Dimmer: Electronic
Power Linking: 18 units @ 120 V, 30 units @ 230 V, 32 units @ 277 V
Power Connection: 3.7 ft (1.13 m) Hardwire to Proprietary Waterproof cable
Recommended Power Cable: Power and Data Interface (14 AWG)
Total Max Cable Length (Interface to final fixture): 262 ft. (80 m)
Cable Connector Max Diameter: 1.18 in (30 mm)
Thermal Specifications
Cooling: Convection
Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Operating Temperature Range: -40 °F to 113 °F (-40°C to 45 °C)
Maximum Surface Temperature: 167 °F (75 °C)
Minimum Distance to Illuminated Surface: 3.28 ft (1 m)
Minimum Distance to Flammable Surface: .98 ft (.3 m)
BTU at various voltages:225 BTUs/hr @ 120 V, 60 Hz
222 BTUs/hr @ 208 V, 60 Hz
218 BTUs/hr @ 230 V, 50 Hz
222 BTUs/hr @ 277 V, 60 Hz
Regulatory & Voluntary Qualification
Certification Listings: UL, MET, CE, RoHS, FCC
Impact Resistance Rating: IK10
Vibration Rating: 3G
Wind Load Rating – EPA: .592 ft²
Environment: Dry/Damp/Wet location, IP66, All indoor and limited outdoor permanent installations.Please refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any, Vertical only, Horizontal only
