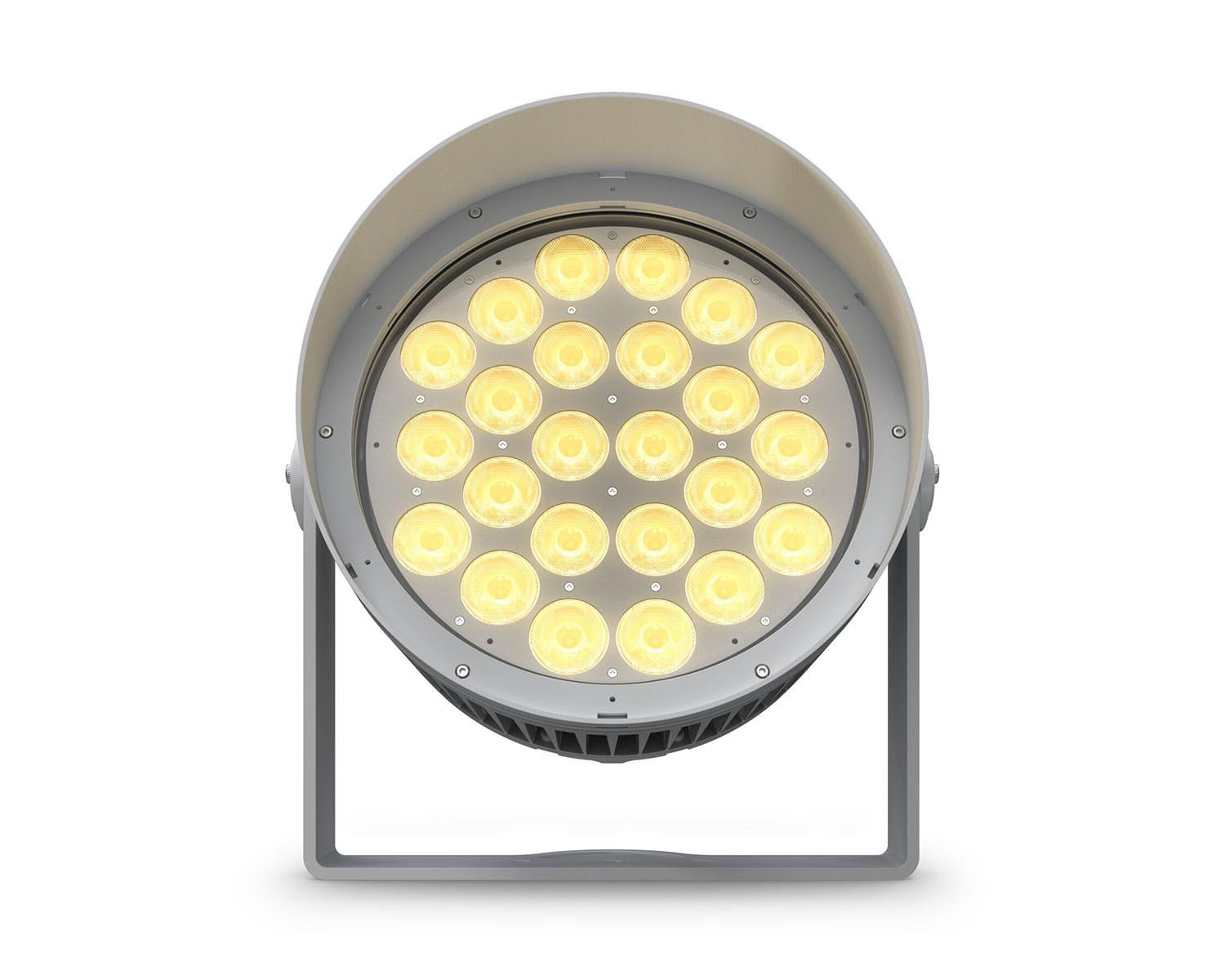

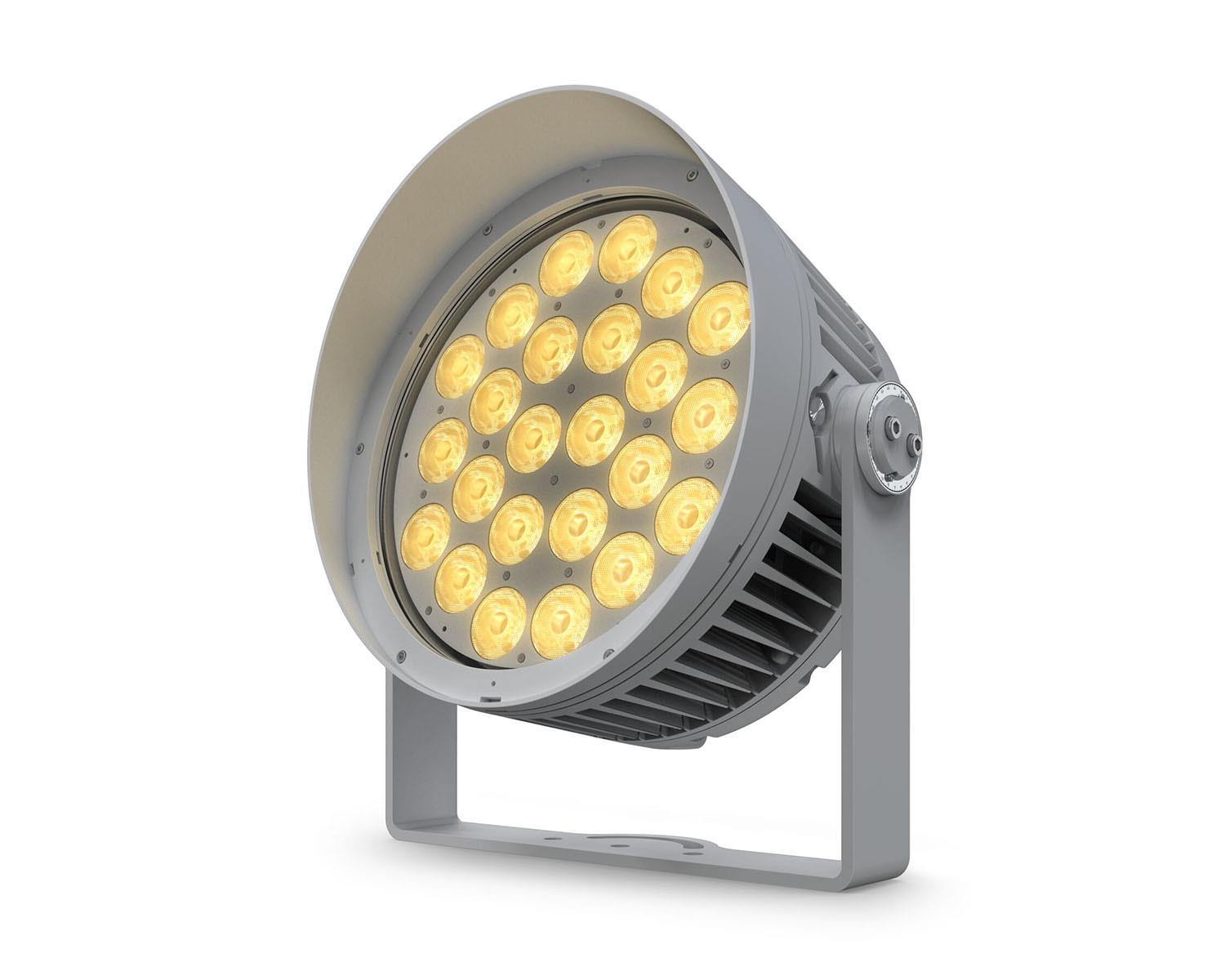

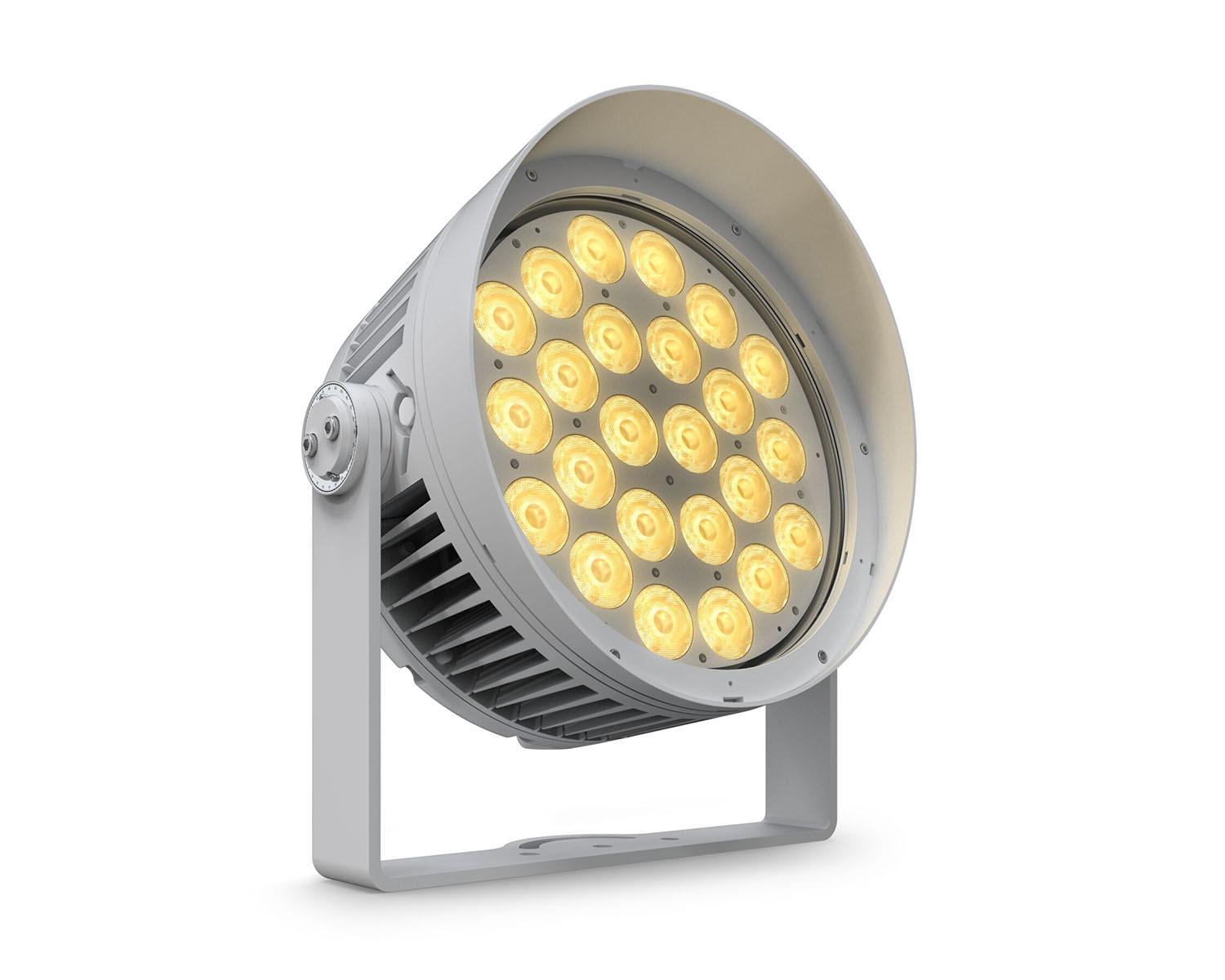

Chauvet Professional Ilumipod LL Outdoor-Rated LED Wash 24x 20W RGBL LEDs (IP67 rated)

Description:

Ilumipod LL from Iluminarc fuses plug-and-play installation with precision optics to create seamless splashes of light and color. Bringing energy to any architectural project in any weather conditions, it has a sleek, low-profile form factor and four-in-one LED optics. The advanced RGBL color mixing unlocks true whites from crisp and cool tones to warm incandescent ambers, as well as raucous, saturated shades.

Features:

4-in-1 RGBL Color Mixing
50,000 hour LED Lifespan
Beam Angle: 6.9º, or change with optional Beam Filters
Illuminance: 21,215 lux @ 5 m
IP Rating: 67
Integrated Yoke
Optional Beam Spread Filters can be applied without breaking IP Seal

Specifications:

Light Source & Optical Specifications
Light Source: 24 LEDs (quad-color RGBL) 20 W, (1A)
Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications.
Installed Optics: 6°
Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
Beam Angle: 6.9°
Field Angle: 12.7°
Cutoff Angle: 20°
Lumens: 11,664
Base Illuminance: 21,215 lux @ 5 m
Efficacy @ Full 35 lm/W
Color Temperature Presets: 1,800 K – 10,000 K
Construction & Physical Specifications
Dimensions: 16.65 x 11.18 x 17.44 in (423 x 284 x 443 mm)
Weight:  38.6 lb (17.5 kg)
Fixture Color: Off white
Housing Material: Cast aluminum
Lens Cover: Impact resistant glass
Mounting Options: Bracket, hole diameter 13M
Control Specifications
Control Protocol: USITT DMX-512a, RDM
Operating Modes: Selectable personalitiesSOLID (1-channel)
ARC 1 (3-channel)
ARC 1+D (4-channel)
ARC 2 (4-channel)
ARC 2+D (5-channel)
ARC FULL (8-channel)
SPECIAL 1 (11-channel)
SPECIAL 2 (9-channel)
Standalone Control: Yes
Fixture setup: RDM Only
Recommended control cable specification: Gepco DLC224
Data Connection: 6.25 ft (1.9 m) Waterproof cable Bare-wired to hard-wired
Electrical System Specifications
Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
Power and Current:278 W, 2.37 A @ 120 V, 60 Hz, PF 0.98
265 W, 1.41 A @ 208 V, 60 Hz, PF 0.92
260 W, 1.28 A @ 230 V, 50 Hz, PF 0.91
322 W, 1.39 A @ 277 V, 60 Hz, PF 0.83
Power Supply: Electronic internal
Dimmer: Electronic
Power Connection: 6.25 ft (1.9 m) Waterproof cable bare wired to hard-wired
Recommended Power Cable: 14 AWG (3x 2.08 mm2)
Thermal Specifications
Cooling: Convection
Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
Maximum Surface Temperature: 167 °F (75 °C)
Minimum Distance to Illuminated Surface: 3.28 ft (1 m)
Minimum Distance to Flammable Surface: 0.98 ft (0.3 m)
BTU Ratings:949 BTUs/hr @ 120 V, 60 Hz
904 BTUs/hr @ 208 V, 60 Hz
887 BTUs/hr @ 230 V, 50 Hz
1099 BTUs/hr @ 277 V, 50 Hz
Regulatory & Voluntary Qualification
Certification Listings: MET, CE, RoHS, FCC, CB
Impact Resistance Rating: IK10
Vibration Rating: 3G
Wind Load Rating – EPA: 1.324 ft²
Environment: IP67, outdoor/wet, with pressure equalizing M12 GORE valvePlease refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any
