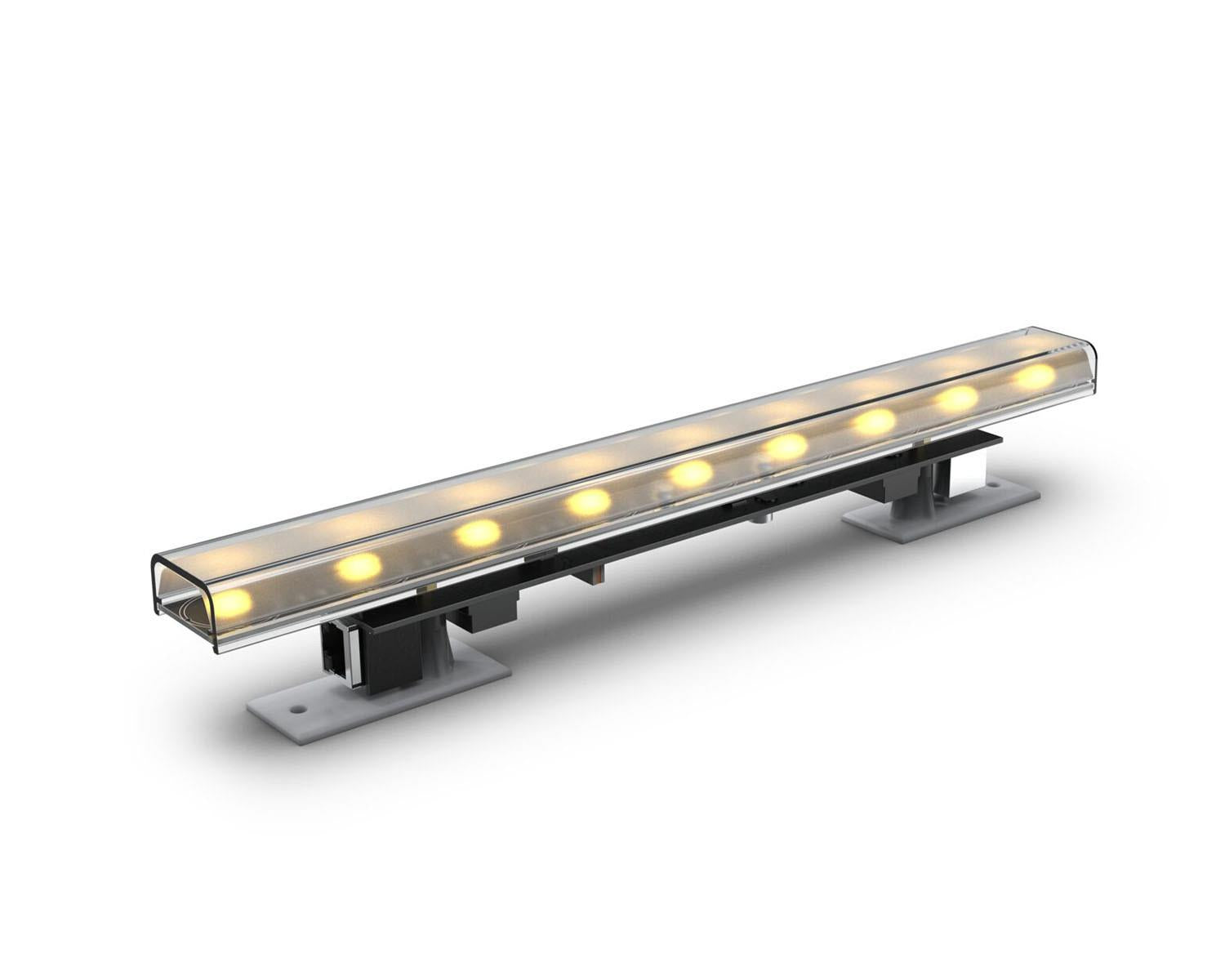

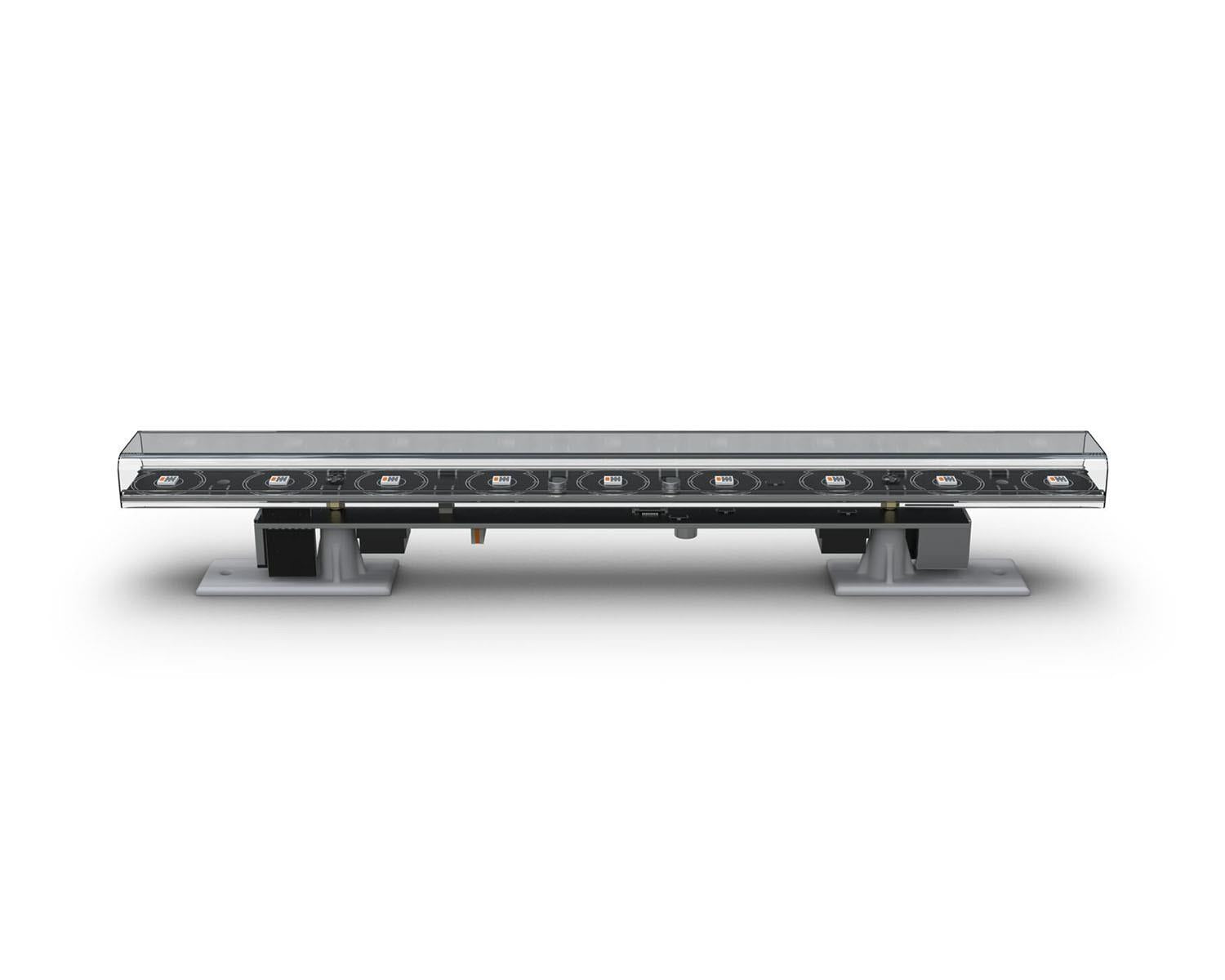

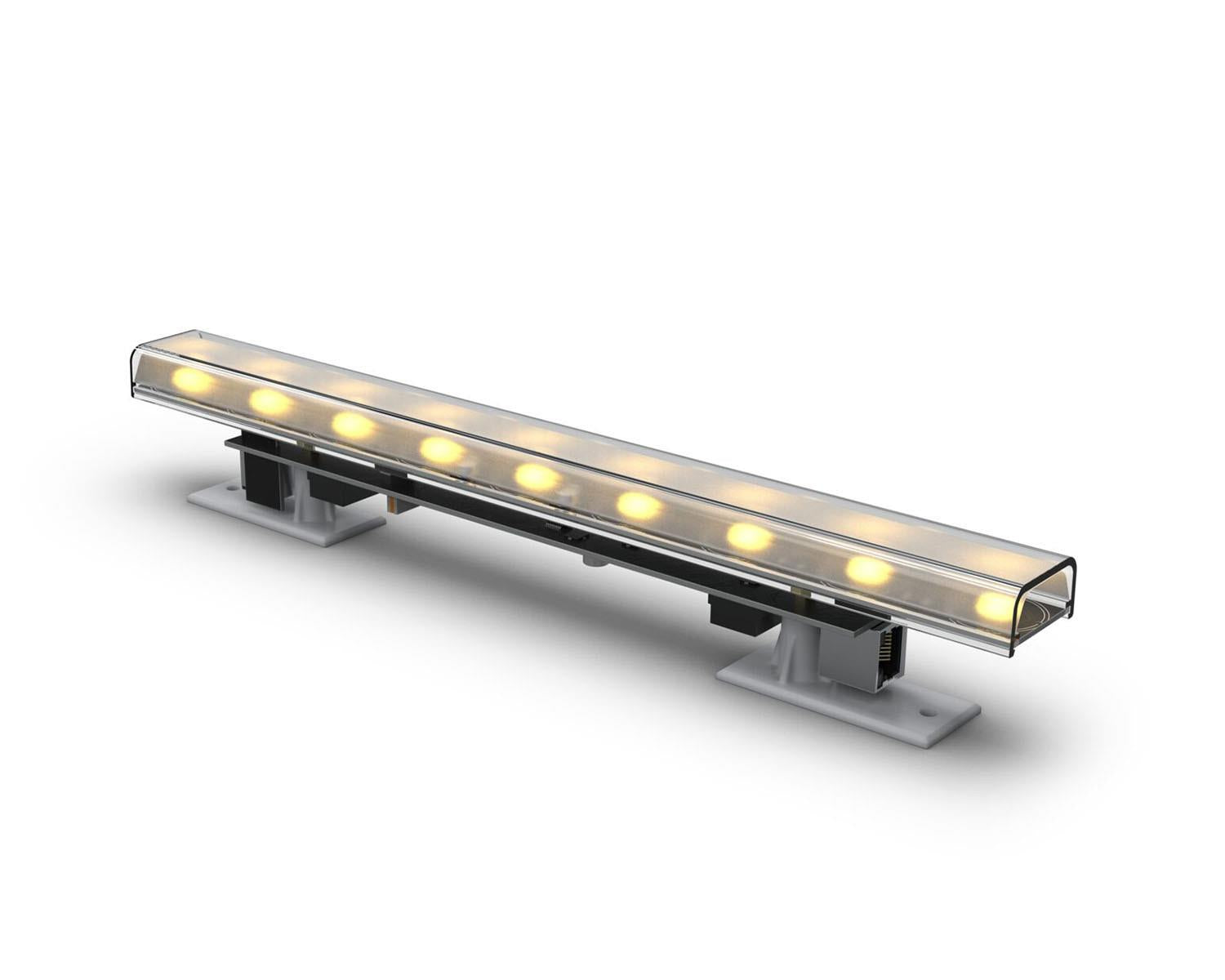

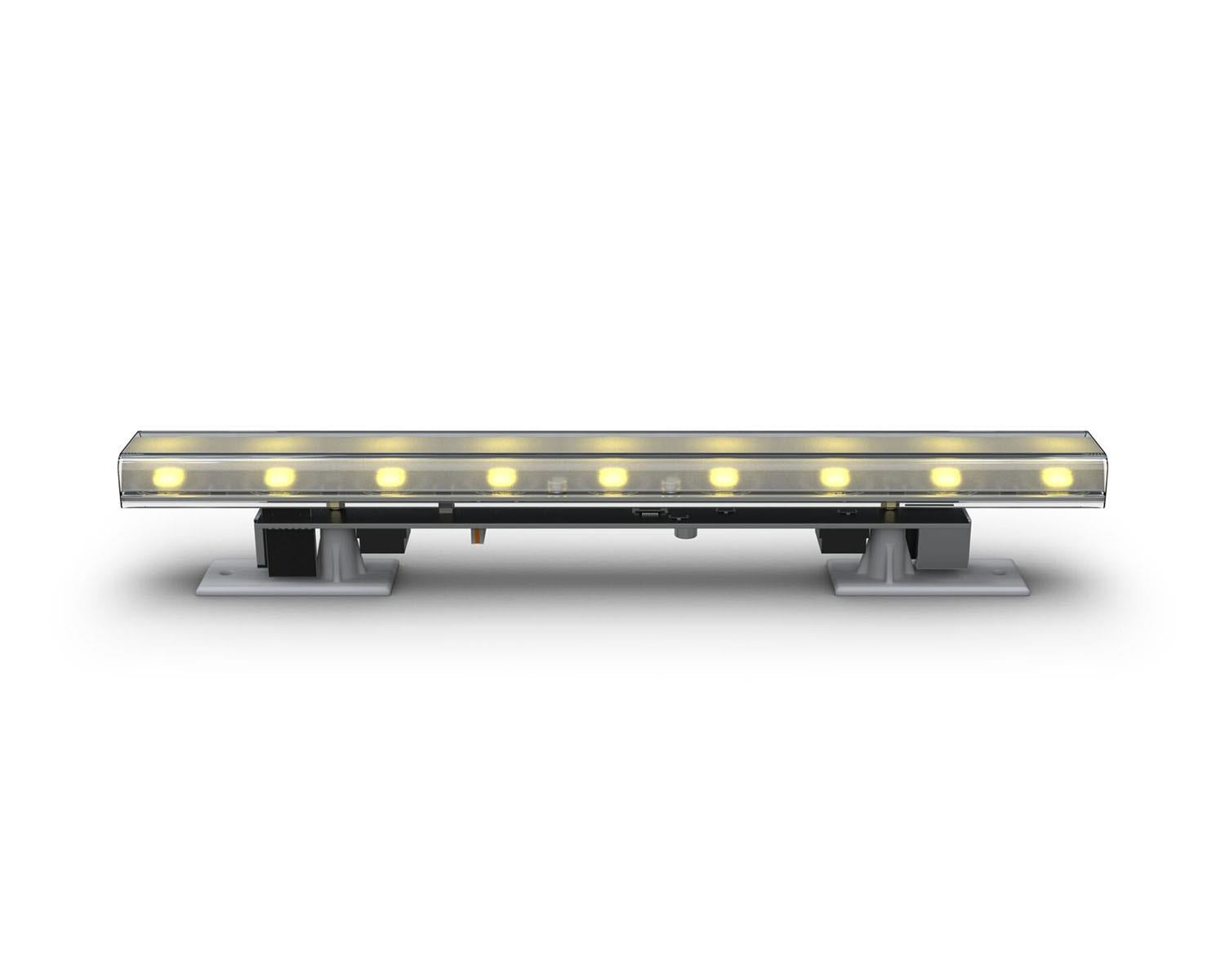

Chauvet Professional Logic Cove Small, LED Batten 9x RGBW LED 2.5W 492 Lumen Output

Description:

Logic Cove S 0.3m LED Batten 9x RGBW LED 2.5W 492 Lumen Output

Iluminarc Logic Cove S is a sleek and discreet architectural batten designed for permanent installation into tight spaces, behind decorative elements, or anywhere an accent of illumination is needed. With its four color RGBW system, Cove can provide everything from a soft and pleasing incandescent glow to bold pops of bright, saturated color. Cove uses Power Over Ethernet (POE) to keep cabling efficient and clean, and supports daisy-chaining using widely available Ethernet cable.

Features:

Light Source: 9 Quad-color RGBW LEDs at 2.5W
LED Lifespan: 50,000 hours
Native Beam Angle (Horizontal): 121.2º
Lumen Output: 492
Color Temperature Presets: 1,800K to 10,000K
Control: Logic Drive 2X (required)

Specifications:

Light Source and Optical Specifications
Light Source: 9 LEDs (quad-color RGBW) 2.5 W, (870 mA)
Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications
White LED Native CCT: 3000 K
Installed Optics: Very Wide Filter
Open Optics:Beam Angle (Horizontal) 121.2°
Beam Angle (Vertical) 122.1°
Field Angle (Horizontal) 165.1°
Field Angle (Vertical) 165.9°
Cutoff Angle 187.1°
Lumens: 492
Base Illuminance @ 5 m: 6 lux
Efficacy: 36.5 lm / W
 Very Wide Filter (installed)Beam Angle (Horizontal): 142.6°
Beam Angle (Vertical): 138.7°
Field Angle (Horizontal): 243.1°
Field Angle (Vertical): 170.5°
Cutoff angle: 291.8°
Lumens: 373
Base Illuminance @ 5 m: 3 lux
Efficacy: 41 lm / W
Color Temperature Presets: Built-in, 1,800 to 10,000 K
Construction & Physical Specifications
Dimensions: 12 x 1.22 x 1.81 in (305 x 31 x 46 mm)
Weight: 0.2 lb (0.1 kg)
Lens Cover: Clear Polycarbonate
Mounting Options: Integrated mounting bracket, 0.157 in (4 mm) bracket holes
Control Specifications
Control Protocol: USITT DMX-512a, RDM, Art-Net, Art-RDM, sACN via Logic Drive 2X
Operating Modes Selectable personalities, via Logic Drive 2X:Red (1-channel) Red
Green (1-channel) Green
Blue (1-channel) Blue
White (1-channel) White
TW (2-channel) Dimmer, White CCT Preset
RGB (3-channel) Red, Green, Blue
RGBW (4-channel) Red, Green, Blue, White
RGBW+D (5-channel) Red, Green, Blue, White, Dimmer
FULL (10-channel) Dimmer, Red, Green, Blue, White, White CCT Presets,
Standalone Control: Yes, Logic Wall Con via Logic Drive 2X
Fixture setup: Logic Drive 2X (RDM, Webserver or Display), Art-RDM (DMX Workshop)
Electrical System Specifications
Input Voltage: 52-56 VDCPower and Current (fixture via POE): 9.3 W
Power Supply: POE++, IEEE 802.3bt, type 4, class 8 (via Logic Drive 2X)
Dimmer: Electronic
Power Linking: 8 units per port via POE++, IEEE 802.3bt, type 4
Power/Data Connection: 2 Ethernet (RJ45)
Required Cable SpecificationsCable type: CAT6/A, Shielded
Conductor Diameter: ≥23 AWG (≥0.5733 mm)
Conductor Material: Solid Bare Copper Wire (stranded not supported)
Cable Terminator: RJ45, CAT6/A, Shielded
Cable Length(s) SupportedTotal Max Cable Length (drive to first fixture): ≤100 m / 328 ft
Total Max Cable Length (drive to last fixture): ≤140 m / 460 ft
Total Max Cable Length (first fixture to last fixture): ≤40 m / 131 ft
Recommended Cable (or equivalent): Belden 2413F, 2412F
Thermal Specifications
Cooling: Convection
Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Maximum Surface Temperature: 158 °F (70 °C)
Minimum Distance to Flammable Surface: 11.8 in (0.3 m)
BTU/hr: 31.7
Regulatory & Voluntary Qualification
US Safety: UL 2108, UL 1598A
Canadian Safety: CSA-C22.2 No 250.2
Certification Listings: CE, MET, FCC, ROHS
Environment: Dry location, IP20, All indoor permanent installations.Please refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any
