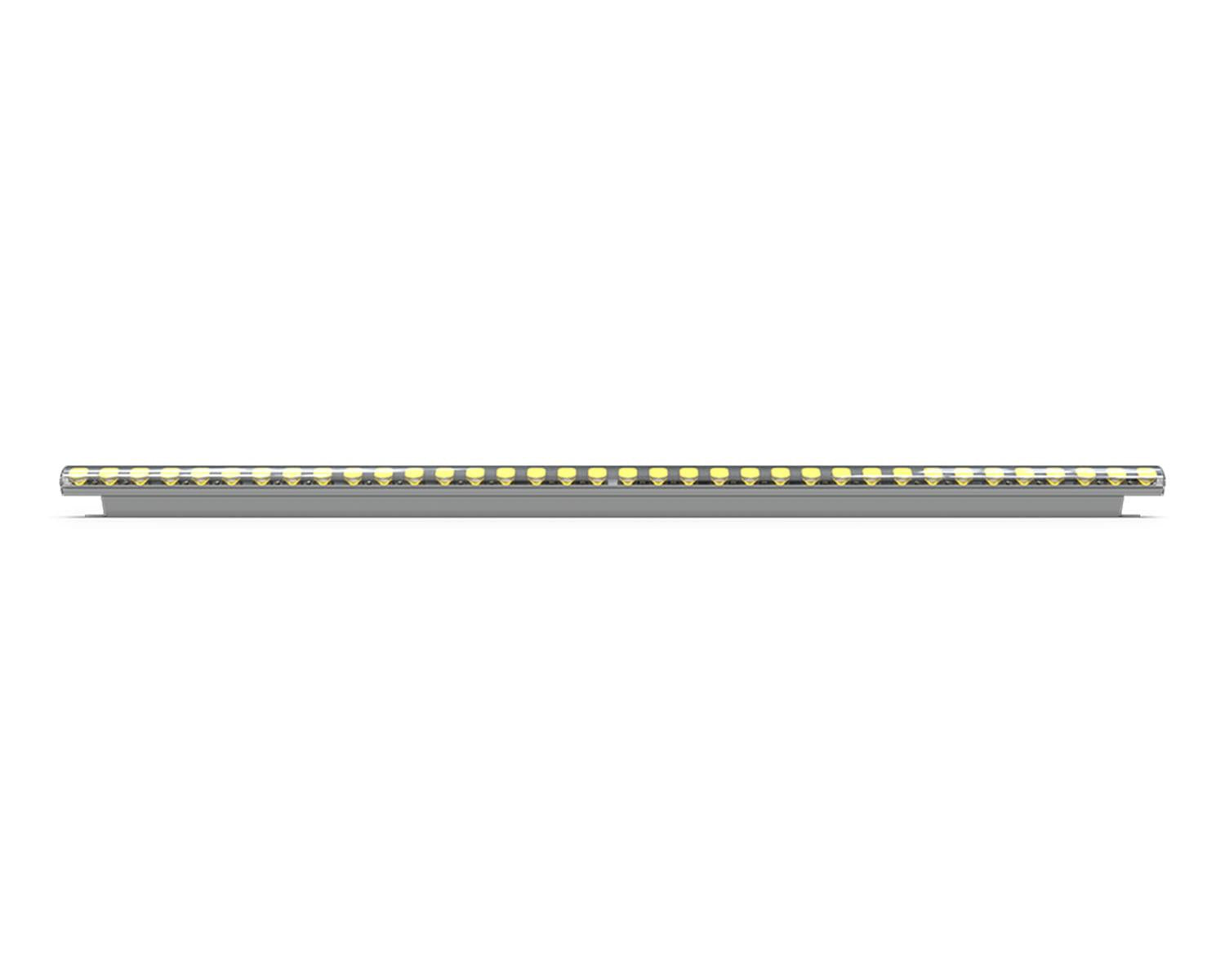

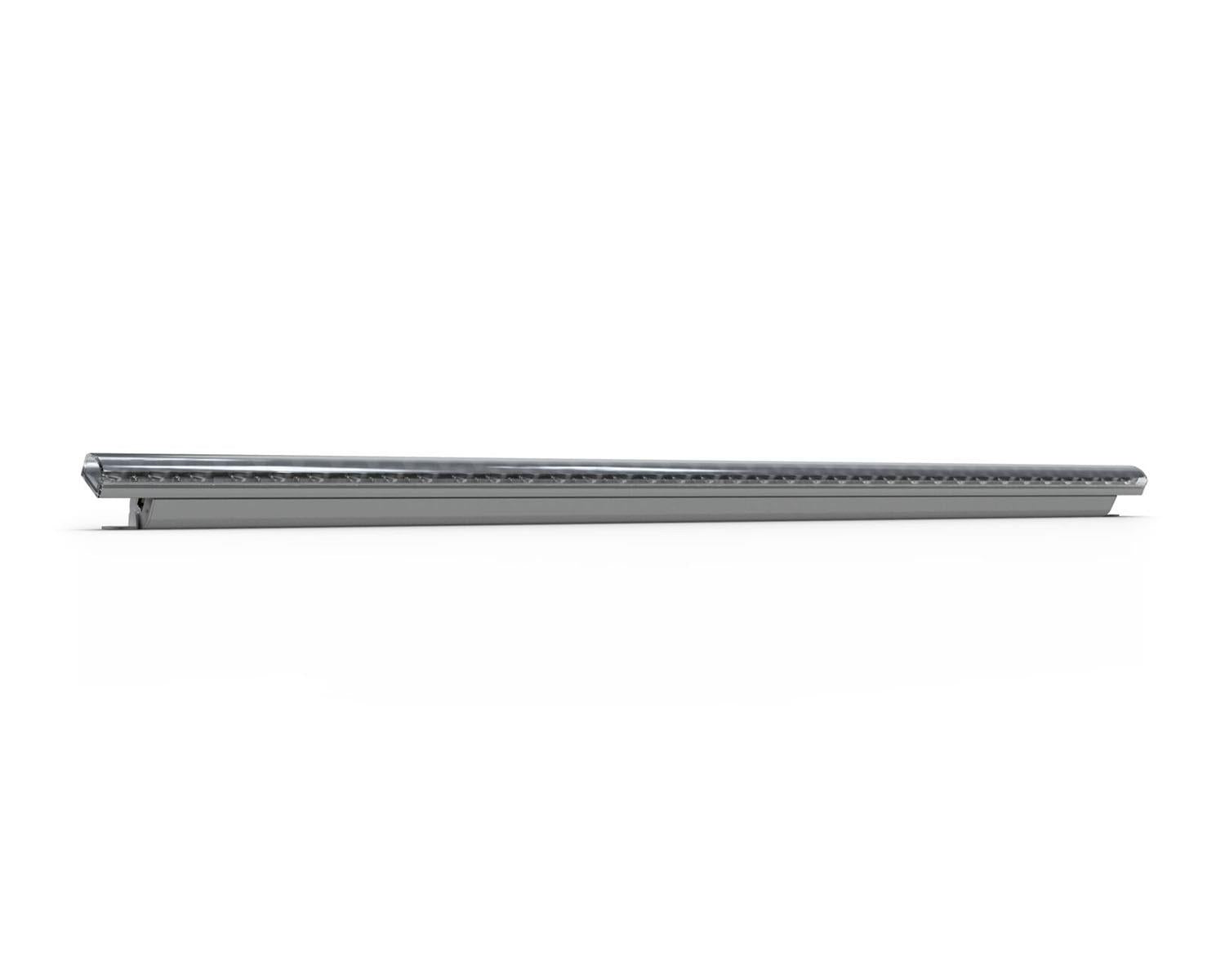

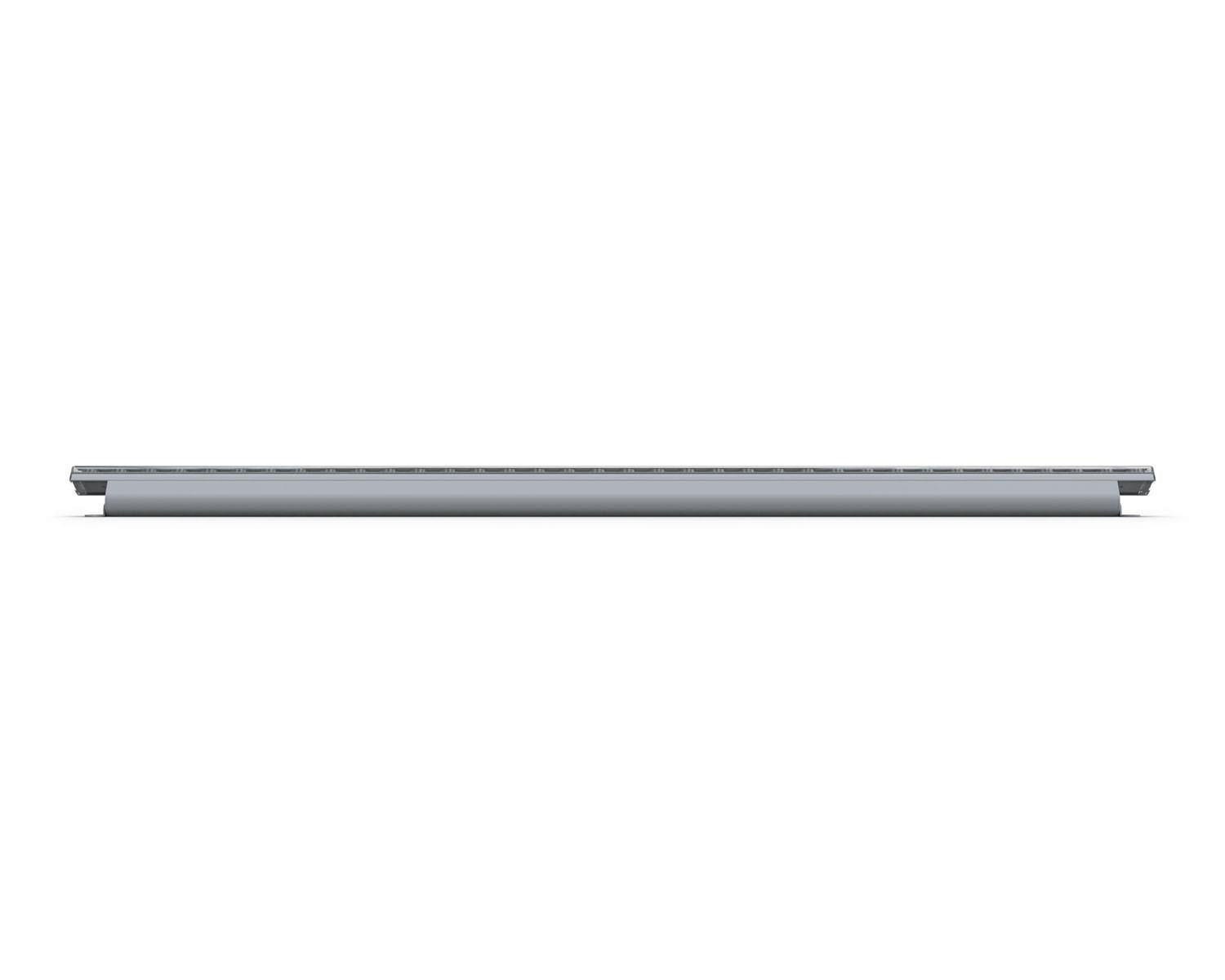

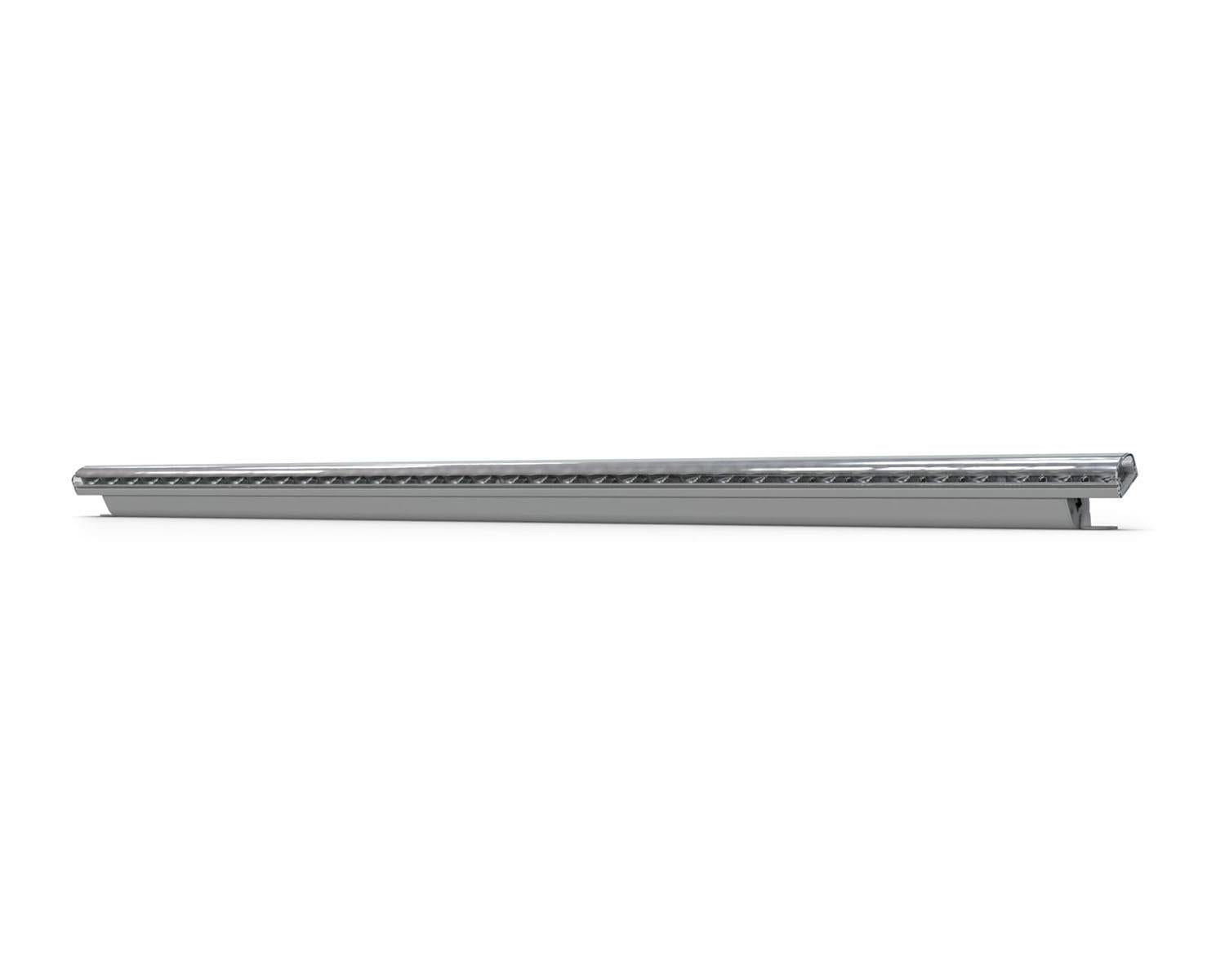

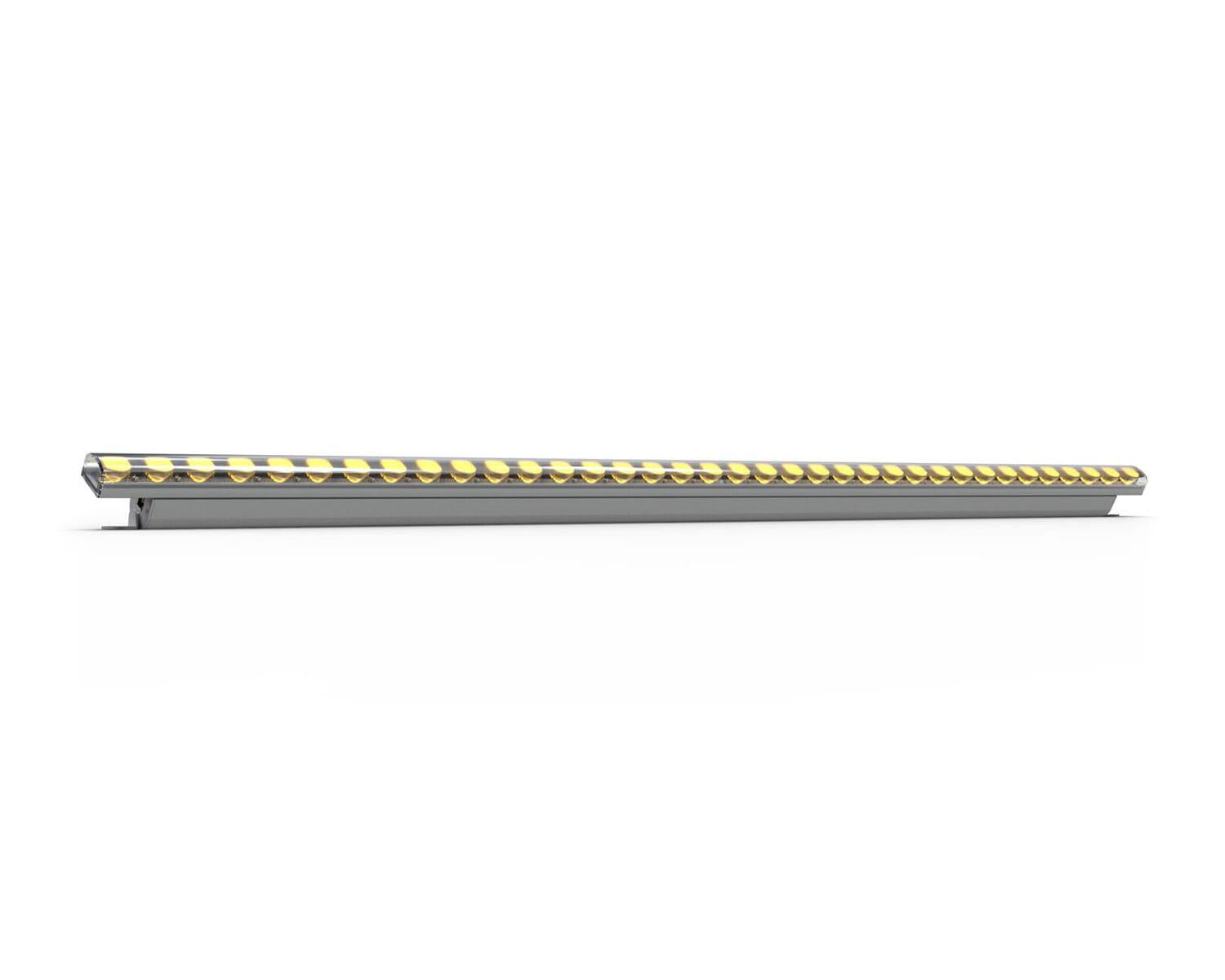

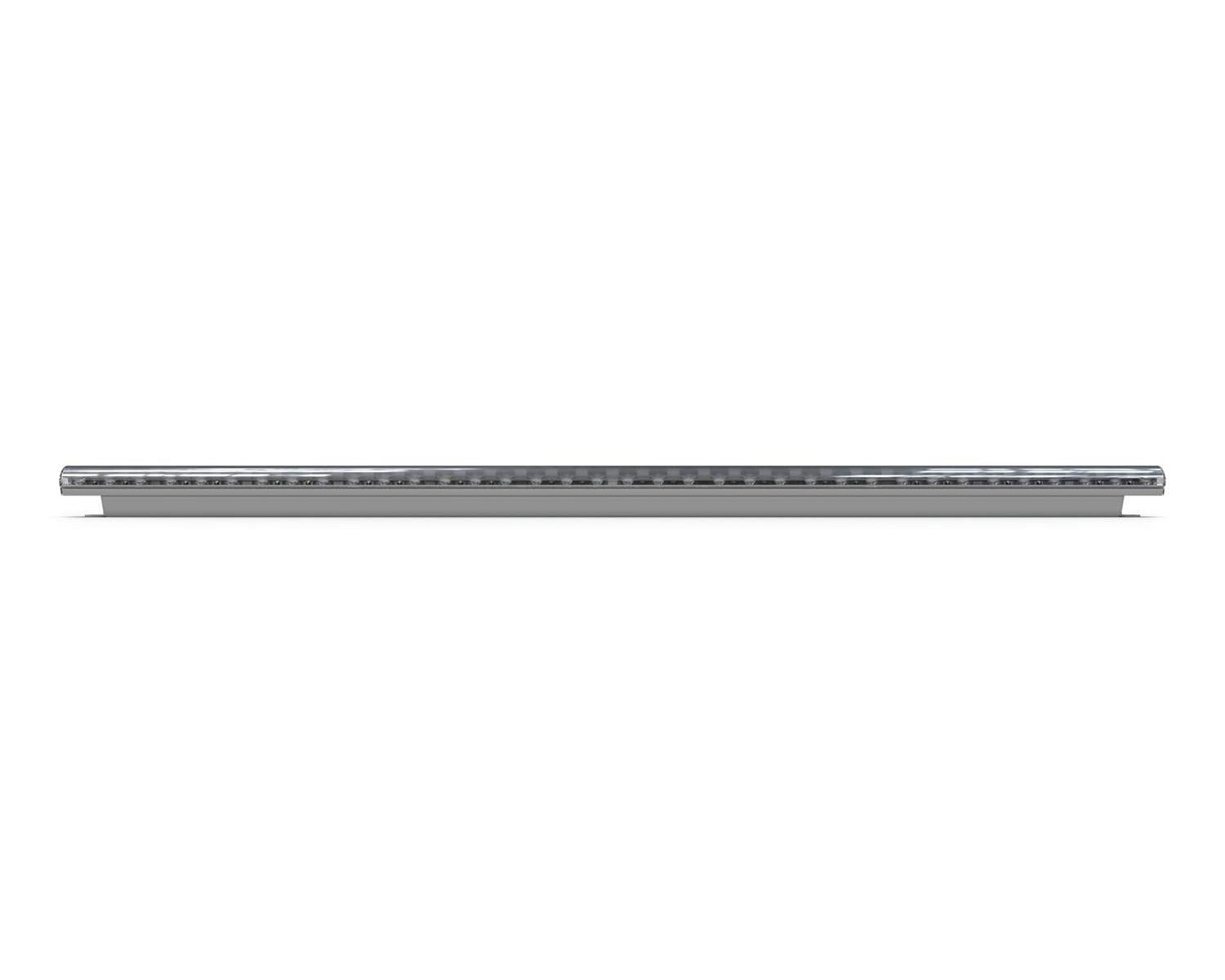

Chauvet Professional Logic Graze Large, 1.2m LED Batten 36x RGBW LED 2.5W, 3014 Lumen

Description:

Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output

Iluminarc Logic Graze, part of the Logic Lighting System, is a compact and streamlined wall wash batten for permanent installation. With up to a twenty-foot throw distance, this RGBW fixture is perfect for fitting into tight spaces. Able to wash large sections of walls in bright yet even washes of beautiful color, its four-color system can produce the deepest saturates to the subtlest shades of white. Graze uses Power Over Ethernet (POE) to keep cable runs to multiple fixtures clean and tidy, with all fixtures supporting simple daisy-chaining with widely-available Ethernet cable.

Features:

Light Source: 36 Quad-color RGBW LEDs at 2.5W
LED Lifespan: 50,000 hours
Native Beam Angle: 124.8º
Lumen Output: 3,014
Color Temperature Presets: 1,800K to 10,000K
Control: Logic Drive 2X (required)
Lens Material: Clear Polycarbonate

Specifications:

Light Source and Optical Specifications
Light Source: 36 LEDs (quad-color RGBW) 2.5 W, (870 mA)
Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications
White LED Native CCT: 3000 K
Installed Optics: Medium
Included Optics: Very Wide Filter
Open OpticsBeam Angle (Horizontal): 124.8°
Beam Angle (Vertical): 124.7°
Field Angle (Horizontal): 147.7°
Field Angle (Vertical): 169.2°
Cutoff angle: 266.2°
Lumens: 3,014
Base Illuminance @ 5 m: 36 lux
Efficacy: 81 lm / W
Medium Optics (installed)Beam Angle (Horizontal): 41.5°
Beam Angle (Vertical): 32.5°
Field Angle (Horizontal): 83.6°
Field Angle (Vertical): 65°
Cutoff angle: 132.7°
Lumens: 2,421
Base Illuminance @ 5 m: 146 lux
Efficacy: 65 lm / W
Very Wide filter (included)Beam Angle (Horizontal): 47.2°
Beam Angle (Vertical): 51.1°
Field Angle (Horizontal): 169.5°
Field Angle (Vertical): 151.8°
Cutoff angle: 281.6°
Lumens: 1,911
Base Illuminance @ 5 m: 41 lux
Efficacy: 51 lm / W
Color Temperature Presets: Built-in, 1,800 to 10,000 K
Construction & Physical Specifications
Dimensions: 47.99 x 1.37 x 2.36 in (1,219 x 35 x 60 mm)
Weight: 4.19 lb (1.9 kg)
Fixture Color: White
Housing Material: Aluminum (ADC12)
Lens Cover: Clear Polycarbonate
Mounting Options: Integrated mounting bracket, 0.827 x 240 in (21 x 6.10 mm) bracket holes
Control Specifications
Control Protocol: USITT DMX-512a, RDM, Art-Net, Art-RDM, sACN via Logic Drive 2X
Operating Modes: Selectable personalities, via Logic Drive 2X Red (1-channel): Red
Green (1-channel): Green
Blue (1-channel): Blue
White (1-channel): White
TW (2-channel): Dimmer, White CCT Preset
RGB (3-channel): Red, Green, Blue
RGBW (4-channel): Red, Green, Blue, White
RGBW+D (5-channel): Red, Green, Blue, White, Dimmer
FULL (10-channel): Dimmer, Red, Green, Blue, White, White CCT presets, Strobe, Auto Programs, Dimmer speed presets
Standalone Control: Yes, Logic Wall Con via Logic Drive 2X
Fixture setup: Logic Drive 2X (RDM, Webserver or Display), Art-RDM (DMX Workshop)
Electrical System Specifications
Input Voltage: 52-56 VDC
Power and Current (fixture via POE): 37.5 W
Power Supply: POE++, IEEE 802.3bt, type 4, class 8 (via Logic Drive 2X)
Dimmer: Electronic
Power Linking: 2 units per port via POE++, IEEE 802.3bt, type 4
Power/Data Connection: 2 Ethernet (RJ45)
Required Cable SpecificationsCable type: CAT6/A, Shielded
Conductor Diameter: ≥23 AWG (≥0.5733 mm)
Conductor Material: Solid bare copper wire (stranded not supported)
Cable Terminator: RJ45, CAT6/A, shielded
Cable Length(s) Supported:Total Max Cable Length (Drive to first fixture)≤100 m / 328 ft
Total Max Cable Length (Drive to last fixture): ≤140 m / 460 ft
Total Max Cable Length (first fixture to last fixture): ≤40 m / 131 ft
Recommended Cable (or equivalent): Belden 2413F, 2412F
Thermal Specifications
Cooling: Convection
Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Maximum Surface Temperature: 158 °F (70 °C)
Minimum Distance to Flammable Surface: 11.8 in (0.3 m)
BTU/hr: 128
Regulatory & Voluntary Qualification
UL 2108, UL 1598A
Canadian Safety: CSA-C22.2 No. 250.2
Certification Listings: CE, MET, FCC, ROHS
Environment: Dry location, IP20, All indoor permanent installations.Please refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any
