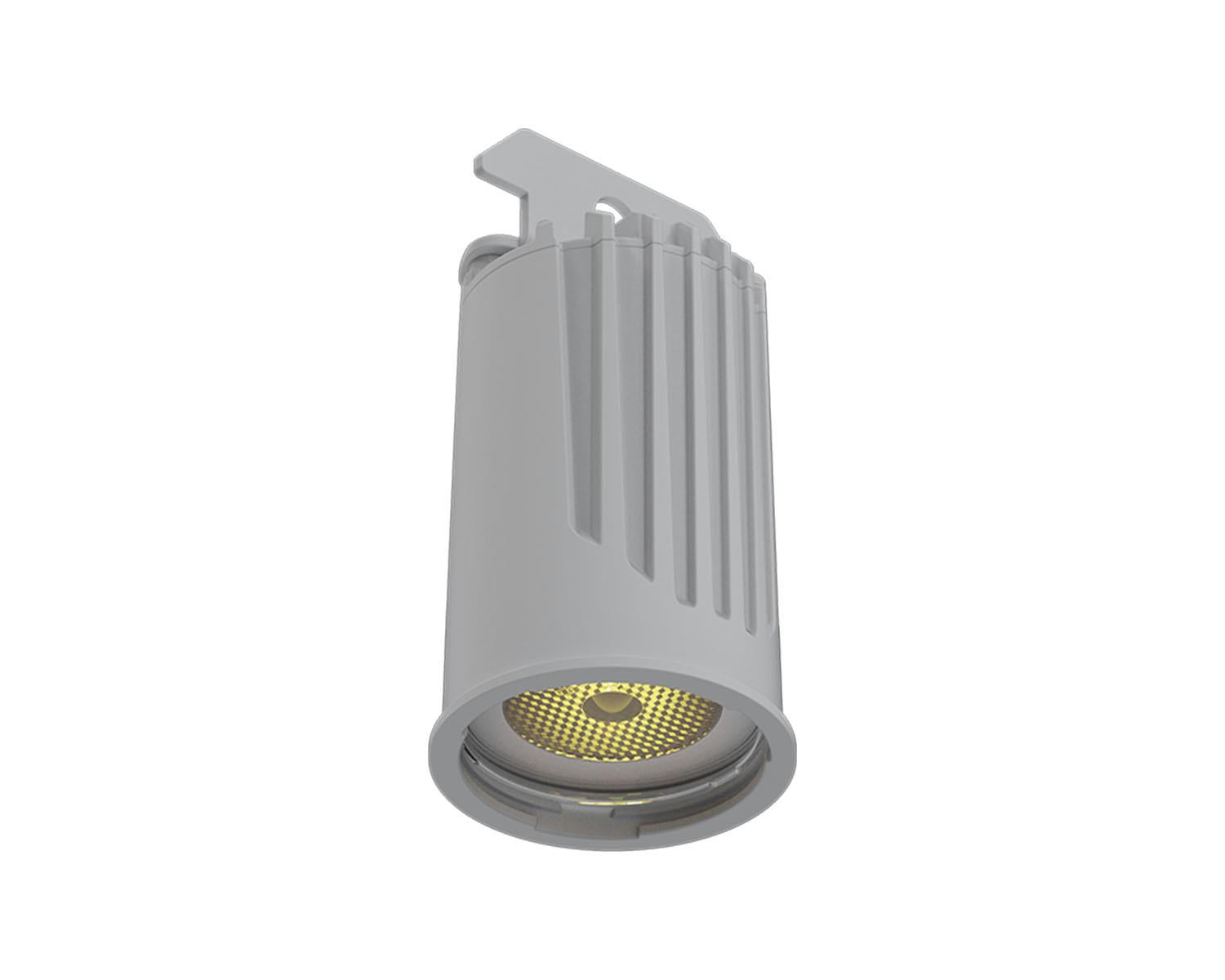

Chauvet Professional Logic MR16 Downlight - Small RGBW LED 10W White

The Iluminarc Logic MR16 DN wash downlight with a high-quality RBGW color mix system for use in permanent architectural installations. Fits into a variety of situations and spaces, the MR16 DN features high-quality dimming and amazing ease of installation. With Power Over Ethernet technology, only one cable is needed per fixture, and users can daisy-chain multiple fixtures together, making deployment fast and easy.

Features:

1 Quad-color RGBW LED at 10 W
LED Lifespan: 50,000 hours
Native Beam Angle: 30.9º
Optics Included: Medium Filter (35º), Wide Filter (60º), and Honeycomb Filter
Lumen Output: 266
Color Temperature Presets: 1,800K to 10,000K
Control: Logic Drive 2X (required), Logic POE X (required)
Lens Material: Frosted Polycarbonate
Fixture Color: White

Specifications:

Light Source and Optical Specifications
1 LEDs (quad-color RGBW) 10 W, (4.375 A)
Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications.
White LED Native CCT: 3000 K
Installed Optics: Medium Filter
Included Optics: Wide Filter
Standard Optics:Beam Angle: 30.9°
Field Angle: 59.7°
Cutoff angle: 82.8°
Lumens: 266
Base Illuminance @ 5 m: 29 lux
Efficacy: 32 lm / W
Medium Filter (installed):Beam Angle: 40.4°
Field Angle: 81.7°
Cutoff angle: 148.9°
Lumens: 194
Base Illuminance @ 5 m: 11 lux
Efficacy: 23 lm / W
Medium Filter with Honeycomb Filter (installed):Beam Angle: 33.6°
Field Angle: 63.9°
Cutoff angle: 84.7°
Lumens: 98.3
Base Illuminance @ 5 m: 9 lux
Efficacy: 12 lm / W
Wide Filter (included)Beam Angle: 41.8°
Field Angle: 105.5°
Cutoff angle: 154.3°
Lumens: 182
Base Illuminance @ 5 m: 8 lux
Efficacy: 22 lm / W
Wide Filter with Honeycomb Filter (included):Beam Angle: 34.2°
Field Angle: 64.3°
Cutoff angle: 90°
Lumens: 83.1
Base Illuminance @ 5 m: 8 lux
Efficacy: 10 lm / W
Color Temperature Presets: Built-in, 1,800 to 10,000 K
Construction & Physical Specifications
Dimensions: 1.96 x 1.96 x 4.59 in (50 x 50 x 116.80 mm)
Weight: 0.39 lb (0.18 kg)
Fixture Color: White
Housing Material: Aluminum (ADC12)
Lens Cover: Frosted Polycarbonate
Mounting Options: Logic MR16 Trim Ring, Logic MR16 Mounting Kit
Control Specifications
Control Protocol: USITT DMX-512a, RDM, Art-Net, Art-RDM, sACN via Logic Drive 2X
Operating Modes: Selectable personalities, via Logic Drive 2X and POE XRed (1-channel) Red
Green (1-channel) Green
Blue (1-channel) Blue
White (1-channel) White
TW (2-channel) Dimmer, White CCT Preset
RGB (3-channel) Red, Green, Blue
RGBW (4-channel) Red, Green, Blue, White
RGBW+D (5-channel) Red, Green, Blue, White, Dimmer
FULL (10-channel) Dimmer, Red, Green, Blue, White, White CCT Presets, Strobe, Auto Programs, Dimmer Speed Presets
Standalone Control: Yes, Logic Wall Con via Logic Drive 2X and POE X
Fixture setup: Logic Drive 2X and POE X (RDM, webserver or display), Art-RDM (DMX Workshop)
Electrical System Specifications
Input Voltage: 52 VDC, DMX/RDM (via Logic POEX)
Power and Current: 8.3 W
Power Supply: Logic POE X (52 VDC)
Dimmer: Electronic
Power Linking: 8 units via Logic POE X

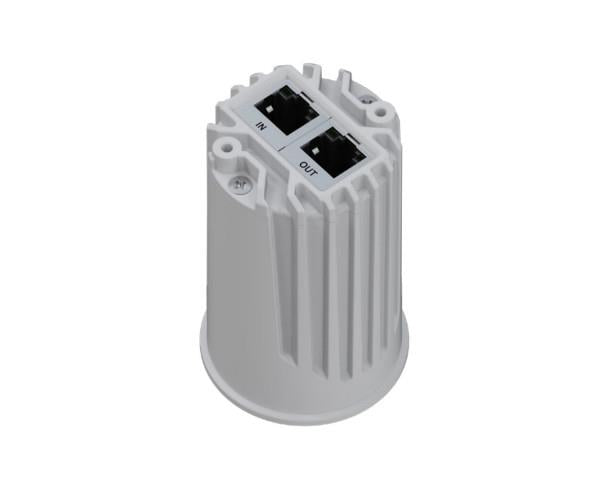

Power/Connection: 2 Ethernet (RJ45)
Required Cable SpecificationsCable type: CAT6/A, Shielded
Conductor Diameter: ≥23 AWG (≥0.5733 mm)
Conductor Material: Solid Bare Copper Wire (stranded not supported)
Cable Terminator: RJ45, CAT6/A, Shielded
Cable Length(s) SupportedTotal Max Cable Length (Drive to POE X) ≤100 m / 328 ft
Total Max Cable Length (POE X to first fixture) ≤15.24 m / 50 ft
Total Max Cable Length (first fixture to last fixture) ≤46m / 150 ft
Total Max Cable Length (Drive to last fixture) ≤145 m / 475 ft
Recommended Cable (or equivalent):  Belden 2413F, 2412F
Thermal Specifications
Cooling: Convection
Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Maximum Surface Temperature: 158 °F (70 °C)
Minimum Distance to Flammable Surface: 11.8 in (0.3 m)
BTU/hr: 8.3
Regulatory & Voluntary Qualification
US Safety: UL 2108, UL 1598A
Canadian Safety: CSA-C22.2 No. 250.2
City of Chicago Electric Code Safety: Chicago Plenum (CCEA), Section 18-27-300.22(c)(2)
Certification Listings: CE, MET, FCC, ROHS
Environment: Dry location, IP20, All indoor permanent installations.Please refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any
