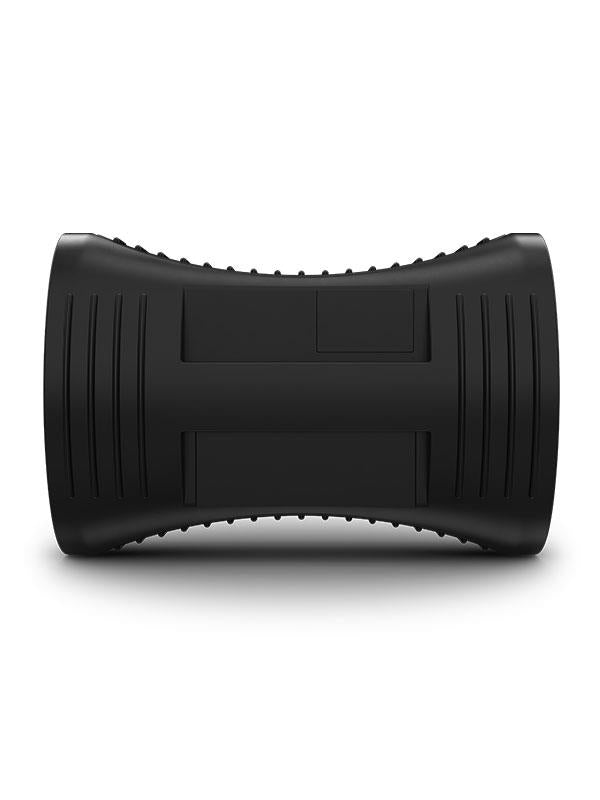

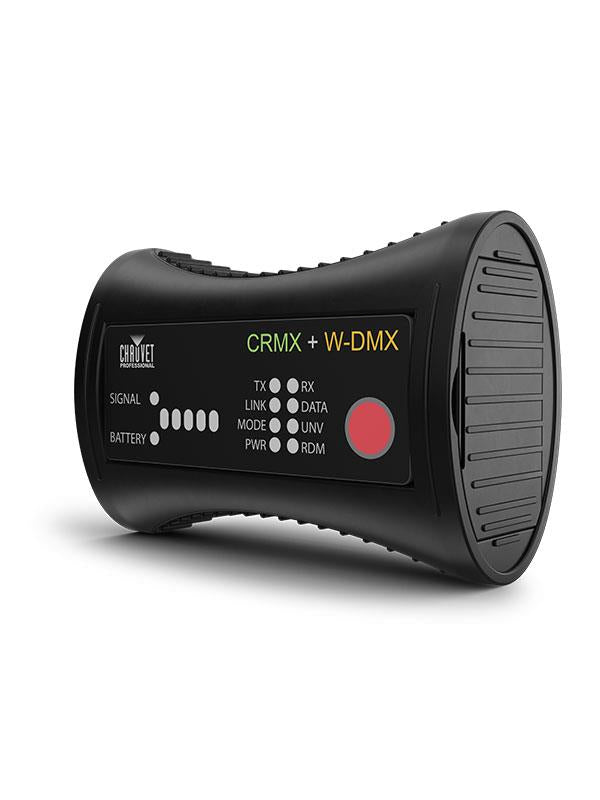

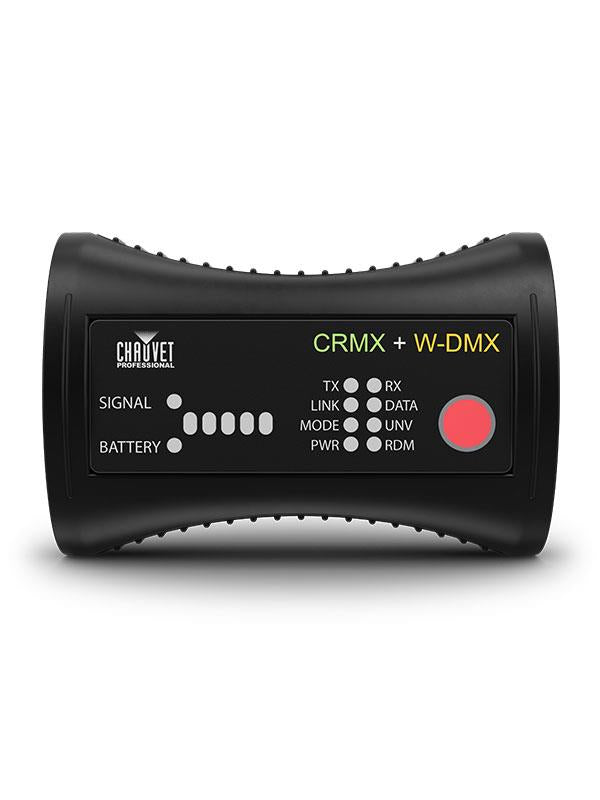

Chauvet Professional Micro T-1 TRX G6 Tranceiver for W-DMX CRMX

Description:

Wireless Solutions Micro T-1 Transceiver works with W-DMX and CRMX enabled fixtures to generate a wireless control signal for DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX or CRMX signals to make any fixture or rig wireless. Backward compatible with G3, G4, G4S, and G5 series, and able to operate both W-DMX and CRMX enabled products in G4S Mode. Configurable via Bluetooth with the W-DMX Configurator app. It also features a 5V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.

Features:

Transmit and receive 1 universe of W-DMX, CRMX and RDM protocols
Supports the W-DMX Configurator app over Bluetooth (downloadable from app store)
Backward compatibility with G3, G4, G4S, and G5 series
Can operate both W-DMX and CRMX enabled products in G4S Mode
Supports active frequency hopping
Power with included 5V USB power supply or (4) AAA batteries (not included)
Batteries last for up to 8 hours in receiver mode and 4 hours in transceiver mode
Built in indicator lights for signal and battery strength, as well as operation modes
Can be used directly with any Maverick or WELL fixtures
Can be used to make any lighting system wireless for data

Specifications:

CONSTRUCTION / PHYSICAL
Dimensions: 3.94 x 1.57 x 2.65 in (100 x 40 x 65 mm)
Weight: 1.67 lb (800 g)
Exterior Color: dark gray
Housing Material: High-impact flame-retardant polymer
 CONNECTIONS
Power Connection: 5V micro USB connector (micro B) to wall wart adapter
Data Connectors: 5-pin XLR
 CONTROL
Control Protocol: W-DMX, CRMX, RDM
Frequency (operating): # 2.4 GHz
Universes per device: 1
Number of DMX channels: 512
DMX Latency: <5 ms
Max universe in coexistence: 16
Error correction: yes
DMX Fidelity: yes
Adaptive Frequency Hopping: Yes
W-DMX G3, G4, G4S, and G5 compatibility: Yes
Standard range: up to 650 ft (200 m)
Internal antenna: Yes
Sensitivity (0.1% PER): -97 dBm
Modulation method: GFSK
 ELECTRICAL
Input Voltage: 9 VDC 1000 mA, (external power supply: 100-230 V 50/60 Hz)
 BATTERY
Battery type: AAA
Rechargeable: No
Battery Life: 8 hours in receiver mode, 4 hours in transceiver mode
 CERTIFICATIONS / QUALIFICATIONS
CE, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
 WHAT'S INCLUDED
W-DMX Micro T-1 TRX G6
Micro USB to wall wart adapter
User Manual
Velcro attachment strap
 ORDERING INFO
Item Code: 99112032
