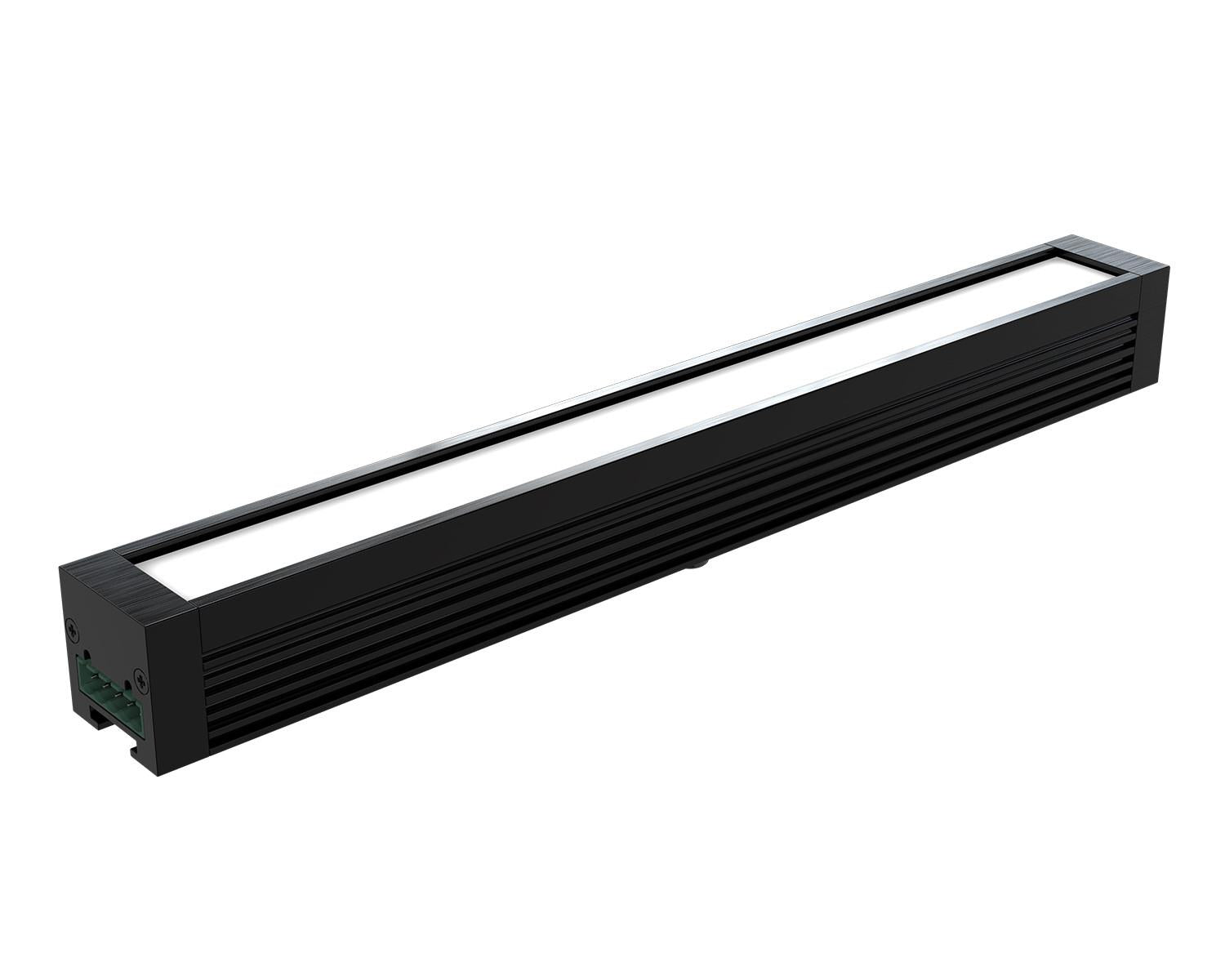

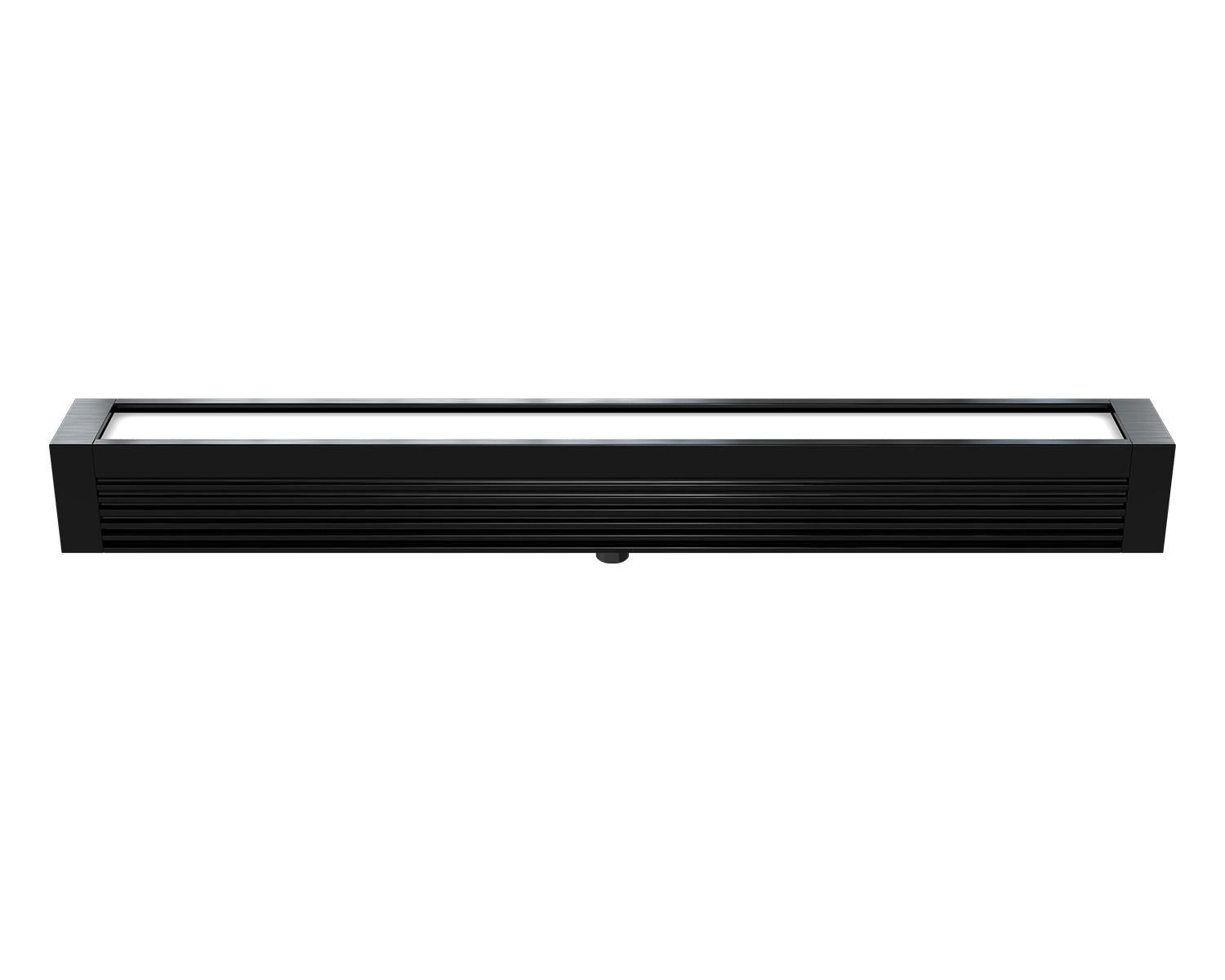

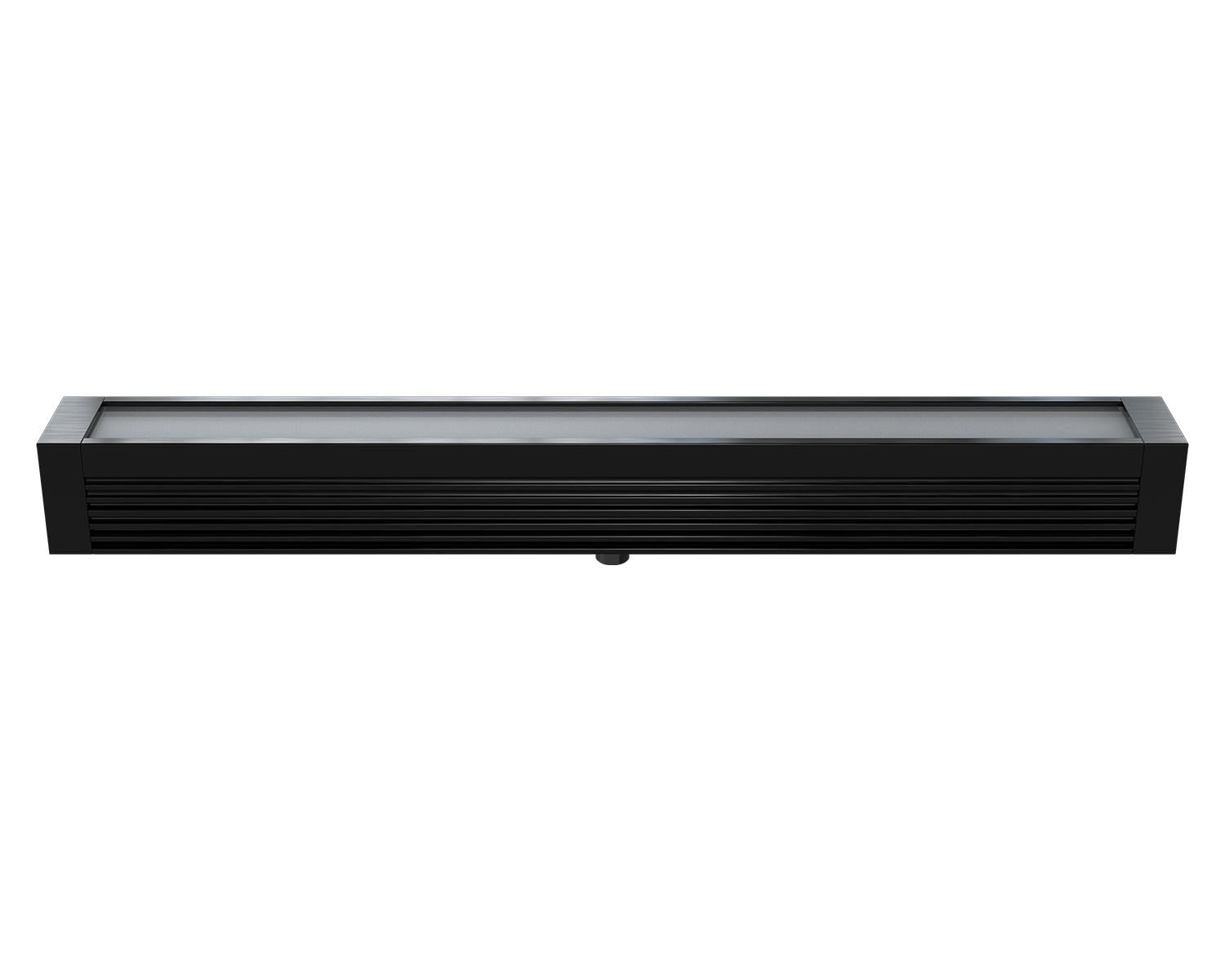

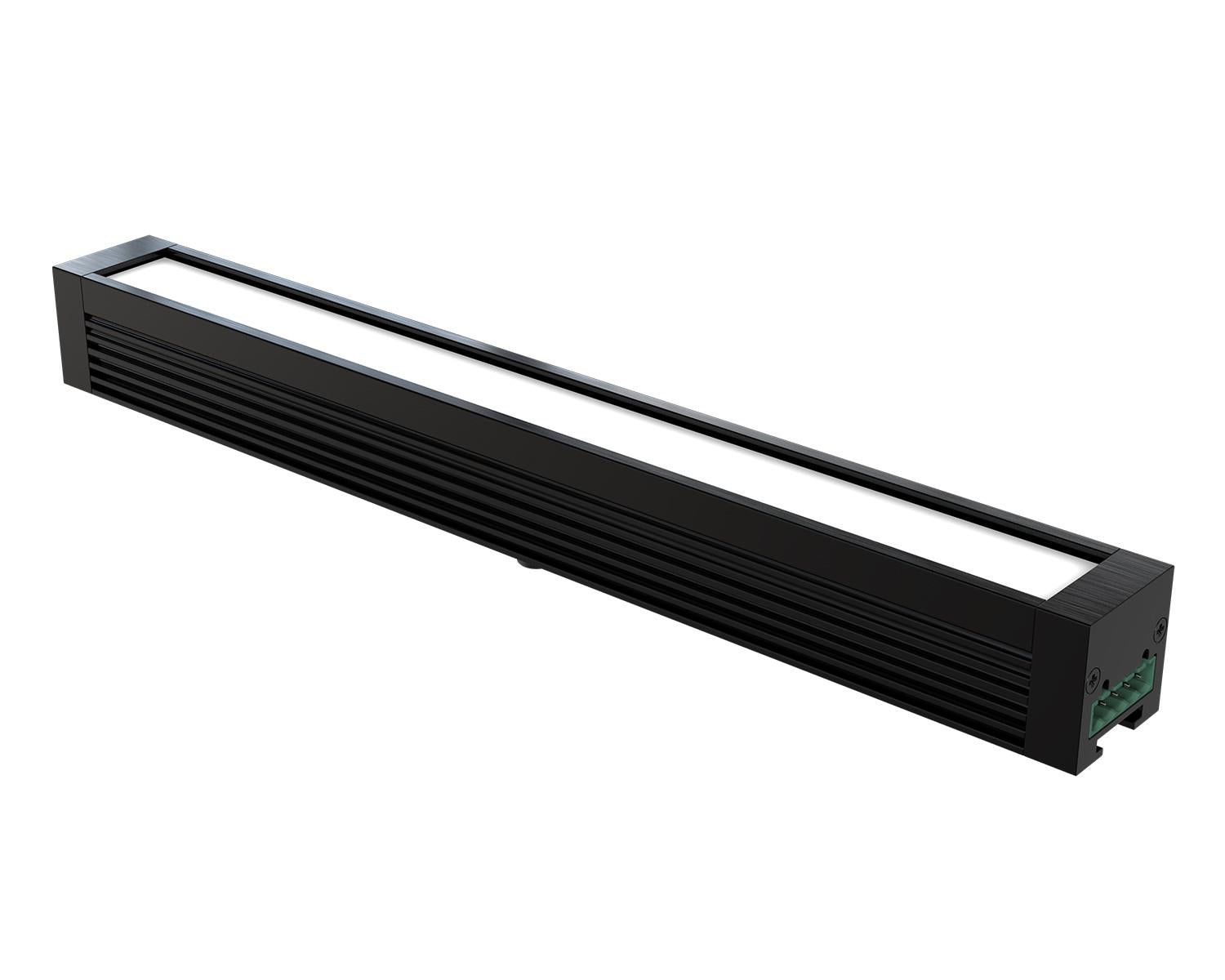

Chauvet Professional onAir Flex 12 LED Soft Catch Light 12x RGB / 12x WW LEDs

Description:

Full spectrum LED soft catch light for short throw studio applications. Easily add a glint to eyes when photographing or filming. High quality 2800K-10000K white light as well as color from a lightweight DMX-controllable lighting accessory that weighs under 1 lb. Completely silent operation. Operated via onAir Flex Drive 2, offering ultra-smooth 16-bit dimming control and adjustable PWM to perform beautifully on camera.

Features:

Full spectrum LED soft catch light for short throw studio applications
High quality white light and colour
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera via onAir Flex Drive
Completely silent operation for use in studio applications
Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme via onAir Flex Drive.

Specifications:

OPTICAL
Light Source:  12 LEDs (tri-color RGB) 1.5 W, (150 mA),50,000 hours life expectancy.
Light Source:  12 LEDs (WW) 0.36 W, (150 mA), 50,000 hours life expectancy
Color Temperature (range):  2800 to 10000 K
Color Temperature (at full):  9190 K
CRI:  96
Beam Angle - Medium:  96.1° x 64.3°
Beam Angle - Light:  111° x 62°
Beam Angle - Heavy:  93.3° x 72.2°
Field Angle - Medium:  148.8° x 123.8°
Field Angle - Light:  149.8° x 126.3°
Field Angle - Heavy:  151.7° x 136°
Lumens - Medium:  765 lm
Lumens - Light:  810 lm
Lumens - Heavy:  734 lm
Illuminance - Medium :  17 lux @ 5 m
Illuminance - Light :  16 lux @ 5 m
Illuminance - Heavy :  15 lux @ 5 m
Selectable PWM:  via onAir Flex Drive
Software Connection:  USB
CONSTRUCTION/PHYSICAL
Dimensions:  12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)
Shipping Dimensions:  15 x 6.5 x 4 in (381 x 165 x 102)
Weight:  0.975 lb (0.442 kg)
 Exterior Color:  Black
Housing Material:  Extruded Aluminum
CONNECTIONS
Power Connection:  Phoenix connector to Bare-wire
Physical Linking:  Phoenix connector to Bare-wire
CONTROL
Control Protocol:  DMX
DMX Channels:  8 or 10
Modes/Personalities:  8ch-RGBWx2, 10ch-RGBW+Dx2
ELECTRICAL
Input Voltage:  100 to 2440 VAC, 50/60 Hz (auto-ranging)
Power and Current:  26W, 0.28 A @ 120 V, 60 Hz
Power and Current:  24 W, 0.31 A @ 208 V, 60 Hz
Power and Current:  24 W, 0.29 A @ 230 V, 50 Hz
CABLE SPECIFICATIONS
Connector:  Pheonix
Pins:  5
