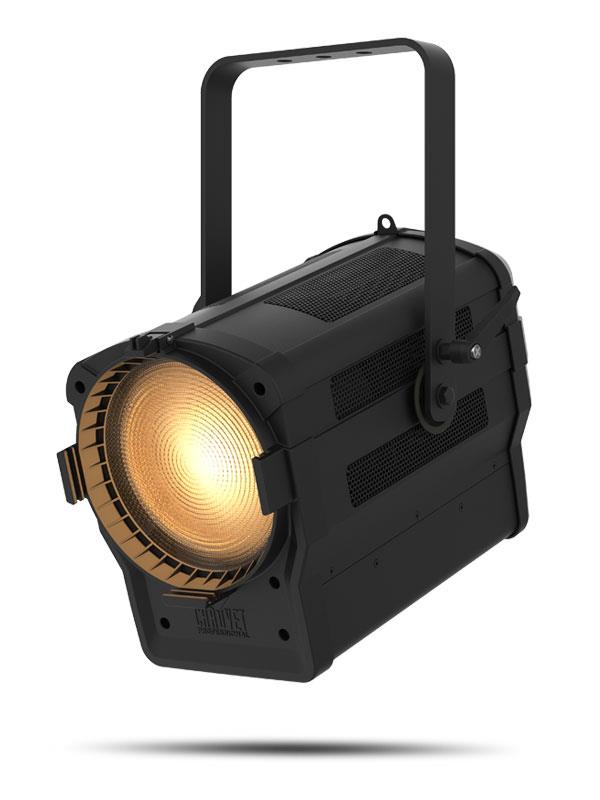

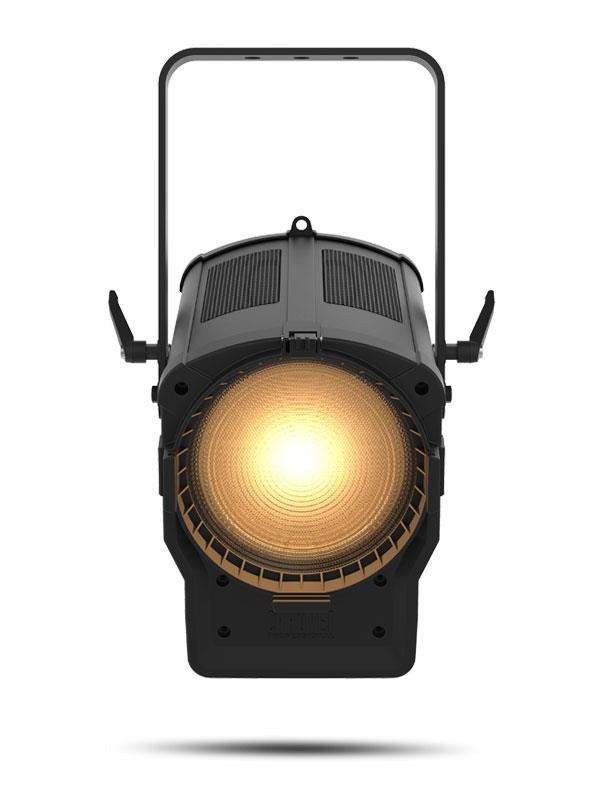

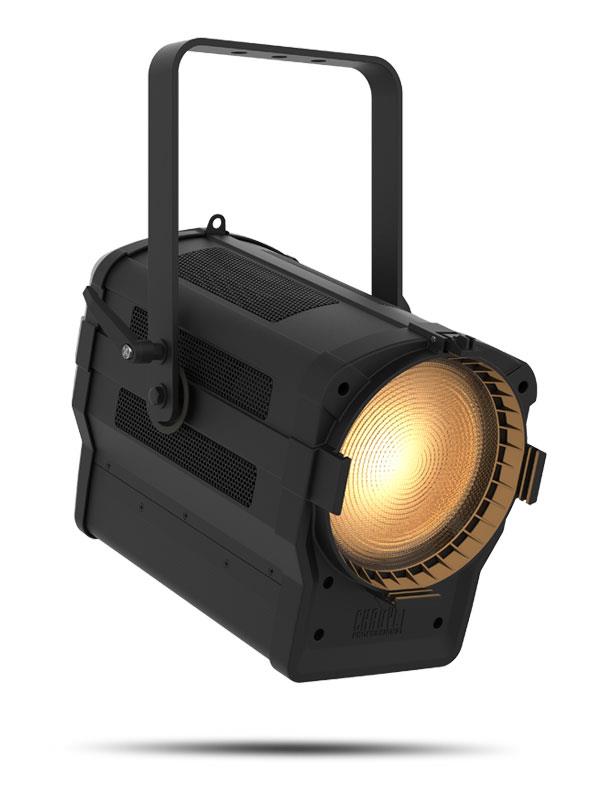

Chauvet Professional Ovation F-265WW LED Fresnel Warm White 230W Motorised Zoom 16-68°

Description:

Ovation F-265WW is a high-power Fresnel utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theaters and television studios. A motorized zoom with a 27°- 57° field angle and the light output can be controlled via DMX, on-board dials, RDM, adjustable PWM and an easy to navigate OLED full text display.

Features:

Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
16-bit dimming resolution for smooth fades
Flat, even field of light
Virtually silent operation for use in any situation
Motorized zoom angle between 27° to 57°, manually or via DMX
Features an easy to navigate OLED full text display

Specifications:

General
Optical
Light Source: 1 LED (WW) 202 W, (3.6 A), 50,000 hours life expectancy
Color Temperature (at full): 3142 KCRI: 96
Beam Angle: 16° to 38°
Field Angle: 27° to 57°
Zoom Angle: 27° to 57°
Lumens (27°): 9,283
Lumens (59°): 12,802
Illuminance (27°): 5,203 lux @ 5 m
Illuminance (59°): 1,285 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic EffectsDimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 30 Hz
Dim Modes: 4

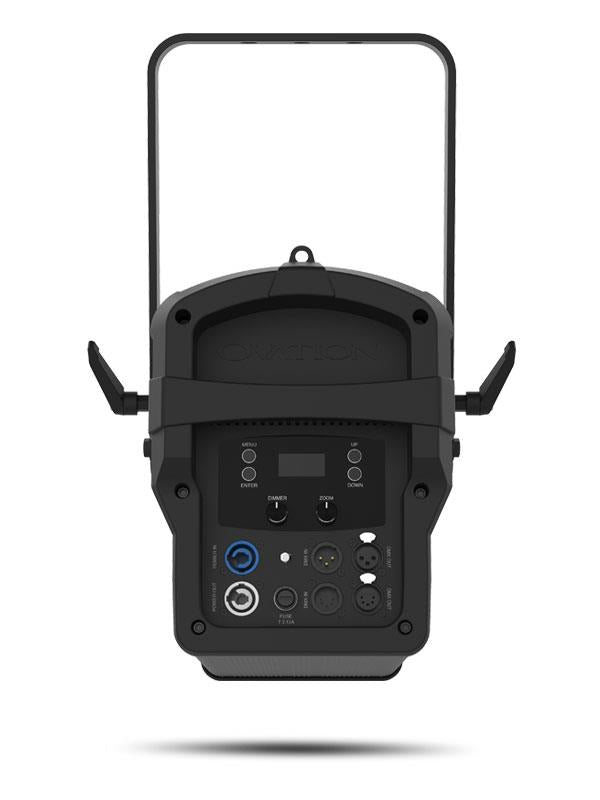

Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Protocol(s): DMX, RDM
DMX Channels: 1, 2, 2 or 5
Modes/Personalities: 4 personalities (1, 2, 2, 5)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: 227 W, 1.88 A @ 120 V, 60 Hz
Power and Current: 234 W, 1.11 A @ 208 V, 60 Hz
Power and Current: 235 W, 1.01 A @ 230 V, 50 Hz
Certifications/QualificationsCE, METIP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Physical & Dimensions
Height: 384mm
Width: 320mm
Depth: 450mm
Weight: 7.9kg
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
