Chauvet Professional Ovation F-415FC Fresnel RGBAL Motorised Zoom 14–68°

Description:

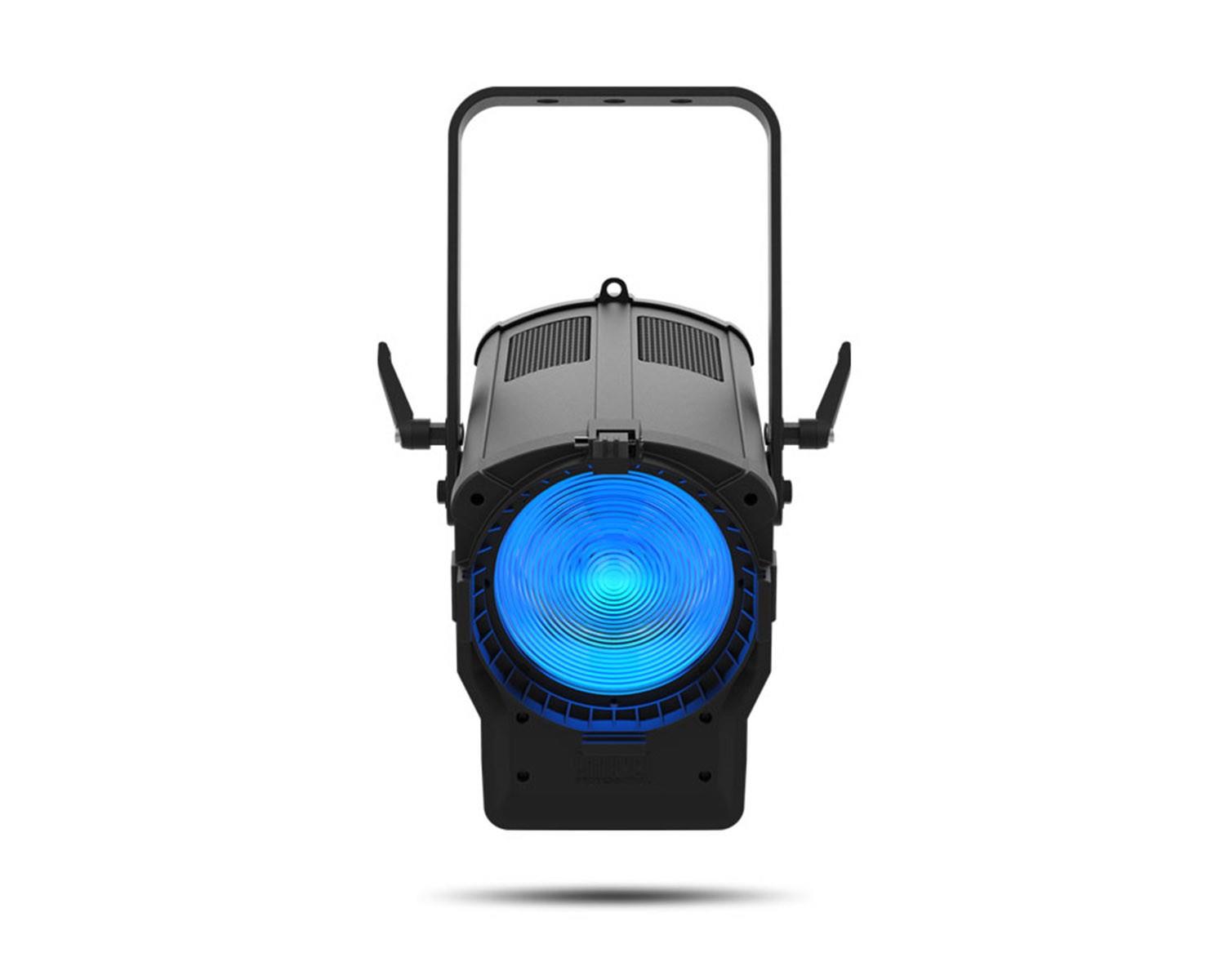

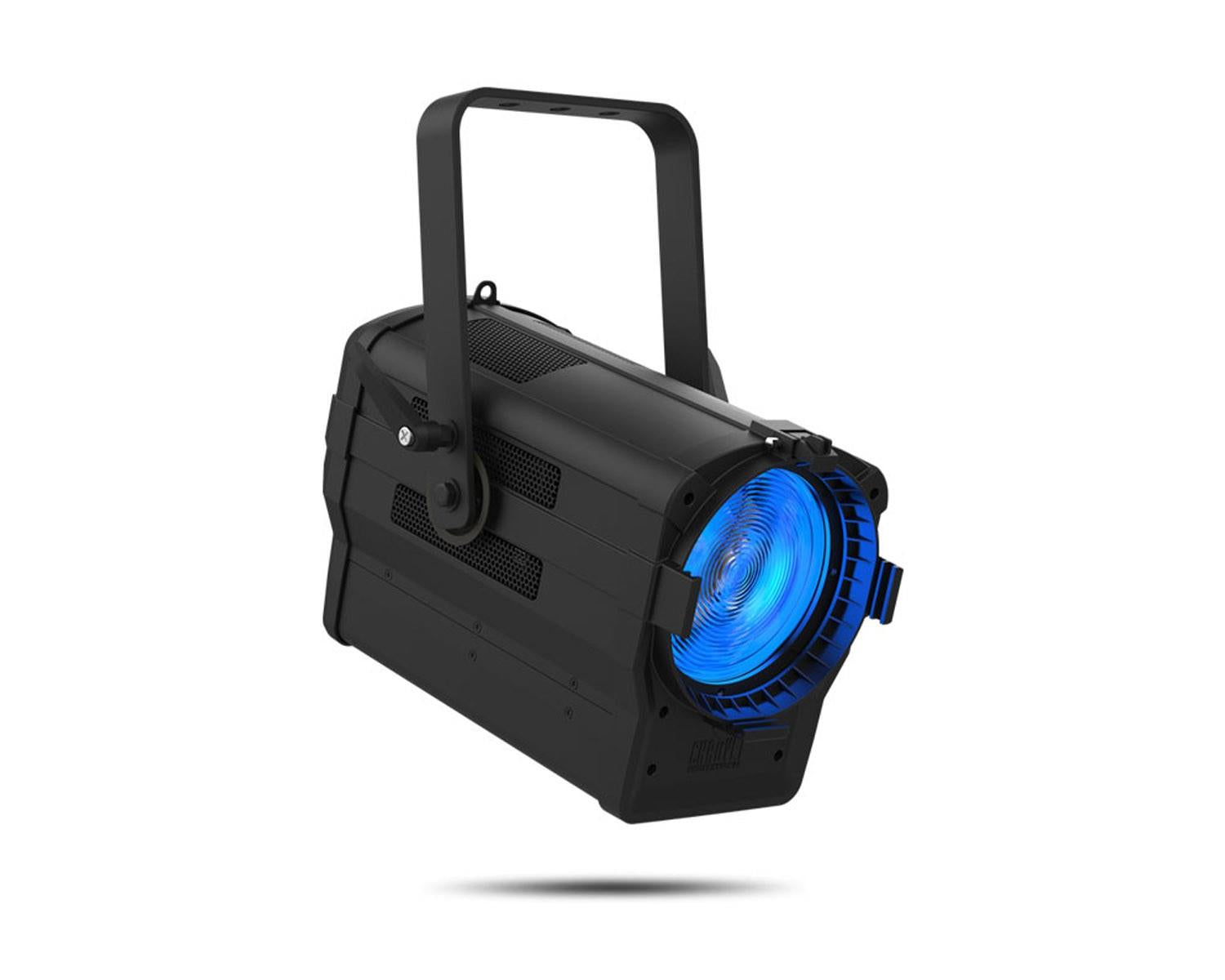

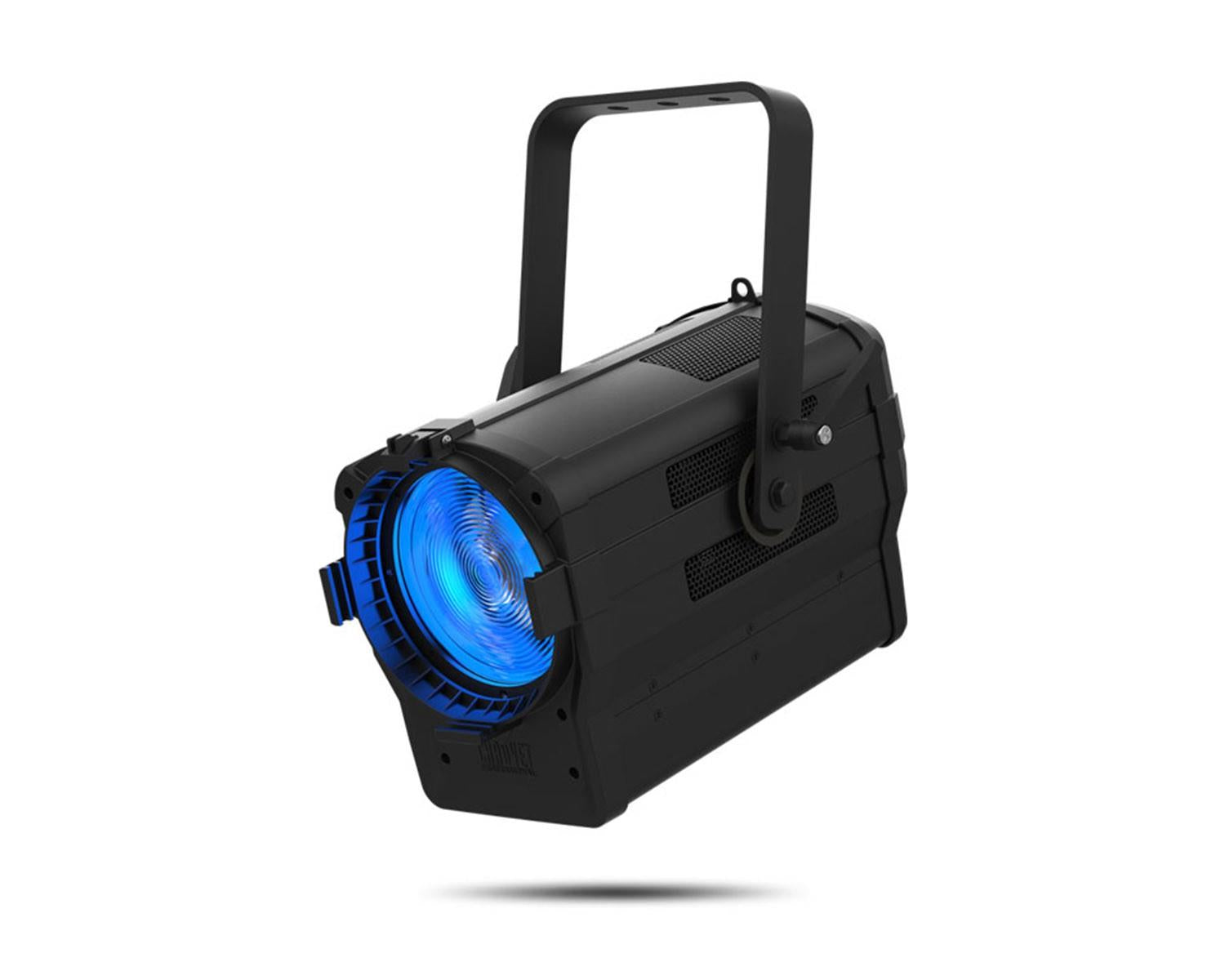

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 27° – 68° field angle allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

Features:

Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 27° to 68°
Beautiful 16-bit dimming of master dimmer and individual colors
Easy to use on board control of color, zoom and dimming
Virtual Color wheel with color matched to popular gel colors
Color Temperature Presets from 2800 K to 6500 K
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications

Specifications:

GeneralFull Description
OPTICALLight Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 91
Beam Angle: 14° to 43°
Field Angle: 27° to 68°
Zoom Angle: 27° to 68°
Lumens (27°): 1,877 (68°): 2,815
Illuminance (27°): 915 lux @ 5 m (68°): 190 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTSDimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

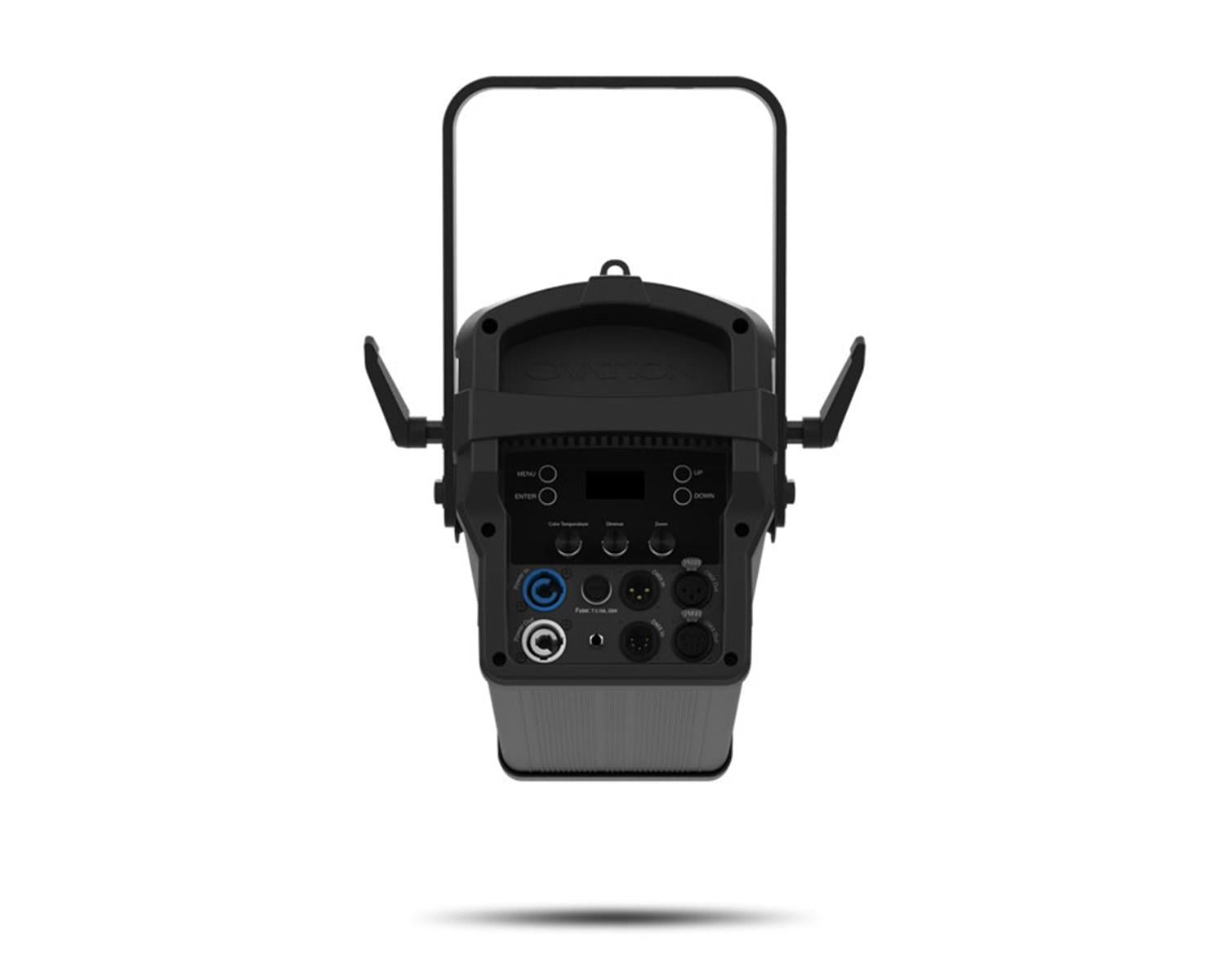

CONNECTIONSPower Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROLControl Protocol: DMX, RDM
DMX Channels: 3, 5, 7, 11, 13, 14 or 17
Modes/Personalities: 8 personalities (3, 5, 7, 11, 13, 14, 17, HSV)
ELECTRICALInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V
Power and Current: 124 W, 1.027 A @ 120 V, 60 Hz
Power and Current: 124 W, 0.608 A @ 208 V, 60 Hz
Power and Current: 126 W, 0.546 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONSCE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Physical & Dimensions
Height: 285mm
Width: 241.65mm
Depth: 401.46mm
Weight: 5.6kg
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
