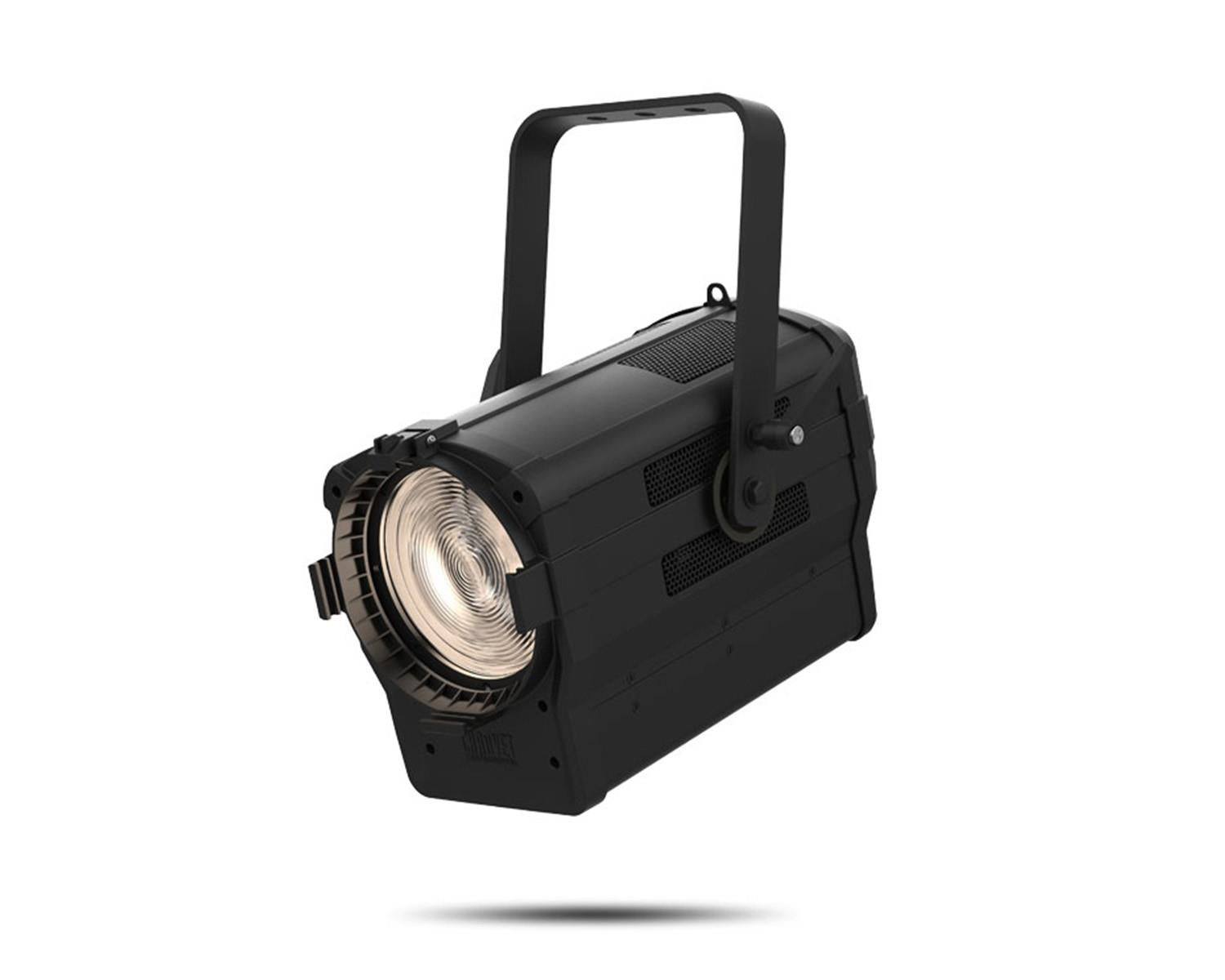

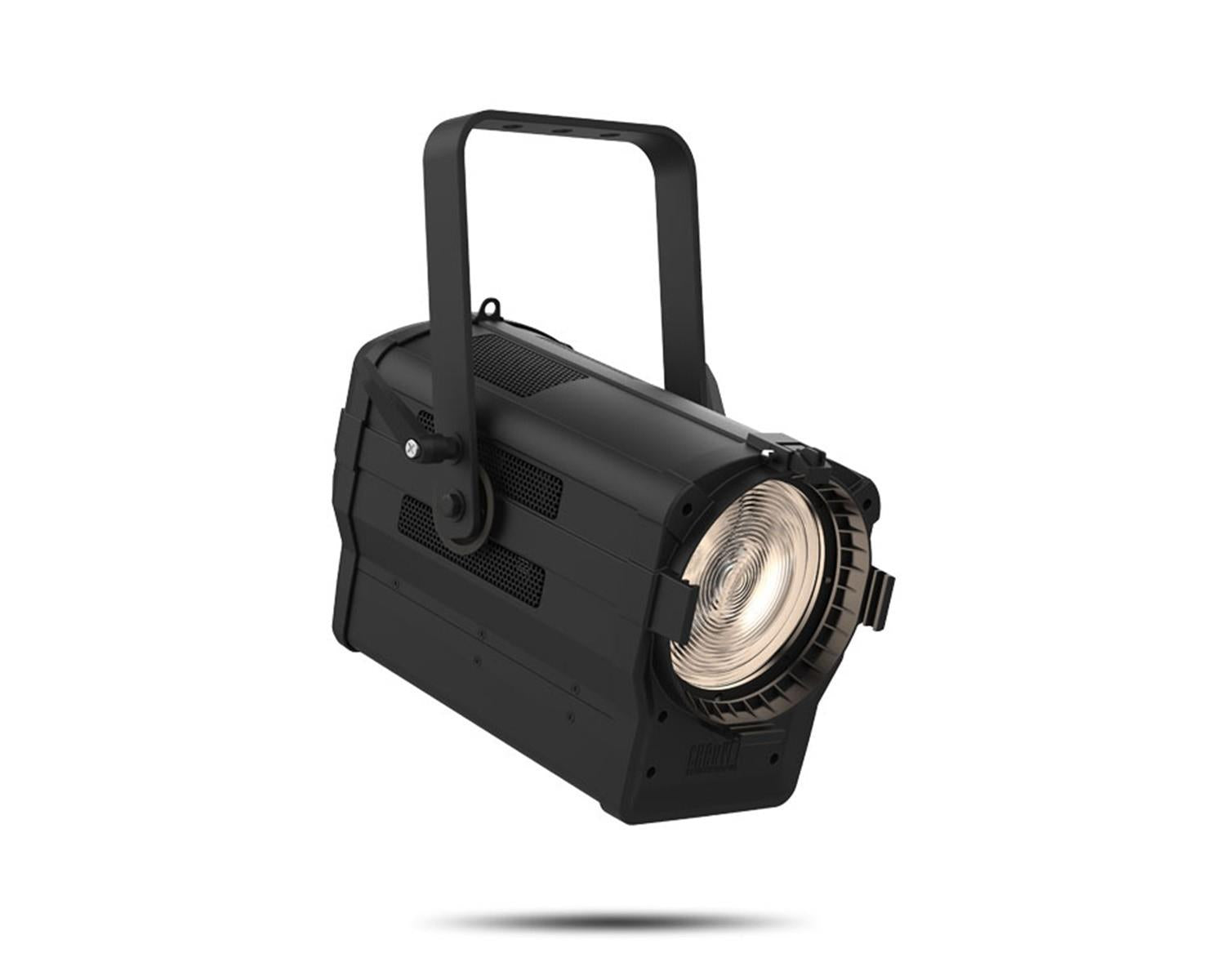

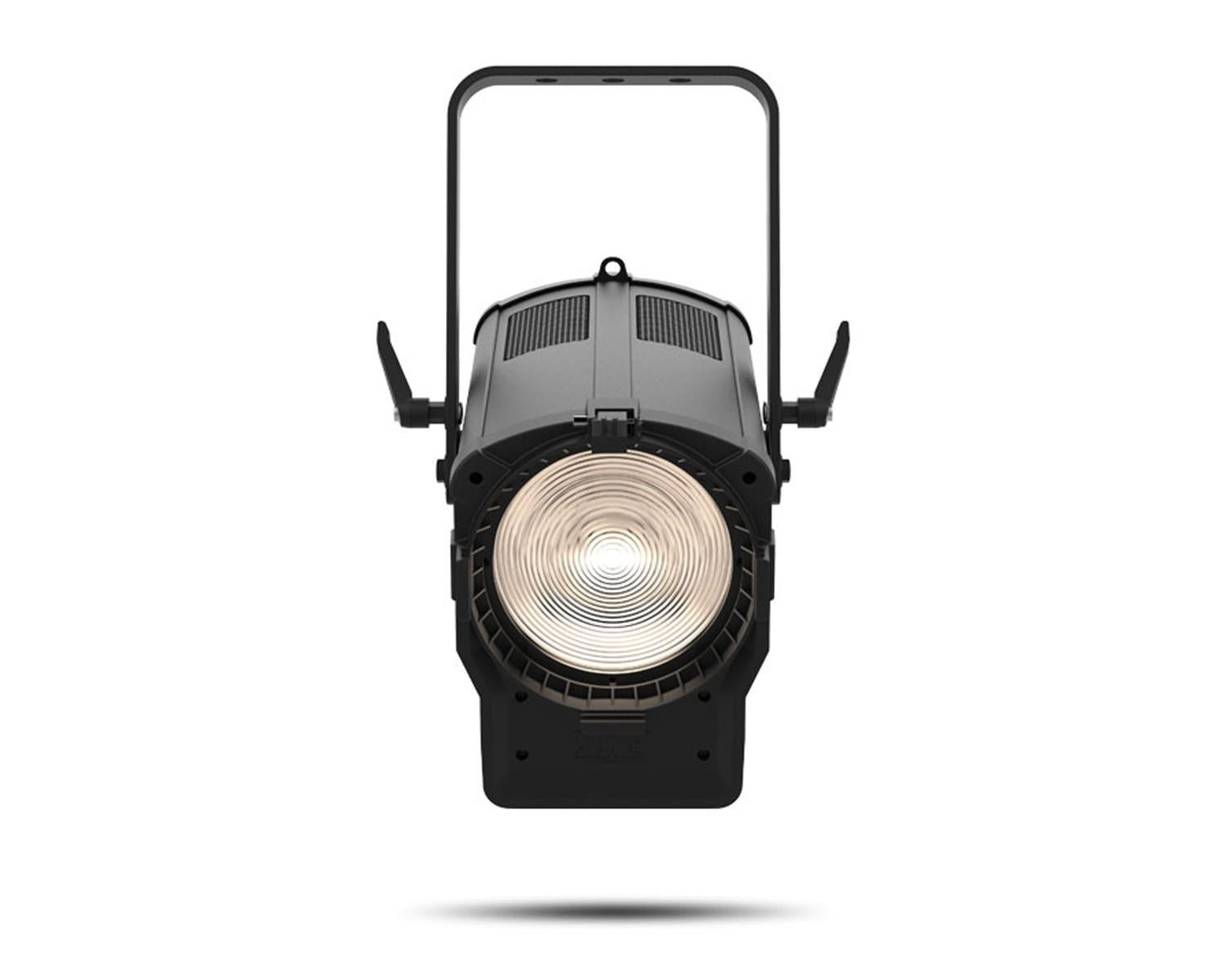

Chauvet Professional Ovation F-415VW LED Fresnel Variable White Motorised Zoom 14–68°

Description:

Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes our unique 6-color LED system. The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 27° – 68° field angle that allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials. Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.

Features:

Variable white LED Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 27° to 68°
Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
28 VDC power input via 3-pin XLR to power the fixture from an external battery pack
Beautiful 16-bit dimming
Proprietary LED engine delivers tremendous, equal output at all color temperatures
Easy to use on board control of color temperature, zoom and dimming
+/- Green adjustment via DMX or on-board control
Independent color control over the 6-color engine when a splash of color is needed
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications

Specifications:

General
OPTICALLight Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 89 to 93
Beam Angle: 14° to 43°
Field Angle: 27° to 68°
Zoom Angle: 27° to 68°
Lumens (27°) : 1,631 (68°) : 2,408
Illuminance (27°) : 800 lux @ 5 m (68°): 152 lux @ 5 m
Illuminance drop percentage (fan silent) : 23% (fan off) : 59%
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
DYNAMIC EFFECTSDimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: No

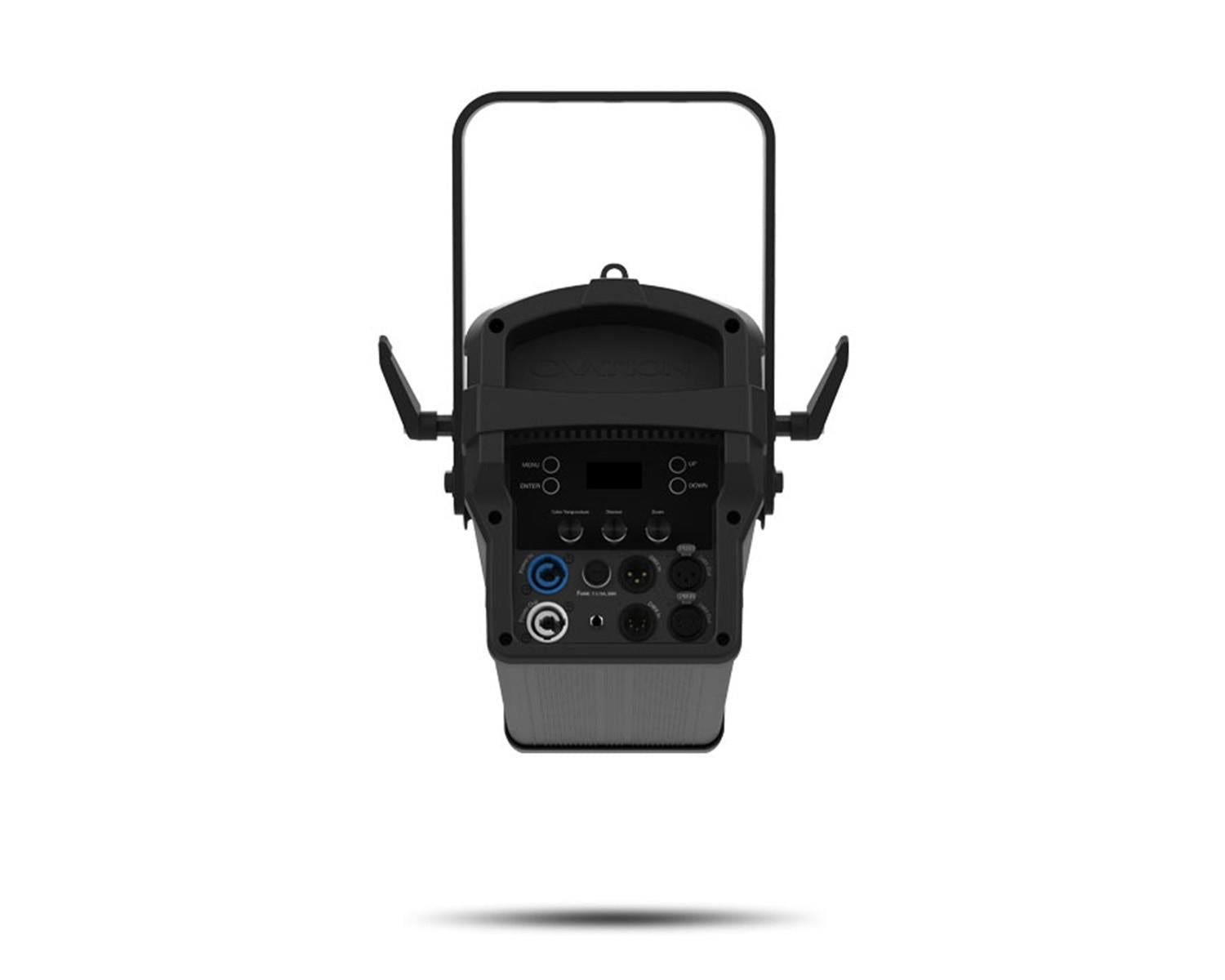

CONNECTIONSPower Connection: Edison (Local) plug to Neutrik powerCON, 3-pin XLR
Power Input: Neutrik powerCON 28 VDC, 3-pin XLR
Power Output: Neutrik powerCON
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROLControl Protocol: DMX, RDM
DMX Channels: 4, 6, 7, 9, 13, 16 or 18
Modes/Personalities: 7 personalities (4, 6, 7, 9, 13, 16, 18)
ELECTRICALInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Input Voltage: 28 VDC
Power Linking: 14 units @ 120 V; 24 units @ 208 V; 27 units @ 230 V
Power and Current: 114 W, .93 A @ 120 V, 60 Hz  115 W, .56 A @ 208 V, 60 Hz  117 W, .50 A @ 230 V, 50 Hz
Physical & Dimensions
Height: 285mm
Width: 241.65mm
Depth: 401.16mm
Weight: 5.8kg
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
