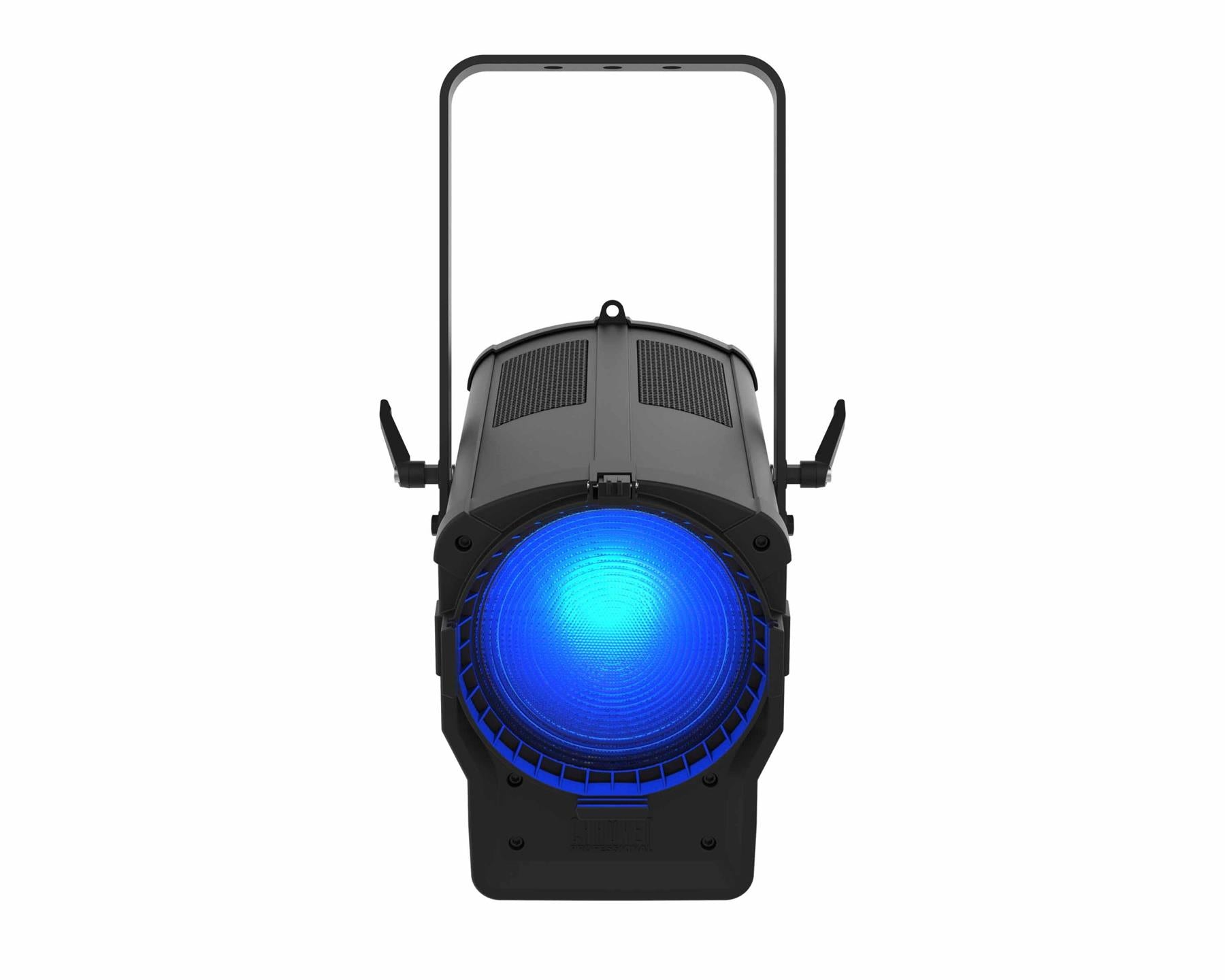

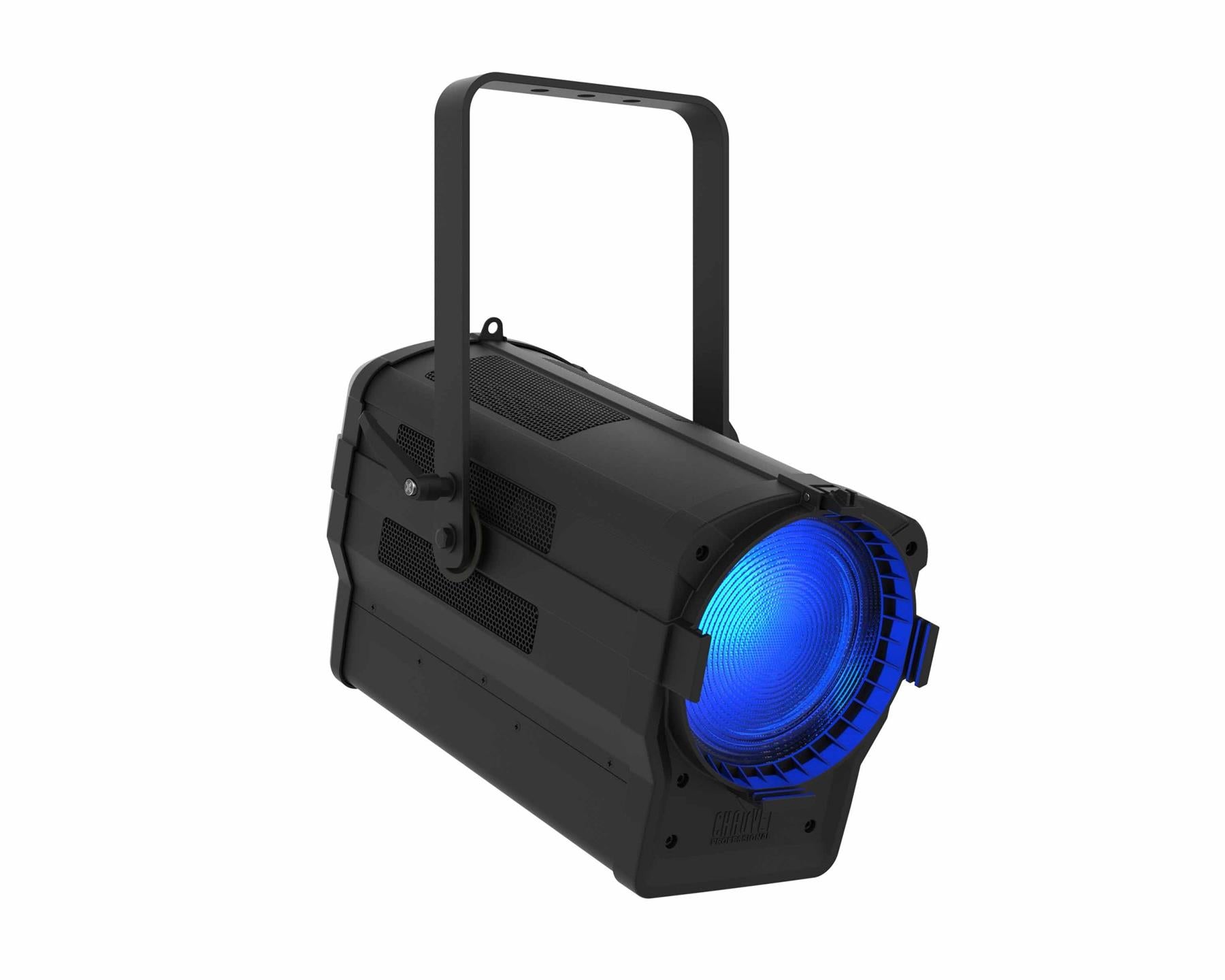

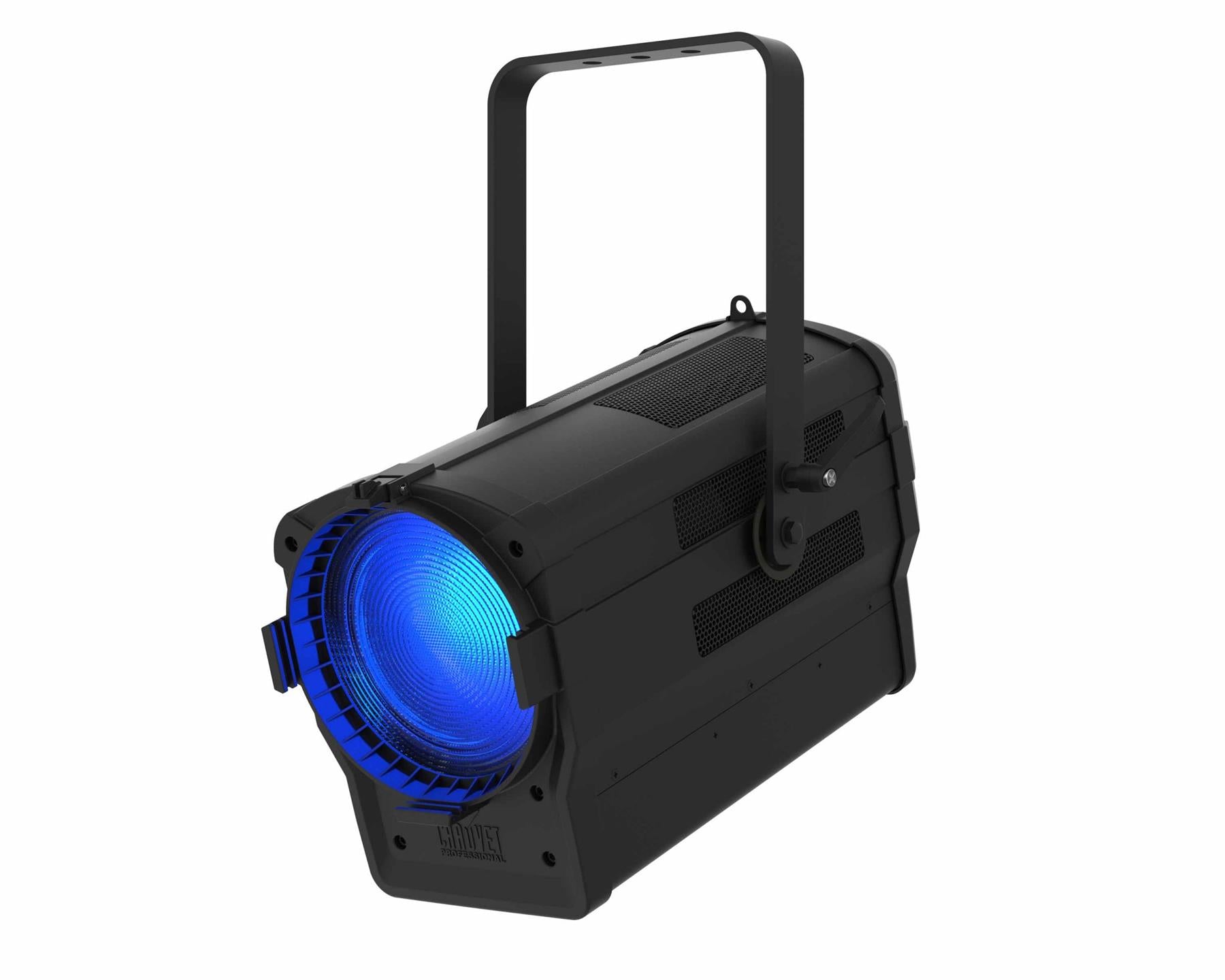

Chauvet Professional Ovation F-915FC LED Fresnel RGBAL Motorised Zoom 17-85°

Description:

Ovation F-915FC is a high-power, full colour mixing Fresnel style fixture that utilizes our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorized zoom with a 30° – 85° field angle allows you to add light where it is needed. Control of the virtual colour wheel, zoom and output can be via DMX or on-board dials.

Features:

Full Colour LED (RGBAL) Fresnel lighting fixture for theatre, film and production
Smooth, motorized zoom from 30° to 85°
Beautiful 16-bit dimming of master dimmer and individual colours
Easy to use on board control of colour, zoom and dimming
Virtual Colour wheel with colour matched to popular gel colours
Colour Temperature Presets from 2800 K to 6500 K with high CRI and CQS
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications

Specifications:

Optical
Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
Colour Temperature (range): 2800 to 6500 K
CRI (3200 K): 90
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Angle: 30° to 85°
Lumens (30°): 4,294
Lumens (73°): 6,661
Illuminance (30°): 1,450 lux @ 5 m
Illuminance (73°): 312lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Colour Mixing: Yes
Colour Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 3, 5, 7, 11, 13, 14 or 17
Modes/Personalities: 8 personalities (3, 5, 7, 11, 13, 14, 17, HSV)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
Power and Current: 260 W, 2.15 A @ 120 V, 60 Hz
Power and Current: 260 W, 1.25 A @ 208 V, 60 Hz
Power and Current: 260 W, 1.12 A @ 230 V, 50 Hz
Certifications
CE, MET
IP Rating: IP20, dry location
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Physical & Dimensions
Height: 320mm
Width: 275mm
Depth: 569.44mm
Weight: 8.6kg
Exterior Colour: Black
Housing Material: Aluminium alloy, Aluminium die-cast
