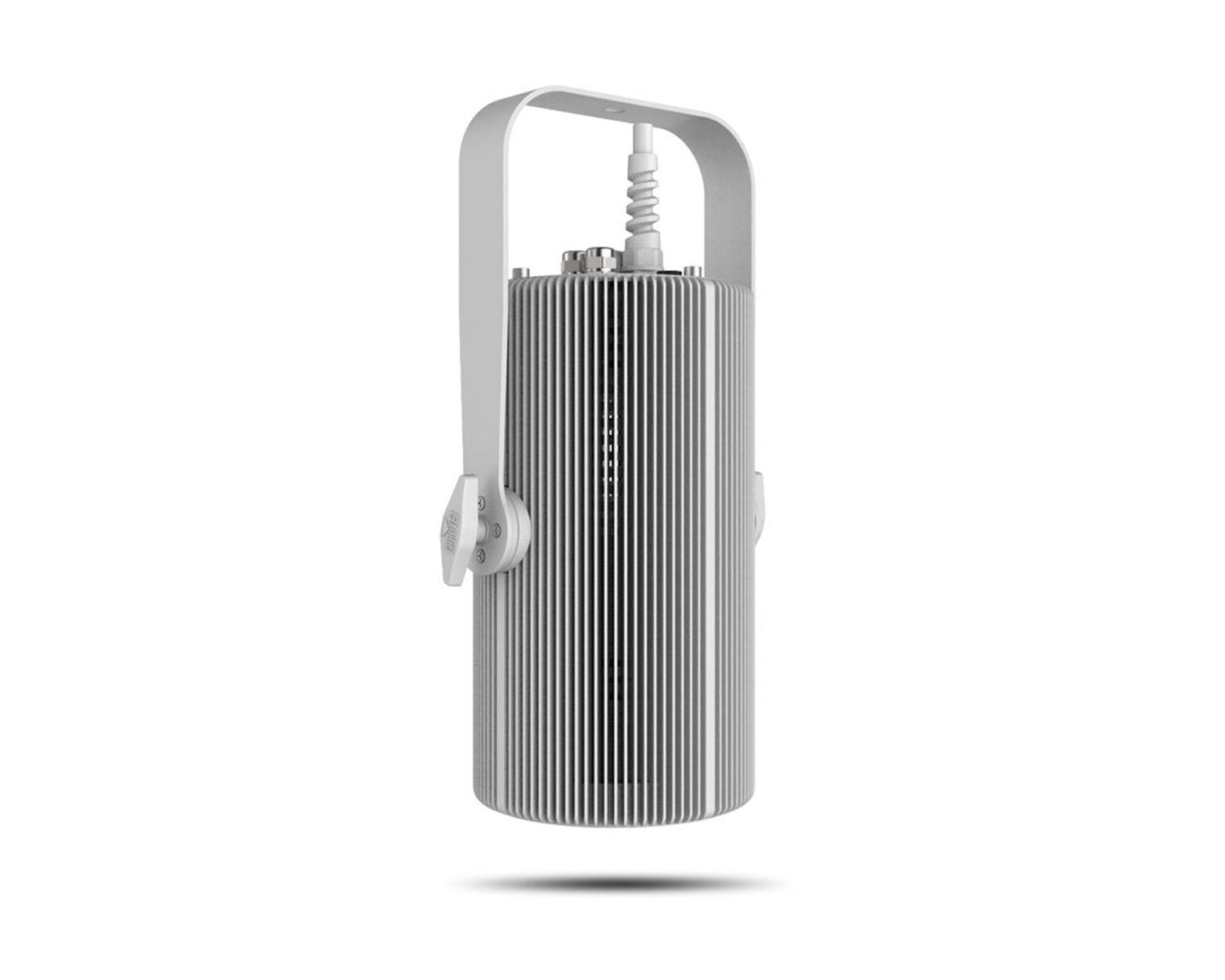

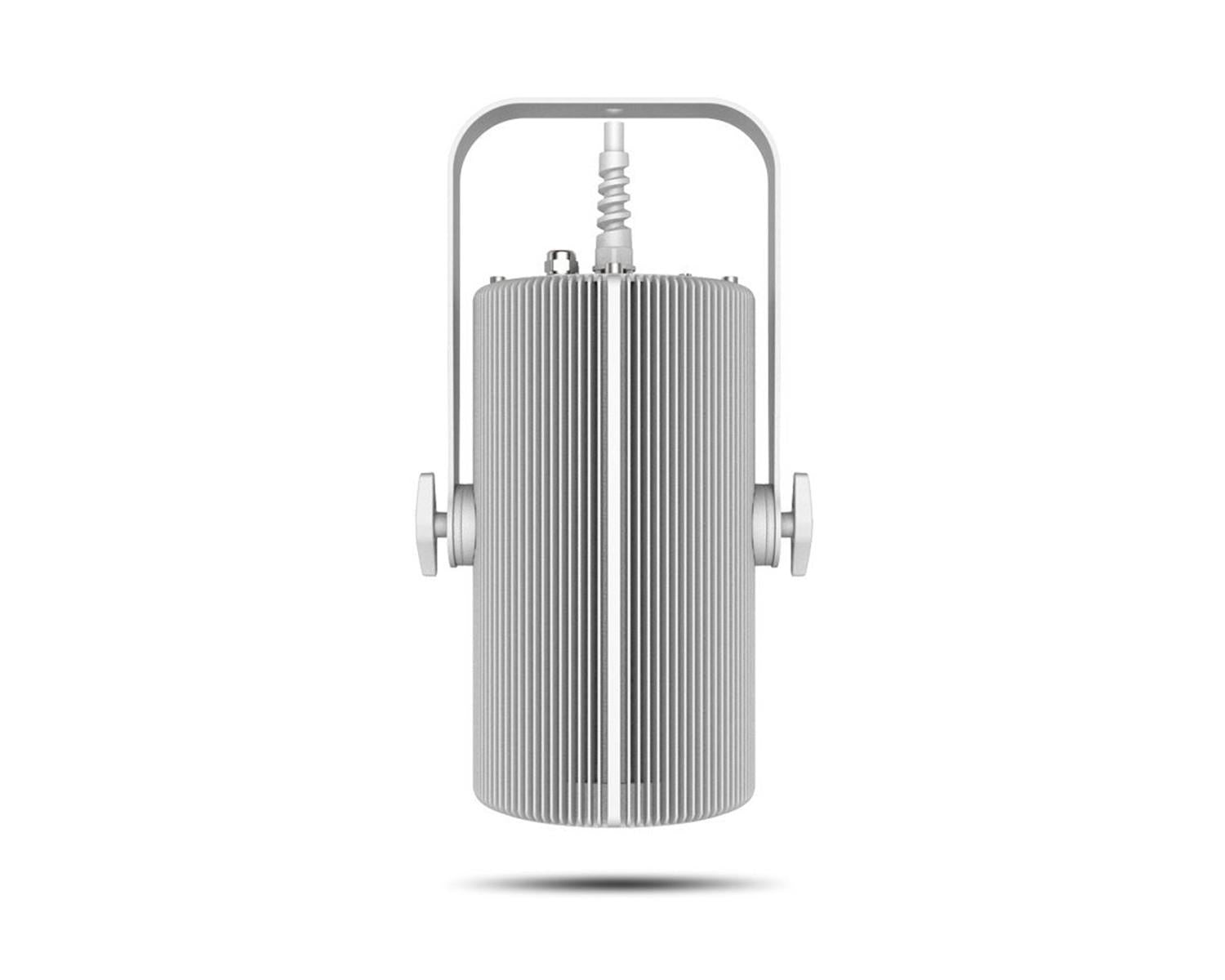

Chauvet Professional Ovation H-605FC RGBAL Full Colour Silent 60 LED House (White Housing)

Description:

Ovation H-605FC from Chauvet Professional takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white. Superior convection cooling provides excellent output in a compact package.

Ideal for theatrical and auditorium lighting applications, setup and control is now easier than ever with the addition of WDMX, RDM, adjustable PWM and an easy to navigate OLED full text display.

Features:

Full Color LED (RGBAL), convection cooled house light
Interchangeable lens plates to adapt to different mounting heights
5-pin XLR and terminal blocks for DMX connections
Use included yoke for pipe mounting, or suspend from integrated loop-eye
Virtual Color wheel with color matched to popular gel colors
Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS
16-bit dimming for ultra-smooth fades
DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

Specifications:

Optical
Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy
Color Temperature (at full): 4766 K
CRI (3200 K): 72
Beam Angle (no lens): 28°
Beam Angle (w/40° lens): 39°
Beam Angle (w/25° lens): 19°
Field Angle (no lens): 60°
Field Angle (w/40° lens): 66°
Field Angle (w/25° lens): 37°
Dimming Modes: 4
Illuminance (no lens): 545 lux @ 5 m
Illuminance (w/40° lens): 349 lux @ 5 m
Illuminance (w/25° lens): 1,047 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Connections
Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
Control
Control Protocol:, DMX, RDM, W-DMX™
DMX Channels: 3, 5, 7, 10, 12, 13 or 15
Modes/Personalities: 7 personalities (3, 5, 7,10,12, 13, 15)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 155 W, 1.275 A @ 120 V, 60 Hz
Power and Current: 145 W, 0.731 A @ 208 V, 60 Hz
Power and Current: 146 W, 0.662 A @ 230 V, 50 Hz
Certifications/QualificationsCE, MET
IP Rating: IP20, dry location
Physical & Dimensions
Height: 333mm
Width: 240mm
Depth: 339mm
Weight: 8.9kg
Exterior Color: White
