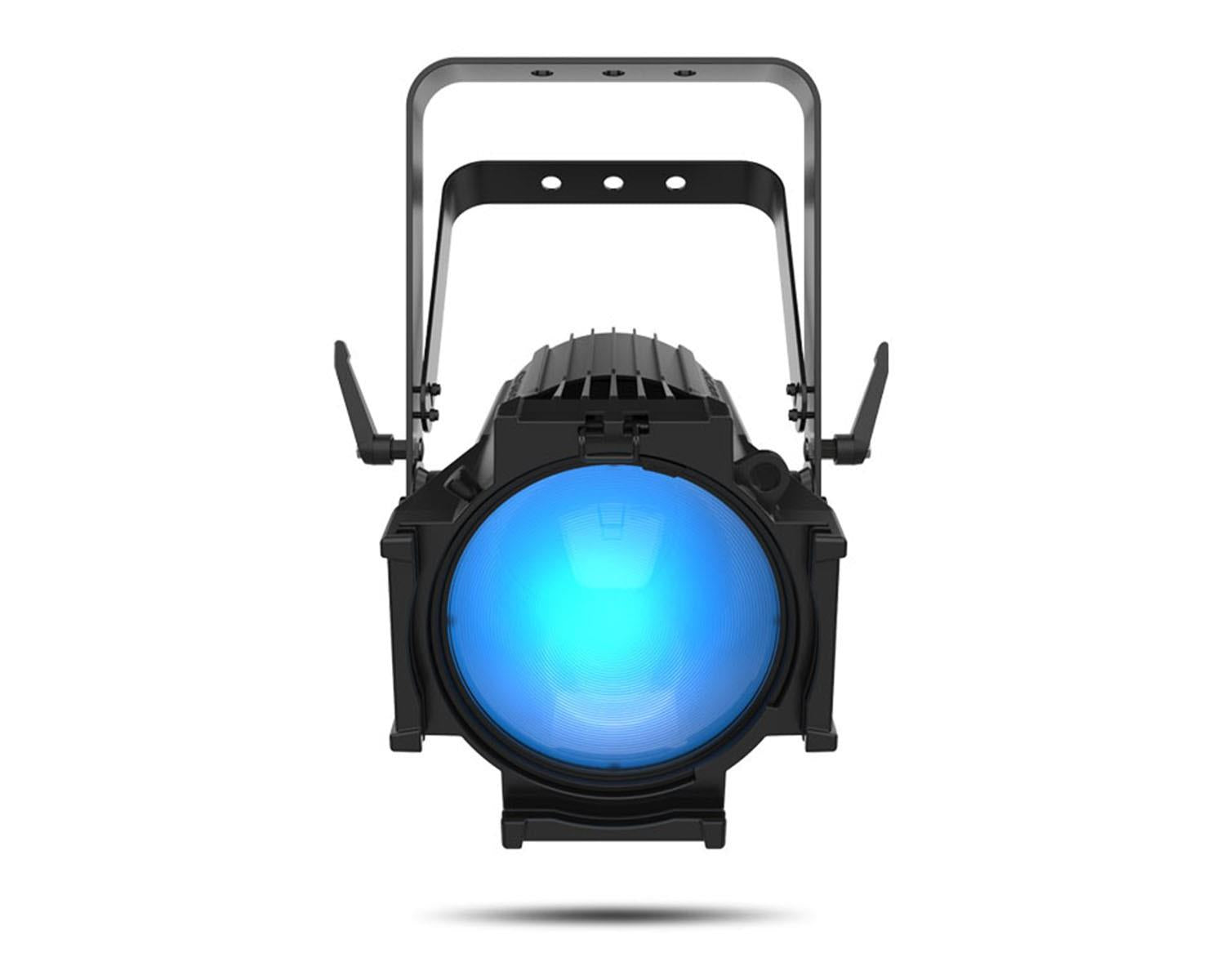

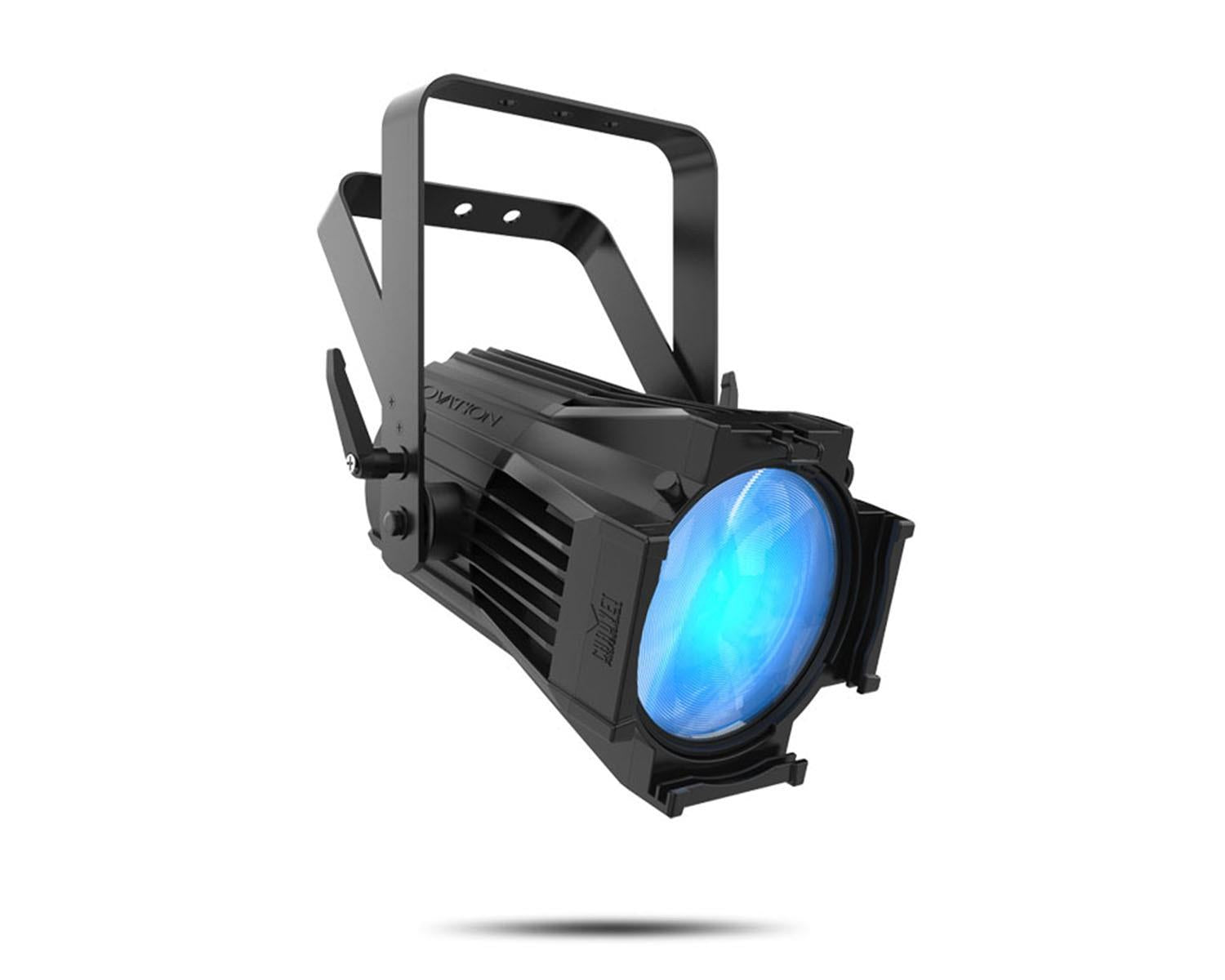

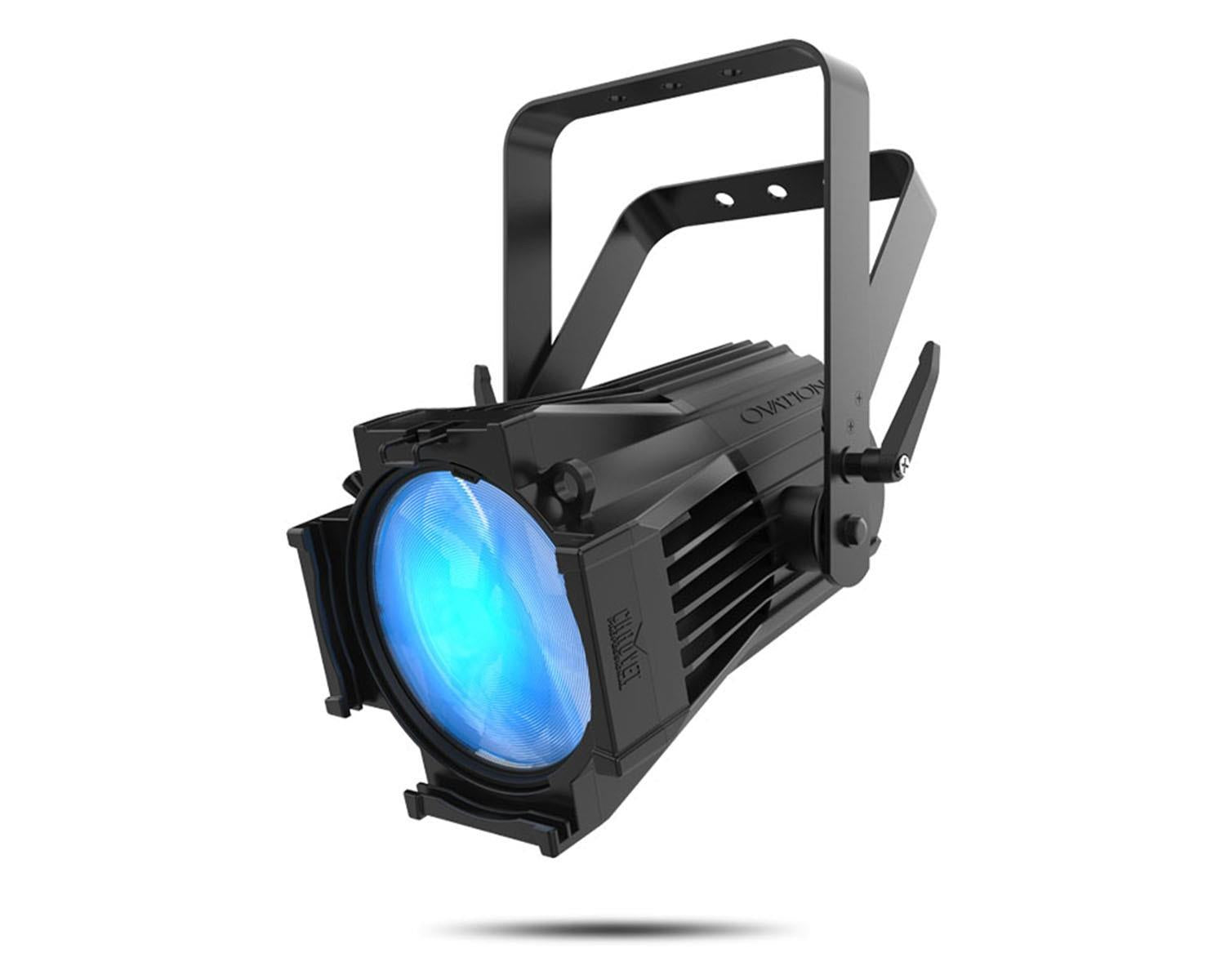

Chauvet Professional Ovation P-56FC Compact LED PAR-Style Fixture RGBAL 48x4W

Description:

Ovation P-56FC is a compact, virtually silent par that produces a homogenized, single-source, flat and even field of light with high CRI. The bright unit utilizes the same advanced full color-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal to produce subtle pastels to punchy saturates and nearly any temperature of white. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories.

Ideal for theatrical and studio applications, the virtually silent par features extremely smooth 16-bit dimming, as well as RDM and PWM for ease of set-up.

Features:

Full color PAR style fixture with homogenized single source of light
Interchangeable lens plates included for medium and wide beam angles
Flat, even field of light
Quiet operation for use in any situation with fan speed control
RDM and variable Pulse Width Modulation for setup ease
Accepts standard 7.5” beam shaping accessories
16-bit dimming resolution for smooth fades

Specifications:

General
OPTICALLight Source: 48 LEDs (10 red, 10 green, 8 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
Color Temperature (at full): 4889 K
CRI (3200): 90
Beam Angle (Medium Lens): 21°
Beam Angle (Wide Lens): 52°
Field Angle (Medium Lens): 35°
Field Angle (Wide Lens): 82°
Lumens (Medium Lens): 5,436
Lumens (Wide Lens): 5,216
Illuminance (Medium Lens): 1350 lux @ 5 m
Illuminance (Wide Lens): 254 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTSDimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

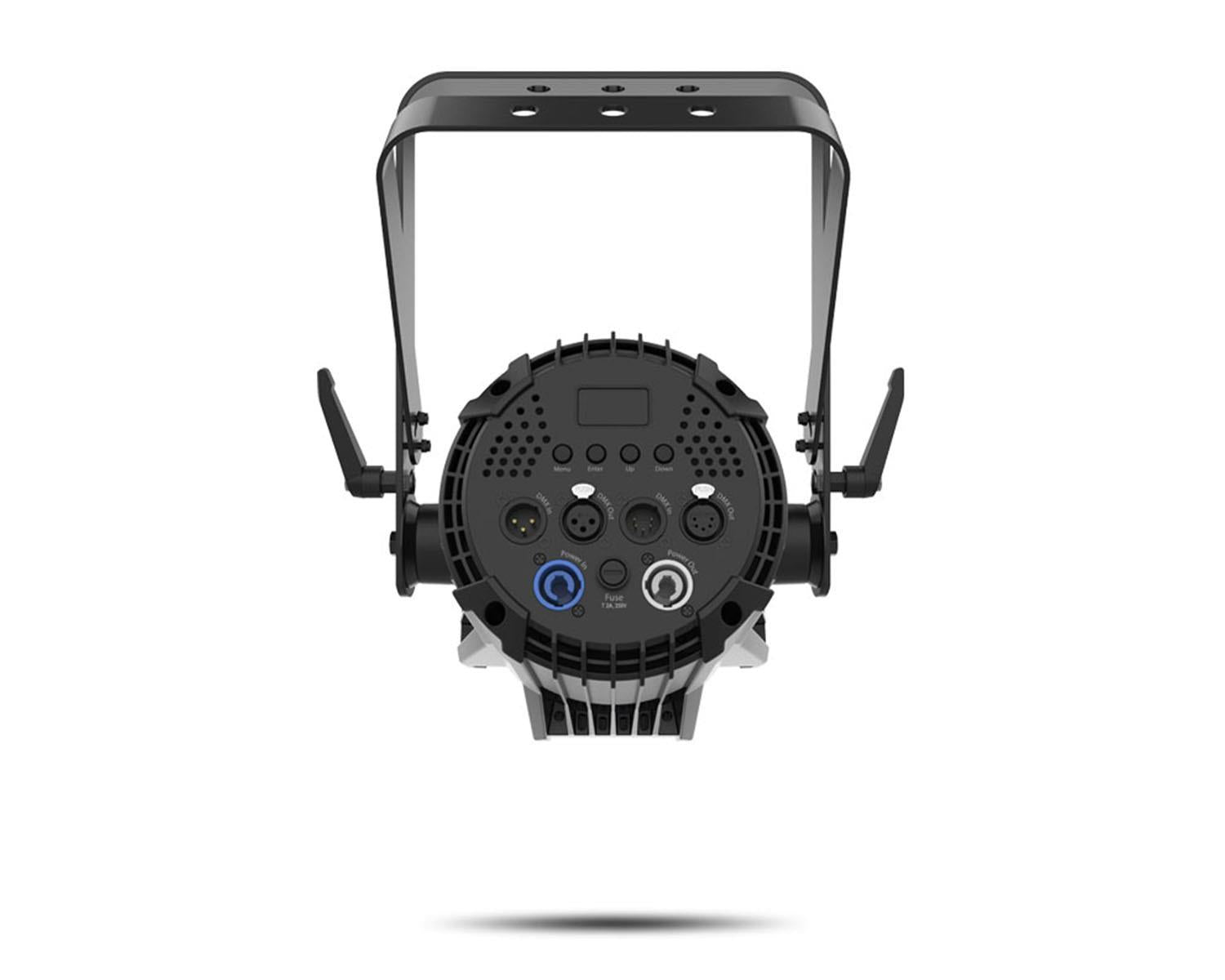

CONNECTIONSPower Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROLControl Protocol: DMX, RDM
DMX Channels: 3, 5, 7, 10, 12, 13, 15 or HSV
Modes/Personalities: 8 personalities (3, 5, 7, 10, 12, 13, 15, HSV)
ELECTRICALInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
Power and Current: 176 W, 1.448 A @ 120 V, 60 Hz
Power and Current: 175 W, 0.844 A @ 208 V, 60 Hz
Power and Current: 180 W, 0.777 A @ 230 V, 50 Hz
Physical & Dimensions
Height: 317mm
Width: 326mm
Depth: 363mm
Weight: 12.2 lb (5.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
