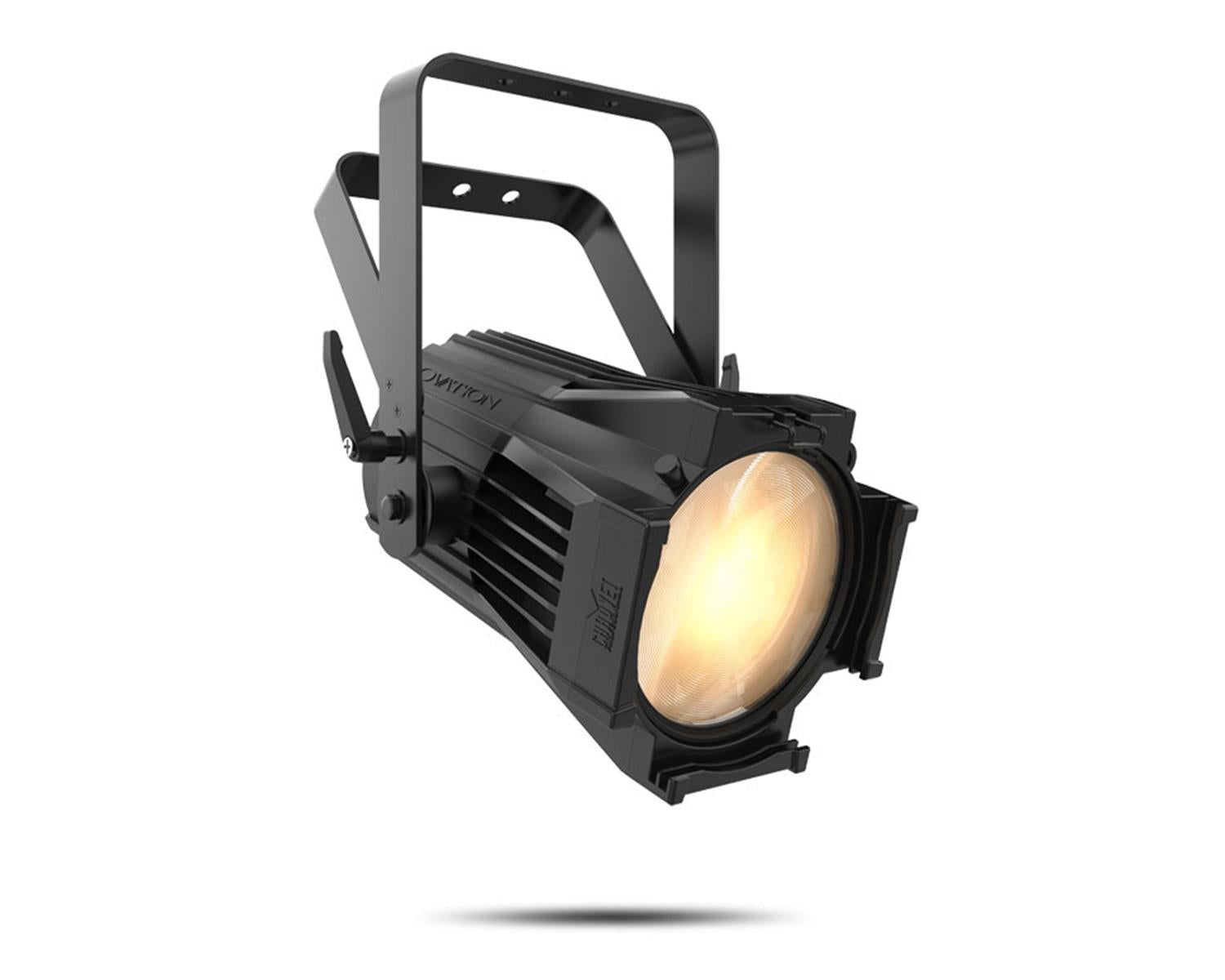

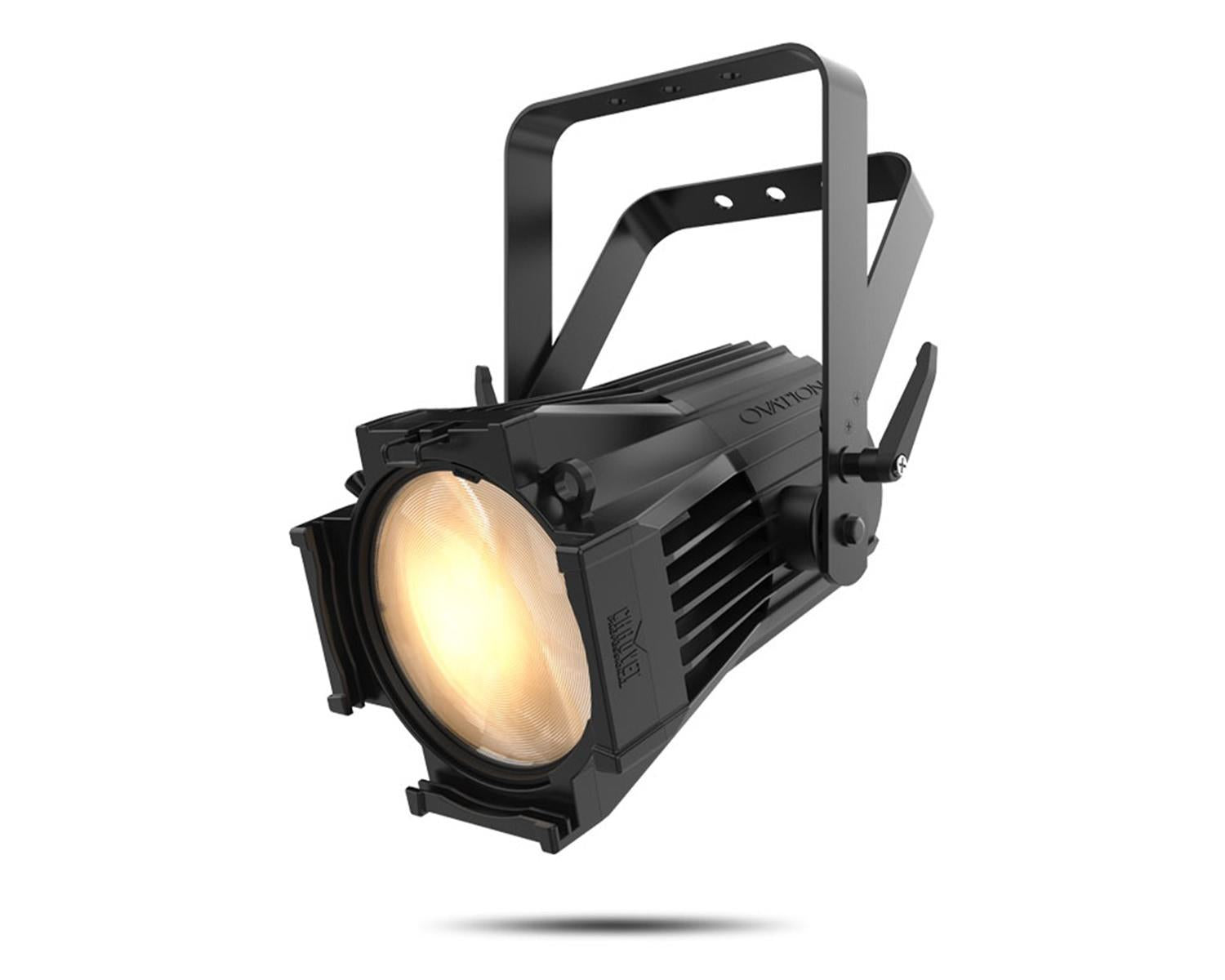

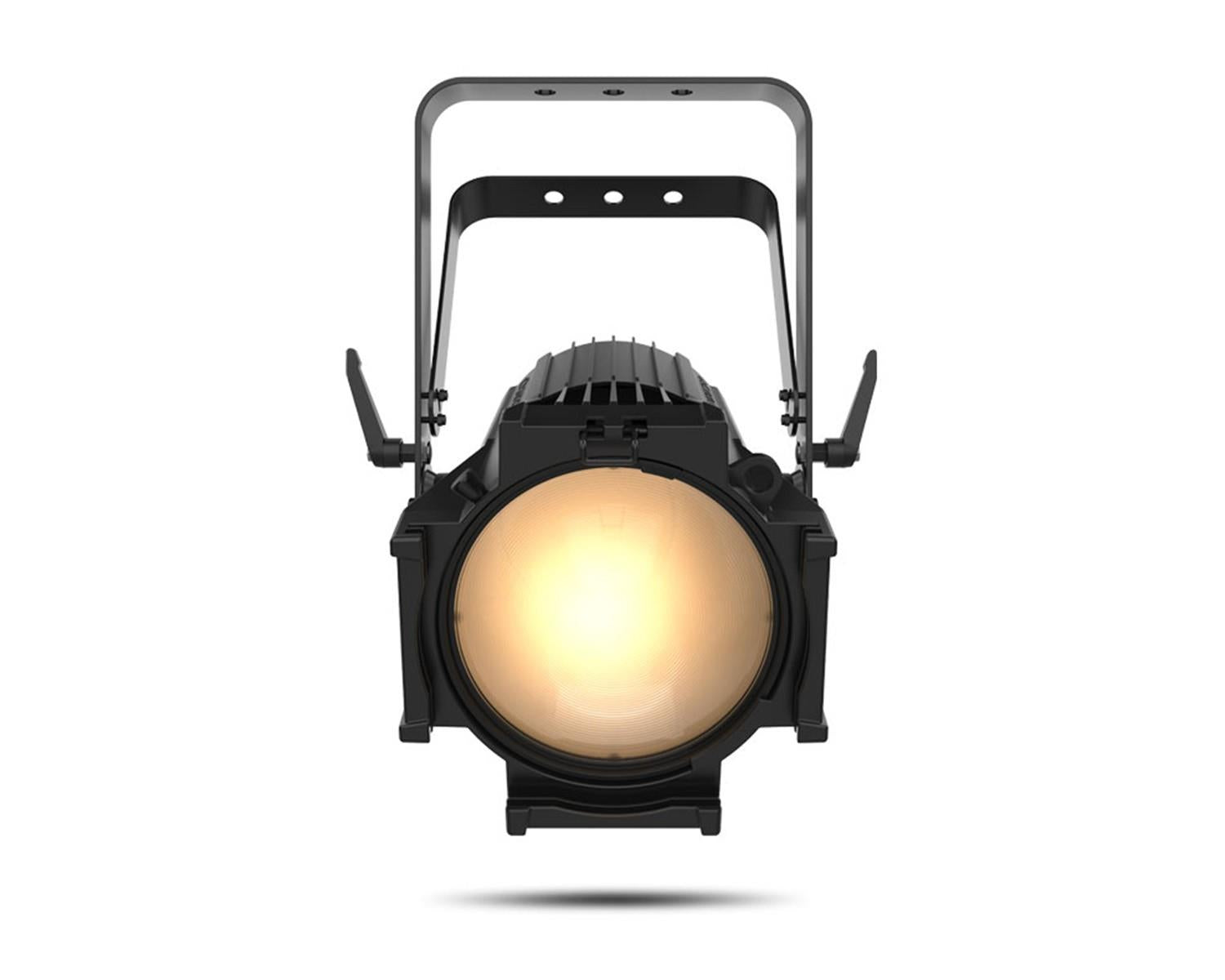

Chauvet Professional Ovation P-56WW Compact LED PAR-Style Fixture Warm White 230W

Description:

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease.

The unit accepts standard 7.5” beam shaping accessories.

Features:

Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp
16-bit dimming resolution for smooth fades
Compact design with homogenous single source of light
Flat, even field of light
Quiet operation for use in any situation
Interchange lens plates included for narrow, medium and wide beam angles

Specifications:

General
OPTICALLight Source: 1 LEDs (WW) 230 W, (3.2 A), 3422 K, 50,000 hours life expectancy
Color Temperature (at full): 3422 K
CRI: 98.1
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTSDimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
CONNECTIONSPower Connection: Edison (Local) plug to Neutrik power
CONData Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROLControl Protocol: DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1, 2, 3, 6)
ELECTRICALInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
Power and Current: 208 W, 1.72 A @ 120 V, 60 Hz
Power and Current: 215 W, 1.02 A @ 208 V, 60 Hz
Power and Current: 216 W, .93 A @ 230 V, 50 Hz
Physical & Dimensions
Height: 317mm
Width: 326mm
Depth: 363mm
Weight: 5.3kg
Exterior Color: Black
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
