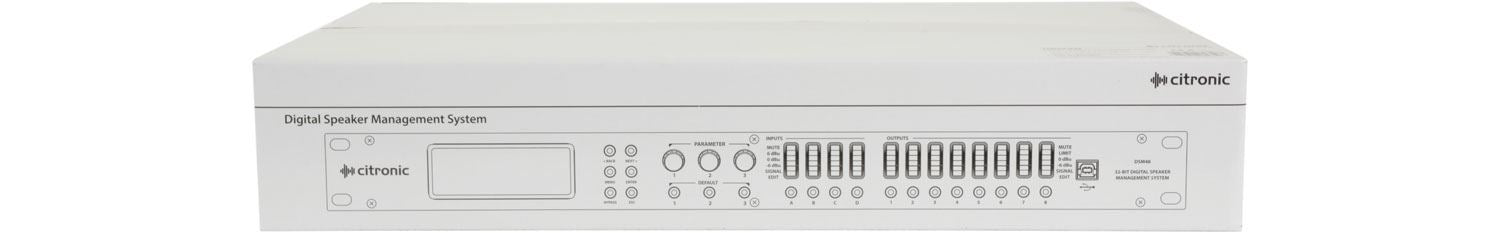

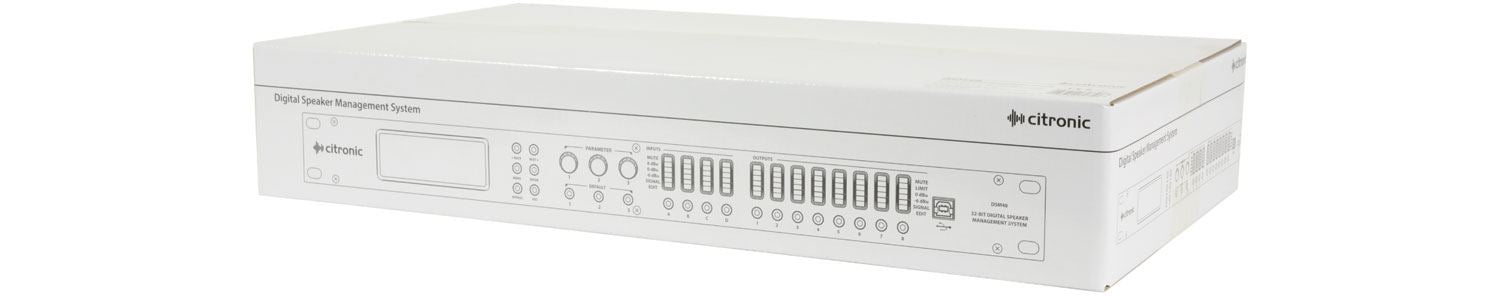

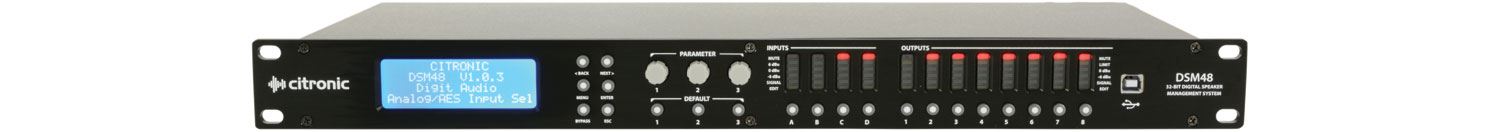

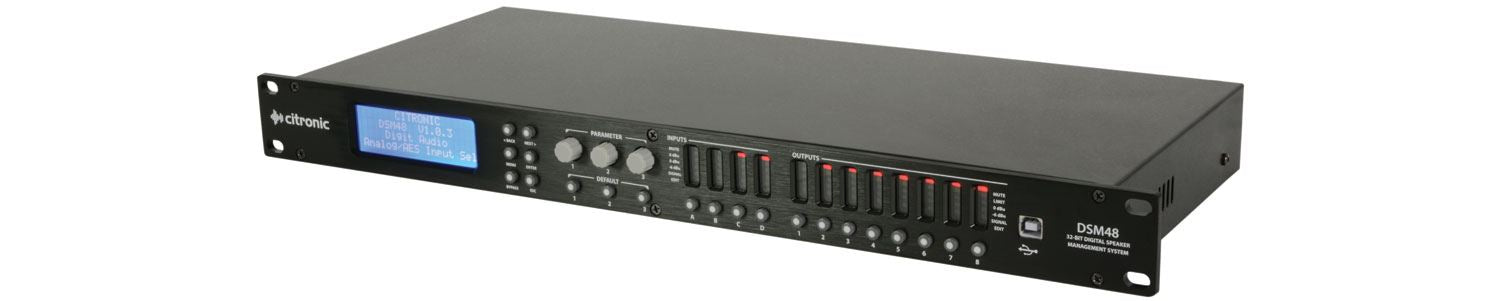

Citronic DSM48 Speaker Management System

Description
Digital speaker management systems which incorporate crossovers, EQ and limiters for multi-amplifier and speaker setups. These units enable the sound system designer to accurately control the inputs for each power amplifier, providing an ideal matched output suited to each speaker enclosure and its surroundings. A 96kHz 32-bit floating point DSP processor has been utilised to ensure professional quality resolution, controlled either directly via the front panel or USB using the included software. Control can also be distributed through LAN by connecting a local network to the rear panel RJ45 connector, enabling remote speaker setups throughout a building. A high quality speaker management system, which is straightforward enough to use for basic PA systems, yet with enough features to satisfy the most demanding sound reinforcement applications.

Features
Inputs: 8-band shelving or parametric EQ
Inputs: Phase and Gain correction
Outputs: Crossover types: L-R / Bessel / Butterworth
Outputs: 8-band parametric EQ
Outputs: Adjustable Limiter
All inputs/outputs independently controlled
Network connectivity for remote control
USB interface with PC software included
Software included for Win XP (PIII 500, 128MB RAM) or higher

Specifications
Power supply115/230Vac, 50/60Hz (IEC)
FuseT315mA
Filter typeLinkwitz-Riley; Bessel; Butterworth.

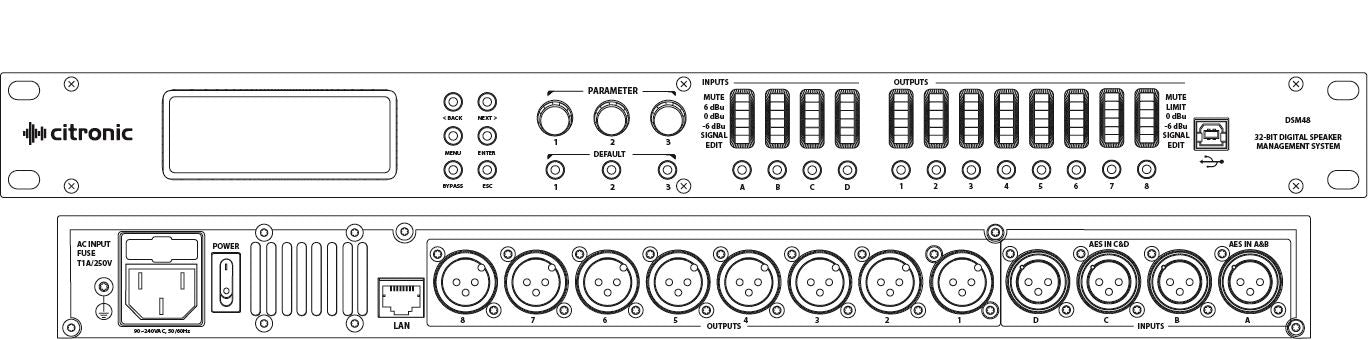

PC Com portUSB and LAN (RJ45)
CMRR65dB (50Hz-10kHz)
Input/output polarityIn phase (+) or reverse (-)
Input EQ8-band parametric EQ
Input Noise Gate-120dBu to +10dBu
Processor96kHz, 32-bit floating point DSP
MuteAny input or output channel
Limiter1 per output (adjustable)
Output EQ8-band: Hi/Lo-shelf or Para
CrossoverHPF + LPF fully programmable per output
Delay0-650ms per output
Frequency response20Hz-20kHz
Input impedance : balanced>10k Ohms
Output impedance : balanced<60 Ohms
Power consumption<25W
Dimensions482 x 44 x 220mm
Weight3.19kg
