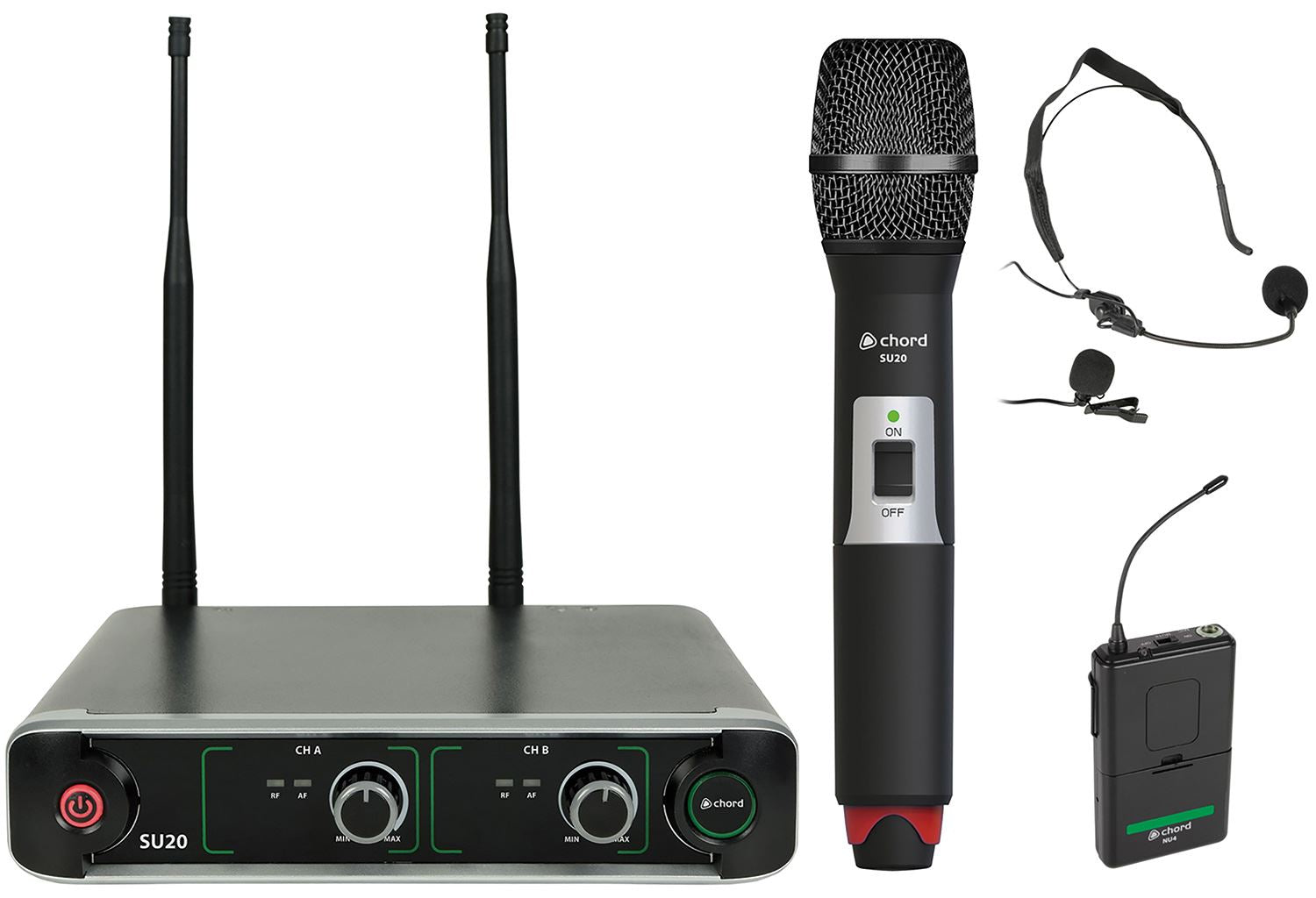

Citronic SU20 Dual UHF Combo Microphone Set Red + Green

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

Features
Up to 2 sets (4 microphones) can be used together
Available in handheld or beltpack versions with 2 carrier frequency options
Compact half-rack receiver
Front or rear mountable antennas
Supplied with power adaptor and 4 x AA batteries

Specifications
Power supply: 14Vdc 350mA (adaptor supplied)
Antenna connection: BNC
Batteries: 4 x AA (2 per transmitter) included
Range: 60m
Microphone : polar pattern: Cardioid (handheld, neckband or lavalier)
Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
Output impedance: 2.2k Ohms
Output level: 400mV (balanced), 200mV (unbalanced)
Frequency response: 50Hz - 18kHz (±3dB)
S/N ratio: >80dB
THD: <0.5% @ 1kHz
Dimensions : receiver: 203 x 187 x 42mm
Weight : receiver: 845g
Dimensions : handheld transmitter: 250 x 47mm
Weight : handheld transmitter: 231g (no battery)
Dimensions : beltpack transmitter: 110 x 676 x 24mm
Weight : beltpack transmitter: 74g (no battery)
Carrier frequencies: 863.42MHz (Red) + 864.3MHz (Green)
