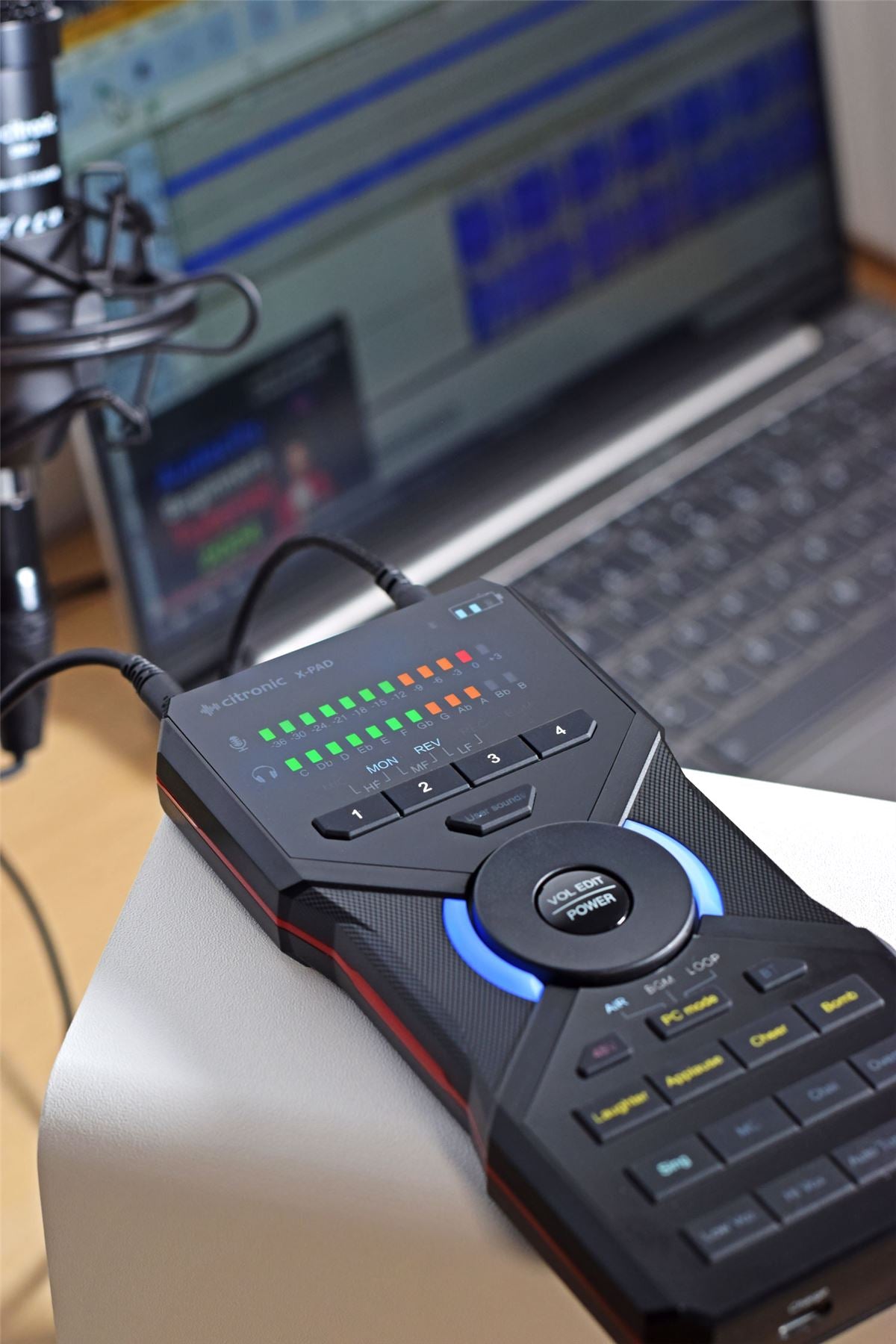

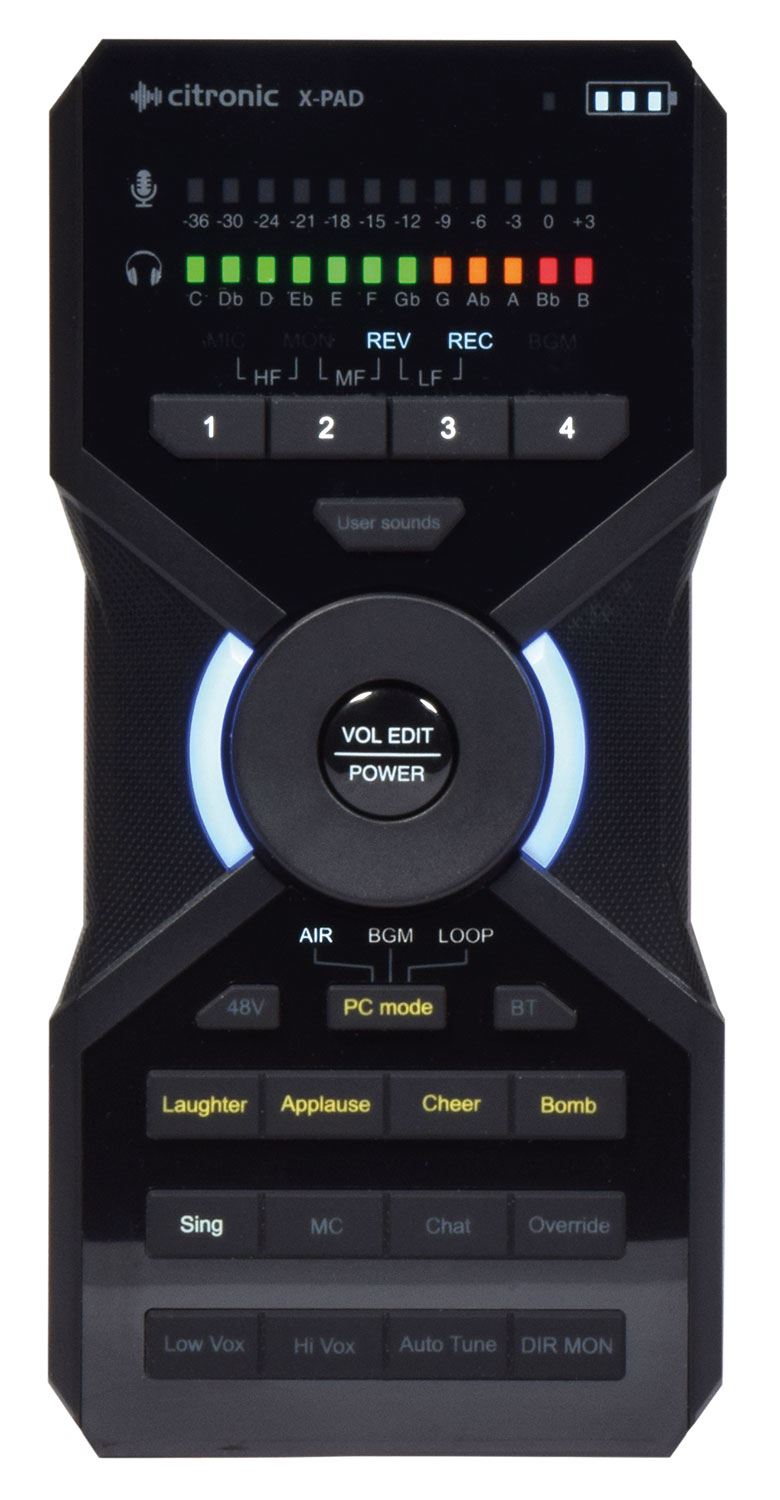

Citronic X-PAD Portable Audio Device

Description

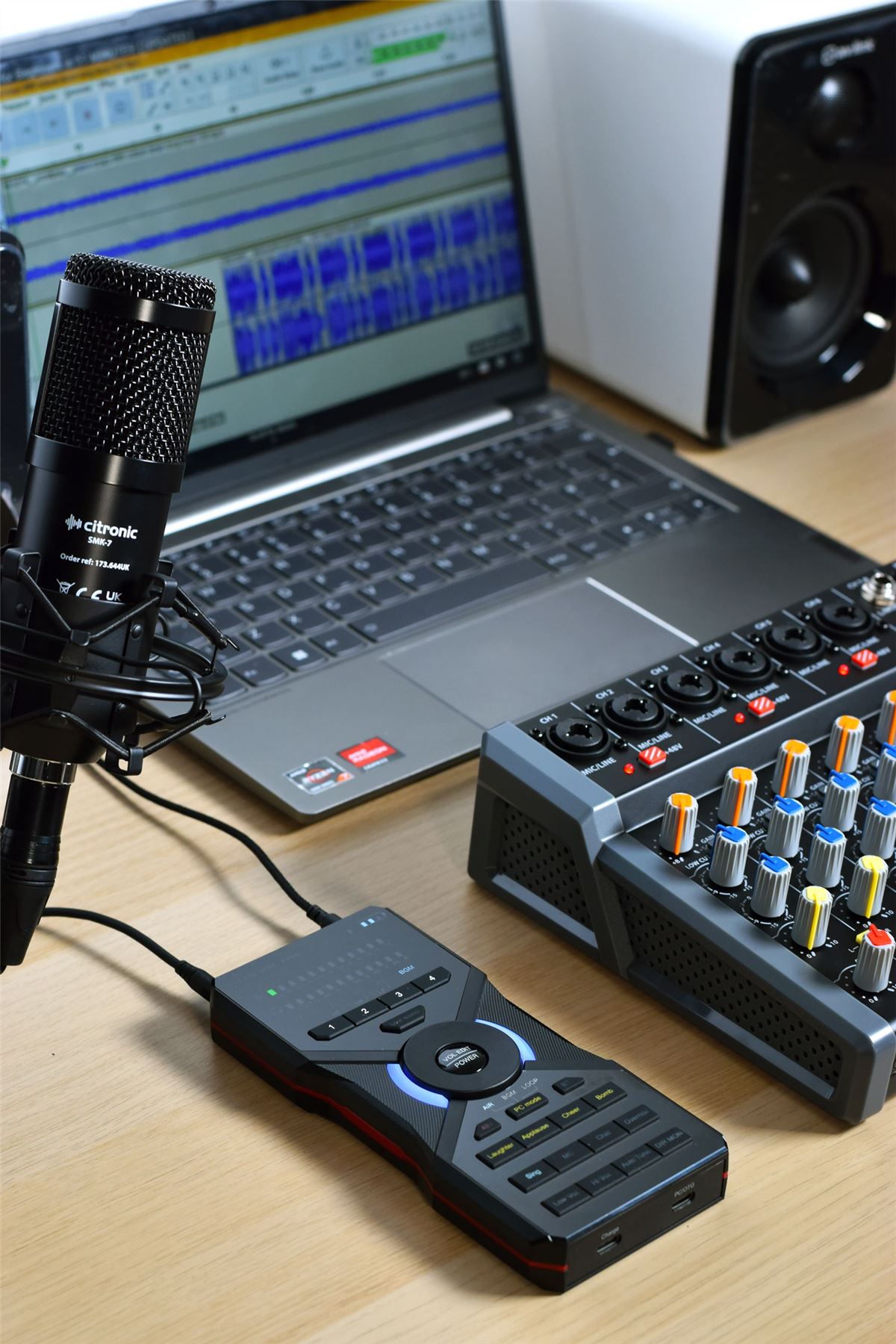

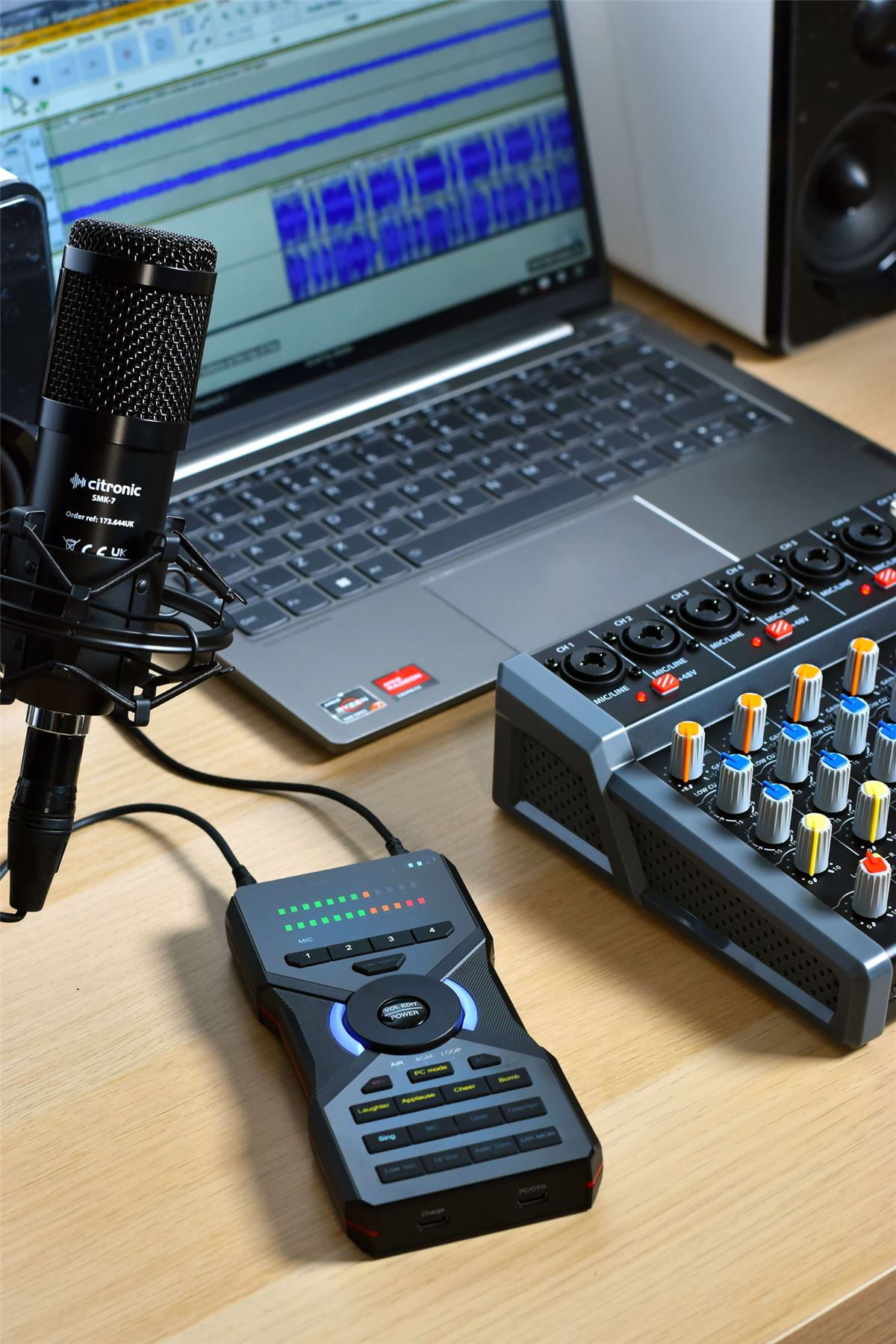

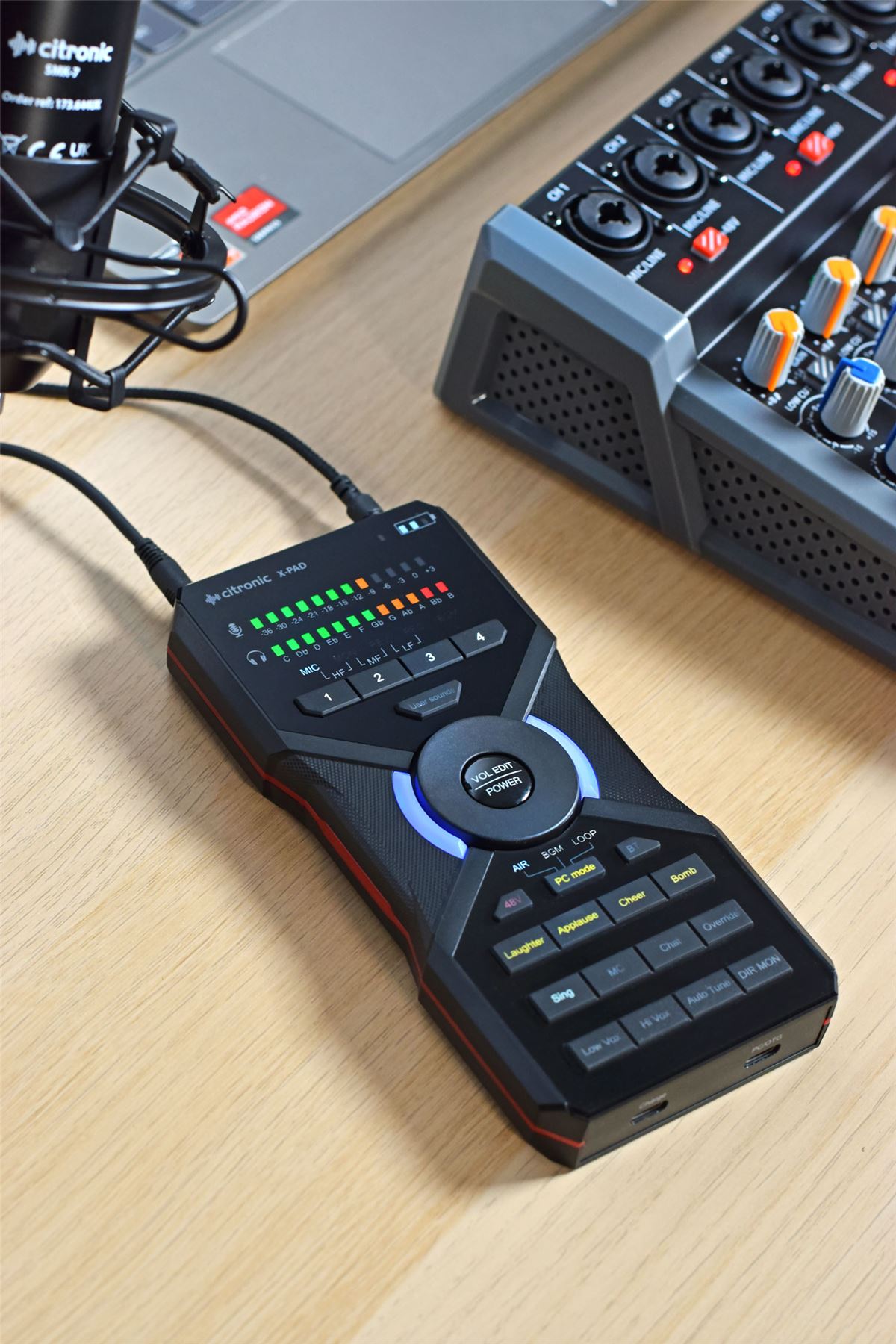

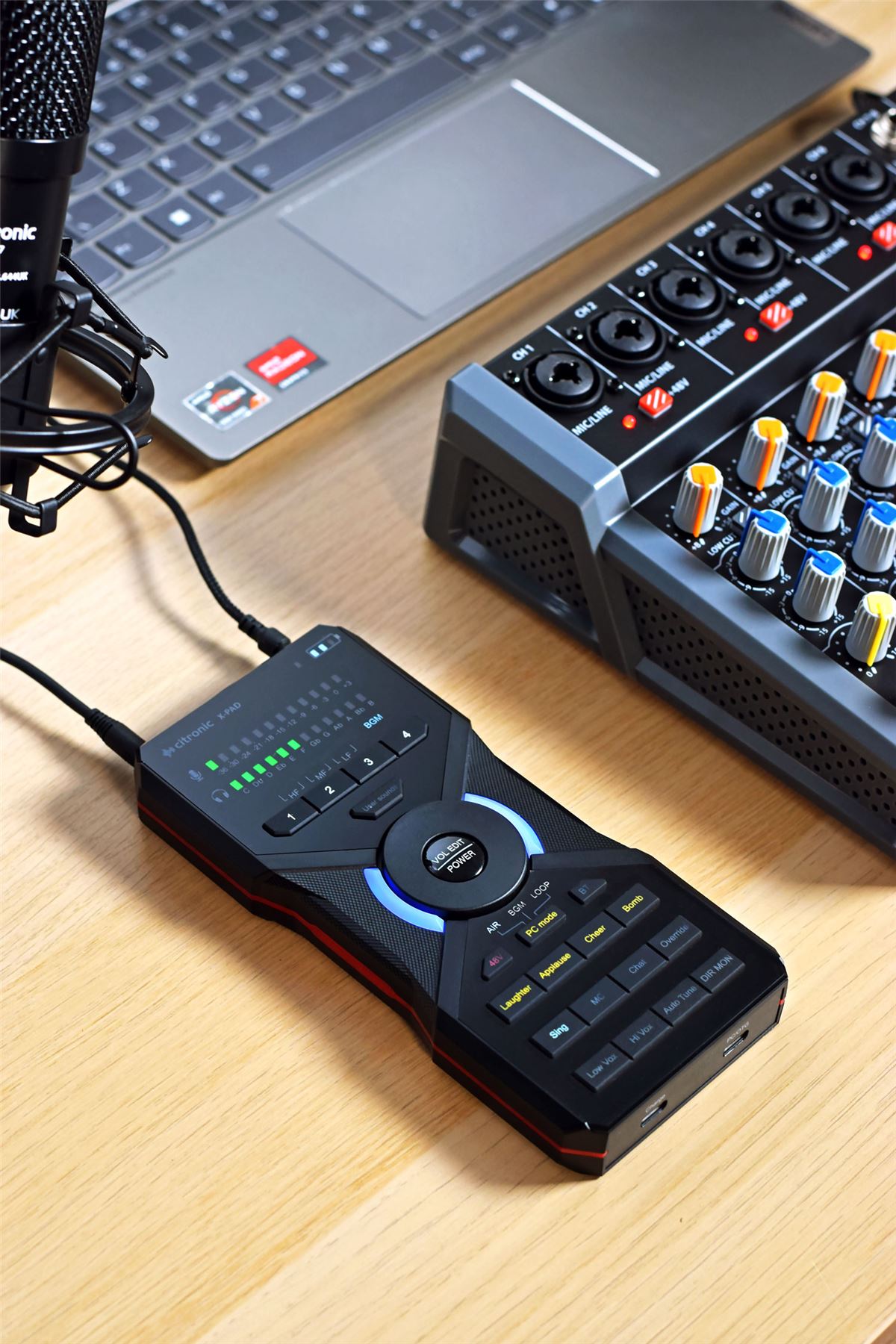

Fully portable audio interface and microphone processor for on-the-go podcasting and recording sessions. The X-PAD brings professional audio processing to a compact and convenient handheld device, cutting the need for bulky equipment out of the creative process. USB-C connection to a smart phone or laptop computer provides a full audio workstation with duplex recording and playback. Microphone input with phantom power option, digital reverb, pitch change and auto-tune processing. Multiple output connections for playback and monitoring via headphones or active speakers. Preset sound effects and user memory for soundbites and loops. All operation is from an internal Li-ion battery, rechargeable via USB. An indispensable companion for podcasts, singing demos and recording on location.Rechargeable via dedicated USB-C socket

• Preset vocal effects and Auto-Tune
• Preset and user-recorded sound effects

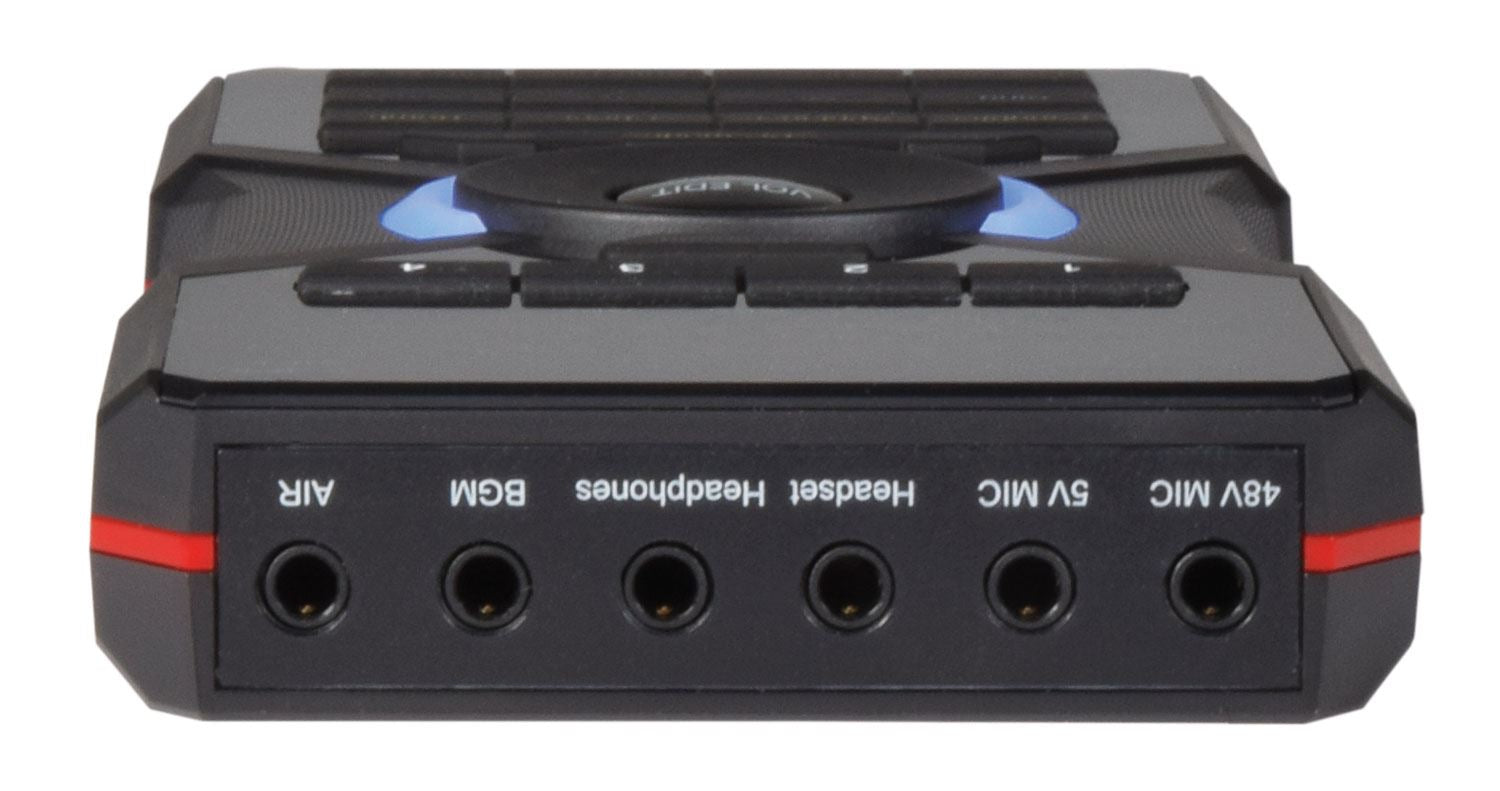

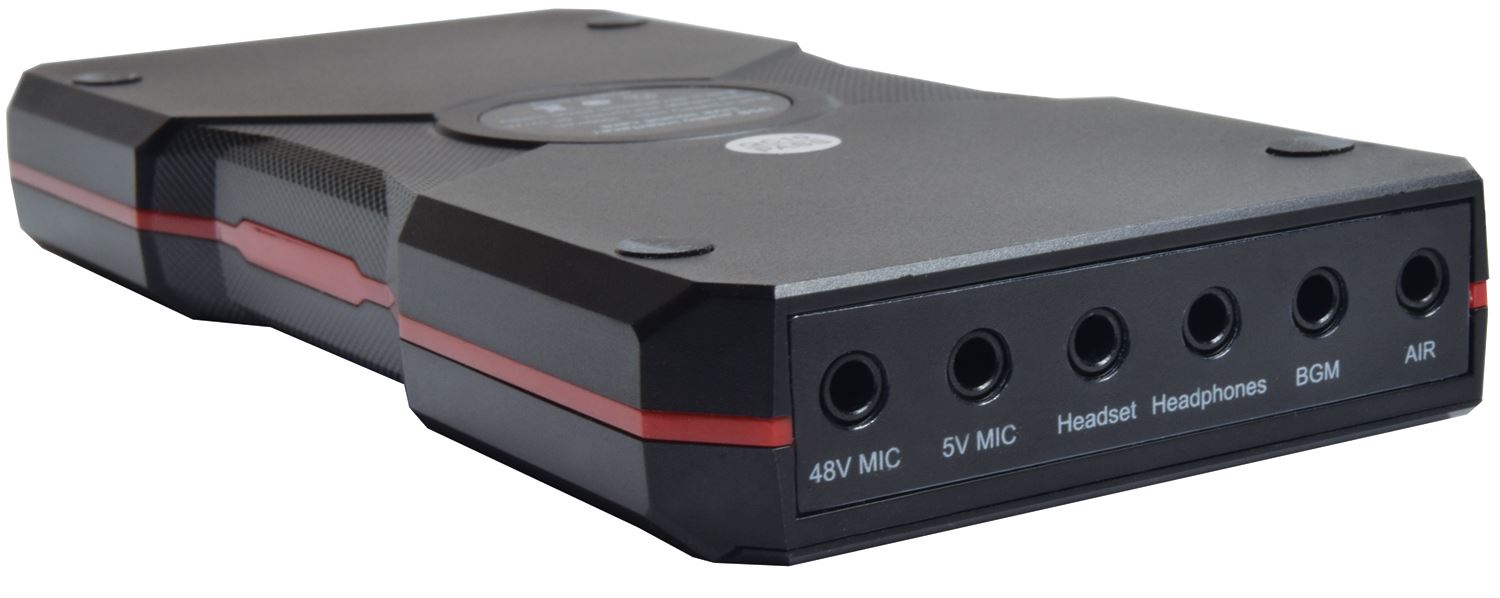

• 3.5mm sockets for microphones, headset, phones, BGM and AIR
• Inputs with 5V or 48V phantom power
• USB-C link to smart phone or laptop
• Bluetooth connection for playback

Specification

• Power source:3000mAh Li-ion battery or USB 5Vdc 2A

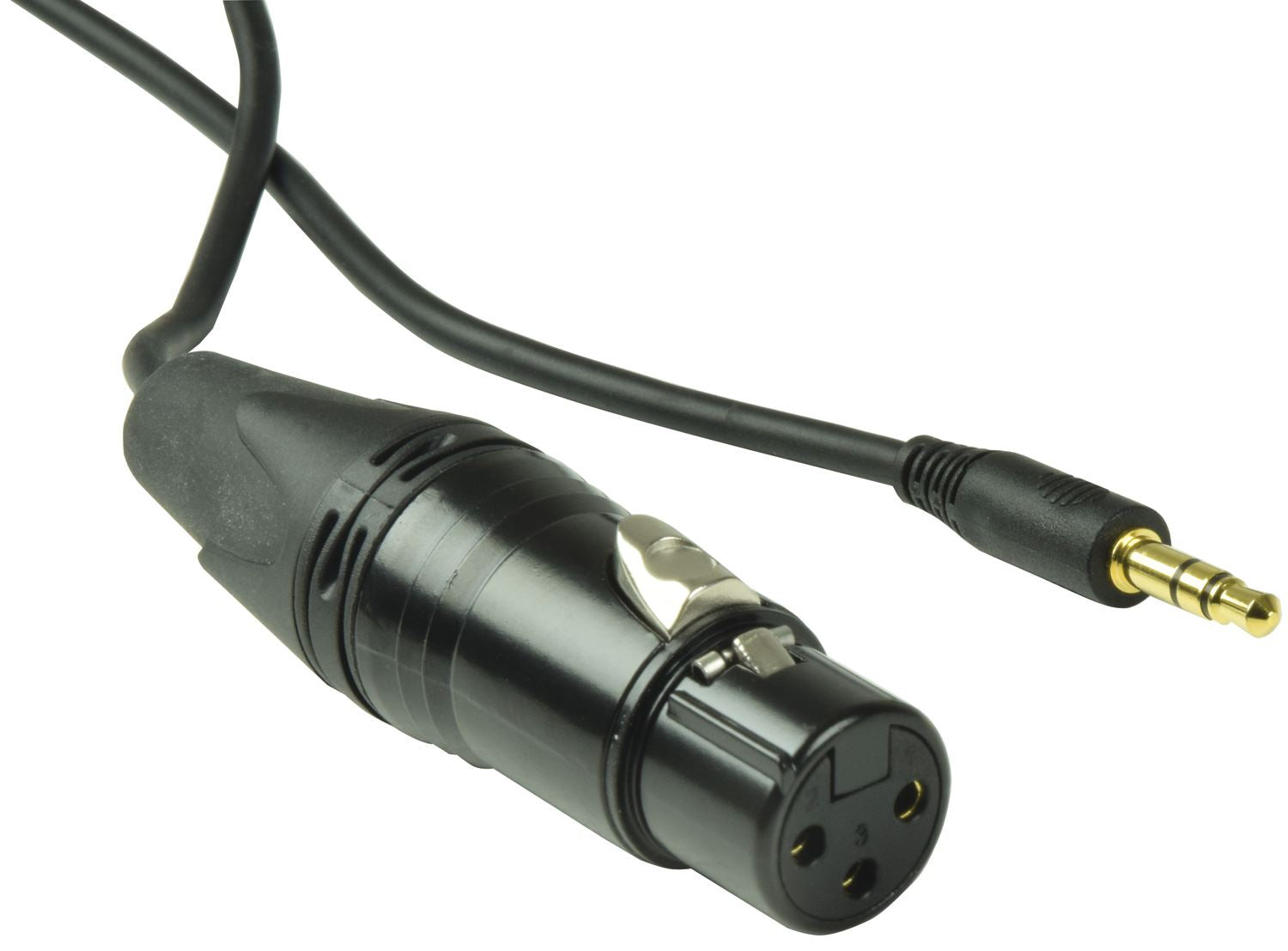

• Microphone : inputs:3 x 3.5mm jack (Mic.1, Mic.2, headset)
• Input impedance : mic:2.2k Ohms (Mic.1), 10k Ohms (Mic.2 & headset mic)
• Sensitivity : mic:-36dB (Mic.1), -26dB (Mic.2 & headset mic)
• Phantom power:+48V (Mic.1), +5Vdc (Mic.2 & headset mic)
• Frequency response:100Hz-16kHz (mic), 20Hz-20kHz (line in) ±1dB
• S/N ratio:90dB (mic), ?96dB (line in)
• Dynamic range:?92dB (mic), ?98dB (line in)
• THD:?0.05% (mic), ?0.02% (line in) @1kHz
• Line input:3.5mm stereo BGM input

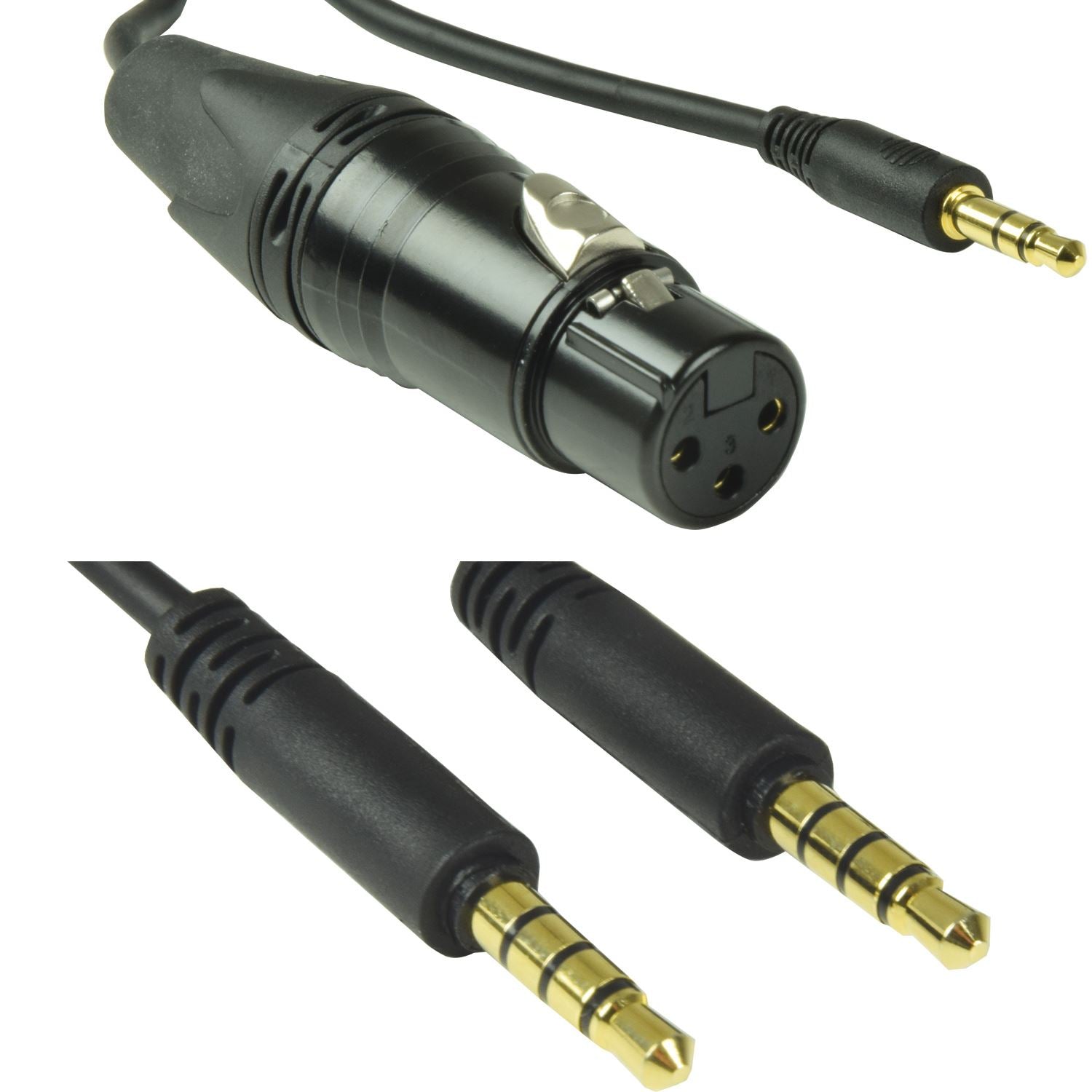

• Smart phone audio connection:3.5mm TRRS jack (or via USB-C)
• Headphone : connector:3.5mm stereo jack
• Headphone : impedance:16-300 Ohms
• Sensitivity : line:-2dB
• Headphone : power:100mW @16 Ohms (1kHz, ?0.1% THD)
• DSP sample rate:48kHz, 16-bit (S/N 98dB)

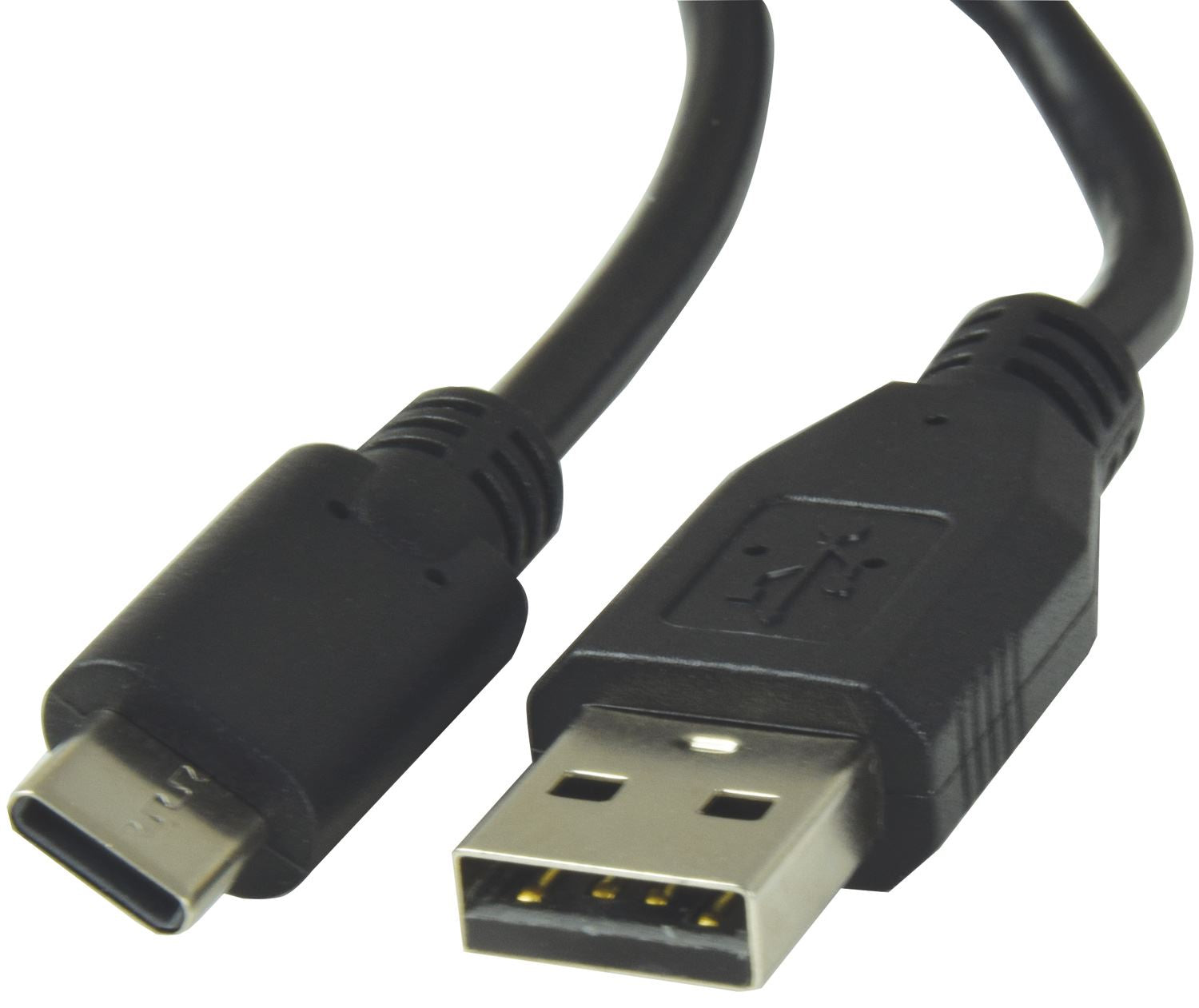

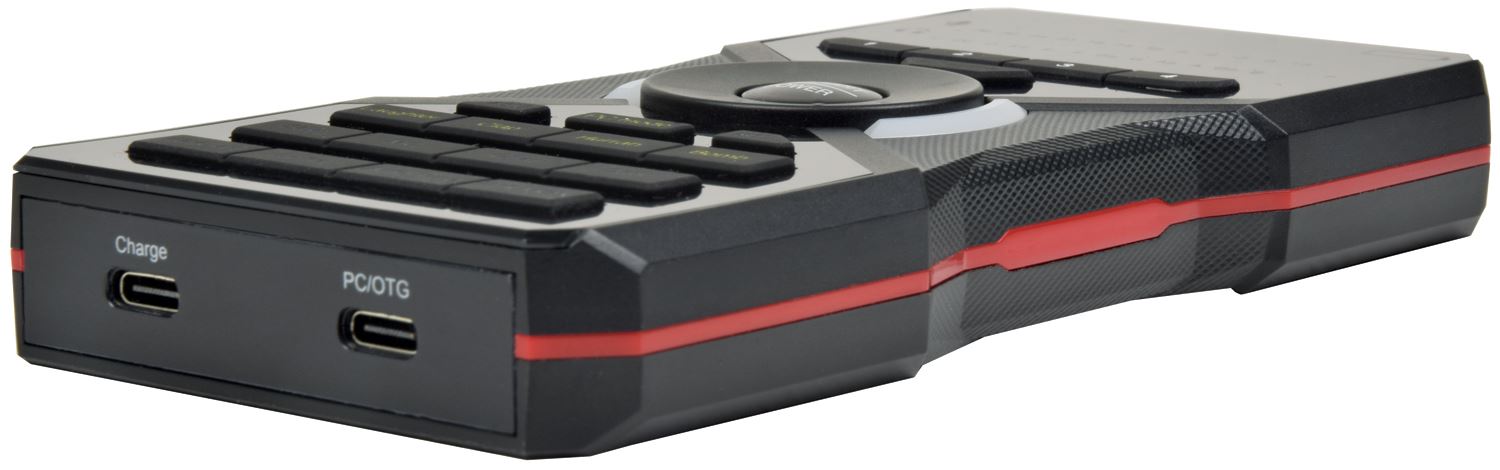

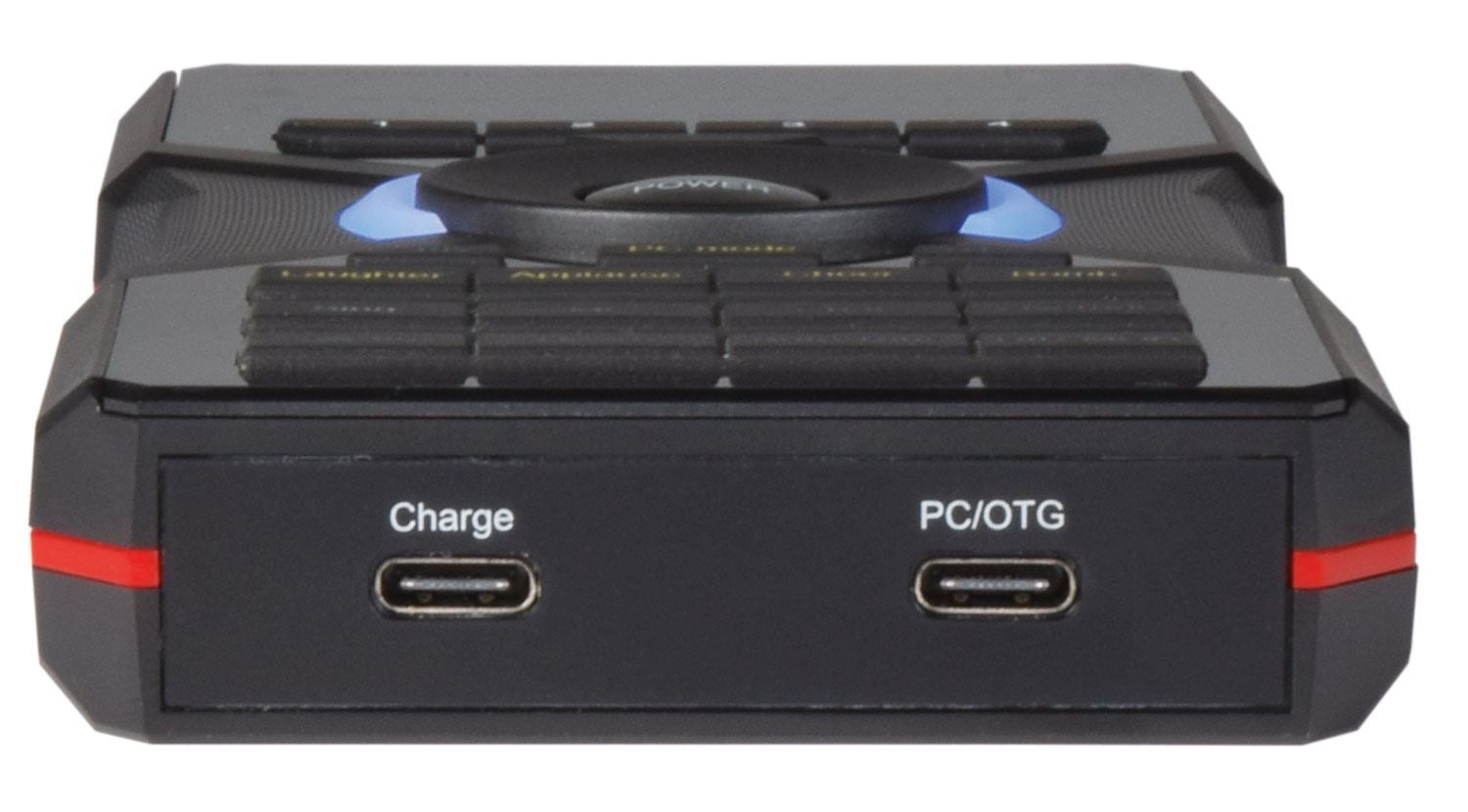

• USB:USB-C (PC/OTG - audio v.1.1) + USB-C (charge)
• Gain:Line in 12dB max.
• Dimensions:162 x 78 x 21mm
• Weight:280g
