City Theatrical Multiverse SHoW Baby Wireless DMX Transceiver 6ch 2.4GHz

Description

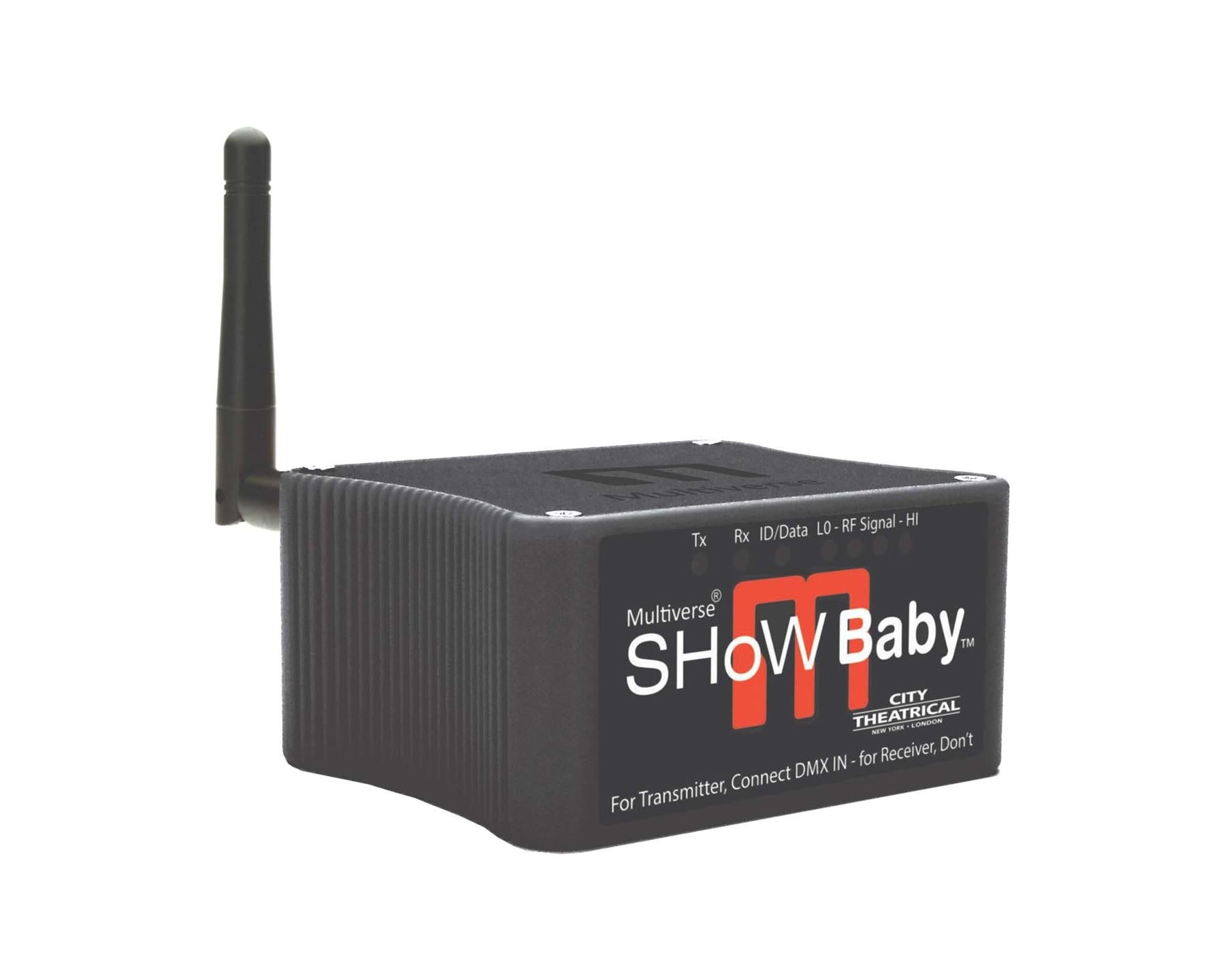

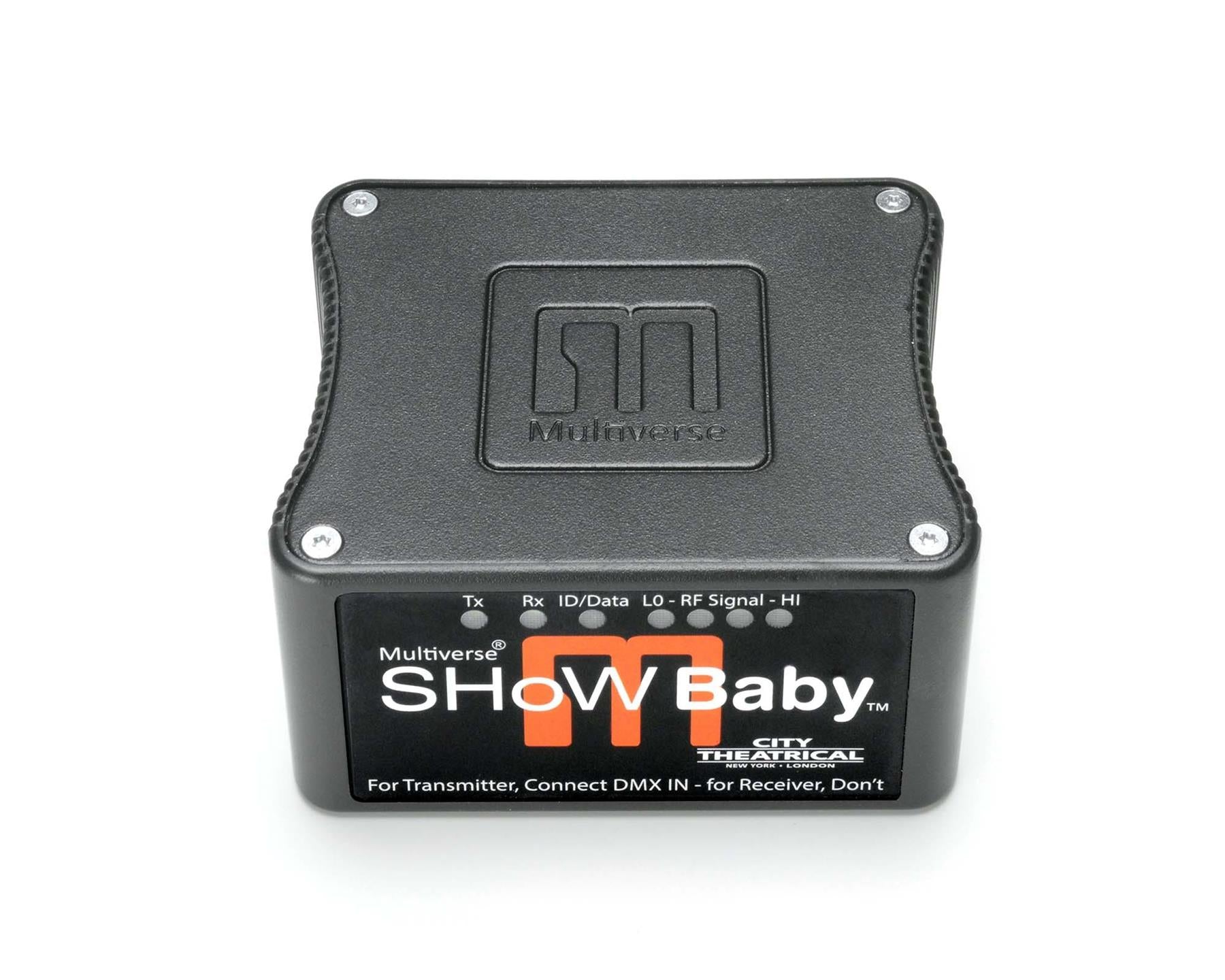

Multiverse SHoW Baby
City Theatrical’s new Multiverse® SHoW Baby® is a wireless DMX transceiver that delivers breakthrough plug and play wireless DMX and RDM transmission. In its default mode, it works like any other SHoW Baby 6 Transceiver, with six user selectable SHoW IDs. By connecting an RDM controller, like DMXcat® Multi-Function Test Tool, all of the revolutionary new 2.4GHz Multiverse SHoW IDs are accessible.

Right out of the box, Multiverse SHoW Baby is fully compatible with all legacy SHoW DMX SHoW Baby® systems. Use it to build new single universe Multiverse systems, or use Multiverse SHoW Baby as a receiver on multiple universe systems with a Multiverse Transmitter.

Full compatibility with all previous SHoW Babys right out of the box
Instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don’t!
Multiverse 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio
Wirelessly broadcast and receive a full Universe (512 slots) of DMX
Robust wireless DMX512 and RDM data transmission
Six user selectable SHoW IDs accessible on the “SET ID” button, plus 147 Multiverse and 70 SHoW DMX Neo SHoW IDs accessible via RDM.
Extremely low 4mS latency
RDM proxy and responder functions

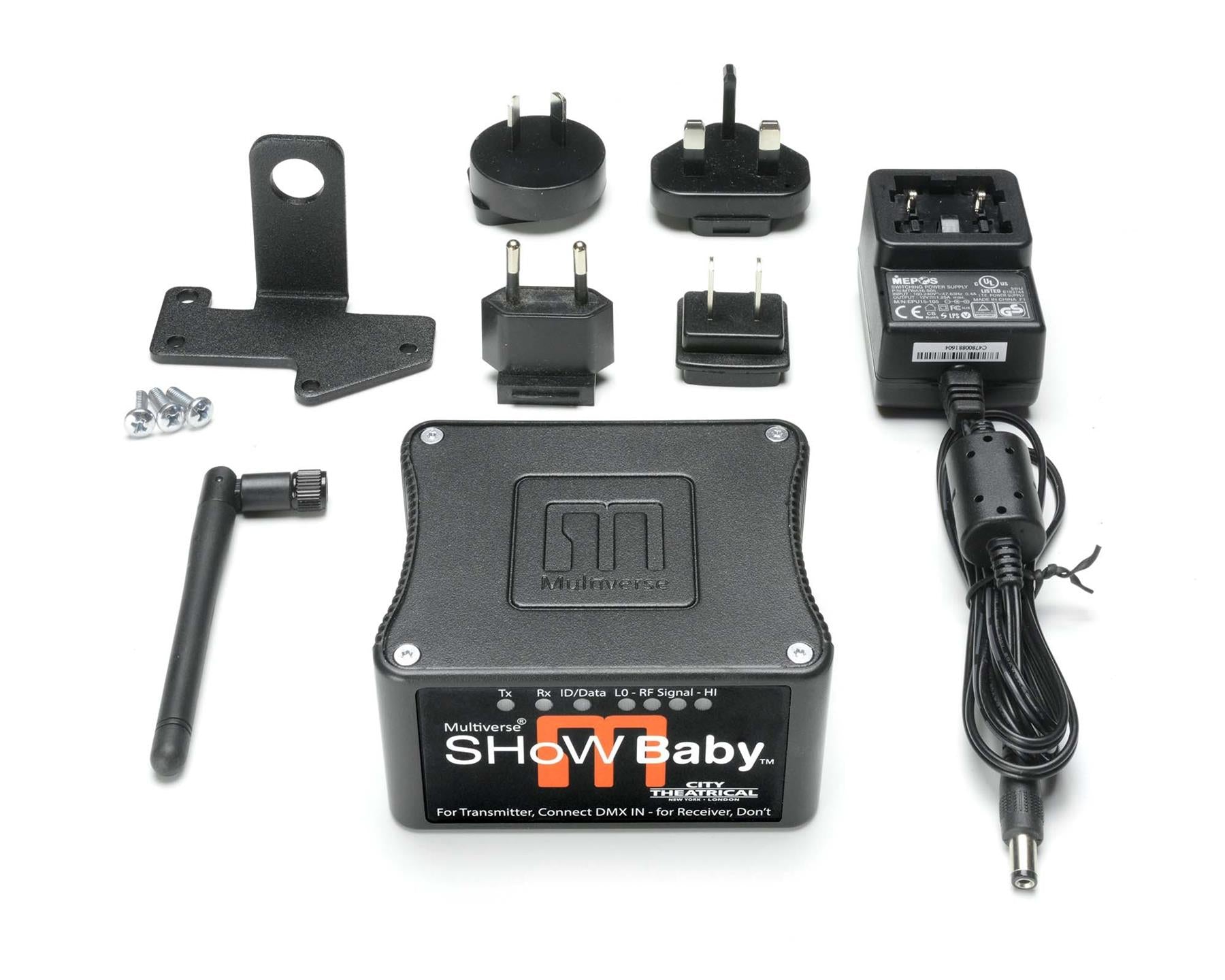

Mounting bracket for installation with C-Clamp or similar hanging hardware
Included CL2 Power Supply
Included 2dBi omni-directional antenna
Neutrik® 5P XLR Connectors for DMX IN and DMX OUT

Physical Specifications
Length: 92mm (3.625 in)
Width: 76mm (3.00 in)
Height: 46mm (1.80in)
Weight: 0.16 Kg (0.35 lb)
Construction: Steel, ABS plastic, Black

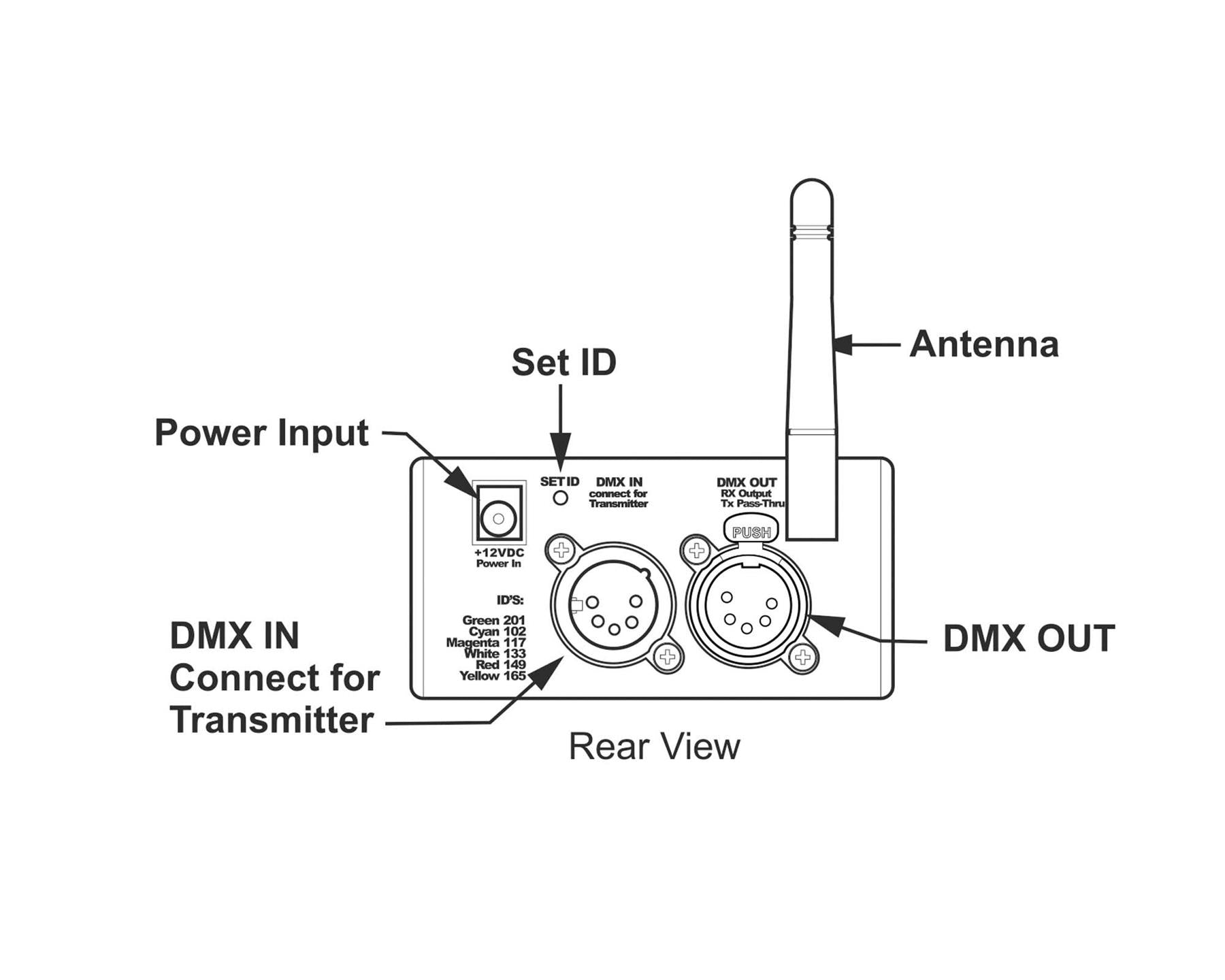

Connection Specifications
DC Jack, 5.5mm x 2.1mm barrel, centre positive, 9mm mating depth (this power supply connector is not compatible with Multiverse Node)
Neutrik® 5-Pin XLR connectors for DMX512 IN and OUT/thru ports
RP-SMA female antenna connector
USB Type-A port, internal (requires removing cover and circuit board)
Functionality
User Interface: 1 Button/LEDs
RDM Features: RDM Proxy, RDM Responder
Power
Input Power: 5-30VDC, 0.8W
Max Draw: 66mA max draw at 12V
AC Adapter Voltage: 100VAC to 240VAC 50/60Hz
Radio Technology
Latency: 4 ms average
RF Sensitivity: -95dBm
Loss of Data Behaviour: Output stops
Broadcast Power: 2.5mW, 8mW, 25mW, 80mW EIRP
Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
DMX Burst Modes: Auto Dynamic
Show IDs: 217 (Americas and Worldwide)
Additional Product Information
Use Environment: Indoor
Operating Temperature: 0° C to 40° C
Storage Temperature: -40° C to 85° C
IP Rating: IP50
Compliance: FCC, IC, CE
Warranty: One year
