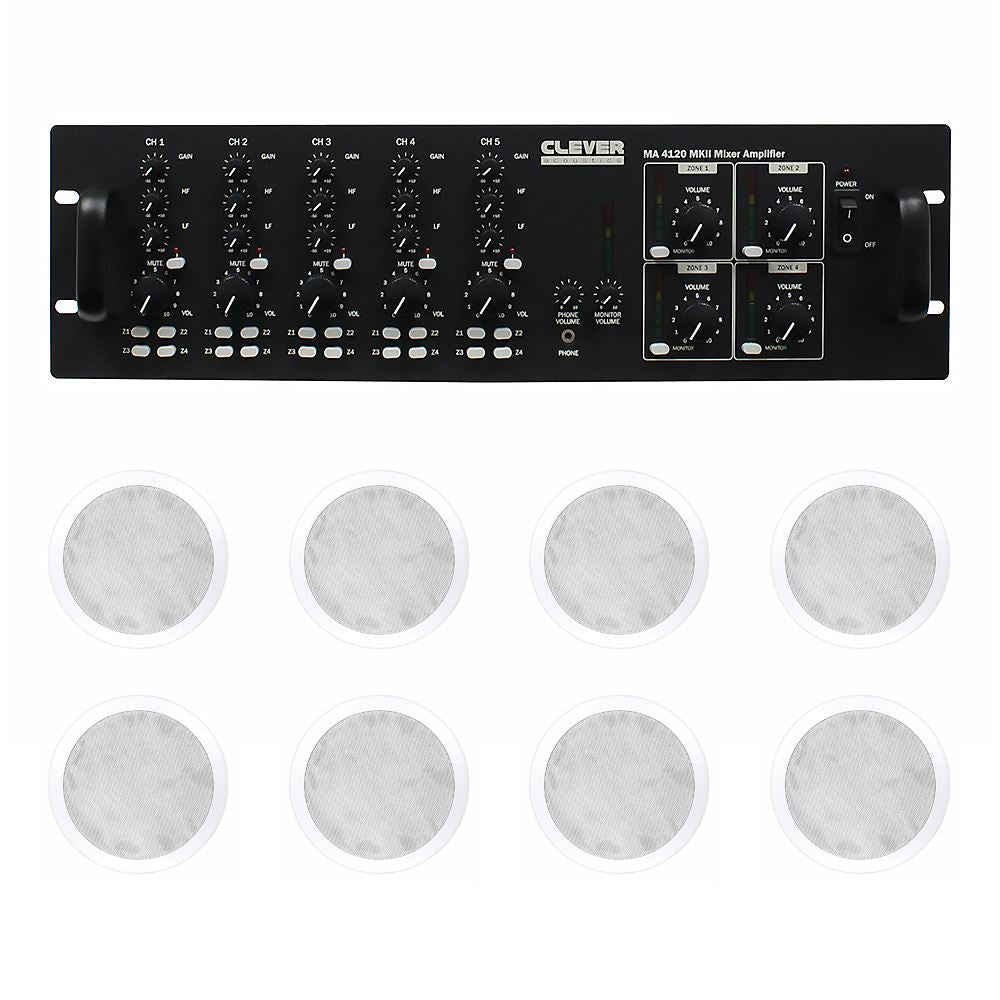

Clever Acoustics 480W 4 Zone Mixer Amplifier inc. 8x Ceiling 6" 30W Speakers

£897.00
£897.00
SKU: SKU6001
Icon In Stock In Stock
Icon Delivery Time

These 4 Zone Mixer Amplifiers are ideal for systems where multiple zones are required. Designed for use in schools, churches, entertainment venues or commercial buildings, they offer multi zone audio routing coupled with four independent amplifiers. They have five input channels, each with selectable independent output routing, input gain, treble, bass and volume controls. Four output zones each feature LED VU indicators, monitor selection and volume controls with outputs for line level, low impedance (4-8O) and constant voltage speaker systems (25V, 75V and 100V). The on-board monitor facility, selectable for each zone output features both a line level audio and 1W 8Ω loudspeaker output suitable for driving a loudspeaker local to the zone mixer.

3 year warranty
Four output zones each with level control and monitor selection
Four independent 120Wrms amplifiers outputting to 4-8Ω or 25, 70, 100V
Five input channels:
annels 1-4 are via XLR/Jack combo sockets, each with Line/Mic/Mic+Phantom selection (48V)
annels 5 is via phono (RCA) stereo line level input
3U, 19” rackmount chassis
Input gain, treble, bass and level controls
Selectable output routing for all input channels
Monitor function with level control and LED VU meter
Output for monitor loudspeaker: 1W, 8Ω
Headphone output with level control
Telephone/paging input (zone selectable) with adjustable level
Priority contact for music mute facility (CH4 and 5 mute, CH1-3 priority)
VOX operated priority for TEL input
CH1 input automatic VOX priority
Telephone and MIC1 (music mute facility)
Input channel mute switches on front panel
Line level MIX output
Temperature controlled, variable speed fan cooling


Specifications
Power output: 4 x 120Wrms (4 x 240W peak)
Speaker outputs: 25, 70, 100V and 4-8Ω
Sensitivity: CH1-4: —50dB (Mic/Phantom), -10dB (Line), CH5: -10dB (unbalanced)
Frequency response: 60Hz-17kHz (±3dB)
Tone control: ±10dB-100Hz/±10dB-10kHz (bass/treble)
S/N ratio: >65dB (Mic), >75dB (Line), >65dB (TEL)
THD: <1% (@1kHz 1W output)
Power consumption: 550W (max.)
Power supply: 110-240V~50/60Hz AC
Fuse: T6.3A 250V


Dimensions
135 x 484 x 395 mm


Weight
22 kg






Clever Acoustics CS 630HP 100V 6″ 30W Ceiling Speaker Description
High power 6″ ceiling loudspeaker with extended frequency response. Ideal for the playback of music and speech reinforcement where audio quality is important. The CS HP series utilise a coaxial design complete with HF tweeter for crystal clear high tones plus metal enclosure for enhanced low frequencies.

3 year warranty
Coaxial, 2-way design delivers a wide frequency response
Multiple power taps plus low impedance
Rotary power tap
Metal grille, ABS baffle and metal enclosure
Flush mount dog-ear retaining clips for easy installation
Spring terminal connection
Supplied with template to aid installation


Specifications
Input: 100V, 8Ω
Power taps @ 100V: 1.9W, 3.8W, 7.5W, 15W, 30W
Impedance: 2.6KΩ, 1.3KΩ, 670Ω, 330Ω, 165Ω
Power (RMS): 30W @ 8Ω
Sensitivity (1W/1m): 89dB (±3dB)
Maximum SPL (Rated W/1m): 104dB
Frequency response: 95Hz-20kHz
Drivers: 6" LF, 1.5" HF
Connections: 2 x spring terminals
Cutout: 208mmØ
Mounting depth: 140mm


Dimensions
165 x 233 mmØ


Weight
1.6 kg (Single Unit)
