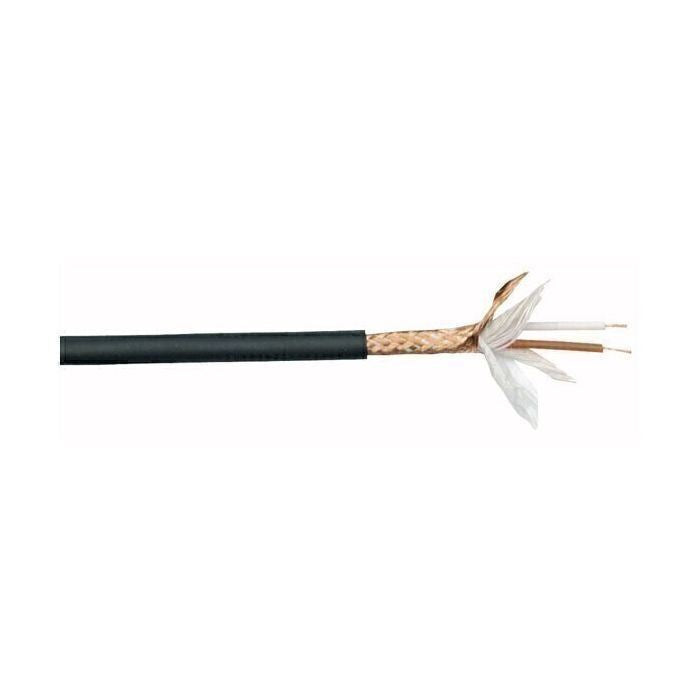

Conductor drains in mm: OFC 18 x 0,10 Conductor insulation: FPE red+white Conductor insulation: 1,9 (Ã in mm) Filler material: paper + cotton yarn 1st shield: OFC braided 128 x 0,12
Specification
Conductor drains mm: OFC 18 x 0,10
Conductor insulation: FPE red+white
Conductor insulation: 1,9 (in mm)
Filler material: paper + cotton yarn
1st shield: OFC braided 128 x 0,12
2nd shield: -
Outer isolation: PVC black+blue
Outer isolation in mm: 6
Conductor resistance: 130 Ohm/Km
Shield resistance: 12.5 Ohm/Km
Capacity Inner conductor: 35 pF/m
Cap. Inner conduct. Shield
/ Inner conduct.: 52 pF/m
Working temperature min. / max.: -20~60 °C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
