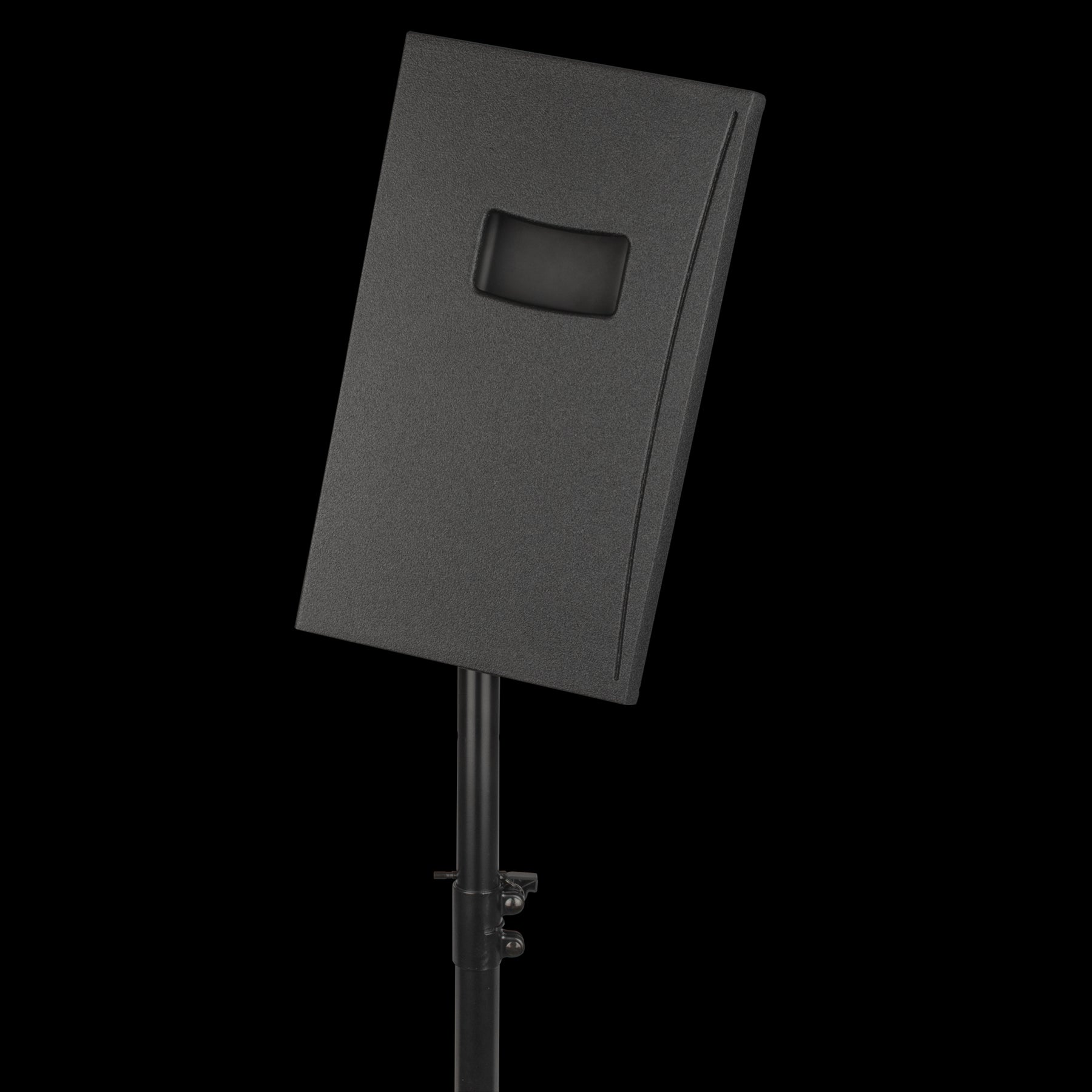

DAP NRG-12A Active 12” Full-range Speaker 360w

The DAP NRG-12A is an active full-range loudspeaker with a peak power of 360 watts (180 watts continuous RMS). It uses a 12” woofer and a 1” compression driver, and has an internal DSP with 4 useful modes: Contour, Flat, Speech and +Sub, which apply a loudness curve, a flat curve, a high-pass curve or a high-pass with optimised frequency and phase curve specifically for the NRG subwoofer range respectively. The compression driver is coupled to a rotatable horn with a directivity of 90°x 60°. The internal class D amplifier has a switched-mode power supply to keep the weight down and efficiency level up. The internal DSP includes a crossover for the woofer and compression driver, a 2-band limiter, a short circuit protection and thermal protection.
As well as dedicated XLR combo jacks for microphone and line-level signals, the NRG-12A has an integrated Bluetooth 5.0 receiver for playing music from your mobile phone, laptop, or other Bluetooth media player. The Bluetooth receiver features True Wireless Stereo (TWS) and can be configured to enjoy stereo sound when using a pair of NRG full-range speakers. The line output is looped through and there is an additional ‘Mix out’ output with all signals available for driving a second unit or a subwoofer, preferably from the NRG range. Separate gain controls make it easy to adjust the level of the different input signals and a master control sets the overall volume.
The sturdy, lightweight plywood cabinet has a double-angled top hat (0° and 5°), allowing you to point the cabinet downwards when mounting it on a pole. To get the most out of the NRG-12A, we recommend adding an NRG series subwoofer.

Specifications:

Outputs
Power Amplifier RMS Output 180 W
Power Amplifier Peak Output 360 W
Main Outputs 1
Main Output Connector 3-pin XLR
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR
Audio Specifications
THD Level < 0.3 %
Signal-to-noise Ratio > 95 dB
AD/DA Convertor Sample Rate 48 kHz
Audio Latency 1.2 ms
Amp Technology Class D
Speaker System 2-way
Speaker Sensitivity (1 W/1 m) 96 dB
Maximum SPL at 1 m 117 dB
Frequency Response (-6 dB) Minimum 60 Hz
Frequency Response (-6 dB) Maximum 20000 Hz
Woofer Diameter 12 "
Woofer Voice Coil Diameter 2 "
Woofer Magnet Type Ferrite
Compression Driver Diameter 1 "
Compression Driver Voice Coil 1.4 "
Compression Driver Magnet Type Ferrite
Dispersion Angle (Horizontal) 90 °
Dispersion Angle (Vertical) 60 °
Internal Storage
User Presets Yes
User Presets Capacity 4
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
SMPS Yes
Power Consumption 180 W
Power Connector In Power Pro Blue
Mechanical Specifications
Height (mm) 575 mm
Width (mm) 345 mm
Depth (mm) 360 mm
Material Plywood
Colour Black
Weight 15.5 kg
IP Rating IP20 (indoor use only)
Product Properties
LED Indicators BT Pairing, DSP Mode, Limit, Power, Protect, Signal
Speaker Handle Positions Left side, Right side
Rigging
Rigging Eye Thread M10
Thermal Specifications
Maximum Ambient Temperature 40 °C
Maximum Surface Temperature 50 °C
Included Items
Included Cables Power Pro Cable
