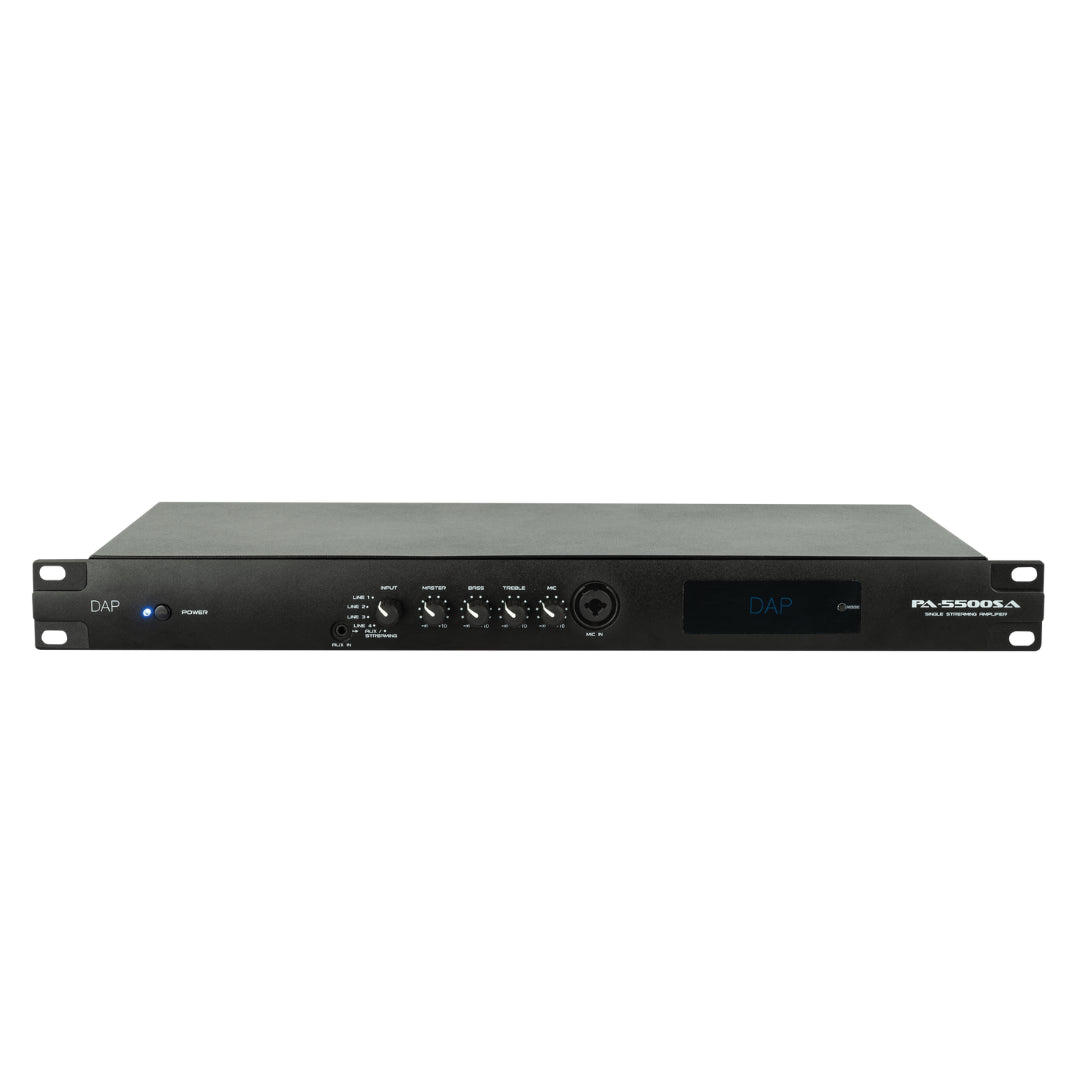

DAP PA-5500SA 1U Internet Radio Amplifier 460W 100V Multimedia Player Bluetooth 5.0

Upgrade your installation with the DAP PA-5500SA, a 1U professional Internet radio and multimedia player integrated with a powerful 460W Class D amplifier. Designed for flexible media playback, it supports LAN, Wi-Fi, USB, and Bluetooth 5.0 with aptX HD audio streaming. Enjoy clear, dynamic sound from multiple sources including AAC, ALAC, FLAC, MP3, WAV, and APE formats. With a built-in hotspot function, devices can cast directly to the unit for easy wireless audio distribution.

The PA-5500SA delivers 2 x 240W RMS into 8 ohms or a bridged 240W output at 100V line level, perfect for background music and paging systems in hospitality, retail, and corporate environments. Control is intuitive via the OLED screen, onboard buttons, IR remote control, or the 4stream app, which integrates popular services like Spotify, TuneIn, Tidal, and Amazon Music. With 6 programmable presets, robust protection circuitry, and a compact 1U rack size, the PA-5500SA is the ultimate all-in-one audio solution.

Features:
Built-in Internet radio, USB player, Bluetooth 5.0 with aptX HD
Wi-Fi hotspot functionality for casting devices
2 x 240W RMS at 8 ohms or 240W bridged at 100V
Supports AAC, ALAC, APE, FLAC, MP3, WAV formats
LAN and Wi-Fi network connectivity
Front panel controls with OLED display
Control via IR remote or 4stream app (Spotify, Tidal, TuneIn support)
6 programmable presets for stations and playlists
Clip limiter, overheat, short-circuit, and DC voltage protection
Ideal for 100V line audio distribution, background music, and paging

Specifications:
Outputs: 2 channels, 2 x 240W RMS at 8 ohms, 240W bridged at 100V

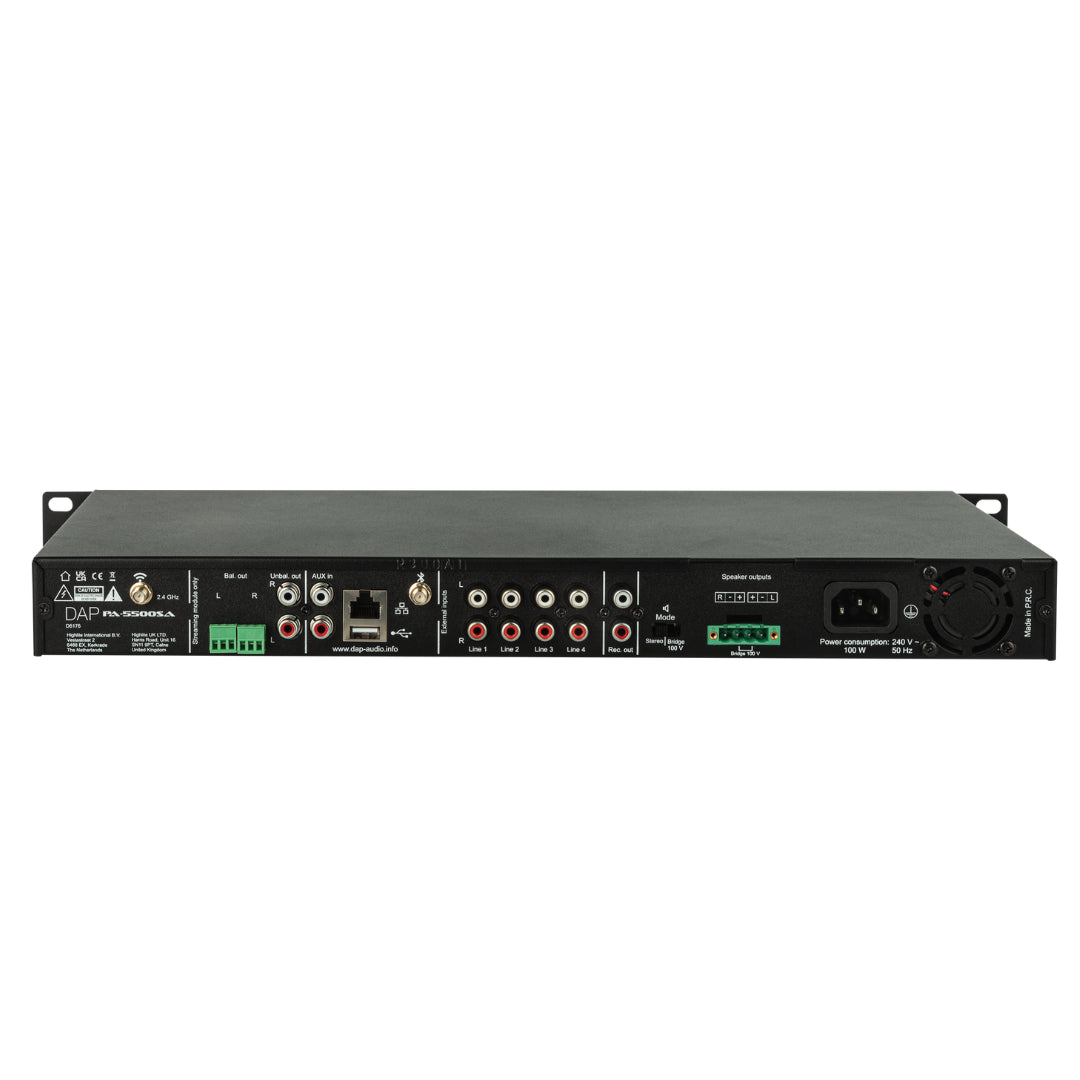

Output connectors: 3-pin XLR, Terminal (Phoenix), RCA
Inputs: 1 x mono TRS/XLR combo, 4 x stereo RCA, 2 x auxiliary (RCA, 3.5mm TRS)
Supported audio files: AAC/AAC+, ALAC, APE, FLAC, MP3, WAV
Maximum USB storage: 128 GB (exFAT, FAT16, FAT32 supported)
Playback functions: Play, Pause, Stop, Skip
THD level: < 0.1%
Signal-to-noise ratio: > 100 dB
Frequency response: 20 Hz – 20,000 Hz
Bluetooth version: 5.0 with aptX HD
Bluetooth range: 15m
Display: 1.4" OLED screen
Power supply: 220-240V AC 50 Hz
Power consumption: 100W
Data connection: RJ45 Ethernet
Dimensions (H x W x D): 44 x 483 x 210mm (1U 19" rack size)
Weight: 2.5 kg
Protection features: Clip limiter, DC voltage, high frequency, overheat, overload, short circuit, softstart, under voltage
Included items: IEC cable, IR remote control (battery not included)
