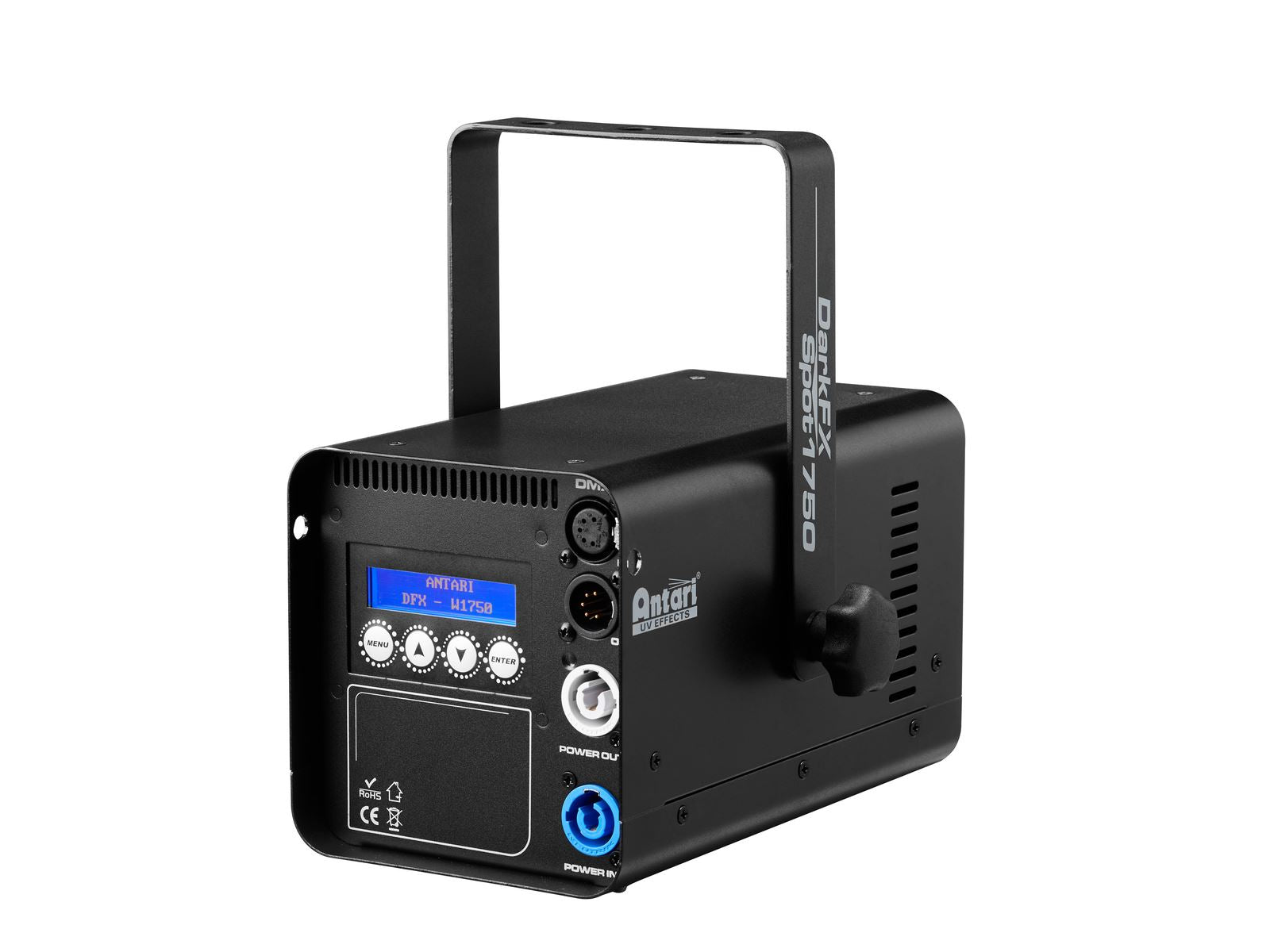

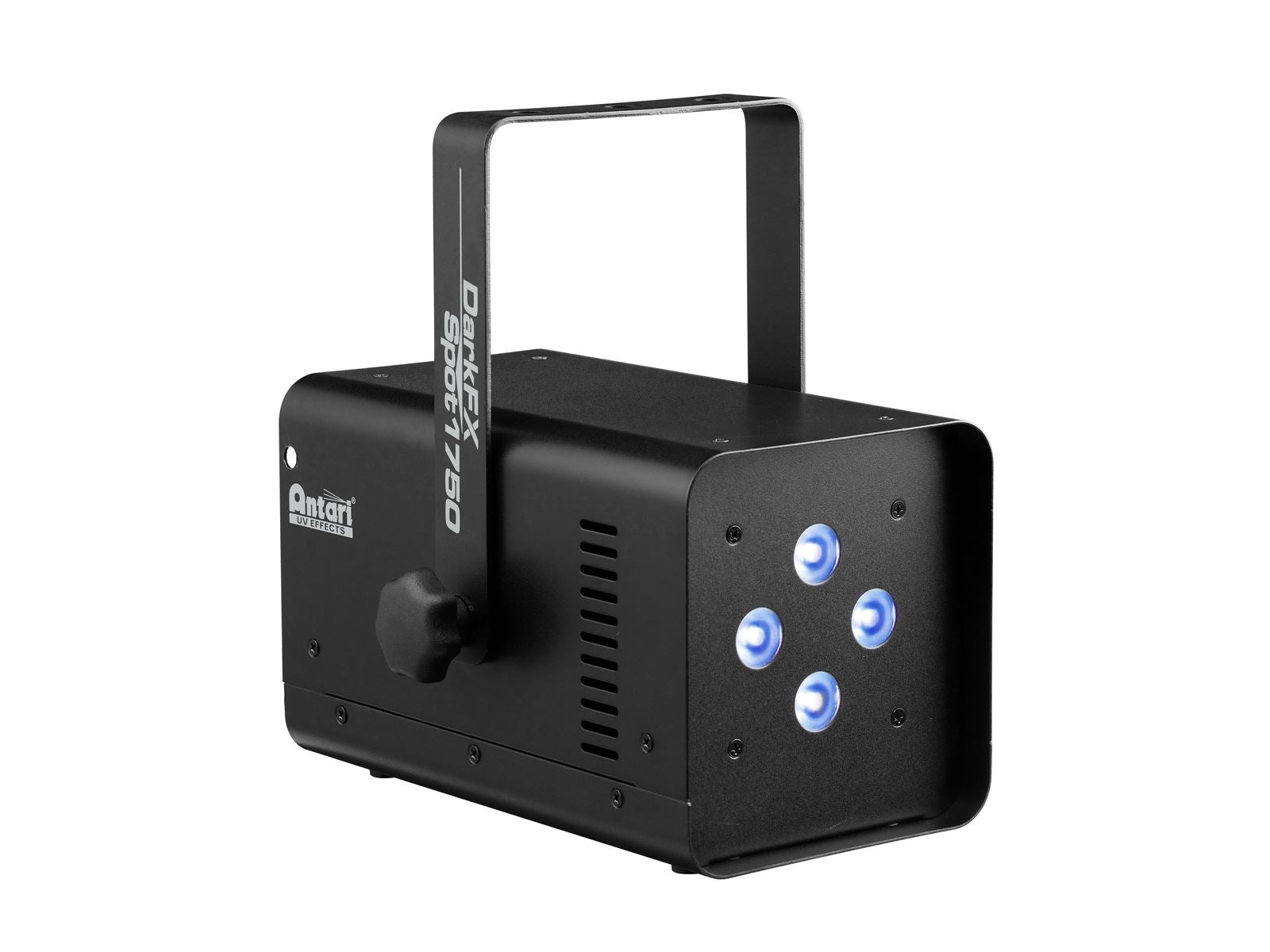

DarkFX Spot 1750

The Antari DarkFX Spot 1750 is an efficient high-output and low-power consumption UV LED spot that delivers a peak wavelength of 365 nm and radiant flux output of 19,080 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors. Equipped with 4 x 16 W high-power UV LEDs, it features a 20° narrow beam angle, flicker-free operation, and special optics to prevent wear degradation from high UV exposure. This IP20-rated LED spot comes with an aluminium housing with an adjustable bracket for versatile mounting options. The DarkFX Spot 1750 is operated in one of two modes: Either in DMX mode with 2 channels via the 5-pin XLR connectors or in stand-alone mode via the LCD display and the 4 operating buttons. Use the powerCON input to connect it to the mains.

PRO DMX UV spot with 4 x 16 W UV LED, deep wavelength (365 nm)

• High-efficiency UV LED
• Peak wavelength at 365 nm
• Minimum visible light
• High output at full intensity
• Special optics will not degrade due to high UV exposure
• Narrow beam angle
• Control panel with LC display for easy configuration
• PowerCon input and output
• LED: 4 x high-power 16 W ultra violet (UV)
• Can be operated in 2 CH mode
• Controlling by stand-alone DMX
• Effect: UV effect
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 72 W
• IP classification: IP20
• Power connection: Mains input PowerCON (blue), mounting version power
• supply cord with safety plug (provided)
• Power output: 1 x PowerCON (gray), mounting version
• Lamp type: LED lamp
• LED: 4 x high-power 16 W ultra violet (UV)
• DMX channels: 2
• DMX input: 1 x 5-pin XLR (M) mounting version
• DMX output: 1 x 5-pin XLR (F) mounting version
• Control: Stand-alone DMX
• Beam angle: 20°
• Beam angle (1/2 peak): 20°
• Beam angle (1/10 peak): 44°
• Wavelength: 365 nm
• Housing color: Black
• Weight: 3,26 kg
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
