Daslight Virtual Controller DVC Gold (2021 Model) DMX Software

Description

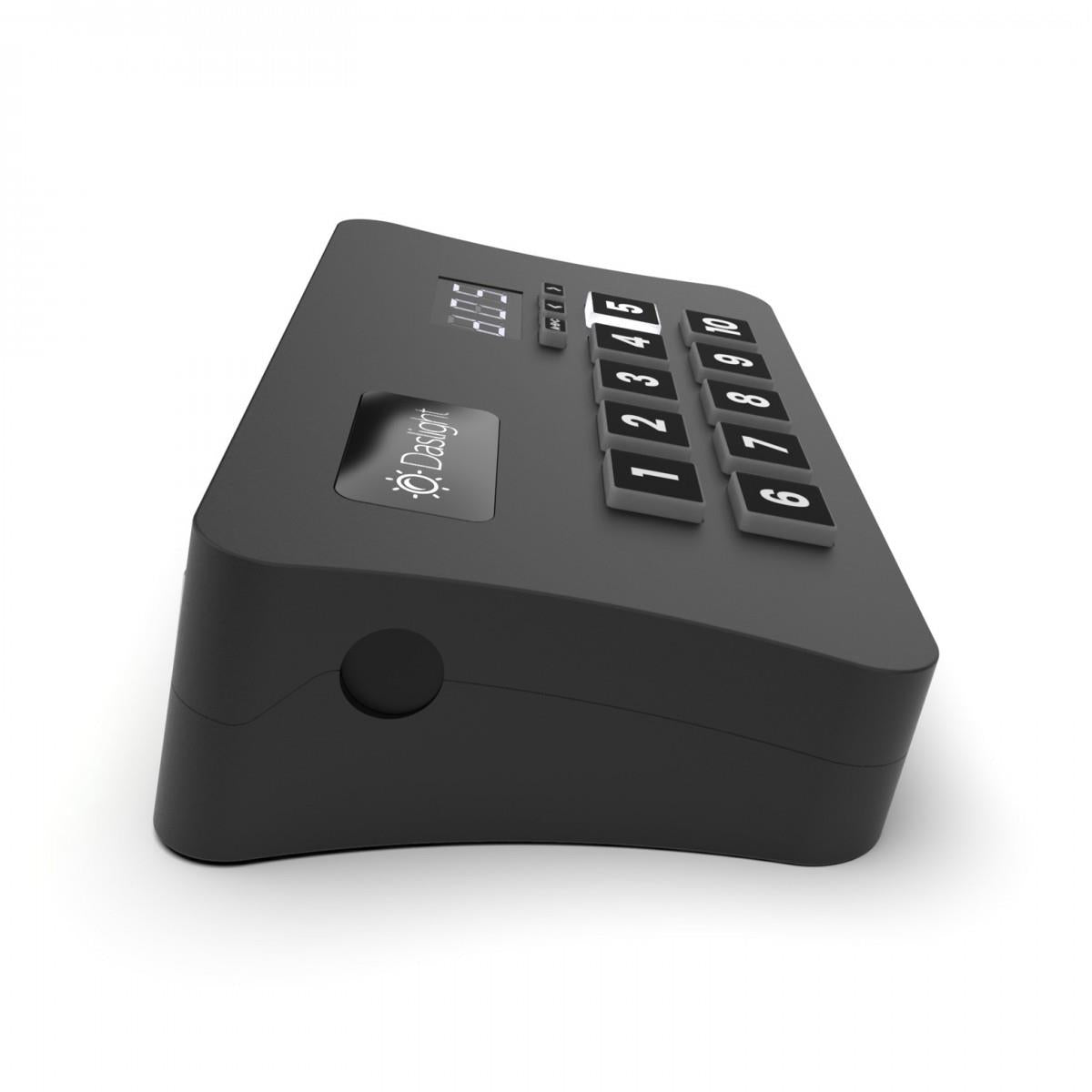

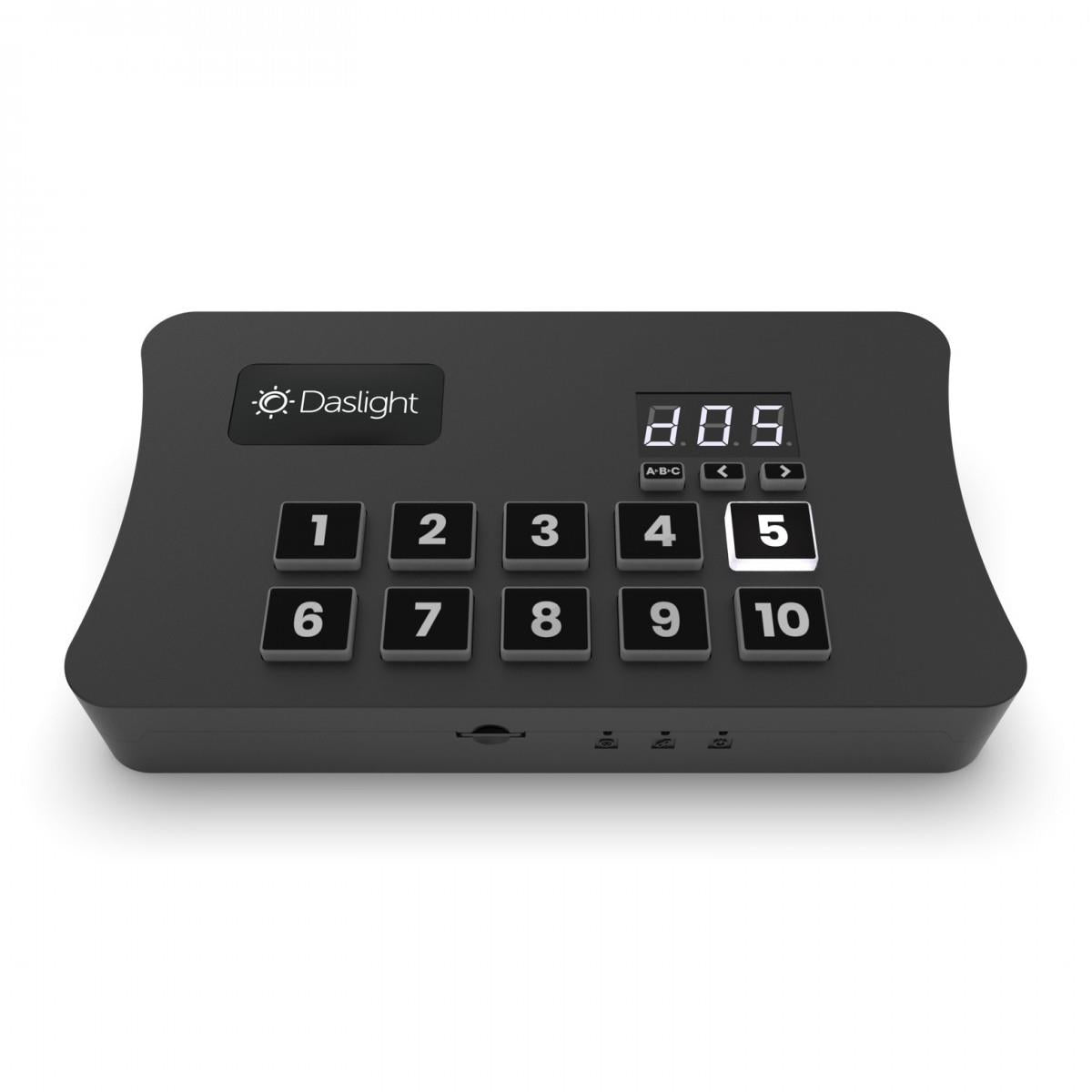

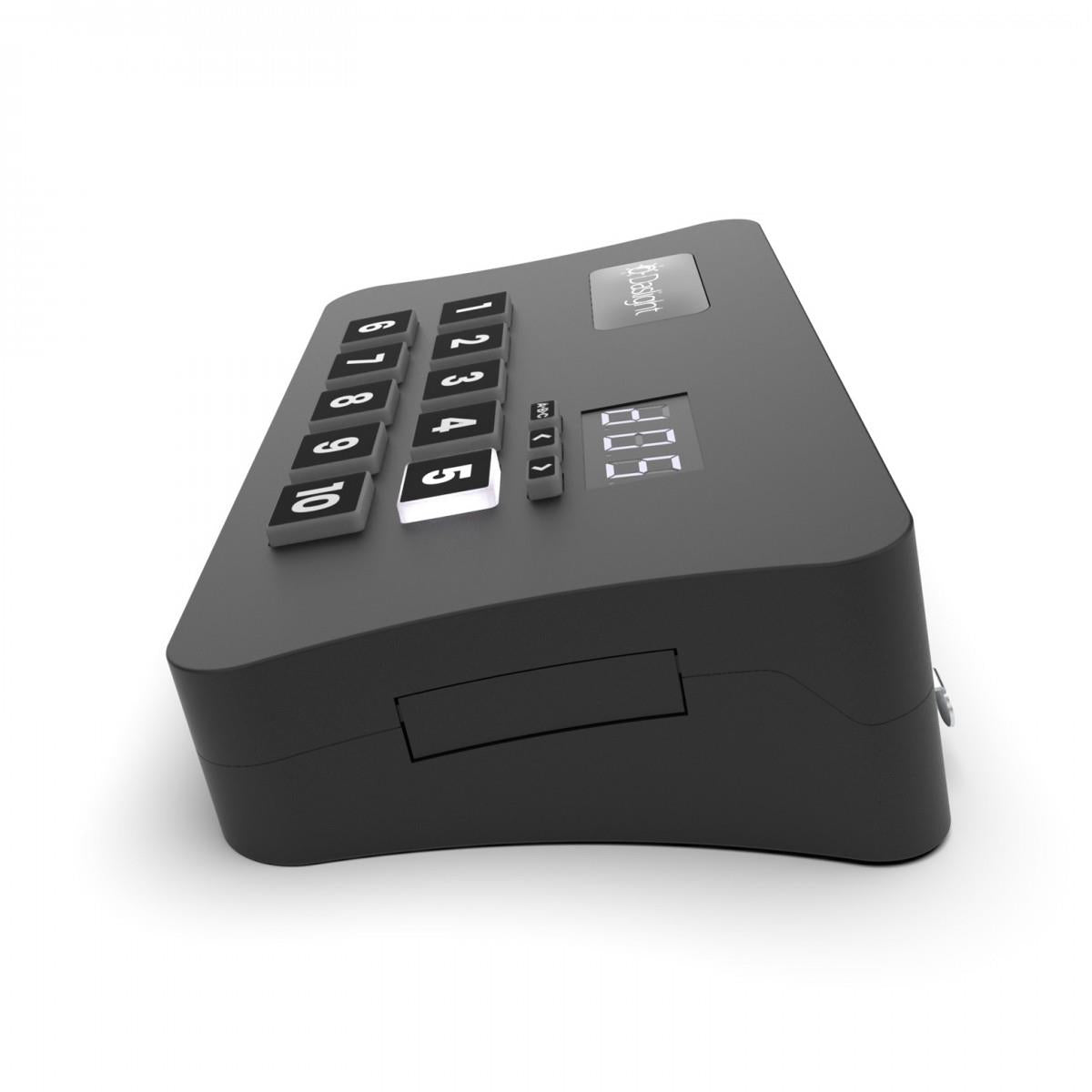

The Daslight DVC Gold is a USB DMX interface that provides power and expandability in spades. A new redesign for 2021 adds a convenient and intuitive keypad, USB Type-C connector, Ethernet connectivity, microSD card memory for standalone use, as well as the ability to upgrade to 2048 DMX channels and 30 Art-Net universes. An included HE10 connector with 16 pins provide the option to upgrade your unit to use these as dry contact ports, providing a wider range of versatile scene triggering options, the DVC Gold provides more than enough connectivity to power and program even the most complex light shows.

Included with the DVC Gold are full licenses for both Daslight 4's lighting software suite, as well as the upcoming Daslight 5, so you can upgrade on release of the new version at no additional cost. If you're looking for a powerful and expandable DMX interface with lots of connectivity, and hands-on control to become the brains of your lighting rig, look no further!

Dry Contact Ports
Trigger scenes in both live and stand alone mode via the 16 dry contact ports. Bridge the ground pin with pins 1-16 of the HE10 connector in order to start scenes from a push button or relay. The 16 ports can be combined in binary for up to 255 triggers.

Stand Alone
The Daslight DVC Gold interface comes with a microSD memory, allowing for programmed shows to be run in stand alone mode without a computer. Stand alone mode is perfect for smaller shows where a computer is not needed, as a backup in case of computer failure, or for architectural installations. The scenes can be changed via buttons on the interface, or the dry contact ports.

Features
Updated design with a more compact and durable plastic housing
USB Type-C connection for interfacing with PC and Mac
microSD card slot provides standalone memory for playing back pre-programmed scenes and effects
128 DMX channels in live and standalone modes by default, expandable up to 512
Includes access to Full versions of Daslight 4 and Daslight 5 lighting software
Optional upgrade to 16 dry contact ports which can transmit scenes and be combined for a range of triggering options
Specifications
Live Channels: 1024*
Standalone Channels: 512*
Live Art-Net Universes: Optional, up to 30*
DMX IN Mode: Yes
Software: Daslight 4, Daslight 5
Software Mode: Full
Zones: 5
Total Scenes: 99

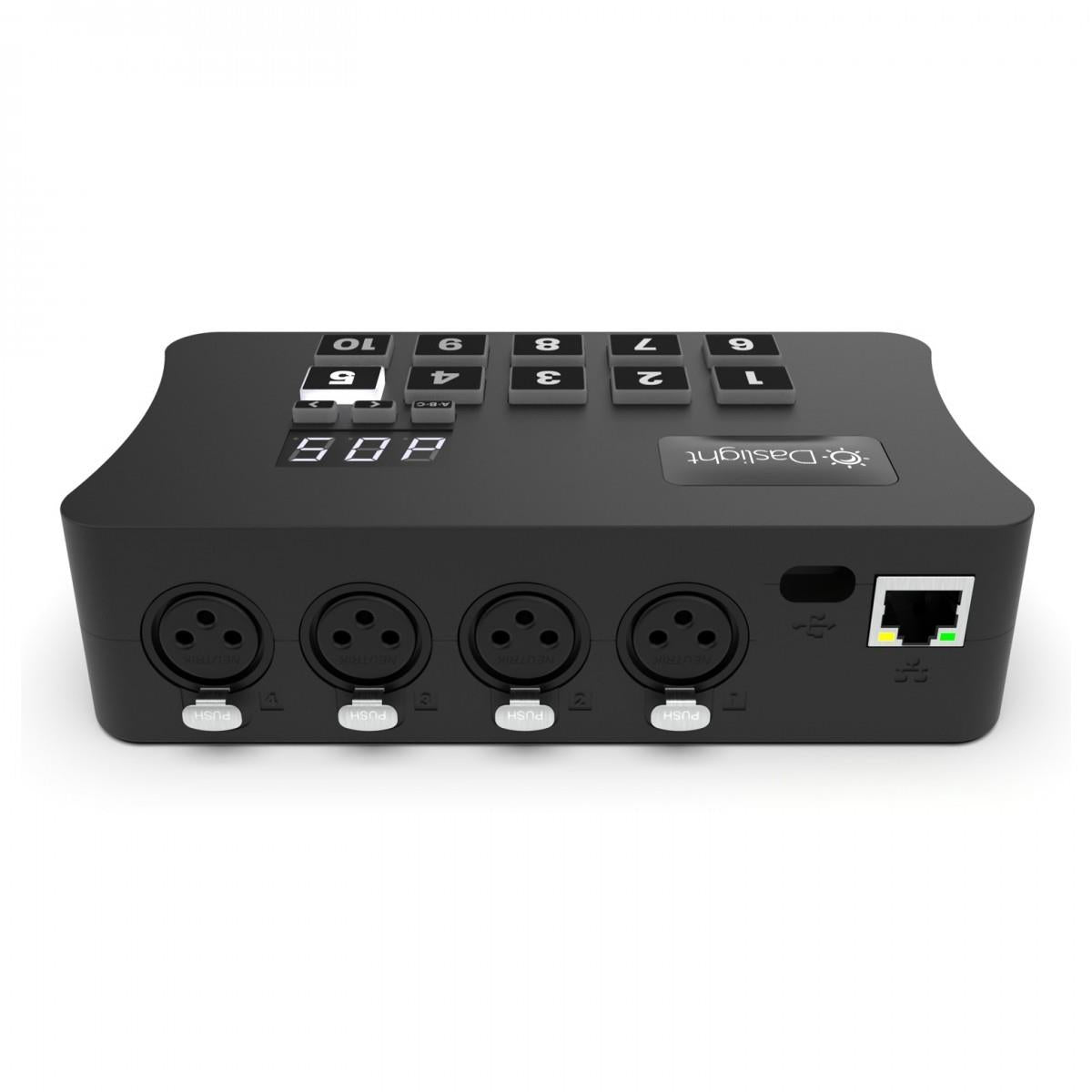

DMX Output: 4 x 3-pin XLR
Ethernet: Yes
Connector: USB Type-C
Housing: Plastic
Keys: 13
Memory: MicroSD
Direct Access Keys: 10
Dry Contact Ports: 16**
Dry Contact Port Triggering: 16**
App/API Triggering: Yes
Clock/Calendar: Optional*
*Live and standalone DMX channels expandable to 2048, up to 30 Art-Net universes, and clock/calendar functionality available via upgrade, sold separately.

**HE10 connector is included, but an upgrade from DMXSoft.com is required to use this connector as 16 dry contact ports, sold separately.
