dB Technologies OPERA 10 + SUB 915 6000W Active PA Speaker System

Description:

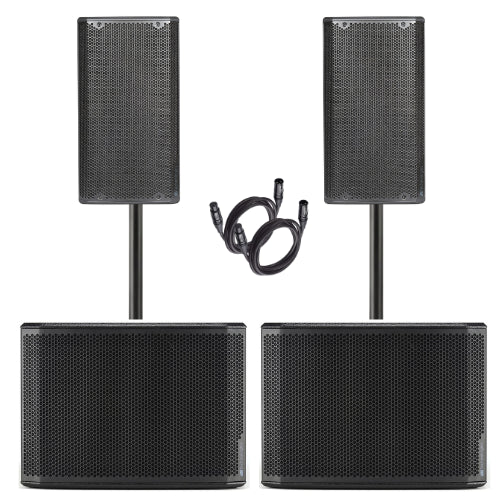

Bundle consists of 2x db Technologies OPERA 10, 2 x dB Technologies SUB915, 2 x adjustable speaker pole and 2 x XLR cable

dB Technologies OPERA 10

With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user-friendliness in an unrivalled cabinet in its price range.
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymmetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Specifications
Speaker Type2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]58 - 20.000 Hz
Frequency Response [- 3dB]70 - 19.600 Hz
Max SPL128 dB
HF1" Exit, 1.4 v.c.
Type HFCompression driver
Horizontal Directivity100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
HornAsymmetrical Horn
LF10", 2" v.c.
Amplifier
Amp TechnologyAmp SMPS Power supply dual range
Amp ClassClass D
RMS Power600 W
Peak Power1200 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
System PresetsRotary Encoder (8 Presets)
CrossOver Frequency2000 Hz
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Input
Signal Input1xCombo (XLR/Jack 6.3 mm) MIC/Line

1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output1x XLR Male (CH1 Link/Mix OUT)
Selectable
Mechanics
HousingPolyproylene
GrilleFull grille
Handles1 on left Side, 1 on Top
Rigging Points2XM10 on Top + 1x M10 on Back
Pole MountD36 mm
Angles upMonitor use 45°

Dimensions
300 x 552 x 301mm

Weight
12.3kg

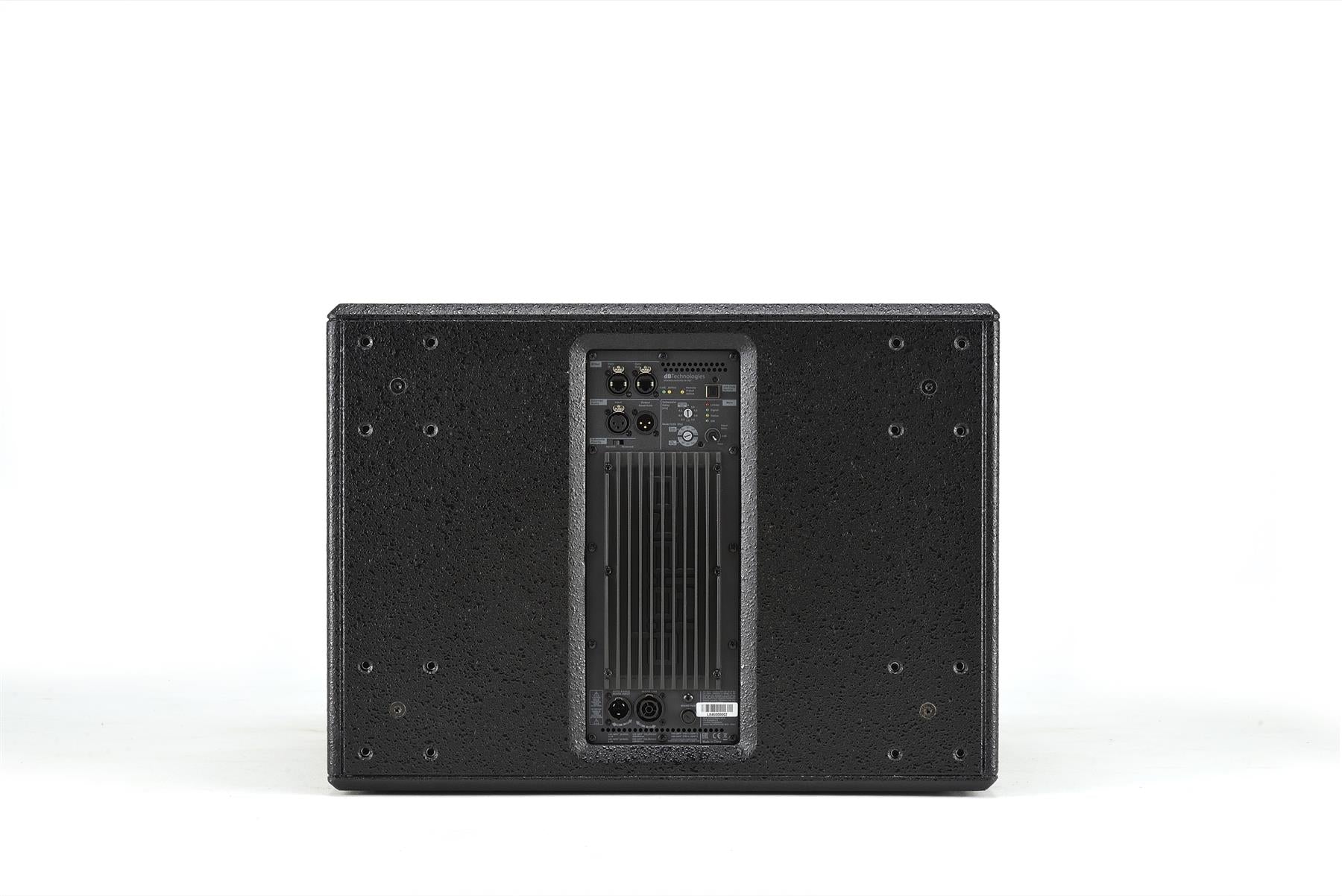

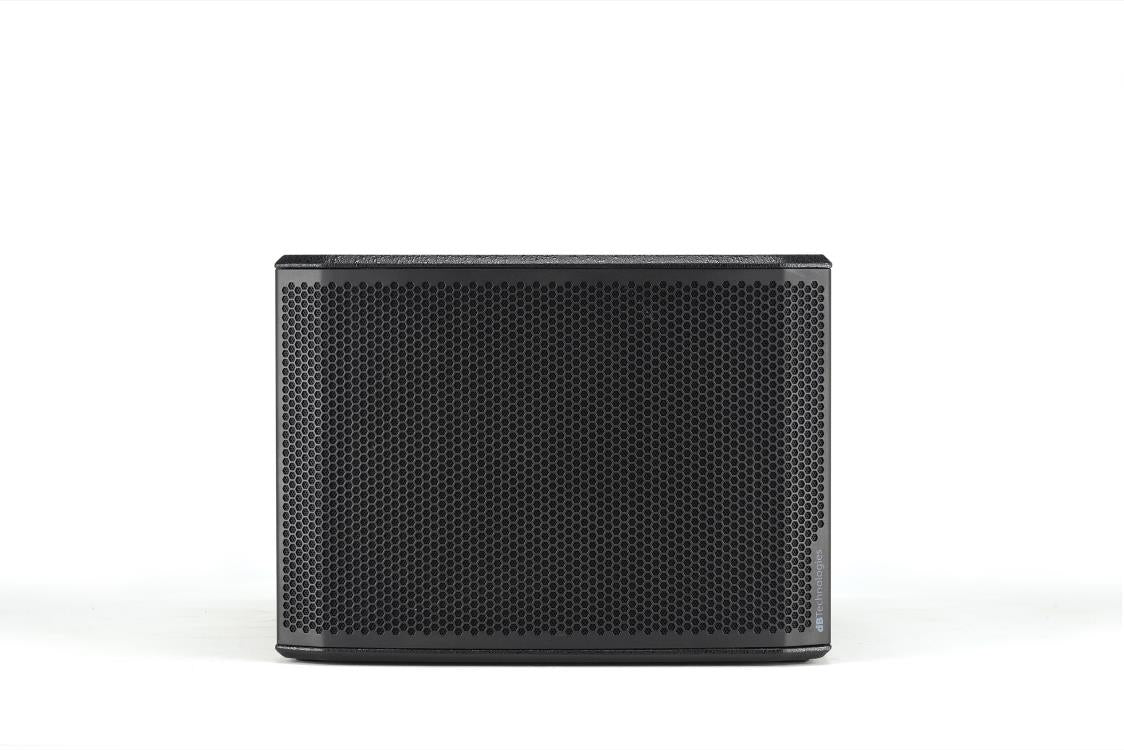

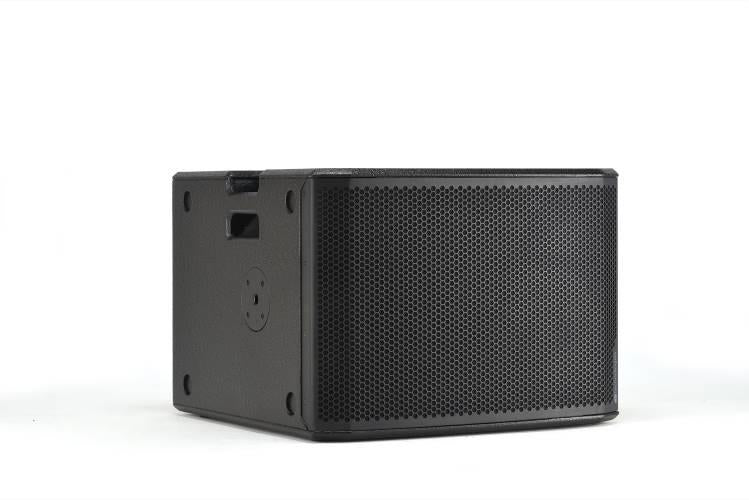

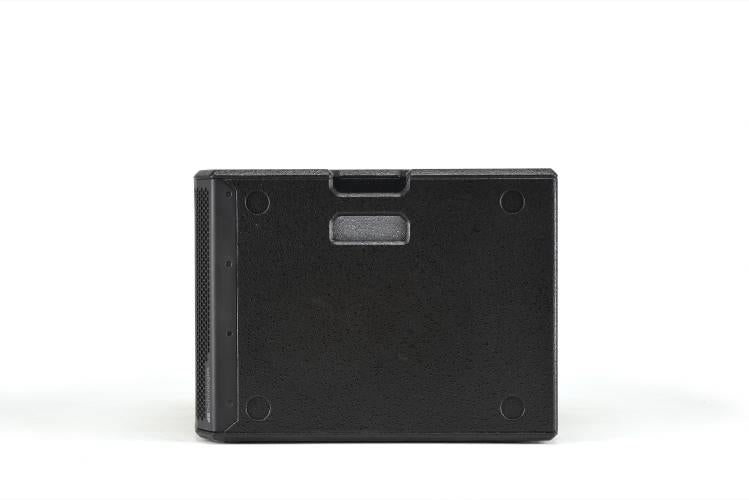

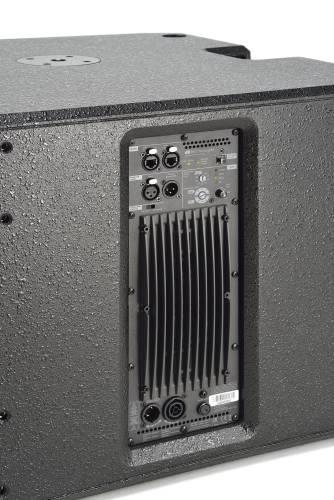

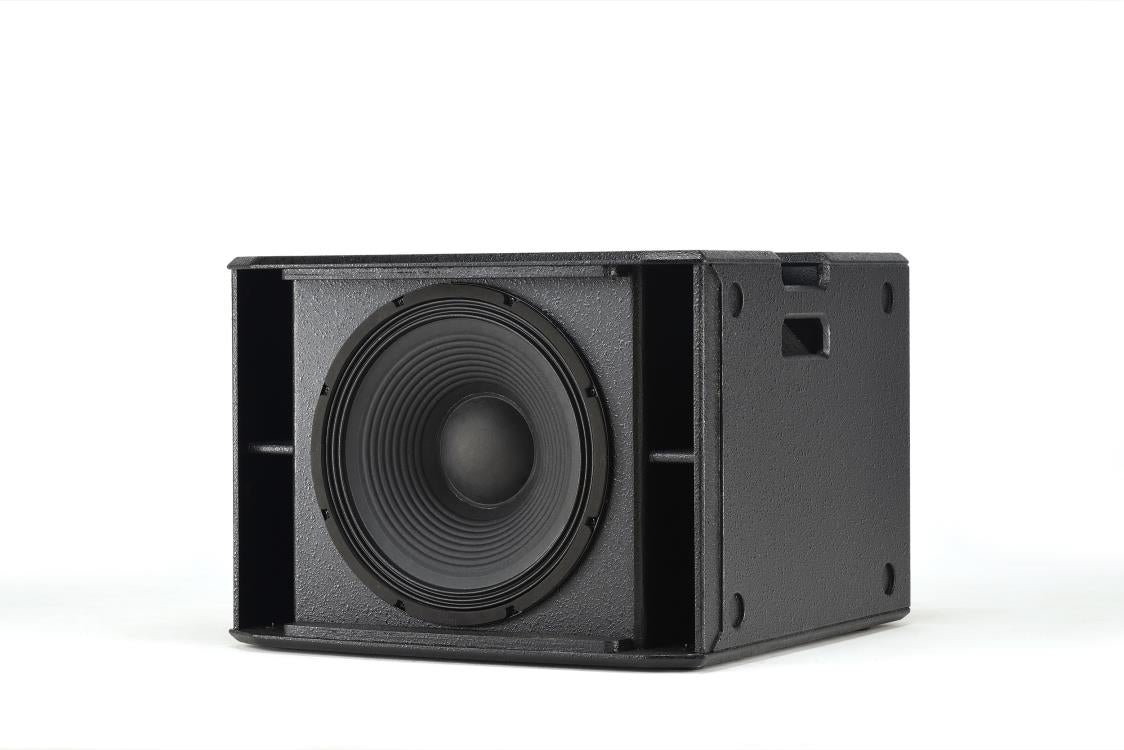

dB Technologies SUB915

Complete control of low-end power in order to convey a deep, full-bodied sound in every kind of applications. Equipped with high-performance components housed into a bass reflex design, dBTechnologies’ SUB 900 are ready for full remote control via RDNet and software Aurora net (available for Windows and Mac).
