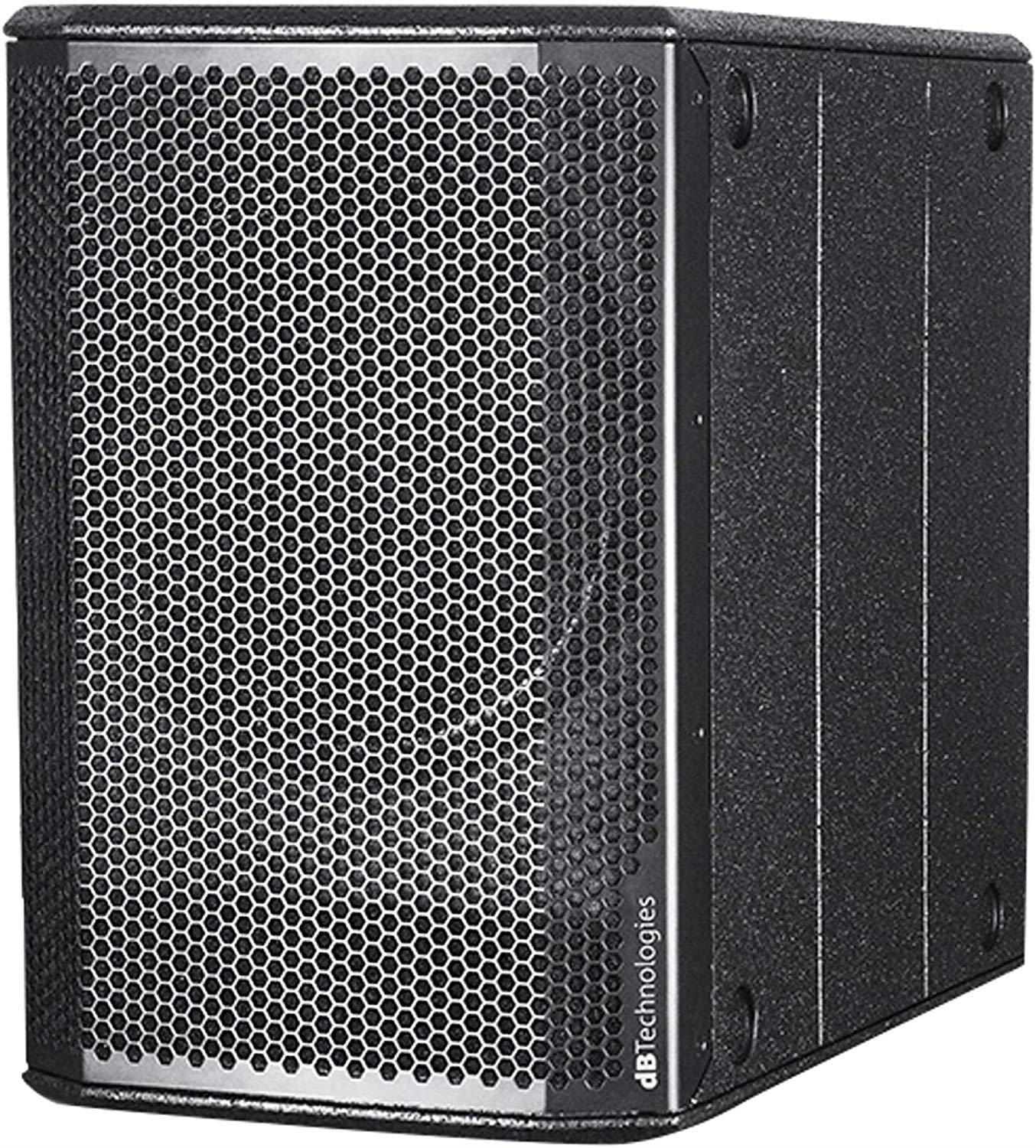

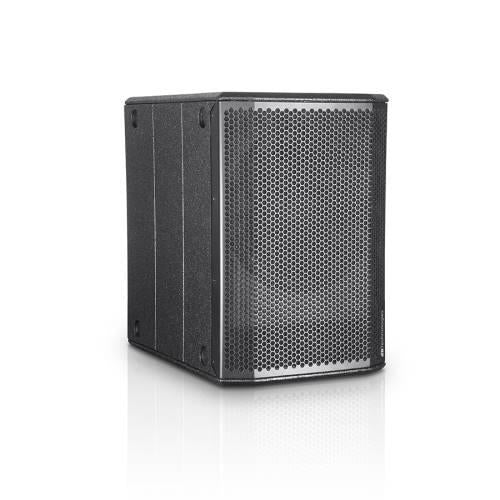

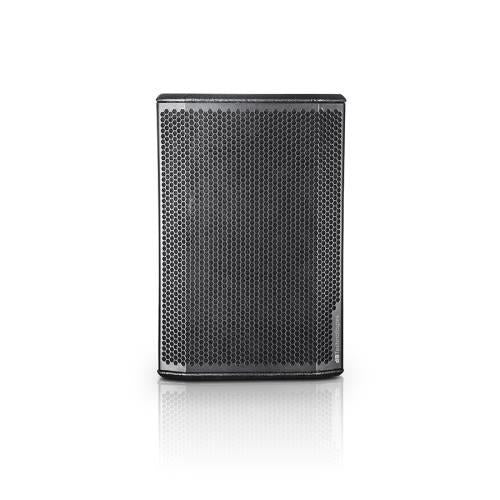

dB Technologies SUB 612 12" 1200W Active Subwoofer Speaker Bass Bin

Just like 15” and 18” models of the family, bass-reflex SUB 612 features a 600W RMS Class-D Power Amplifier with SMPS, delivers outstanding sound pressure levels (up to 129 dB) in spite of a very compact housing (only 19.8 Kg -43,65 lbs) and provides an impressively precise low-end reproduction.

Sub 600s’ remarkable audio performance allows user to build most of the PA systems with 1 single sub and 2 full-range speakers, avoiding any external processing or crossover thanks to separate balanced X-Over signal feeds to left and right speakers.

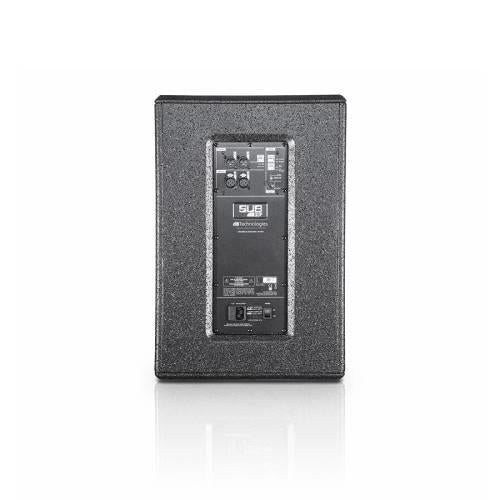

Controls on the amp panel allow a user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or X-Over).  Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub Boost Mode switch.

Specifications
Speaker TypeActive Subwoofer
Acoustical data
Frequency Response [-10dB]46 - 123 Hz
Max SPL (1 m)129 dB
Directivityomnidirectional
LF12”
LF Voice Coil2.5"
Amplifier
Amp TechnologySMSP digital amplifier
Amp ClassClass D
RMS Power600 W
Peak Power1200 W
Processor
ControllerDSP 28/56 Bit
LimiterPeak, Thermal, RMS
Controls1x Subwoofer attenuation Control
1x Flat/Boosted switch
1x Switch output mode
1x Polarity switch
Input
Signal Input2x XLR (balanced)
Signal Output2x XLR (balanced)
Mechanics
HousingBlack painted Plywood
Handles1 on top

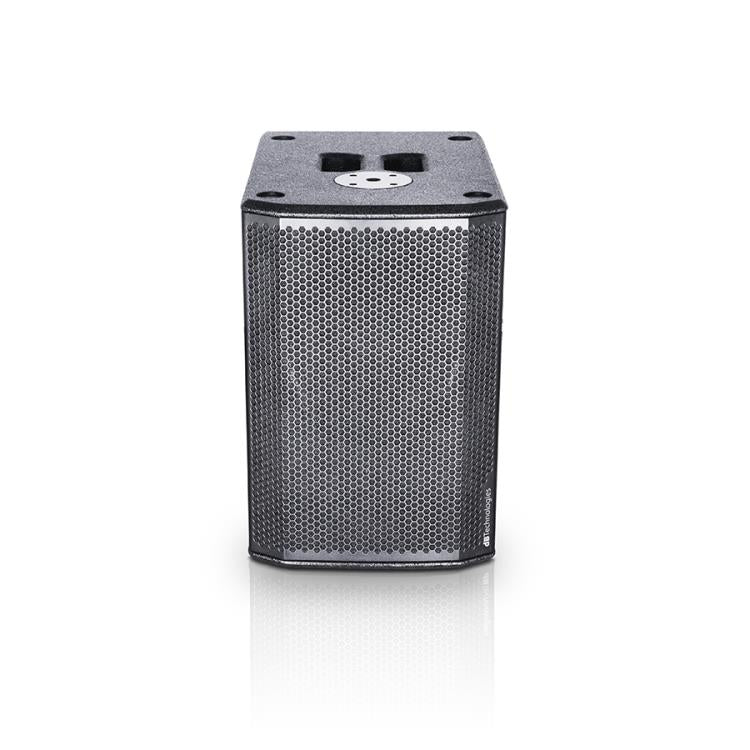

Pole MountM20

Dimensions
360 x 550 x 525mm

Weight
19.8kg
