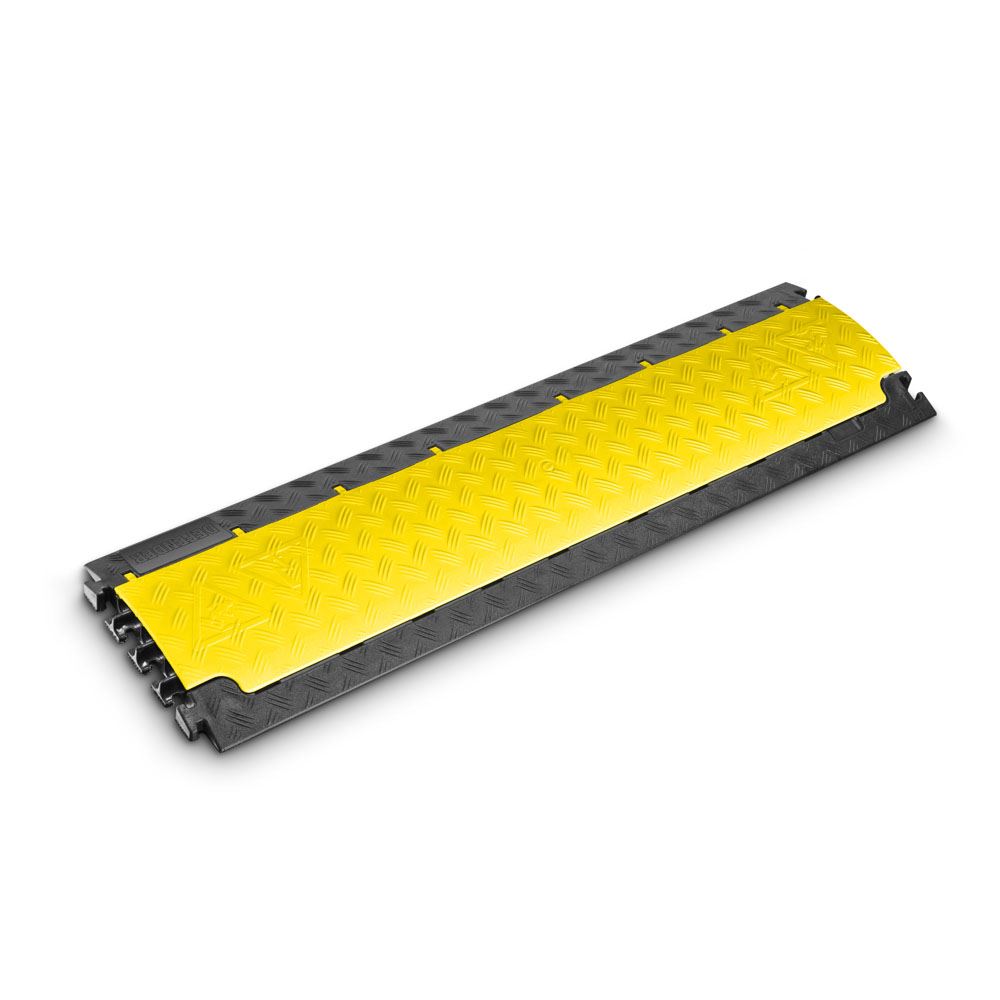

Defender NANO Cable Protector 6-channel

6 narrow cable channels - discreet cable protection for indoor and outdoor use

DefenderA NANO cable crossovers are particularly flat and easy to cross with a wheelchair. They are suitable for a wide range of indoor and outdoor applications and are available with either a yellow or black lid. These cable crossovers boast 6 cable channels for neat, orderly cable routing, T-connectors and a load capacity of 2 tonnes on an area of 20 x 20 cm; besides pedestrian traffic, they also take light-duty vehicles, trolleys and - thanks to their flat profile - even forklift and pallet trucks. Separately available end ramps (male/female) ensure safe insertion and removal of cables. Defender NANO cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

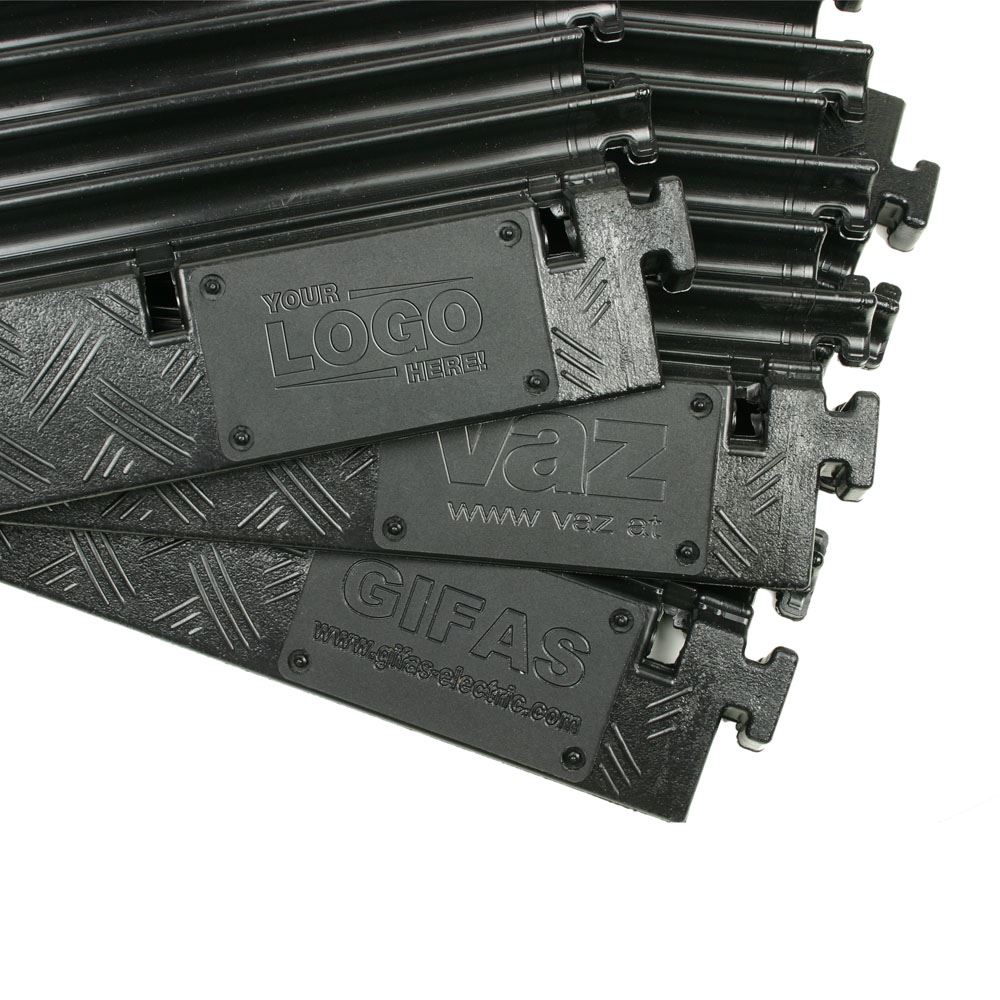

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Dont hesitate to contact us.

Features
especially flat, non-slip cable protector made of black, recyclable polyurethane, wheelchair-compatable
yellow polyethylenelid with high warning effect and secure closure (also available with black lid, Item No. 85150BLK)
patented, self-cleaning lid hinge

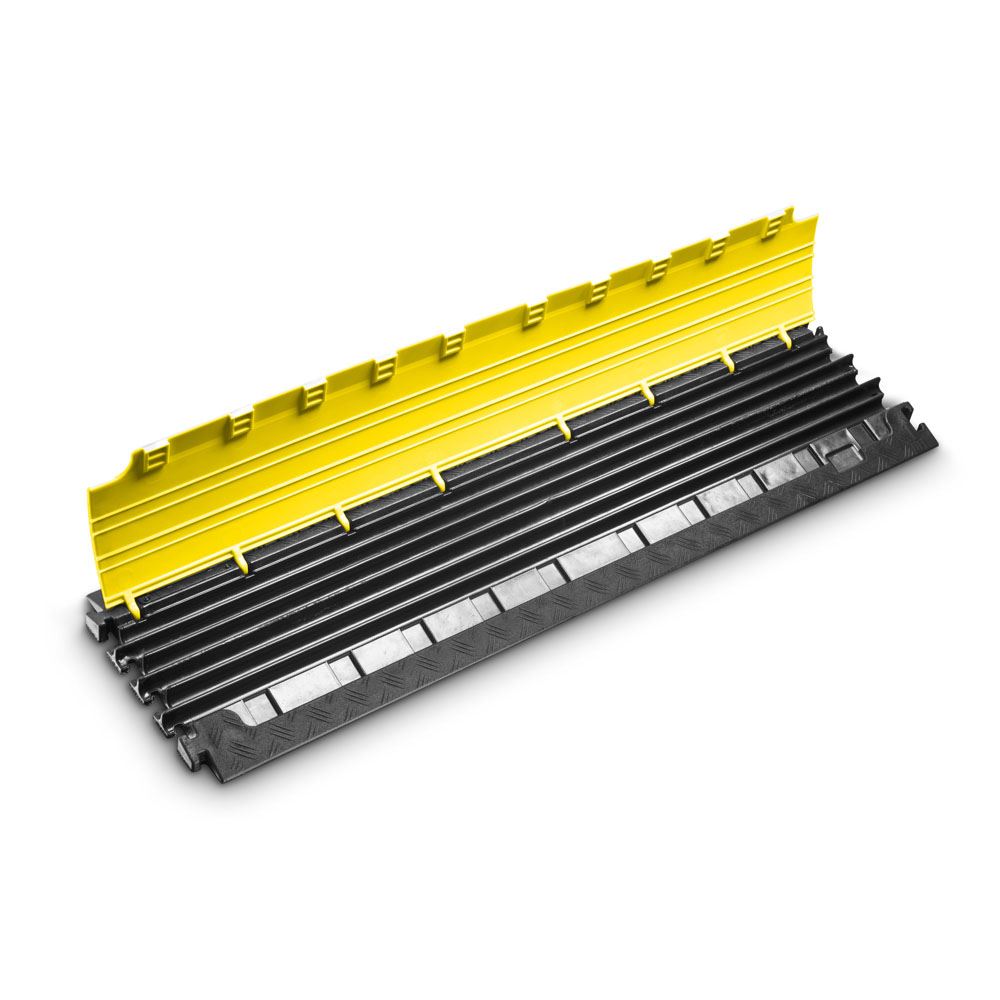

6 channels 17 x 18 mm
load bearing capacity approx. 2t / 20 x 20 cm
fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
Resistant to oil, acid, petrol and short-term contact with solvents
dimensions 110 x 28.5 x 3.2 cm; Weight 4.8 kg
reliable protection for cables and personnel for indoor and outdoor use
not suitable for vehicular traffic
end ramps for secure cable inlet and exit as accessories

Specifications
Product type: Cable Protectors
Type: 6 Channels
Length: 1010 mm
Width: 285 mm
Height: 32 mm
Channels: 6
Width channel 1: 17 mm
Height channel 1: 18 mm
Width channel 2: 17 mm
Height channel 2: 18 mm
Width channel 3: 17 mm
Height channel 3: 19 mm
Width channel 4: 17 mm
Height channel 4: 19 mm
Width channel 5: 17 mm
Height channel 5: 18 mm
Width channel 6: 17 mm
Height channel 6: 18 mm
Material: Polyurethane
Max load: ca. 2t on a surface area of 20 x 20 cm
Chemical resistance: acid-resistant, oil-resistant, Petrol-resistant, Short-term contact with solvents
Hardness range: 88 � 4 Shore
Fire protection class: B2
Temperature range: -30 to + 60°C
Weight: 4,37 kg
Special feature: DEKRA-certified
