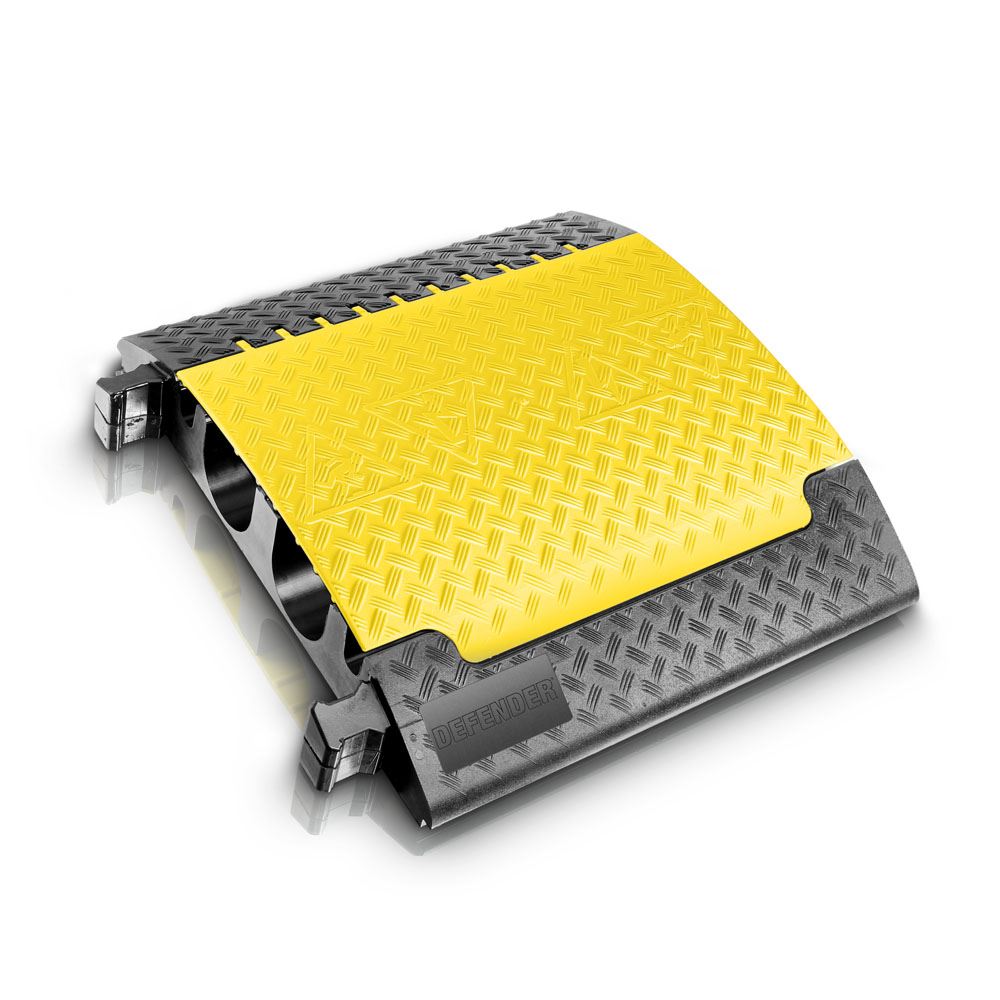

Defender ULTRA L Cable Protector 2-channel

2 extra-large cable crossovers - the heavy-duty giant

DefenderA Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. The load-bearing capacity is approx. 5 tons on a 20 x 20 cm surface area. This makes Ultra L cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnival and music events, as well as other applications involving particularly heavy use.

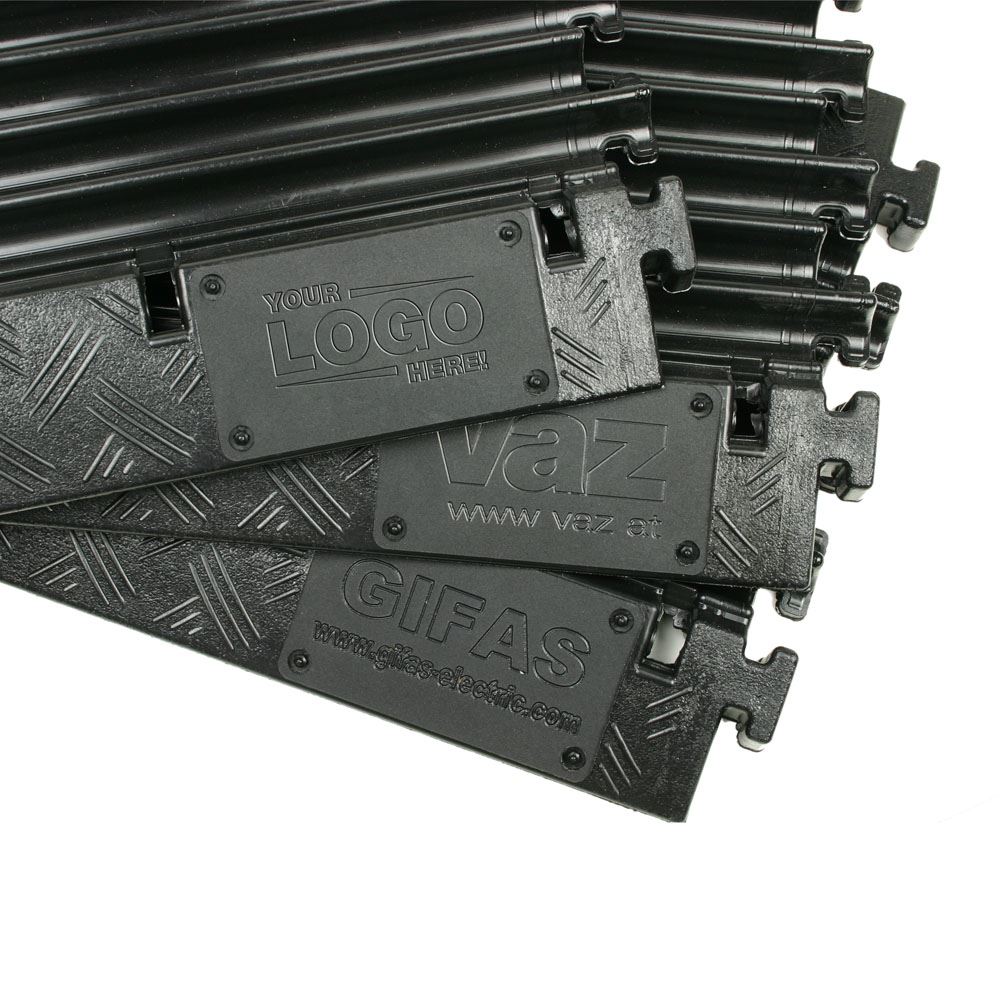

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Dont hesitate to contact us.

Features
Heavy duty cable protector made of black, recyclable polyurethane for demanding applications

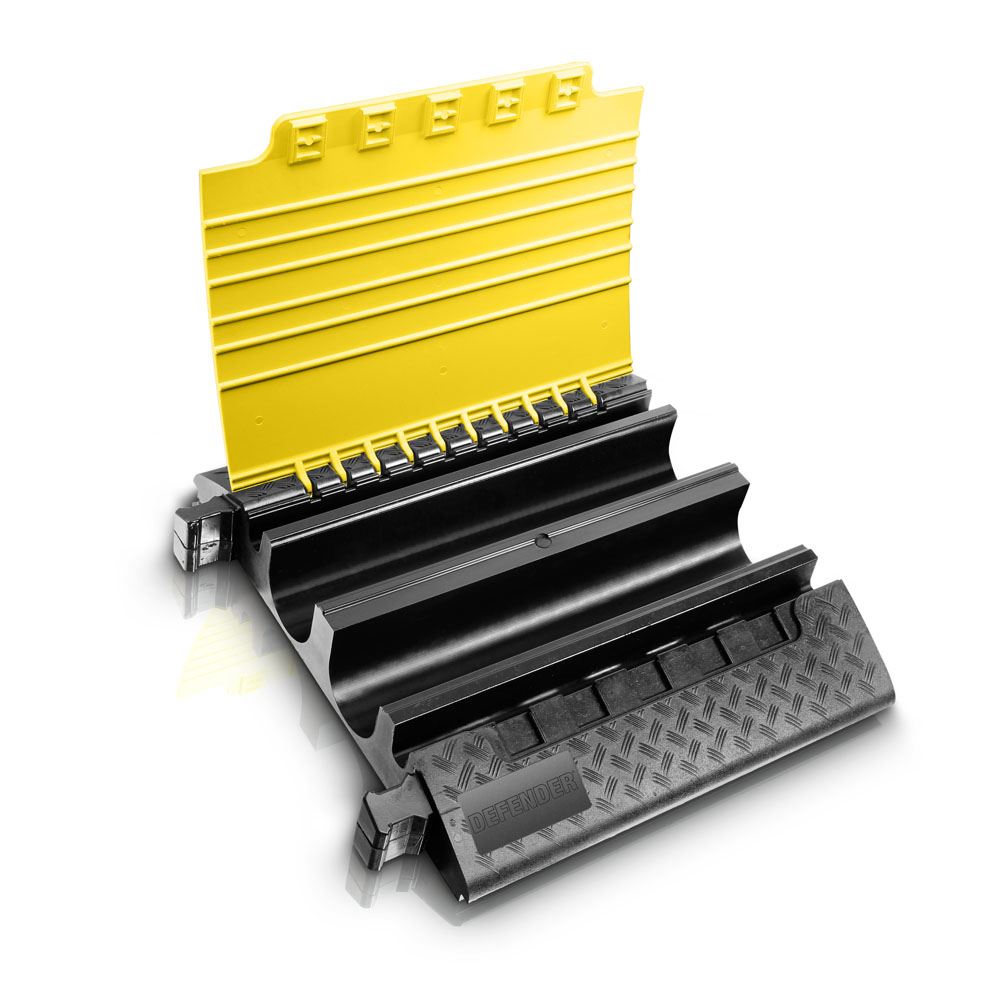

Non-slip, yellow polyethylene lidmaker with high warning effect and secure closure
Patented, self-cleaning lid hinge
4 channels: 2 channels each 120 x 113 mm and 33 x 50 mm
Two channels suitable for A-type suction hoses and multipin connectors
Load bearing capacity approx. 5 t / 20 x 20 cm
Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
Resistant to oil, acid, petrol and short-term contact with solvents
Dimensions 70 x 75.6 x 13.9 cm; Weight 32 kg
Reliable protection for cables, hoses, and personnel, for indoor and outdoor use

Specifications
Product type: Cable Protectors
Type: 2 Channels
Length: 700 mm
Width: 783 mm
Height: 139 mm
Channels: 4
Width channel 1: 33 mm
Height channel 1: 50 mm
Width channel 2: 120 mm
Height channel 2: 113 mm
Width channel 3: 120 mm
Height channel 3: 113 mm
Width channel 4: 33 mm
Height channel 4: 50 mm
Material: Polyurethane
Max load: approx. 5t on a surface area of 20 x 20 cm
Chemical resistance: acid-resistant, oil-resistant, Petrol-resistant, Short-term contact with solvents
Hardness range: 88 ± 4 Shore
Fire protection class: B2
Temperature range: - 30 to 60°C
Weight: 30,5 kg
Special feature: DEKRA-certified
