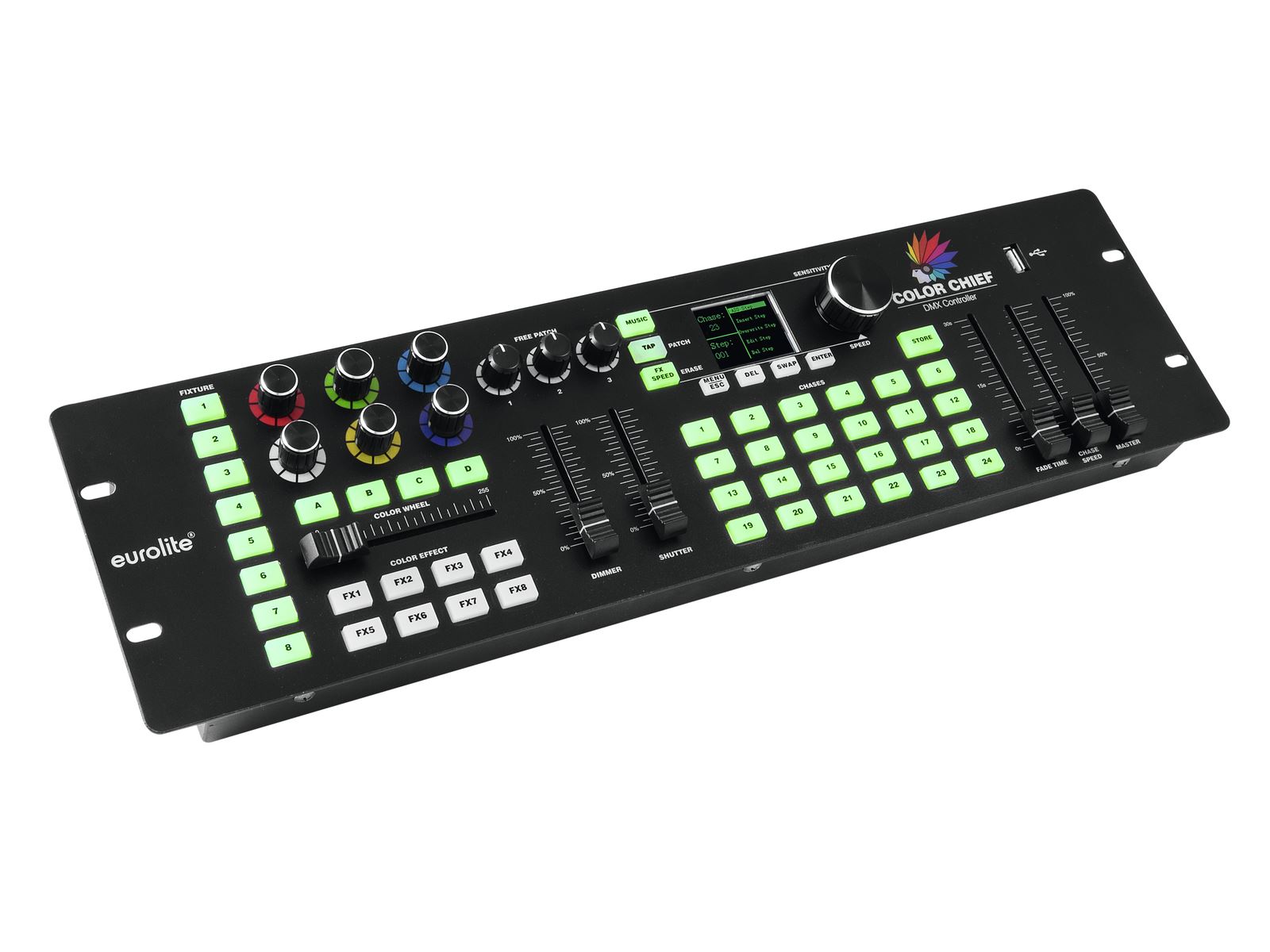

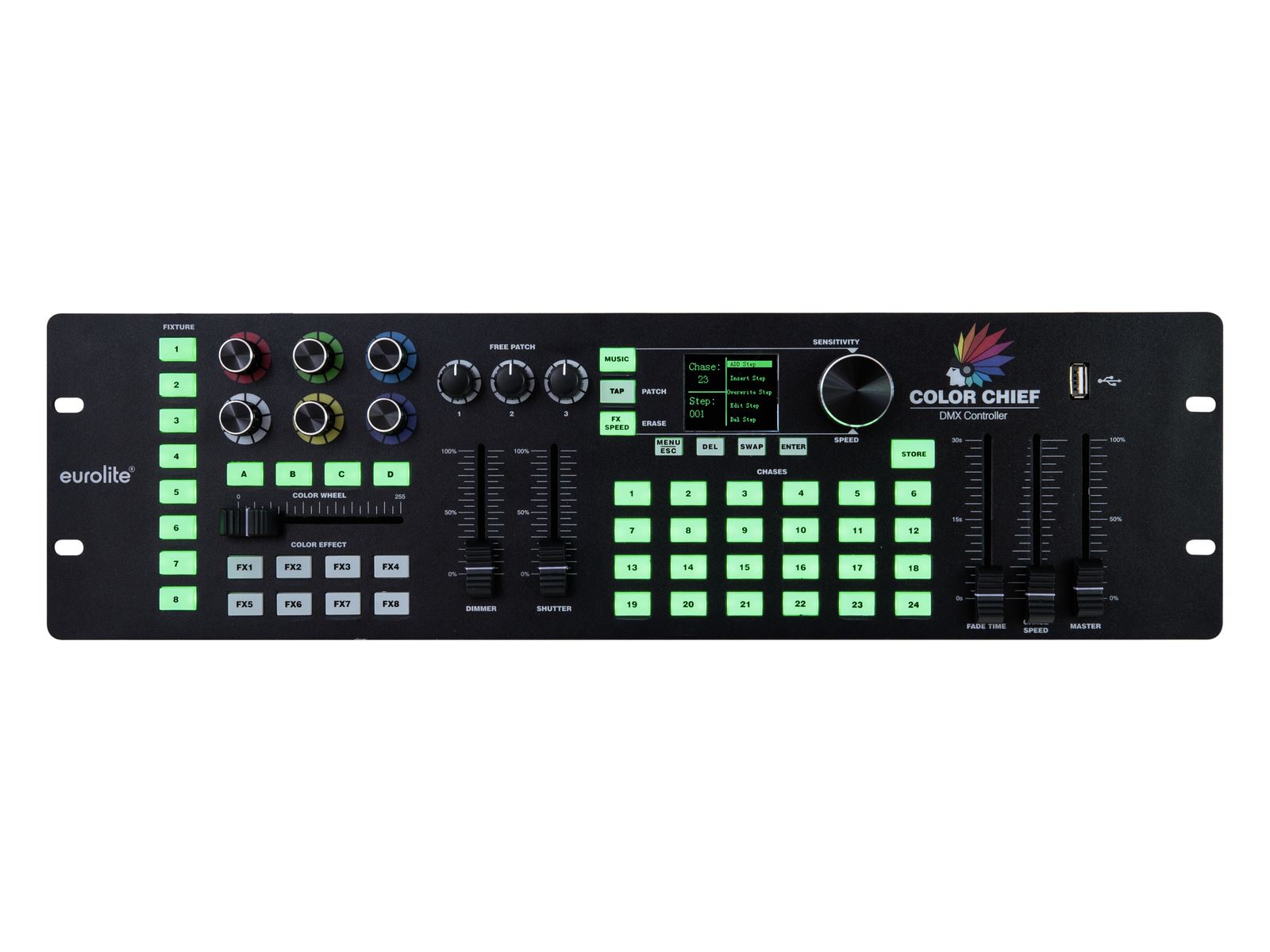

Eurolite DMX LED Colour Chief Controller Lighting Desk Control

Eurolite DMX LED Colour Chief Controller Lighting Desk Control


DMX lighting desk with innovative control concept for LED spotlights.

Vendor: Eurolite
SKU: 154-70064575
Icon In Stock In Stock
Icon Delivery Time

The Color Chief offers you an innovative control concept combining easy handling with astounding results. The DMX controller has been developed especially for both coloured spot lights and simpler light effects. What makes the Color Chief so special is that it cannot only control individual spot lights but also fixtures with up to 4 individual segments. Thus you can easily control your KLS system or your light bars with 4 segments. Altogether, the Color Chief can control a total of 8 spot lights with up to 4 segments each.

Easy control of LED spotlights with up to 6 colours, light bars as well as simple lighting effects
For 8 devices or device groups, each with up to 4 segments
Each device can occupy up to 30 channels
Quick and easy programming
Eurolite KLS systems and LED spotlights already in the library
Additional fixtures can be configured manually
8 colour effects directly selectable
3 additional channels available per fixture (e.g. for rotations)
Colour wheel selection and simulation
24 memory spaces for scenes and chases
Several chases can be run simultaneously
USB port for data storage of lighting programs
Sound control via audio signal or TAP button
Master dimming, fade time and runtime easily adjustable
Very simple to program and use

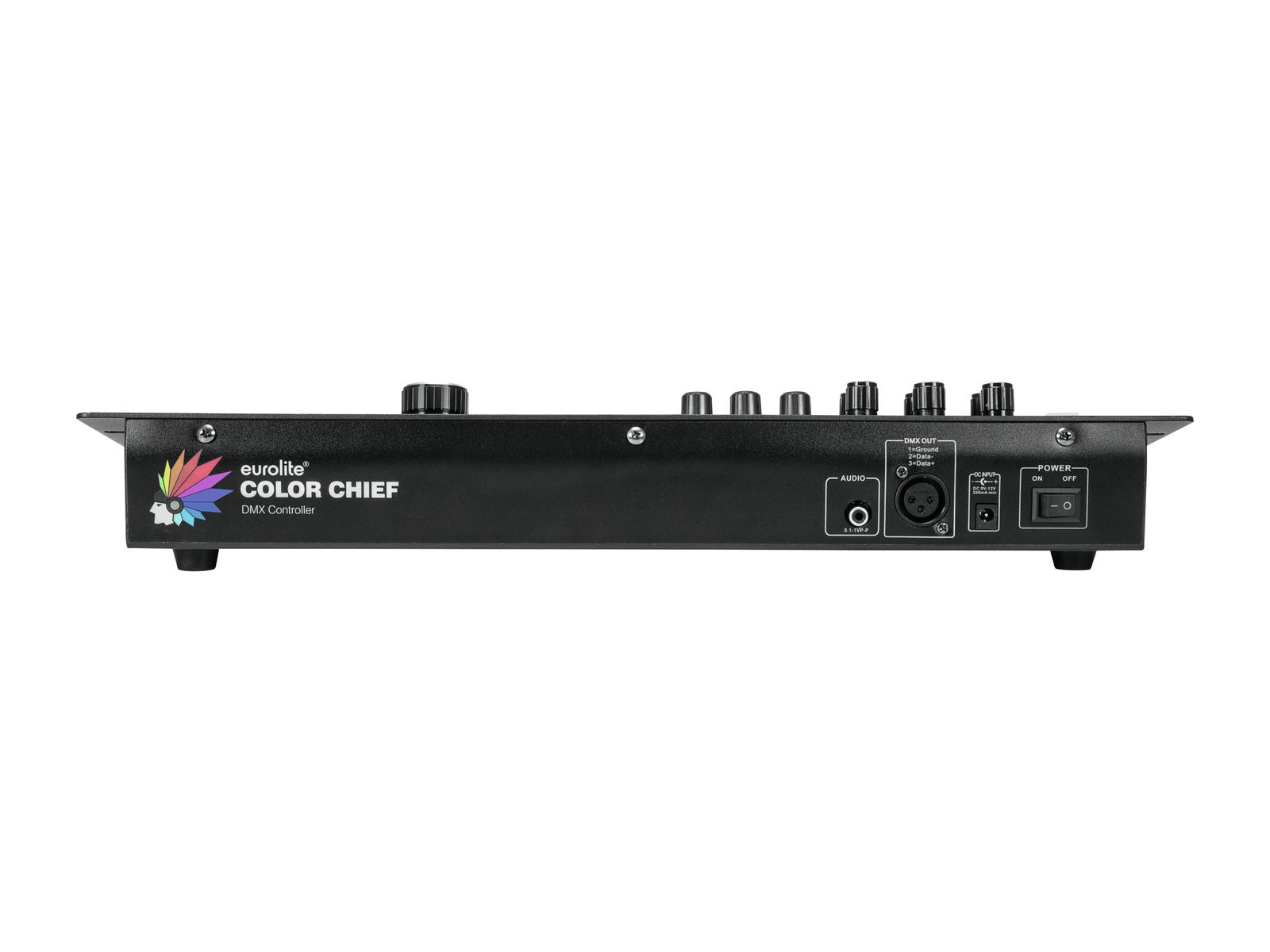

3-pin XLR connector
Firmware update via USB
Desktop console
Rack installation with 3 units
Control: DMX
Device type of construction: 483 mm (19")


Power supply: 100-240 V AC, 50/60 Hz
via included power adapter (9 V/800 mA)
Control channels: maximum 240
Storable scenes/chases: 24
DMX512 output: 3-pin XLR connector
Sound-control: via built-in microphone or
RCA line input (min. 100 mV)
Available storage media: USB devices (FAT32)
Rack installation with 3 U
DMX control channels: 240
Power consumption: 10 W
IP classification: IP20
Colour: Black

482 x 132 x 85 mm


2.2 kg
