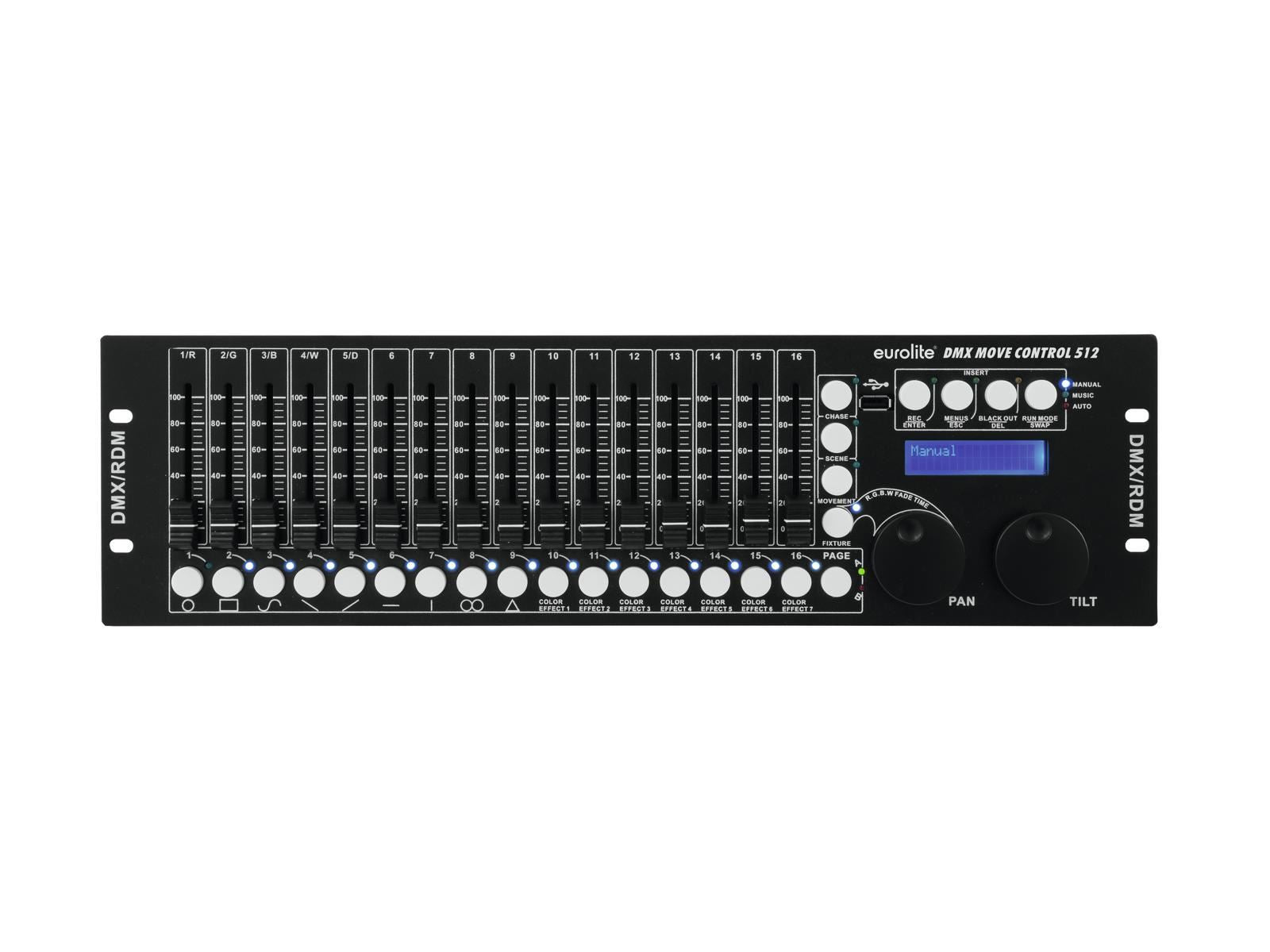

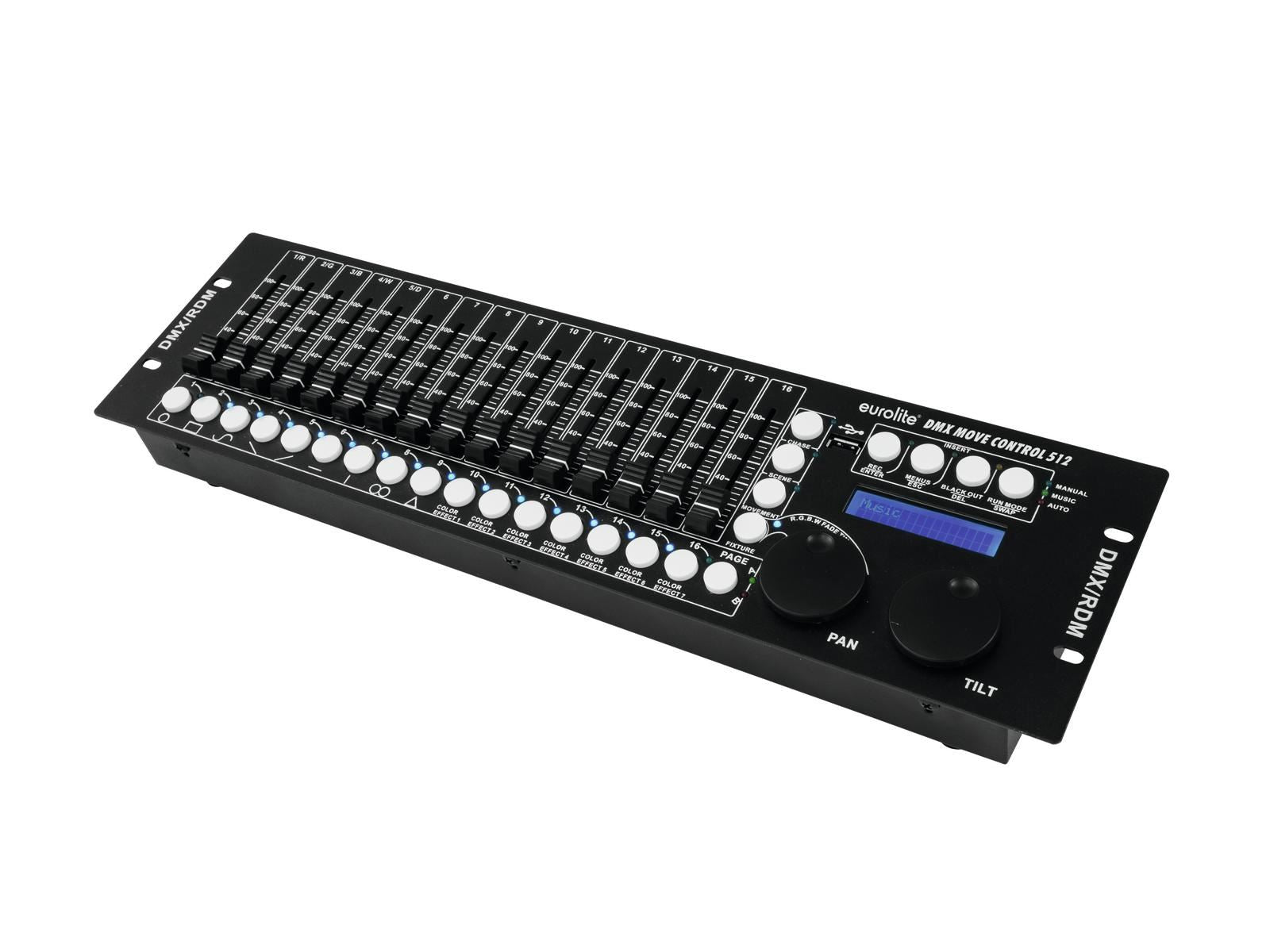

Eurolite Dmx Move Controller 512

Controller with color & motion effects (28 fixtures, 18 control channels each)
Vendor: Eurolite
SKU: 154-70064515
Icon In Stock In Stock
Icon Delivery Time


Controller with color & motion effects (28 fixtures, 18 control channels each)

  • DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
  • 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
  • For 28 fixtures with 18 control channels each
  • USB port for storing program data
  • Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
  • Manual, time-controlled or sound-controlled chase running mode
  • 2 DMX fixture levels can be controlled, each with up to 18 channels
  • 16 DMX channel faders
  • 2 jog wheels for pan/tilt
  • Blackout function
  • Backlit LCD (2 x 16 characters)
  • 3-pin XLR connector
  • Firmware update via USB
  • Desktop console
  • Rack installation with 3 units
  • Programmable 32 sequencens each with 600 scenes
  • Can transmit up to 512 DMX channels
  • Controlling by DMX; RDM
  • (19") 48.3 cm rack installation 3 U

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 2.70 W
IP classification: IP20
Protection class: Class III

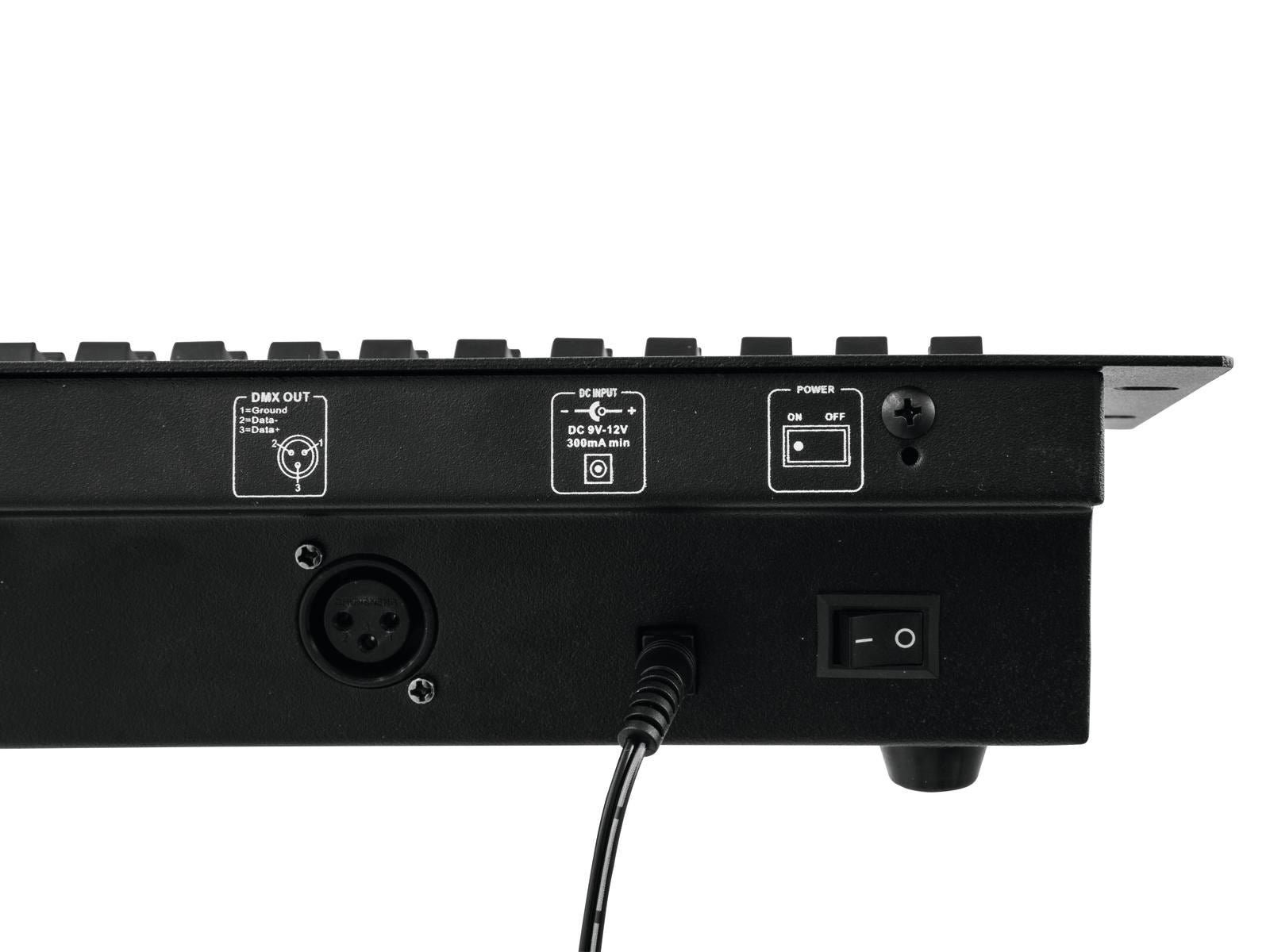

Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Programs: Programmable
32 Sequences
Each with 600 Scenes
DMX channels: Output 512
DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX; RDM
Housing color: Black
Available storage media: USB devices (FAT 32)
USB port: Typ A
Housing design: (19") 48.3 cm rack installation 3 U
Dimension: Width: 48.3 cm
Depth: 13 cm
Height: 8.9 cm
Weight: 2.39 kg
