Eurolite Dmx Operator 240 Controller

£170.00
£170.00

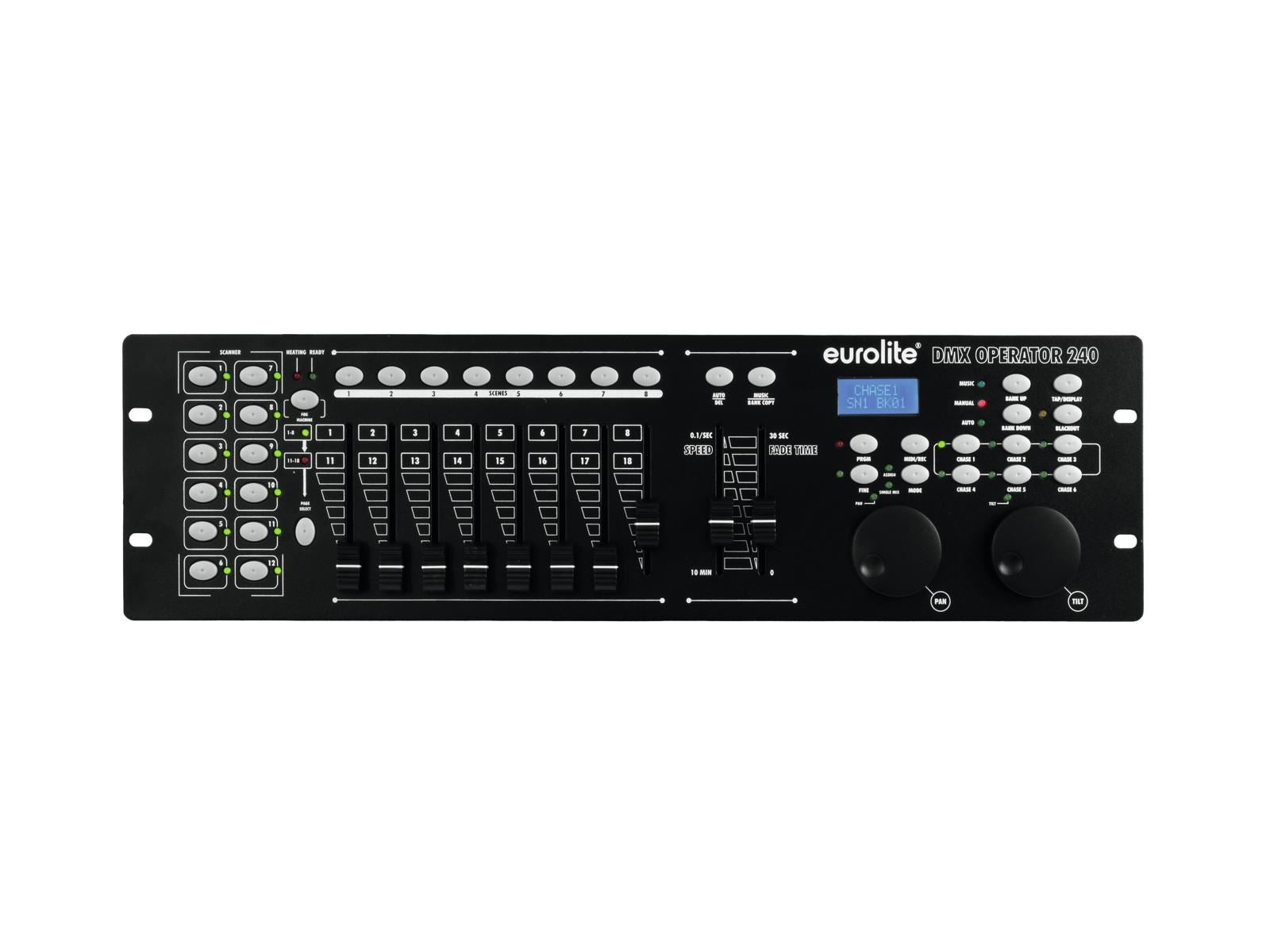

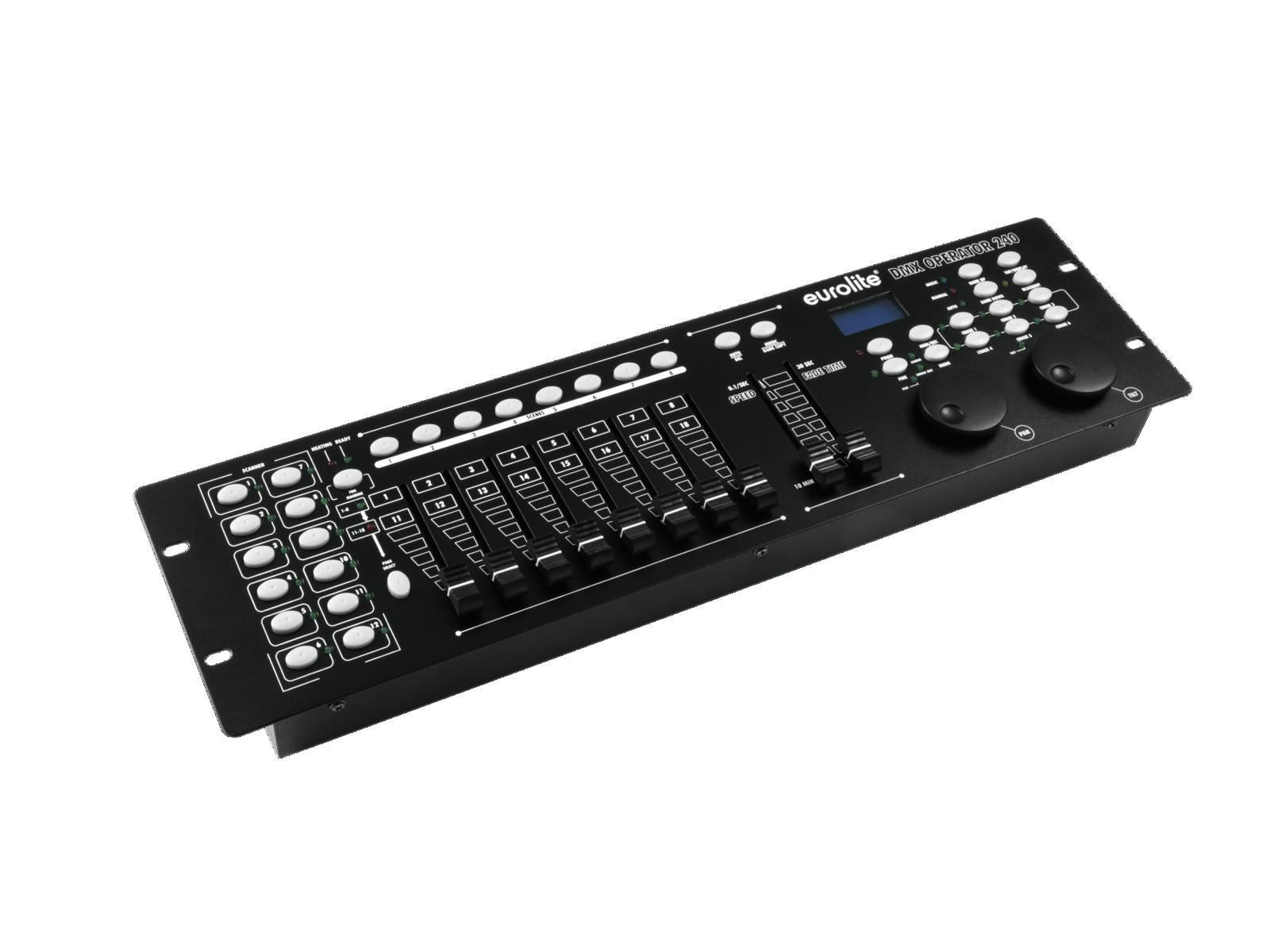

Console for 12 light effect units (max. 20 DMX channels), 2 jog wheels
Vendor: Eurolite
SKU: 154-70064518
Icon In Stock In Stock
Icon Delivery Time

Description


Console for 12 light effect units (max. 20 DMX channels), 2 jog wheels

  • DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights
  • 12 fixtures with up to 20 channels each can be controlled
  • 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
  • USB port for storing program data
  • Manual, time-controlled or sound-controlled chase running mode
  • Fade between scenes adjustable between 0-30 s
  • Copy function for scenes and banks
  • 2 DMX fixture levels can be controlled, each with up to 10 channels
  • 8 DMX channel faders
  • 2 jog wheels for pan/tilt
  • Blackout function
  • Backlit LCD (2 x 8 characters)
  • Fog machine control possible
  • Supports standard MIDI
  • 3-pin XLR connector with polarity selector
  • Firmware update via USB
  • Desktop console
  • Rack installation with 3 units
  • Programmable 30 sequencens each with 8 scenes
  • Programmable 6 chasers each with max. 240 scenes
  • Can transmit up to 240 DMX channels
  • Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version; MIDI via 5-pin DIN (F) mounting version; Fog machine via 5-pin DIN (F) mounting version; RDM
  • (19") 48.3 cm rack installation 3 U


Power supply: 100-240 V AC, 50/60 Hz
9 V DC
Power consumption: 2.70 W
IP classification: IP20
Protection class: Class III
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Programs: Programmable
30 Sequences
Each with 8 Scenes
Programmable 6 Chasers
Each with max. 240 Scenes
DMX channels: Output 240
DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version; MIDI via 5-pin DIN (F) mounting version; Fog machine via 5-pin DIN (F) mounting version; RDM
Housing color: Black
Control elements: DMX polarity selector, power switch
Available storage media: USB devices (FAT 32)
USB port: Typ A
Color: Black
Housing design: (19") 48.3 cm rack installation 3 U
Dimension: Width: 48.3 cm
Depth: 13.5 cm
Height: 8.9 cm
Weight: 2.45 kg
