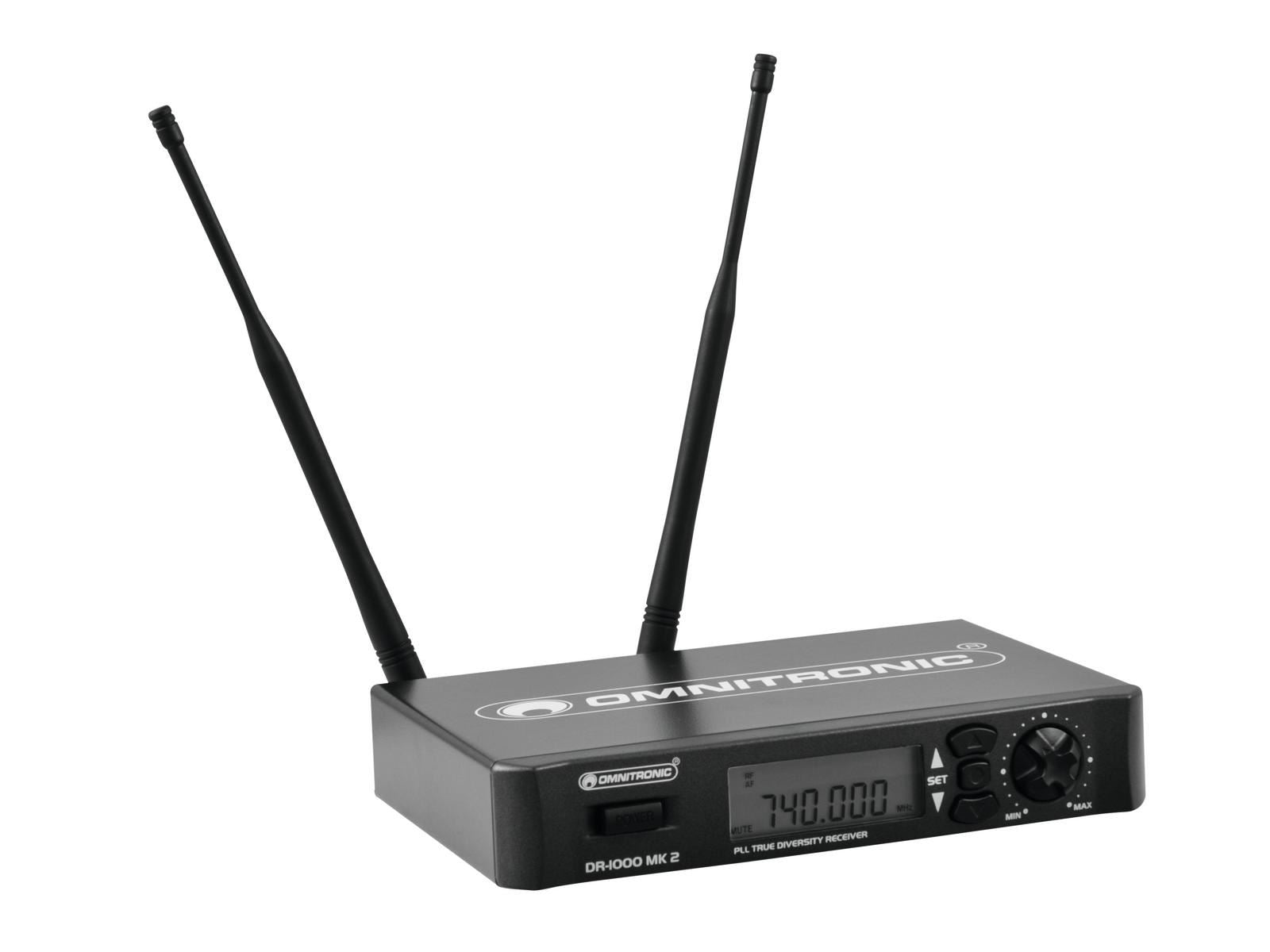

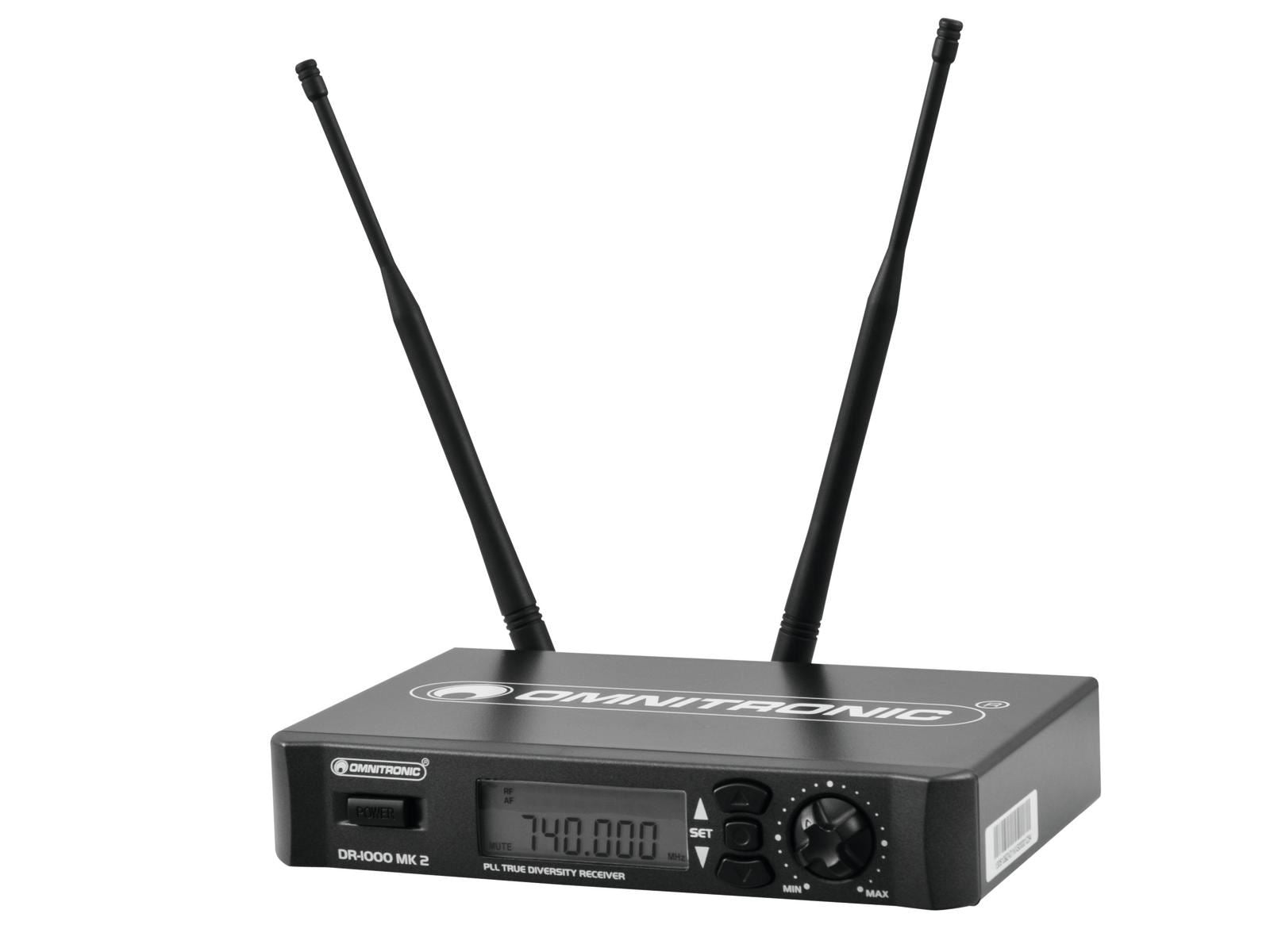

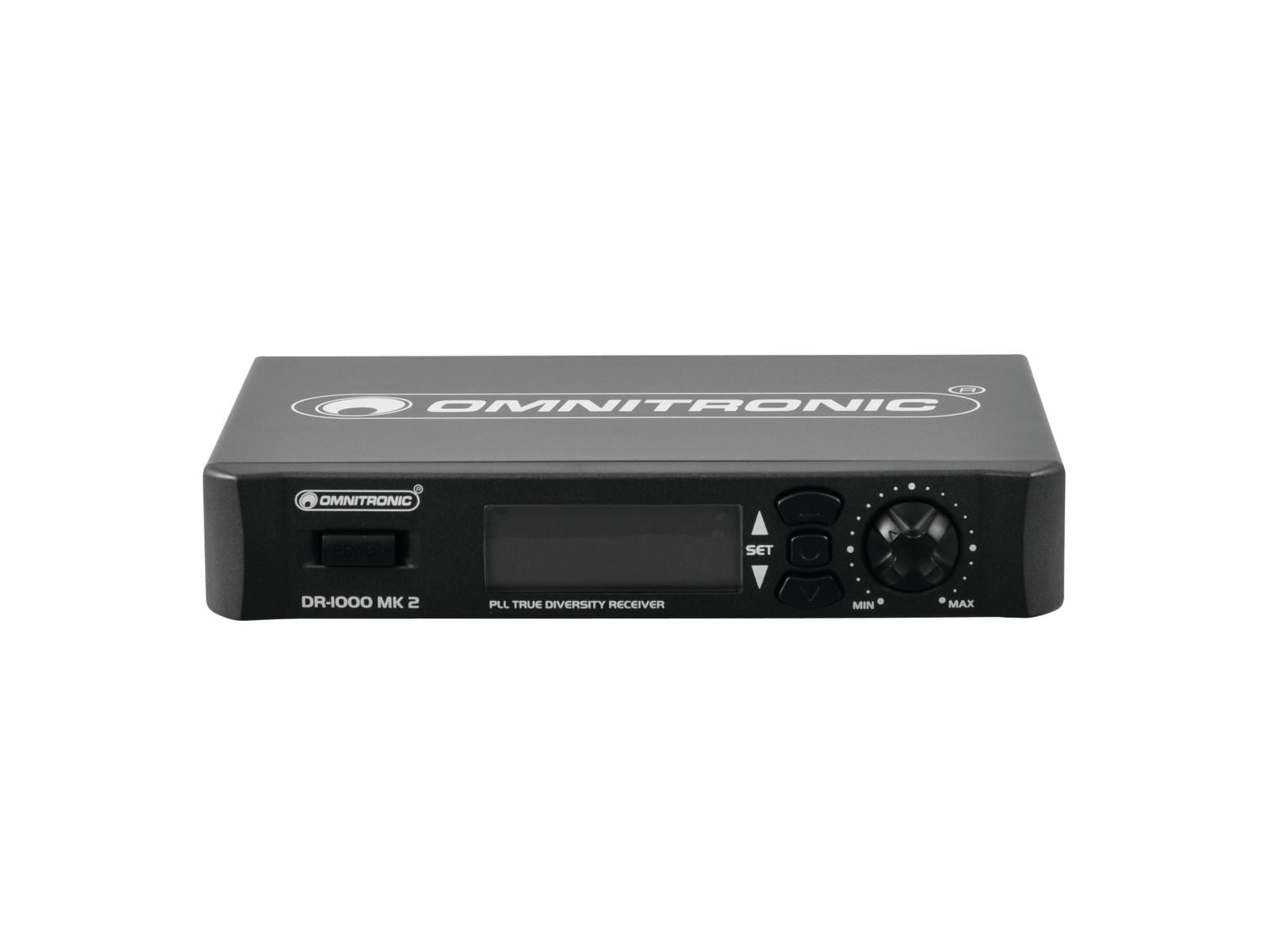

Omnitronic Dr-1000 Mk2 Wireless Receiver

Description
A variety of options with multi-frequency wireless systemsWith the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

Multifrequency wireless receiver, True Diversity

• Multifrequency wireless receiver with UHF pilot tone technology (PLL)
• High-quality true diversity reception
• Two removable antennas (BNC connection)
• Operation in the low-interference UHF band (740-764 MHz)
• 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
• System expandable to up to 16 receivers with 16 microphones
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• Automatic frequency scan
• Output level control
• Lock function avoids undesired changes by users, also accidental shutdown
• Mute mode when signal is absent or too weak

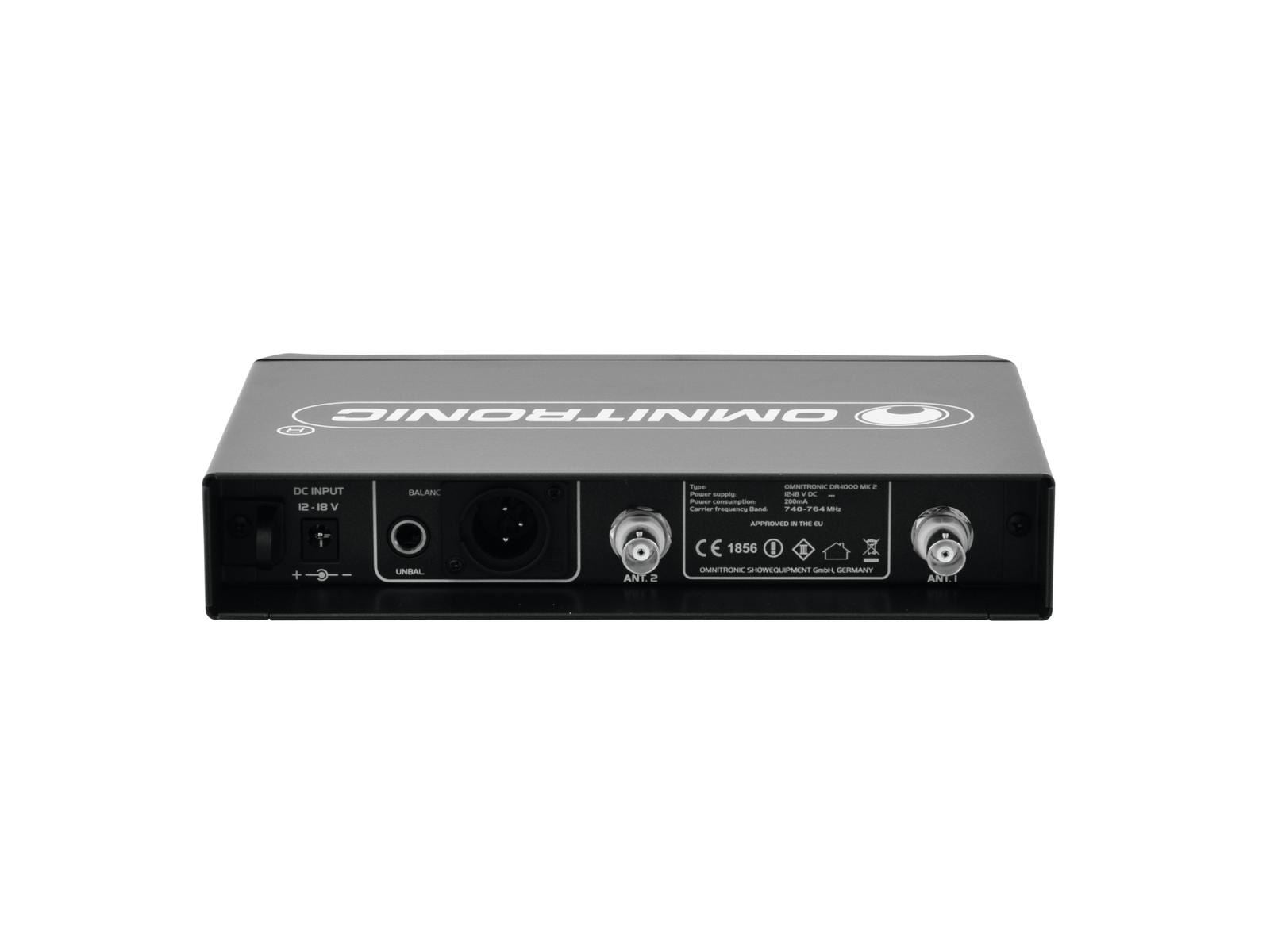

• 6.3 mm and XLR output

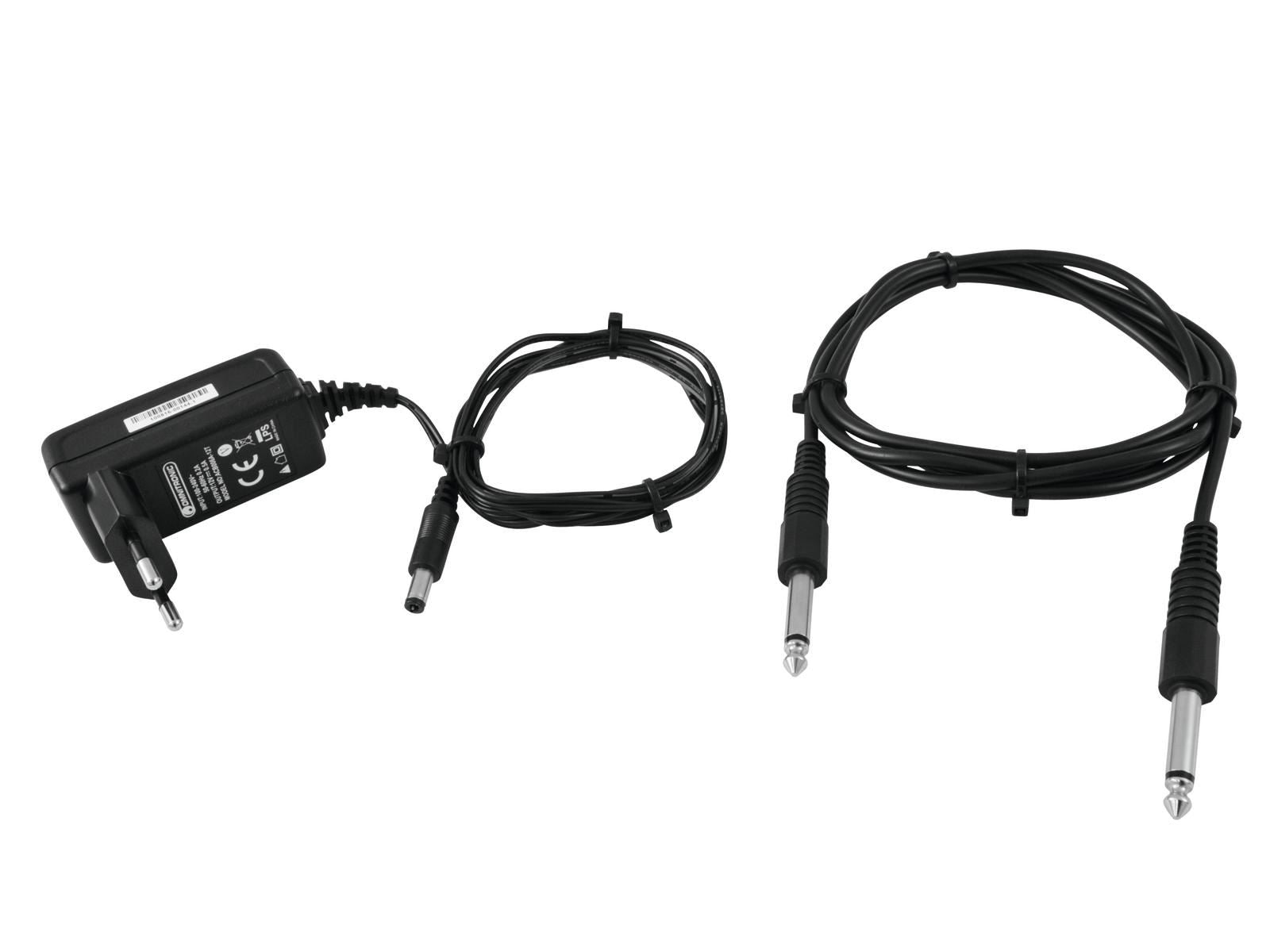

• Operation via supplied power unit
• Rugged metal housing
• Optional mounting frame for rack installation available
• Optional antenna boosters and antenna distributor for easy setup of several receivers
• Optional hand-held microphone, pocket transmitter, lavalier microphone and headset available
• License required in Germany
• Use a operating range up to 100m with line of sight
• Desktop console housing; (19") 48.3 cm rack installation (provided)
