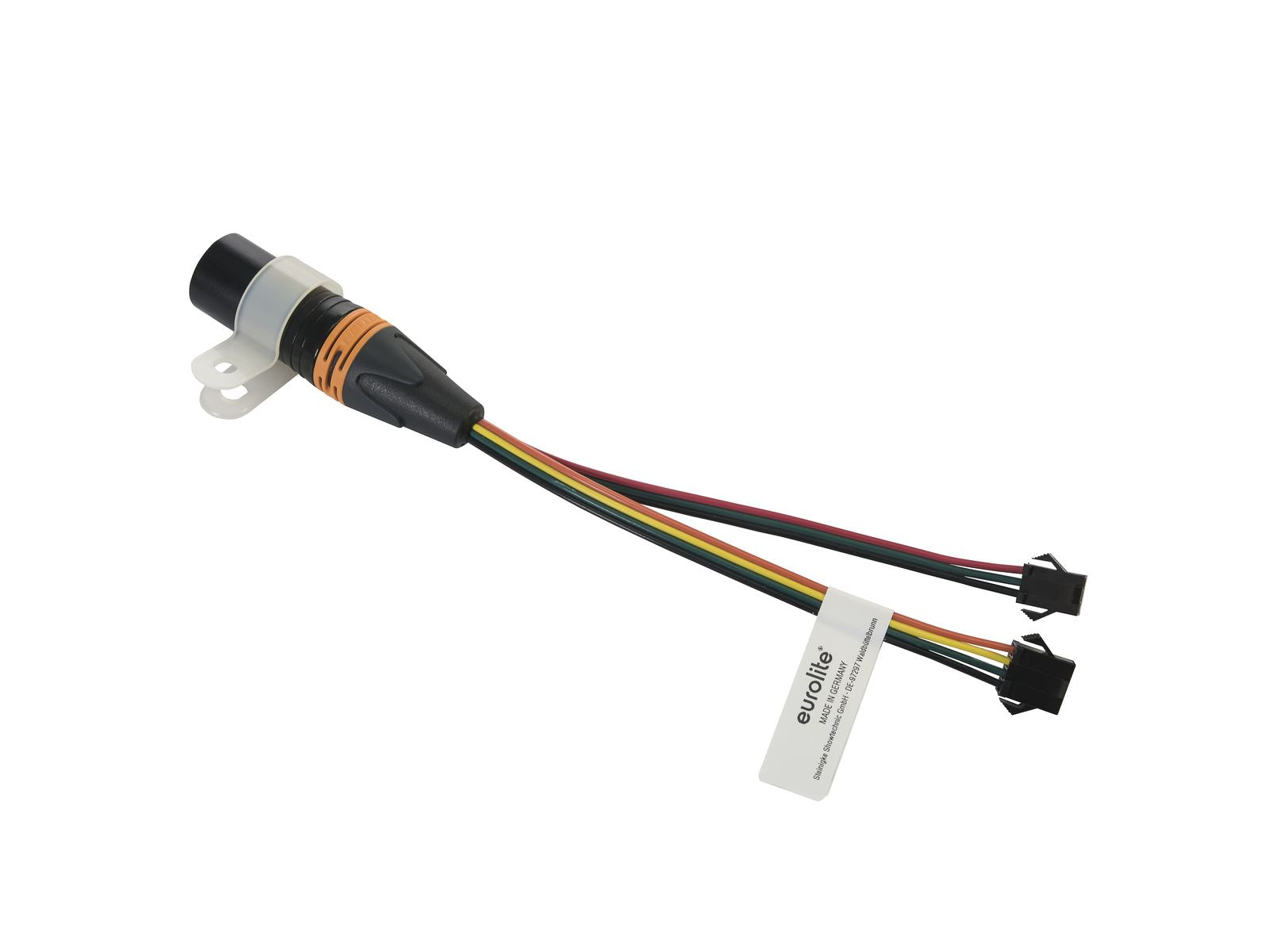

Eurolite Dxt Dmx Pixel Converter Pro

Compact DMX converter for LED pixel strips
Vendor: Eurolite
SKU: 154-70064855
Icon In Stock In Stock
Icon Delivery Time


Compact DMX converter for LED pixel strips

  • Can control up to 18,000 digital LED pixels via a DMX512 signal
  • Extremely compact design placed in the XLR plug
  • 1 x DMX input via 3-pin XLR plug (Neutrik)
  • 1 x 4-pin JST connector (female) with Data and Clock output
  • 1 x 3-pin JST connector (female) with Data output
  • Multiple LEDs can be grouped together to form virtual pixels, e.g. a strip with 300 LEDs can be controlled with 3 DMX channels
  • 1 to 6 colors per pixel
  • Refresh rate: DMX, 40 Hz, 20 Hz, 10 Hz, 5 Hz
  • Supported LED types: WS2801, WS2811, WS2812, etc. (all standard 800 kHz types)
  • Does not require a separate adapter - power supply is via LED strip (5-12 V)
  • Mounting via supplied plastic clip
  • Configuration via software tool (Windows) and the Eurolite USB-DMX adapter (item 51860118)
  • The "Pixel Converter Config Tool" is available for download from the product page at
  • Made in Germany

Power supply: 5-12 V DC 20 mA
Dimension: Length: 7.5 cm
Diameter: ? 2 cm
Weight: 0.04 kg
