Electro-Voice 3600W ZLX12P Active 12" Speaker + ZXA1 Subwoofer PA Bundle

Description

Bundle consists of 2 x EV ZLX12P active speaker and 2 x ZXA1 Active Subwooder, 2 x adjustable speaker pole and 2 x XLR Cables

Please note this is an ex demo system - it has been tested and is fully working. It is in very good condition with some light marks.

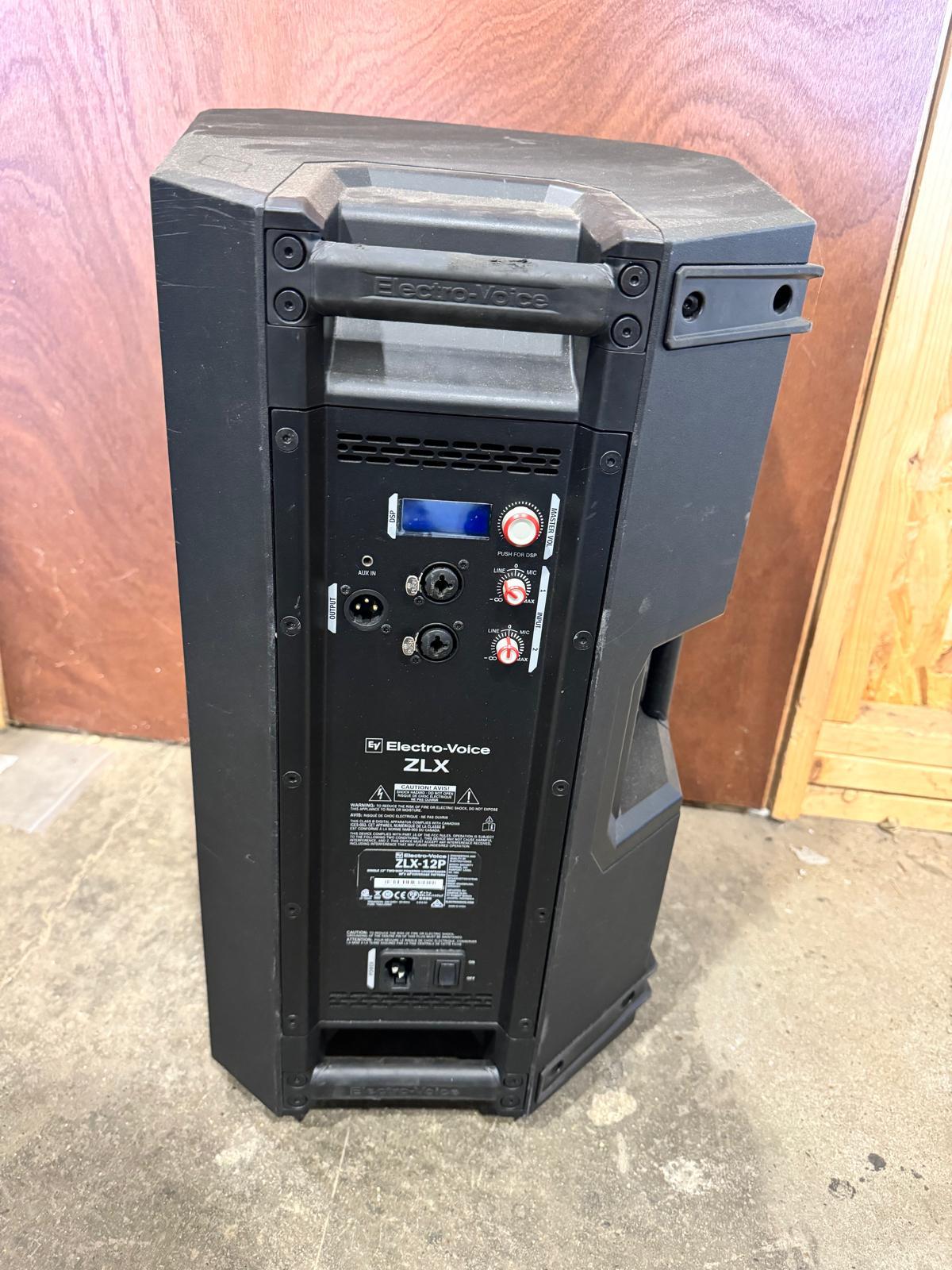

EV ZLX-12P

Performance and practicality combined
The Electro-Voice ZLX-12P features custom-designed drivers within an intuitive cabinet design, for both sound performance and reliability. It is ideal for both sound reinforcement and monitor wedge applications. With a patented split-baffle design, the ZLX delivers incredible drive time alignment with enhanced sonic impact and intelligibility.

It is engineered to provide users with outstanding audio for larger applications, with or without the option of a subwoofer. Enclosed in polypropylene housing for durability, the ZLX-12P also features an integrated carry handle for efficient portability and storage.

Intelligent operation and performance
Each unit in the ZLX series features an LCD display and single-knob DSP control loaded with versatile presets. No matter where you are, the ZLX DSP lets you quickly optimize the characteristics of your sound. An uncluttered control panel gives you clean and intuitive operability with precise and comprehensive options.

Features
Huge sound with 1000W peak output power
Deep, articulate bass from a specially designed 12” woofer
Crystal clear highs from a 1.5” high-frequency titanium driver
Efficient and reliable class-D amplification
Responsive audio across an extended frequency range (50Hz – 20kHz)
Great sound at high volumes with 126dB max SPL
High performance DSP for best in class operation
User friendly LCD screen with rotary knob for quick setup
Dial your sound in seconds with powerful built in presets
Superior driver time alignment and enhanced sonic impact from a patented split baffle design
Intuitive enclosure design allows for use as a floor monitor
Excellent sound dispersion with 90-degree x 60-degree coverage
Lightweight and easy to carry with ergonomic handles
Scratch and scuff resistant polypropylene design
Transport with confidence thanks to an 18 gauge steel grille
Specifications
Power Rating: 1000W
Frequency Specifications: Using MUSIC DSP preset
Response: 65Hz - 18kHz
Range: 50Hz - 20kHz
Coverage: 90° x 60° (H x V)
LF Transducer: EVS-12k, 12'' woofer
HF Transducer: DH-1K, 1.5'' titanium compression driver
Connectivity:
2 x XLR-TRS combo jacks
1 x 3.5mm input jack
1 x XLR link output
Enclosure:
Material: Polypropylene
Grille: 18-gauge steel with black powder coating
Dimensions: 610mm x 356mm x 356mm / 24'' x 14'' x 14'' (H x W x D)
Weight: 15.6kg / 34.3lbs

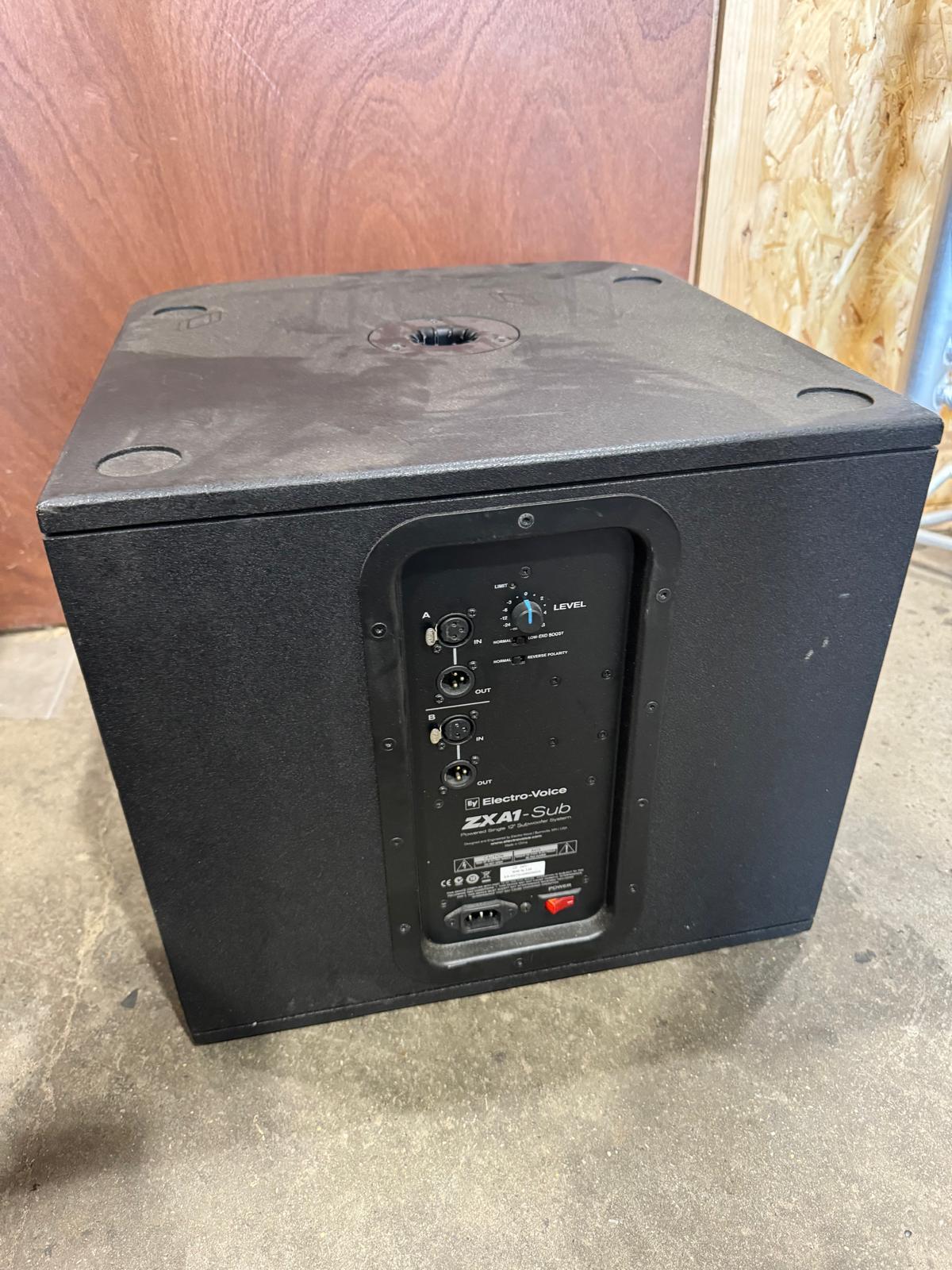

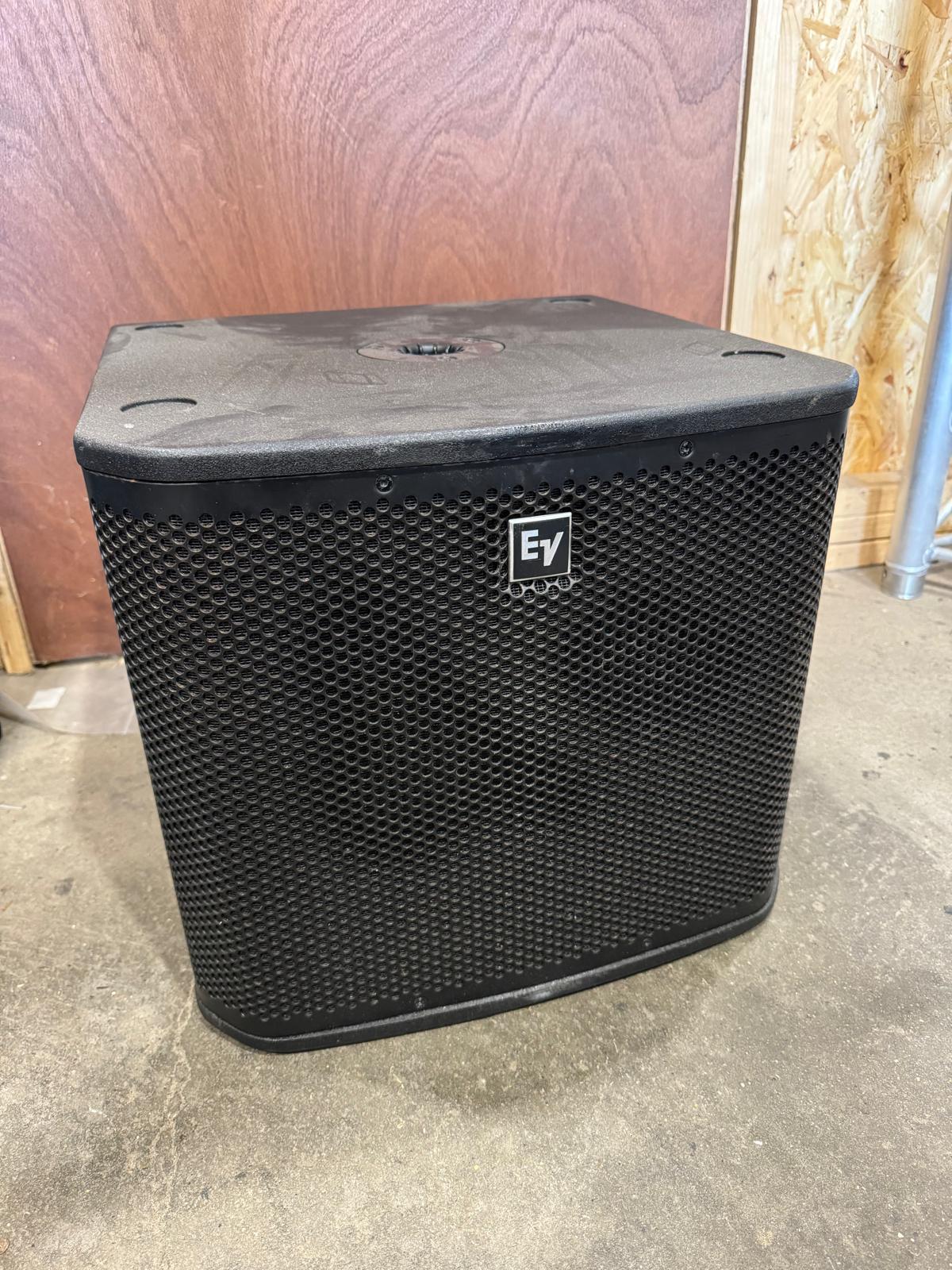

EV ZXA1 Subwoofer

Engineered for portability
The Electro-Voice ZXA1-Sub's low end boost switch introduces a 60Hz boost. This is excellent should you require more definition and power in your low end. A polarity switch provides more compatibility with other top boxes and includes an IEC jack for power, commonly used on computer and pro audio equipment. The dual inputs and outputs mean easy cable management and mono sub configuration. The wooden enclosure gives better management and enhancement of the low frequencies and increased durability. Pole mounts and solid easy grip handles make the ZXA1-Sub ideal for many portable applications.

Features
700-watt Class-D amplifier
126 dB maximum sound pressure level
12-inch high-output woofer
Dual XLR stereo inputs & outputs
DSP with low-end boost & polarity control
Switchable EQ modes
LED indicators for power & limit
Pole mount for full-range systems
9-ply, 15mm internally braced wood enclosure with textured paint
Integrated carry handle
Lightweight housing
Specifications
Speaker Type: Powered Subwoofer
Amplifier Power: 800W RMS
Colour: Black
Coverage (Nominal -6 dB): Omnidirectional
Input Connections: 2 x XLR Stereo Input, 2 x Stereo Output
Power Requirements
120V: 90V - 132V, 1.0 A, 50/60Hz
230V: 190V - 264V, 0.6 A, 50/60Hz
Frequency Response (-3 dB): 53 - 93Hz Half Space
Frequency Response (-10 dB): 44 - 118Hz Half Space
Max SPL: 126 dB Half Space
System Power Handling: 700W
LF Transducer: 1 x EVS-12S, 12''
Crossover Frequency: 100Hz
Enclosure Material: 9-Ply, 15mm Plywood, Internally Braced, Textured Paint
Outdoor: No
Grille: 16GA Steel With Black Powdercoat
Weight: 20.9 kg
Dimensions
Height: 400 mm
Width: 444.5 mm
Depth: 457.2 mm
Product Code: ZXA1-SUB
