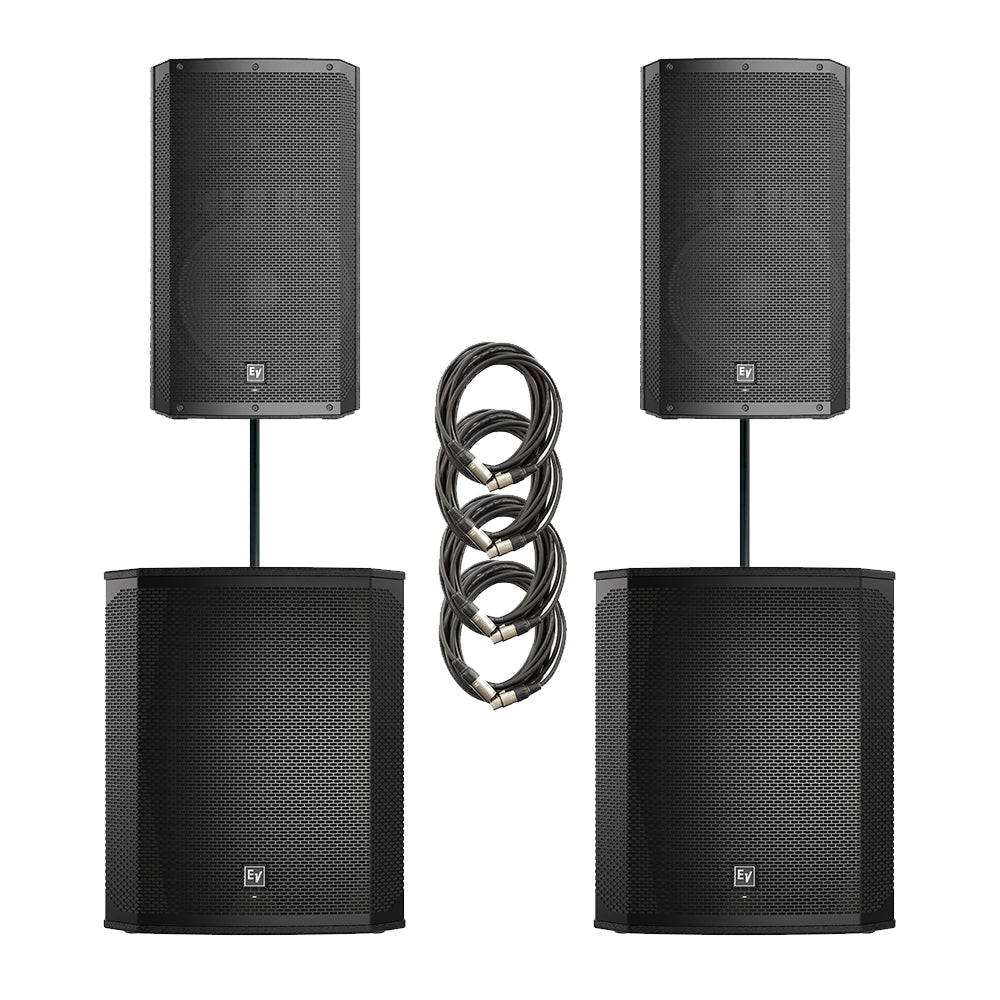

<p>The Electro-Voice ELX200-15P Active PA Speaker is a compact 2-way loudspeaker with a 15'' woofer and a lightweight cabinet. Perfect for DJs, bands and musicians, the ELX200-15P speaker delivers excellent audio quality with room-filling coverage and defined bass responses. All of the active speakers within the new Electro-Voice ELX200 series feature an intuitive and powerful QuickSmartDSP section which allows you to optimise the acoustic performance to suit any medium-sized venue. The ELX200-15P has three M10 threaded suspension mounts and integrated pole-mounts for versatile positioning, along with integrated handles for convenient transport.</p>
<p>A 15-inch 2-way active model<br />Ideal for DJs, mobile musicians, bands & more<br />Suitable for small to medium-sized venues<br />Perfect for portable or installed applications<br />Integrated Class-D amplifier<br />QuickSmart DSP with four presets - Music, Live, Speech and Club<br />Five User-Programmable presets<br />Sub/top system-match crossovers<br />Input level control and signal metering<br />Master volume control to optimise gain structure<br />Patented SST waveguide design for optimised coverage<br />3 x M10 threaded suspension points, integrated pole-mounts & 3-handle design<br />High-sensitivity transducers<br />Signal synchronised transducer technology<br />Robust components<br />Ultra-lightweight housing with internal reinforcement</p>
<p><span style="color: #d32316;">Specifications</span><br />System Type: 2-Way Active<br />High-Frequency Driver: DH-1C 1'' Titanium Compression Driver<br />Low-Frequency Driver: EVS-15M 15'' Woofer<br />Amplifier Type: Class-D<br />Amplifier Power: 1200W<br />Frequency Response: 48Hz - 19kHz, 10dB (55Hz - 16kHz, -3dB)<br />Maximum SPL: 132dB<br />Coverage: 90° x 60° (H x V)<br />Crossover Frequency: 1600Hz<br />Input Connectors:<br />2 x XLR/TRS Combo Jacks<br />1 x Stereo RCA<br />Output Connector: XLR<br />Power Supply: 100V - 240V, 50Hz - 60Hz<br />Enclosure: Polypropylene Composite<br />Grille: 18 AWG Steel with Powdercoat</p>
<p><span style="color: #d32316;">Dimensions</span><br />384 x 423 x 710 mm</p>
<p><span style="color: #d32316;">Weight</span><br />18.9 kg<br /><br /></p>
<p> </p>
<hr style="border: 1px dashed #C0C0C0;" />
<p> </p>
<p>ELX200-18SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (18-inch EVS-18L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole mount plate, and two-handle design for easy lifting.</p>
<p><br /><span style="color: #d32316;">Specifications</span><br />Available Color: Black<br />Connector Type: (2) XLR/TRS combo jacks and (2) XLR link outputs<br />Enclosure Material: 15 mm plywood with EVCoat<br />Family: ELX200<br />Frequency Range (-10 dB): 40 Hz – 145 Hz<br />Frequency Response (-3 dB): 47 Hz – 105kHz<br />Grille: 18 AWG steel with powder coat<br />LF Transducer: EVS-18L 457 mm (18 in)<br />Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz<br />Max. SPL/1m (calc): 132dB<br />Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A<br />Power Rating: 1200W<br />Powered or Passive: Powered<br />Speaker Type: Subwoofer<br />Woofer Size: 18inch</p>
<p><br /><span style="color: #d32316;">Dimensions</span><br />507 x 574 x 600 mm</p>
<p><br /><span style="color: #d32316;">Weight</span><br />29 kg</p>
