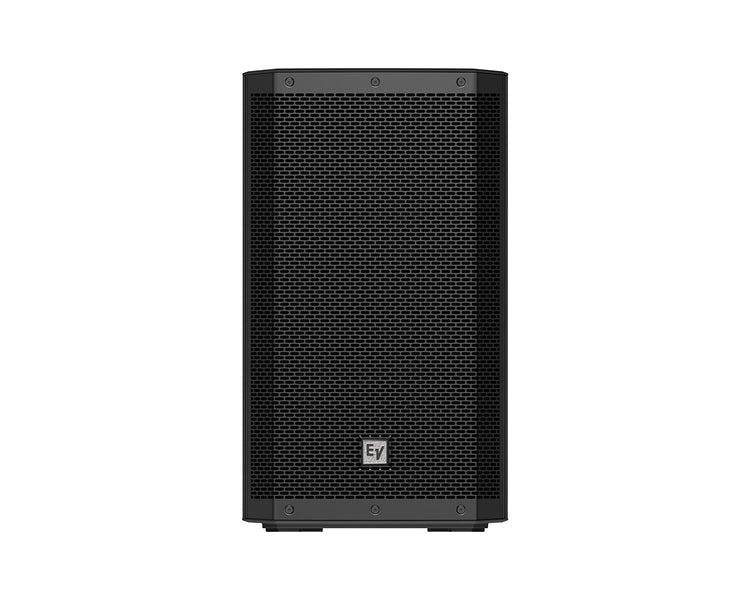

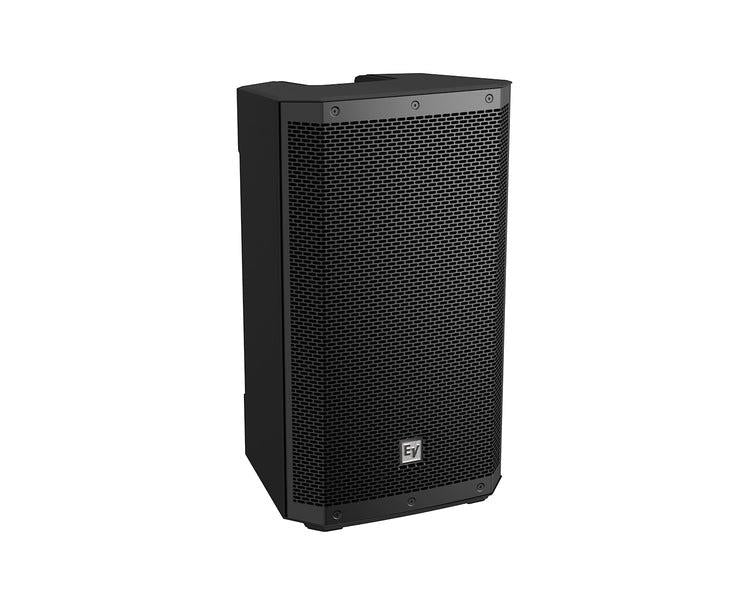

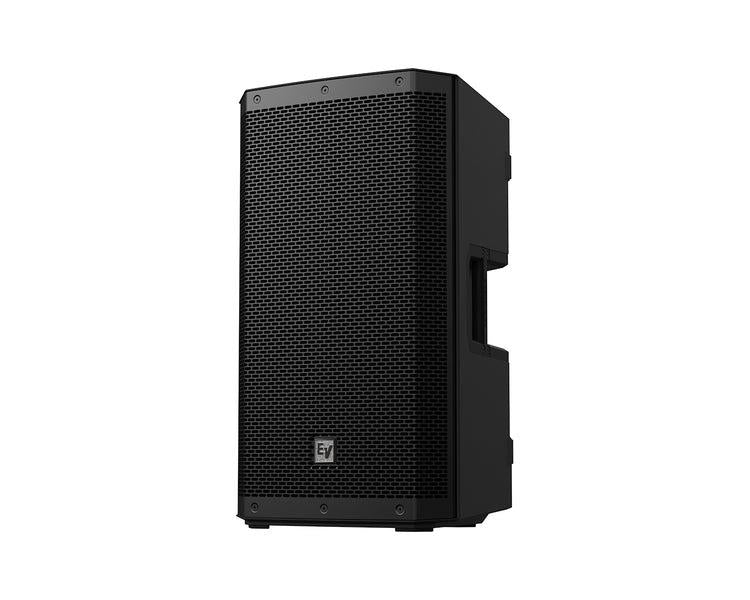

Electro-Voice ZLX12-G2 12" Passive Speaker

Description

The ZLX12-G2 is a next-generation 12-inch passive loudspeaker from Electro-Voice, designed to deliver high-performance audio with improved output and extended frequency response. As part of the ZLX-G2 series, it incorporates Electro-Voice’s patented Signal Synchronized Transducers (SST) design, ensuring consistent coverage, enhanced bass response, and efficient performance in a compact enclosure. Built for both portable and installed applications, it offers durability, flexibility, and professional-grade sound.

Features

12-inch passive 2-way loudspeaker with professional performance
Enhanced maximum SPL and extended frequency response
SST waveguide design for improved coverage and bass performance
90° x 60° dispersion for controlled sound projection

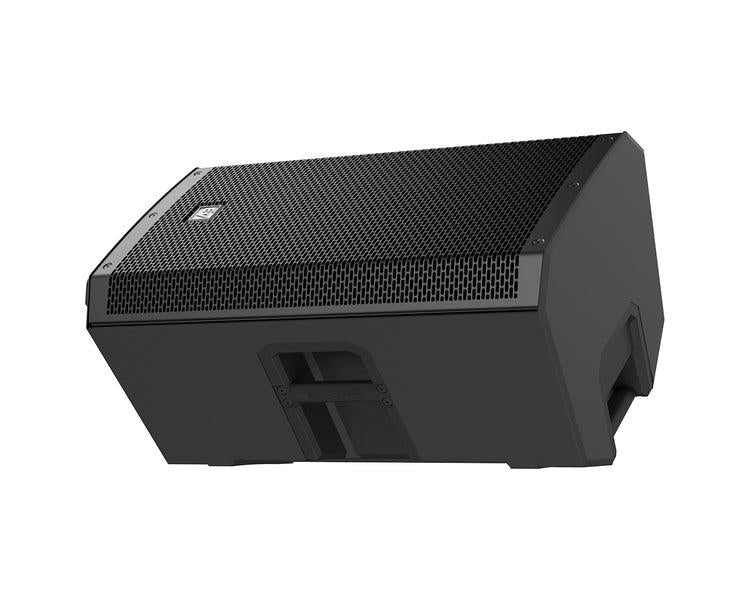

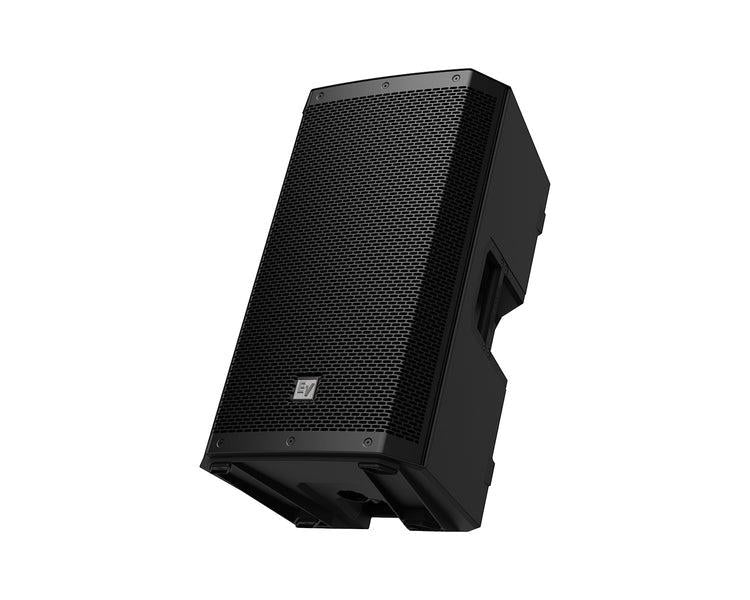

Dual monitor angles with 55° standard and 25° kickback positioning
Robust and ergonomic enclosure for portability and durability
Dual NL4 connectors wired in parallel for flexible system integration
Optimised for use with Dynacord DSP amplifiers and SONICUE software
Suitable for live sound, installations, and stage monitoring

Specifications

Power handling: 250 W continuous, 1000 W peak
Frequency response (-3 dB): 69 Hz – 20 kHz
Frequency range (-10 dB): 55 Hz – 20 kHz
Maximum SPL: 125 dB
Sensitivity: 93 dB (1W/1m)
Impedance: 8 ohms
Crossover frequency: 2 kHz
High-pass frequency: 48 Hz
Dispersion: 90° x 60°

Speaker Components

LF driver: 12" (WECA2128) with ferrite magnet
HF driver: 1.4" compression driver (DH-1K) with titanium diaphragm

Connectivity

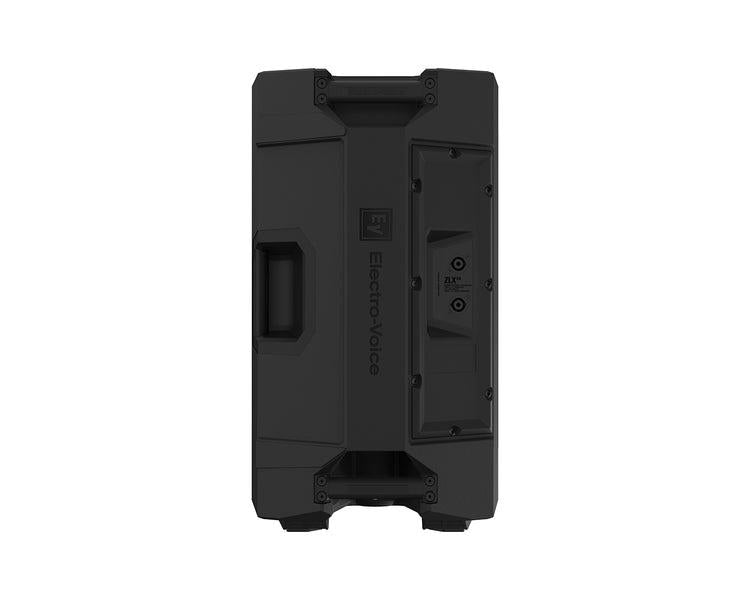

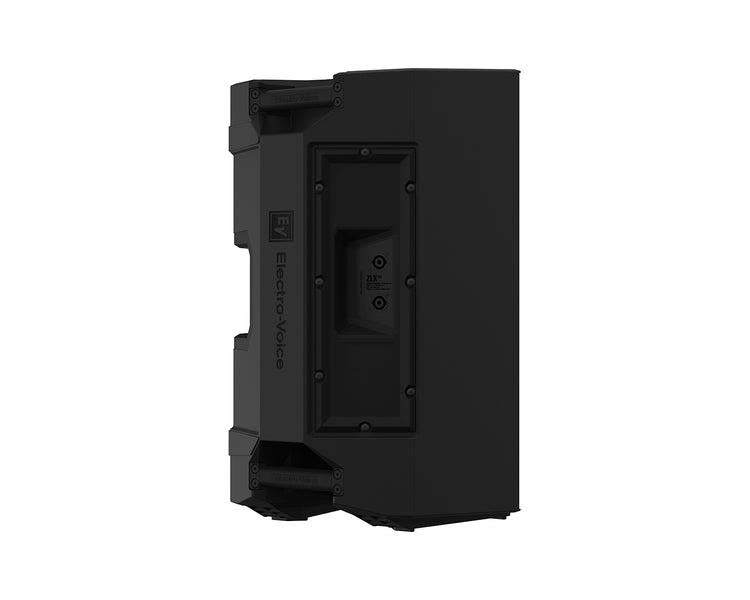

Input connectors: 2 x NL4 (parallel wired)

Construction

Enclosure: Durable, ergonomic design
Monitor angles: 55° standard, 25° kickback

Dimensions and Weight

Dimensions (H x W x D): 621.1 x 356.2 x 356 mm
Weight: 14.26 kg
