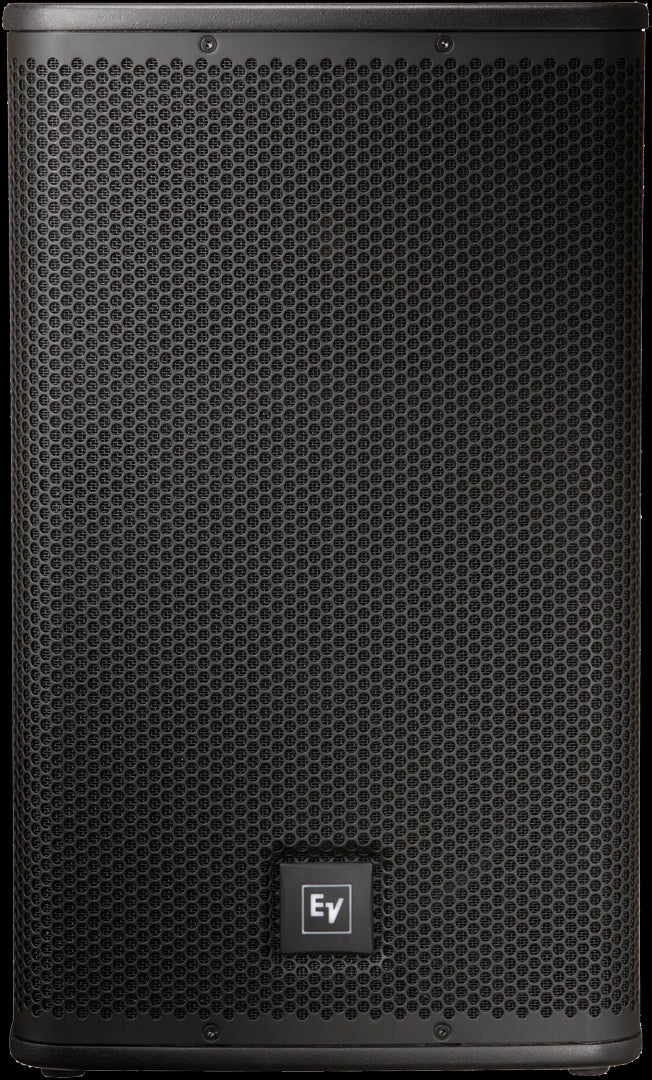

ElectroVoice ELX112 12" Passive Speaker 1000W

Description:

The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.

Compact power for sound reinforcement and stage monitoring

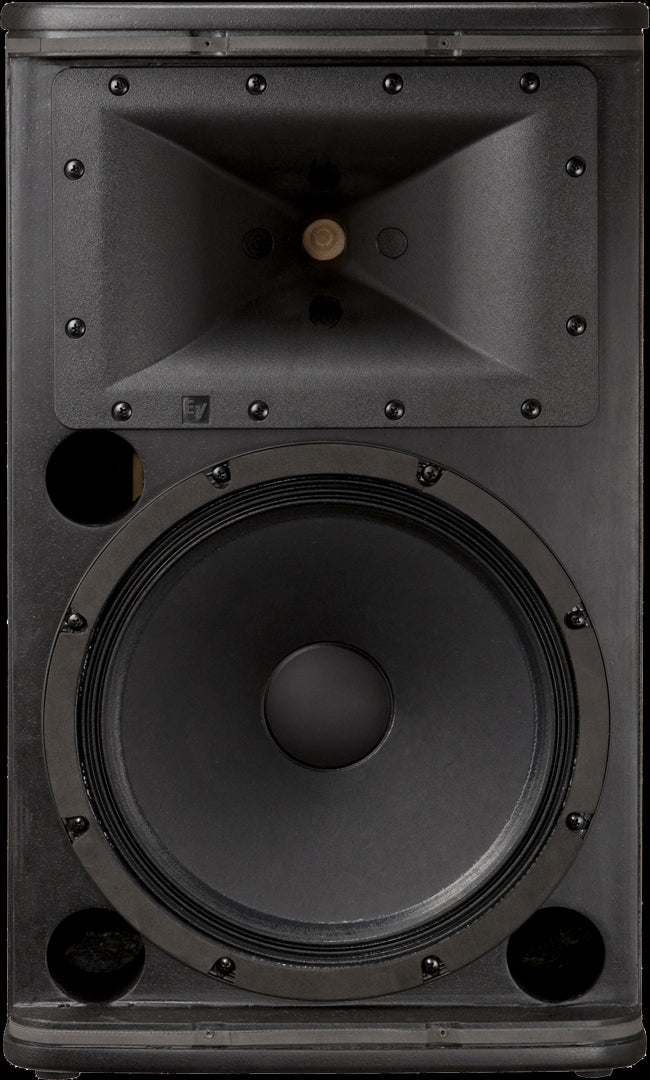

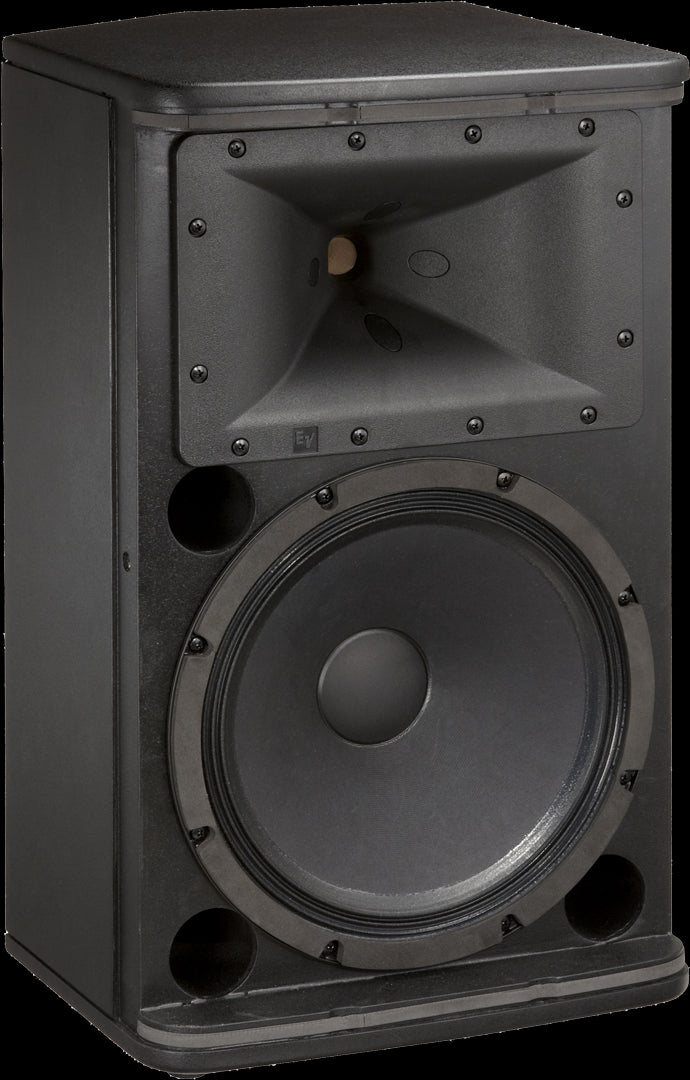

EVS-12K woofer
1.5-inch DH-1K titanium HF compression driver
55 Hz – 20 kHz frequency range
90° x 50° coverage-pattern waveguide

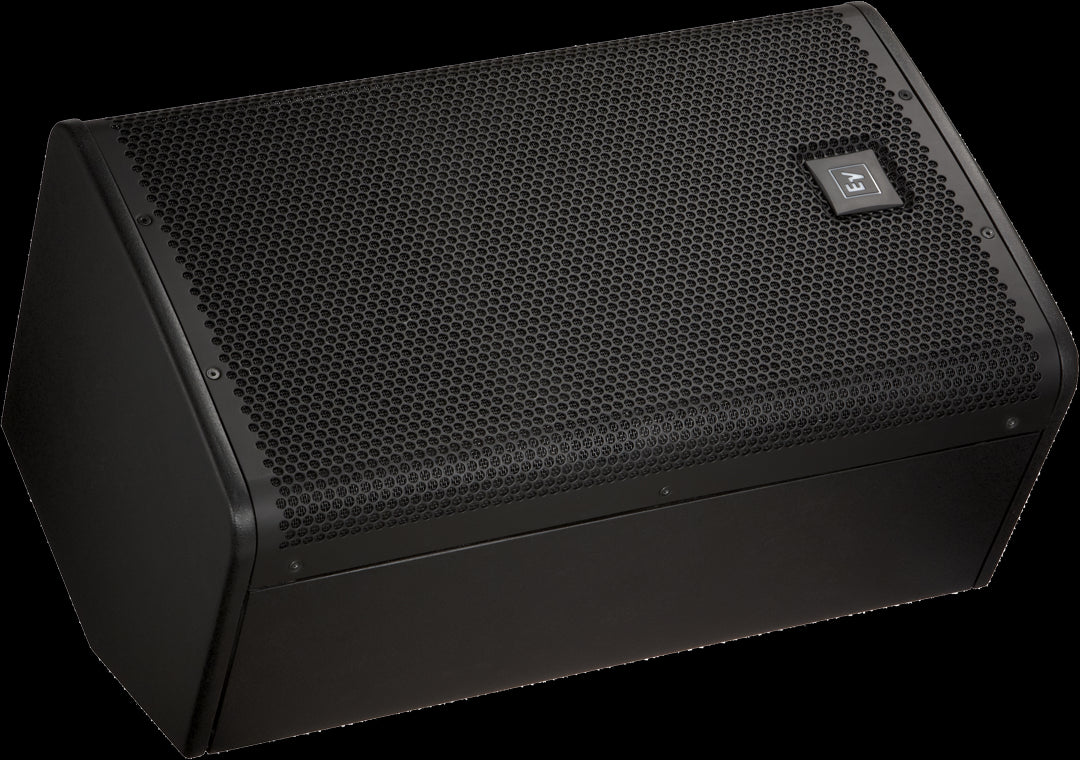

60° Monitor Angle
94 dB SPL sensitivity; 132 dB max SPL
Power handling: 250 W continuous, 1000 W peak
Braced 15mm plywood enclosure

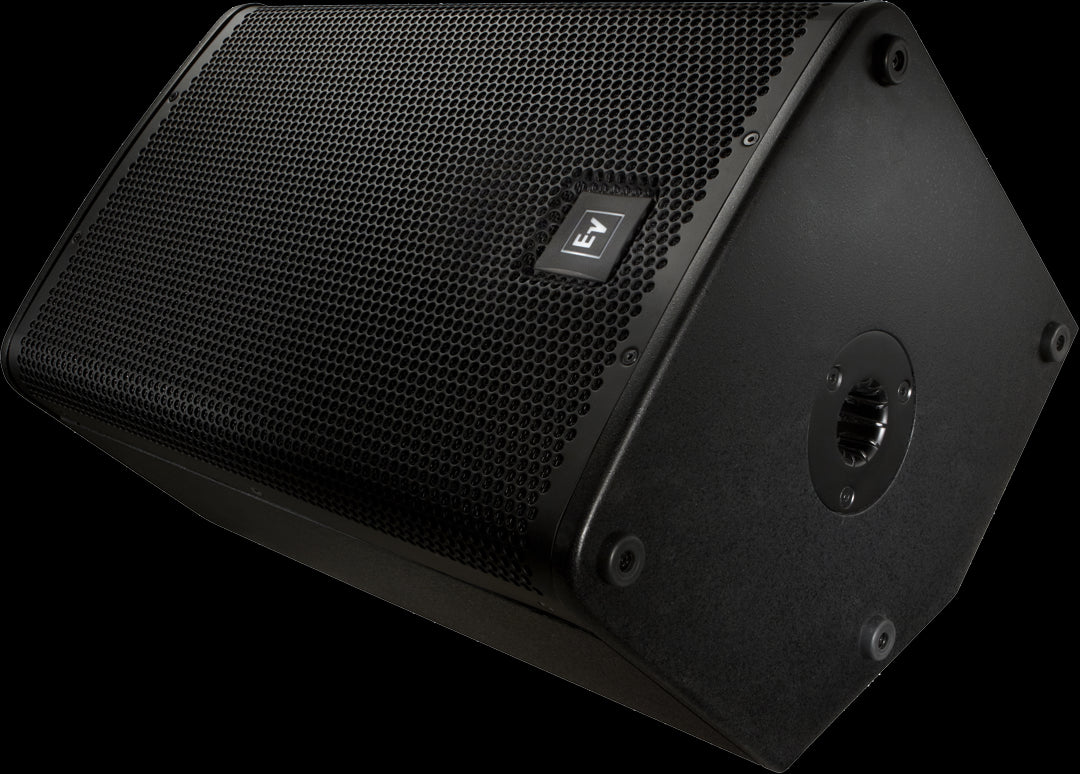

Pole mount or stack with Live X Subwoofers
Black textured finish

Specifications:
Freq. Response (-3 dB) 82 Hz - 18 kHz¹
Freq. Range (-10 dB) 55 Hz - 20 kHz¹
Axial Sensitivity 94 dB
Max. Measured SPL³ 132 dB
Recommended HP Freq. 45 Hz
Coverage (Horiz. x Vert.) 90° x 50°
Power Handling 250W Continuous, 1000W Peak
LF Transducer(s) (1) EVS-12K, 305mm (12") Woofer
HF Transducer DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Crossover Frequency 2.1 kHz
Nominal Impedance 8 Ohms
Minimum Impedance 7.0 Ohms
Connectors Dual NL4
Enclosure Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Grille 18GA Steel with Black Powdercoat
Dimensions (H x W x D) 607mm x 362mm x 340mm (23.89' x 14.25" x 13.41")
Net Weight 16.0 kg (35.2 lbs)
Shipping Weight 19.9 kg (43.8 lbs)
Accessories:
TSS-1, Aluminum Tripod Stand
TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case
ASP-1, Steel Subwoofer Stand
