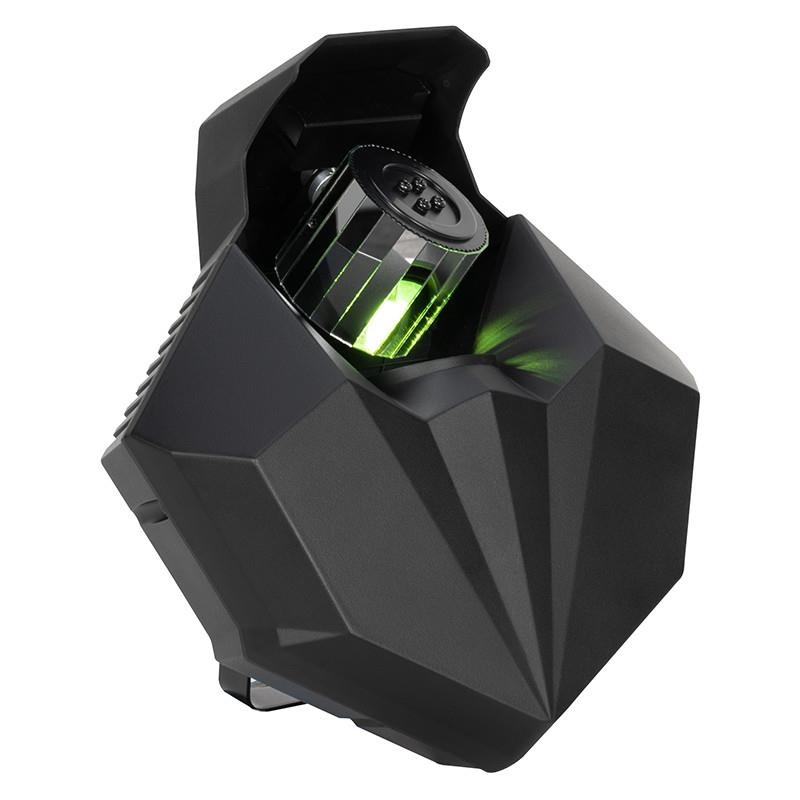

Eliminator Vortex Moonflower

Description:

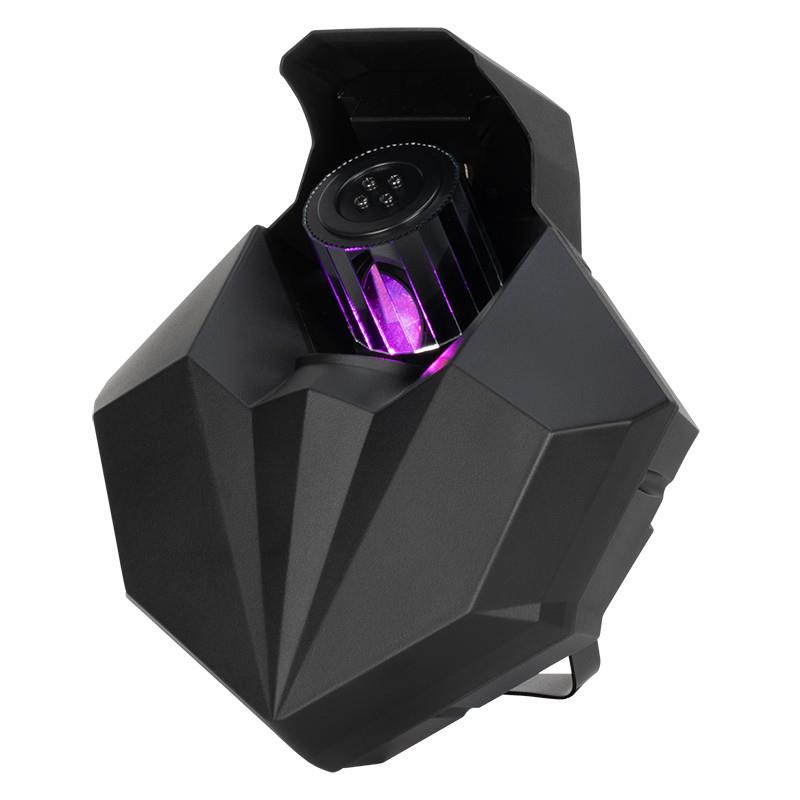

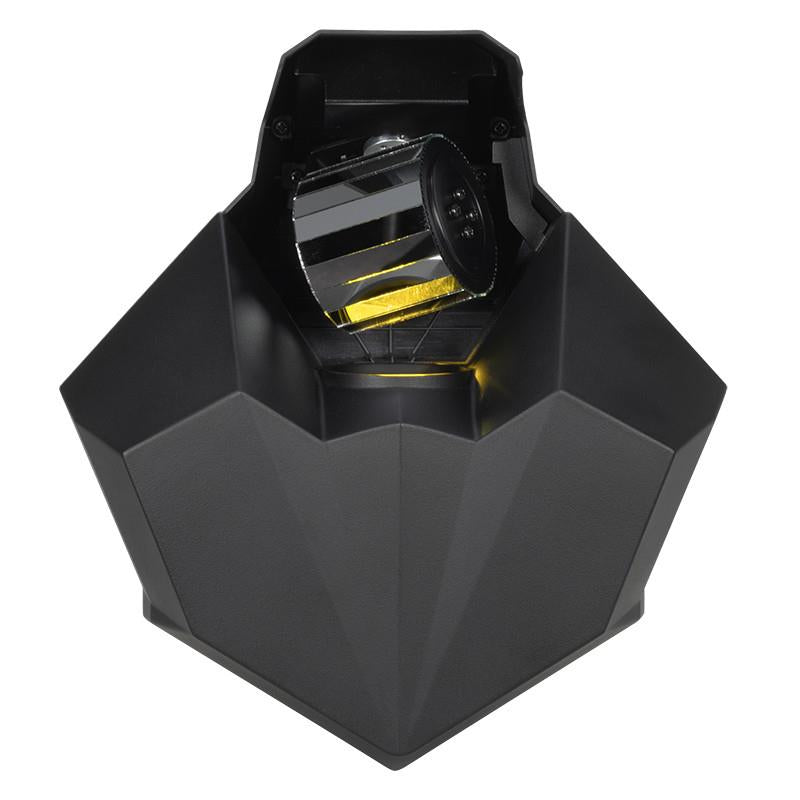

The Eliminator Vortex is a classic moonflower effect with a barrel mirrored scanner that produced multiple razor-sharp 5-degree beams of light powered by an 80W LED engine. It features 10 Color/GOBOs combinations, GOBO shake effect, mesmerizing strobe effects and has 6 built-in light shows.

The Vortex may be controlled by DMX, Remote Device Management (RDM), sound activation or in show mode from a 4-buttom control menu with a digital display. The quick barrel movements run 180-degress on the X-axis and 260-degrees on the Y-axis. The beams may be focused from manual focusing knob.

Specifications:

Light Source:
80W White LED (50,000 Hrs.)

Barrel Mirror:
Barrel Movement:  X-Axis = 180°, Y-Axis 360°
Beam Angle: Multiple Beams, 5° each
Beam Focusing Knob

Colors/GOBOs:
10 Color / Gobo combinations
Color/Gobo Shake

Control:
1-40Hz Strobe Rate
6 Built-In Light Shows
Control: DMX512, RDM, Sound and Show Mode
DMX Modes: 2 DMX Control Modes (10 & 12 Channels)

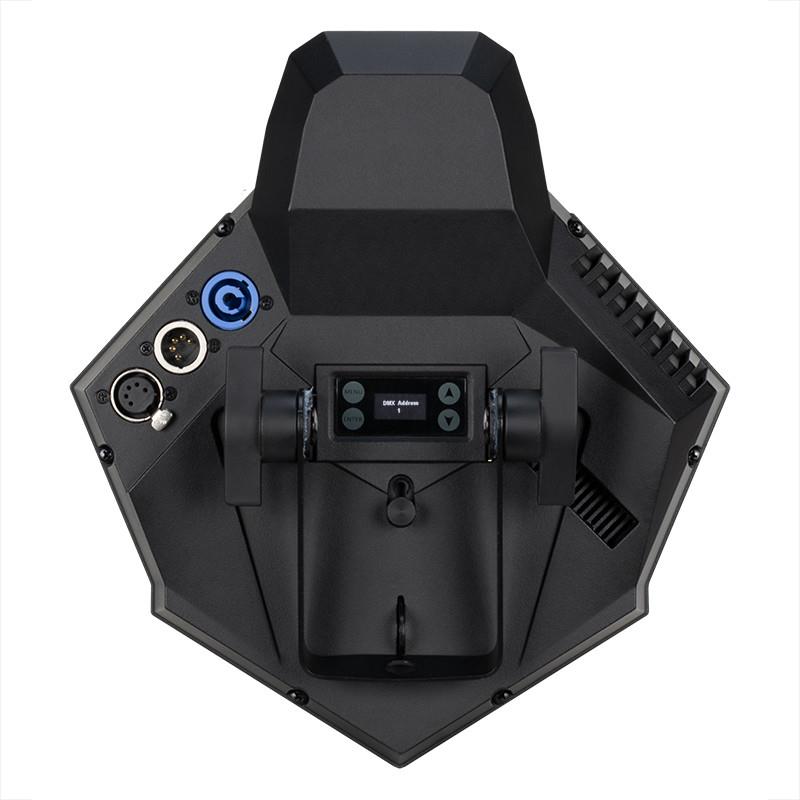

4-Button Digital Display

Connections:
3-pin DMX In/Out
Indoor Locking power input

Electrical:
Power: 100-240VAC, 50/60HZ
Power Consumption: 100W

Size / Weight:
Dimensions (LxWxH): 312x282x157mm
Weight: 3.2Kg

Approvals:
CE and cETLus (Pending)
IP20
