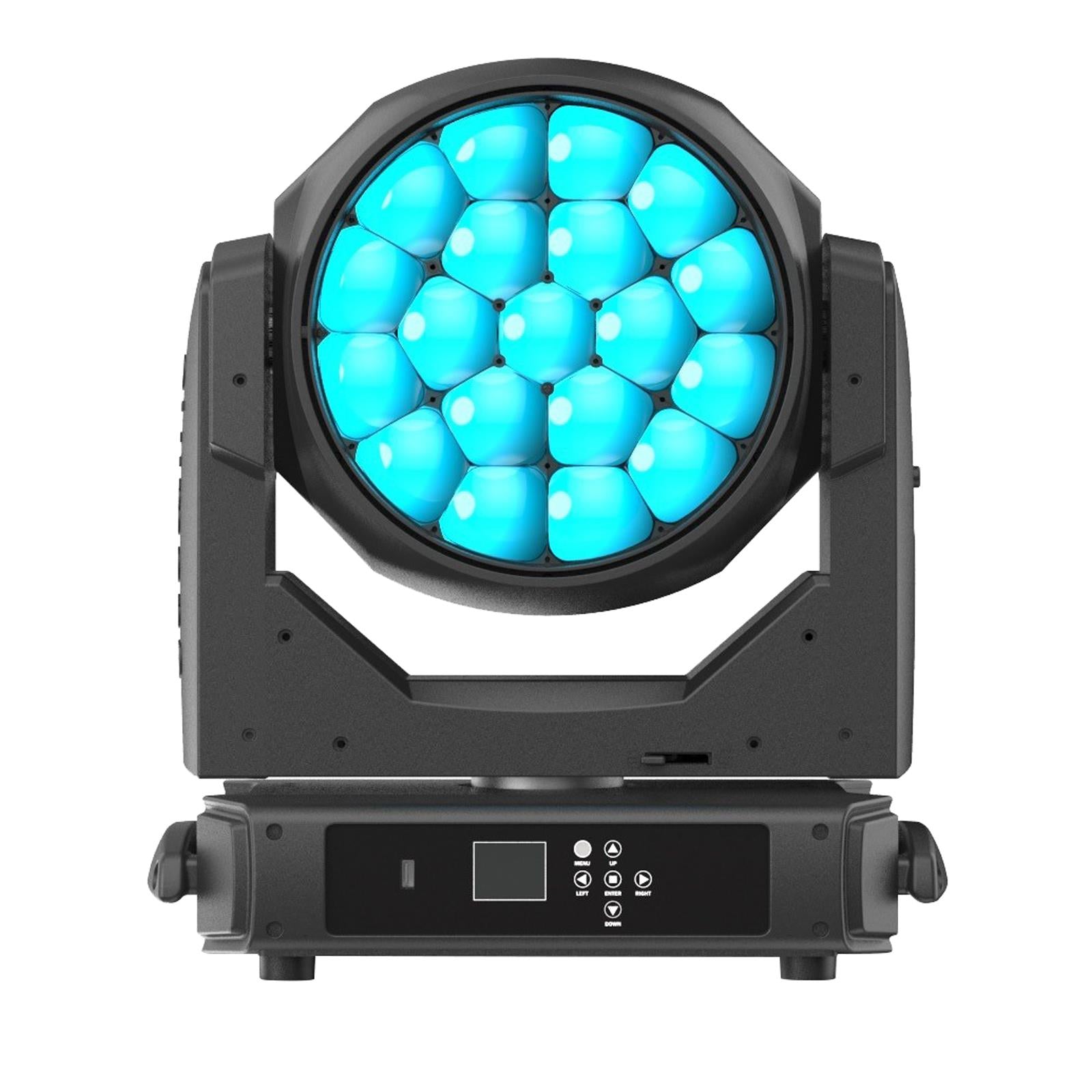

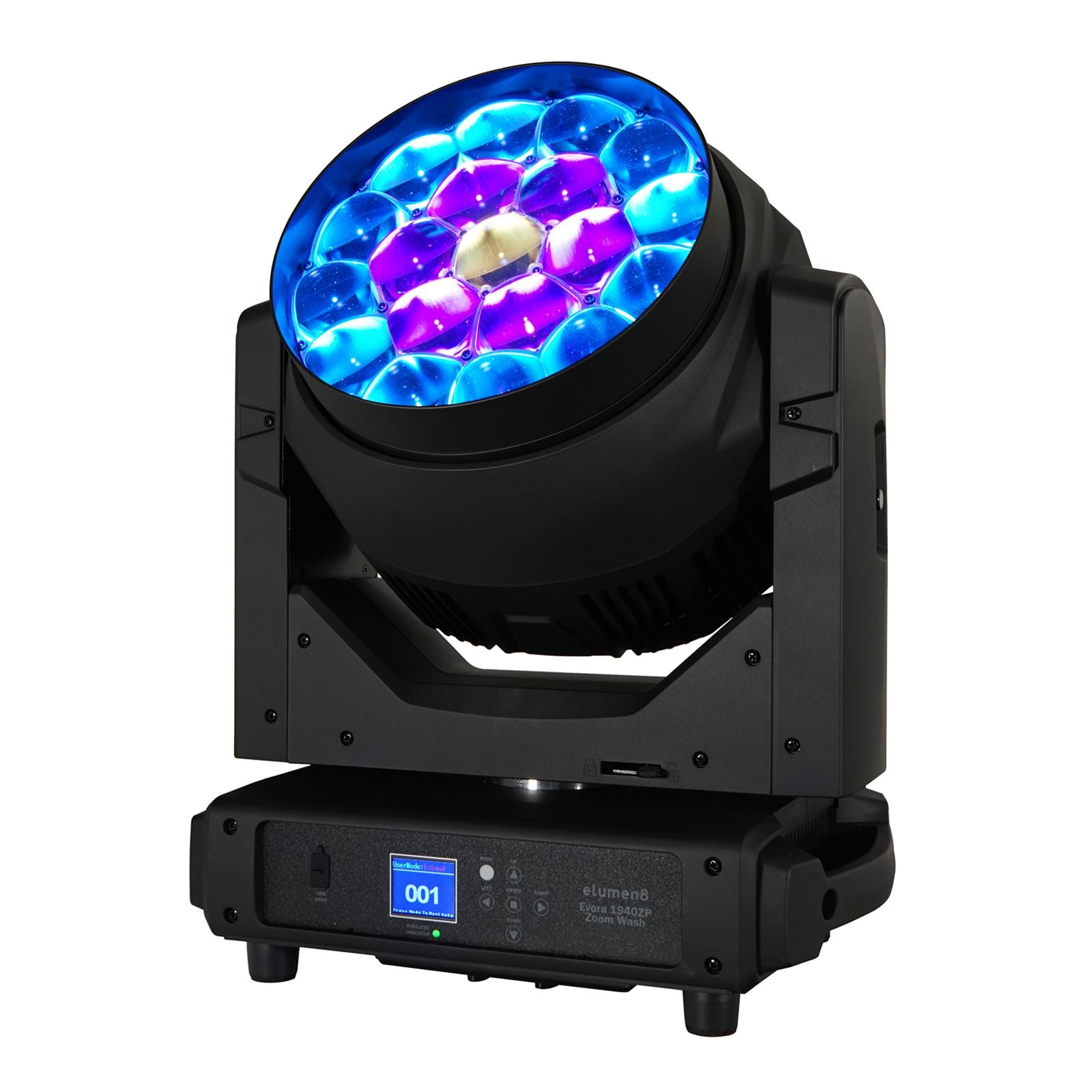

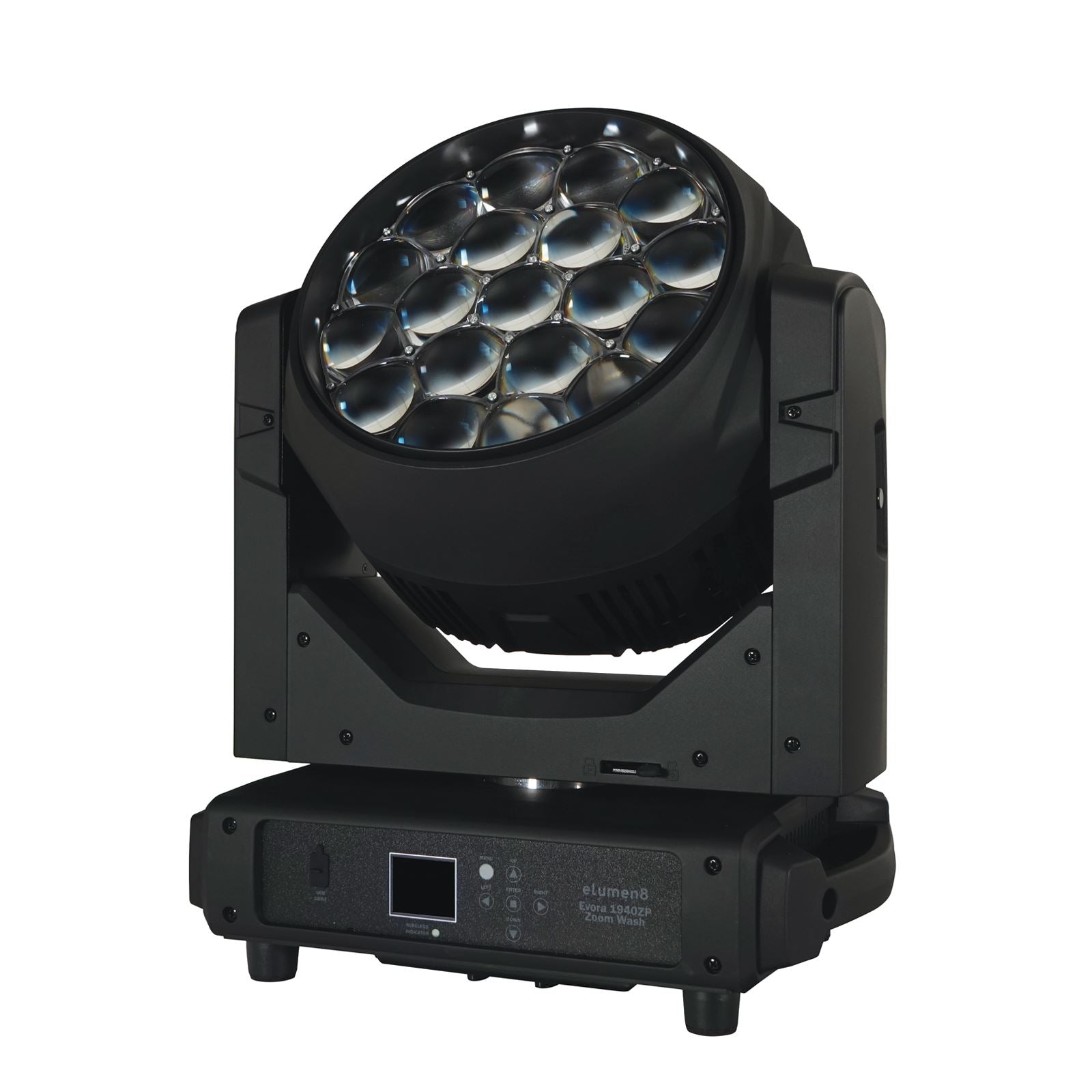

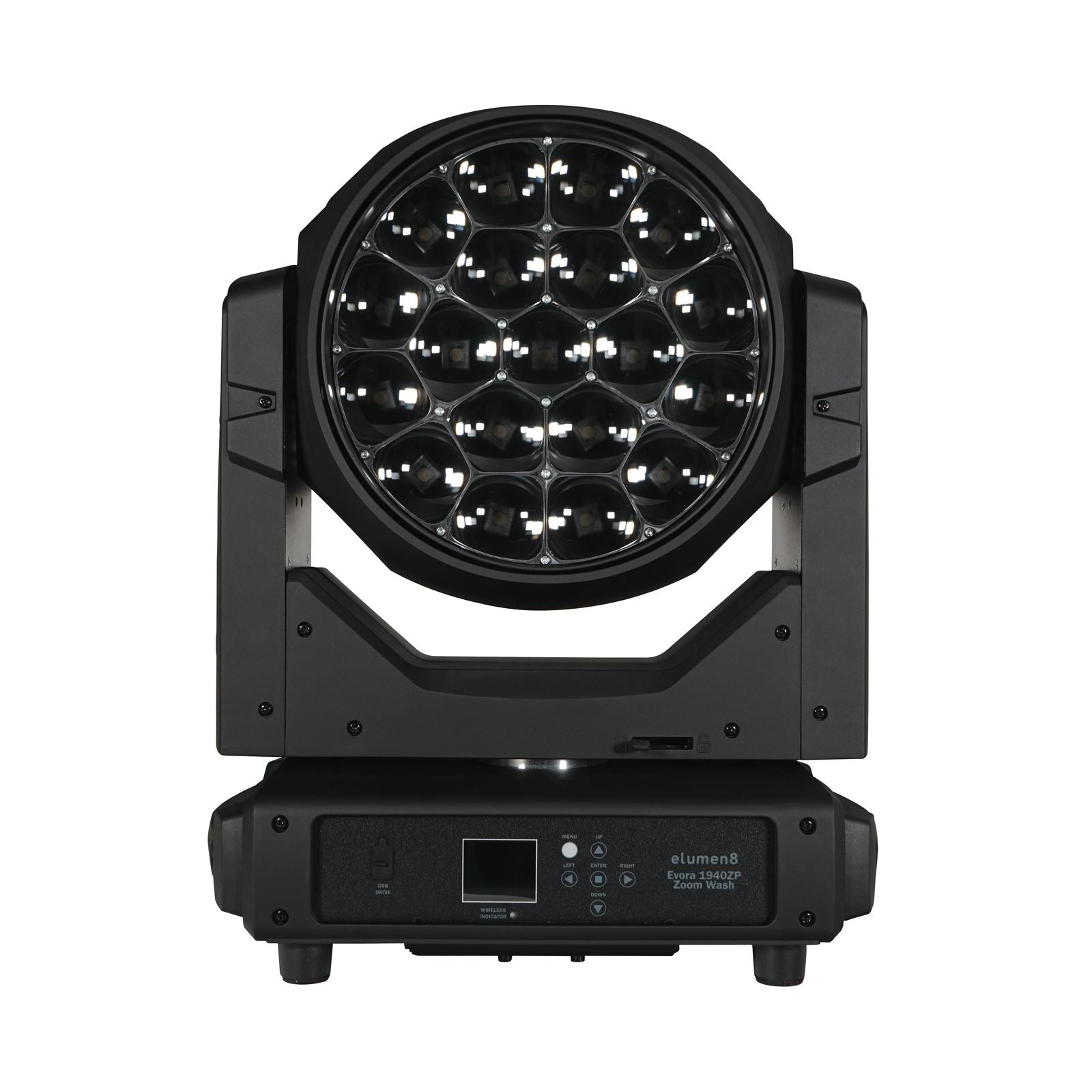

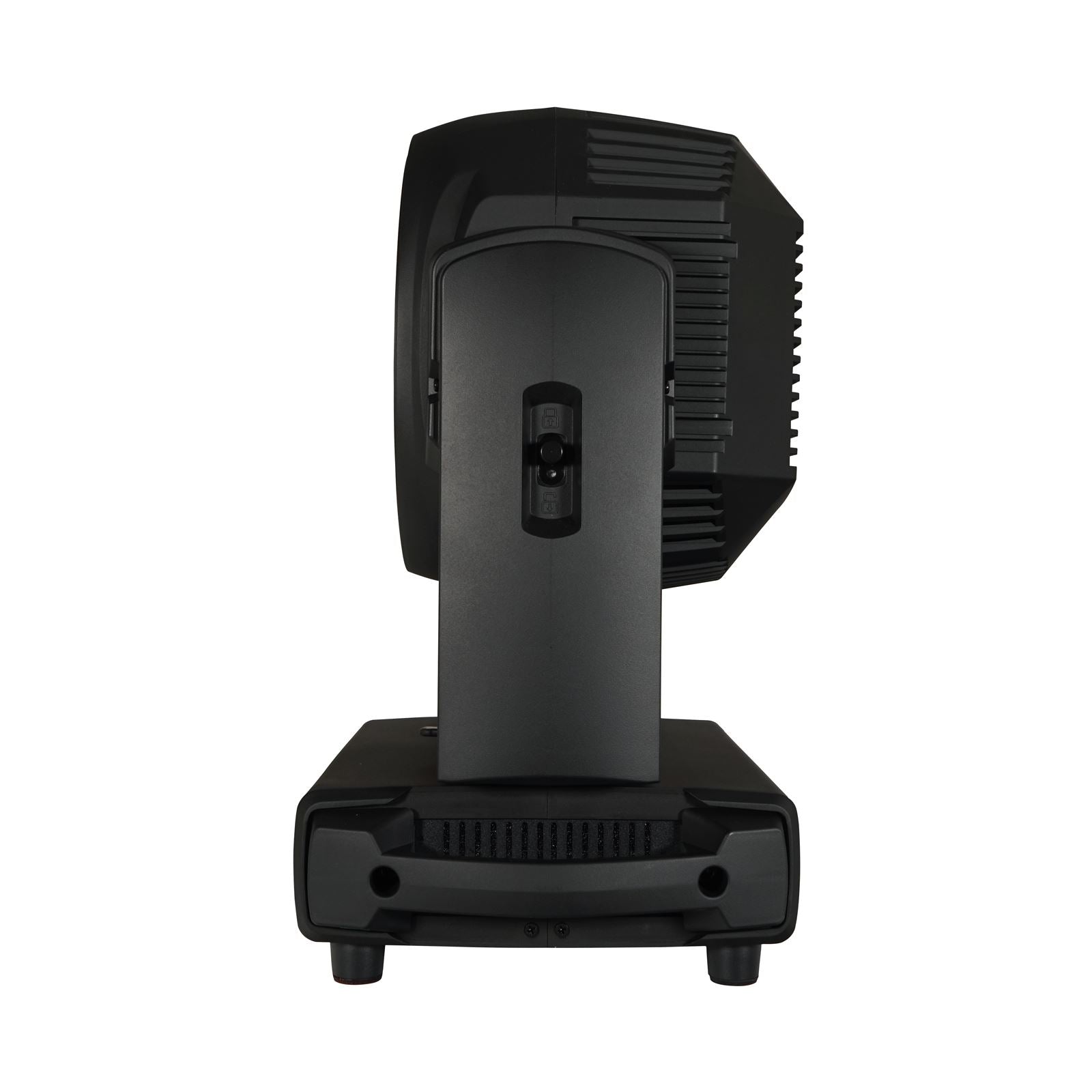

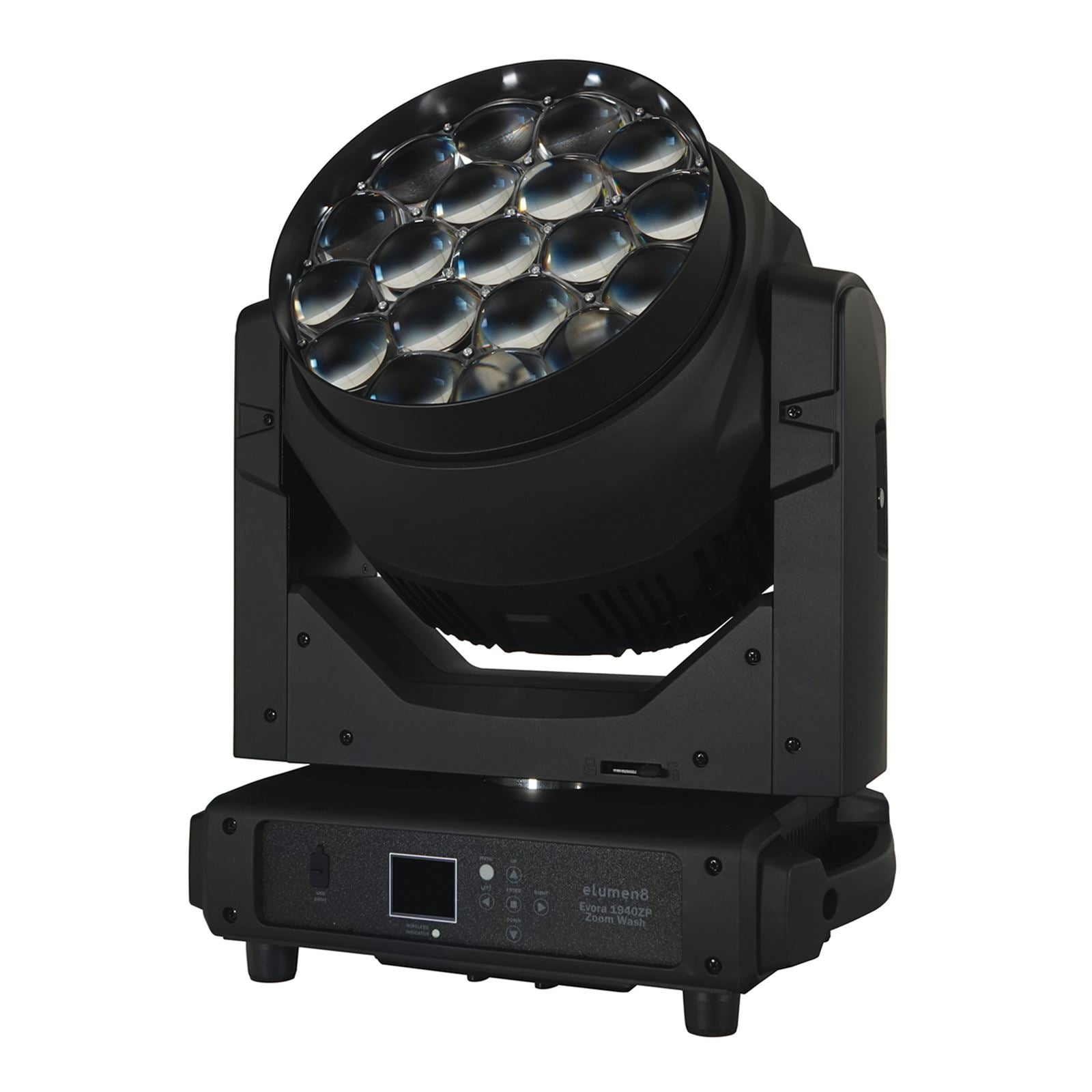

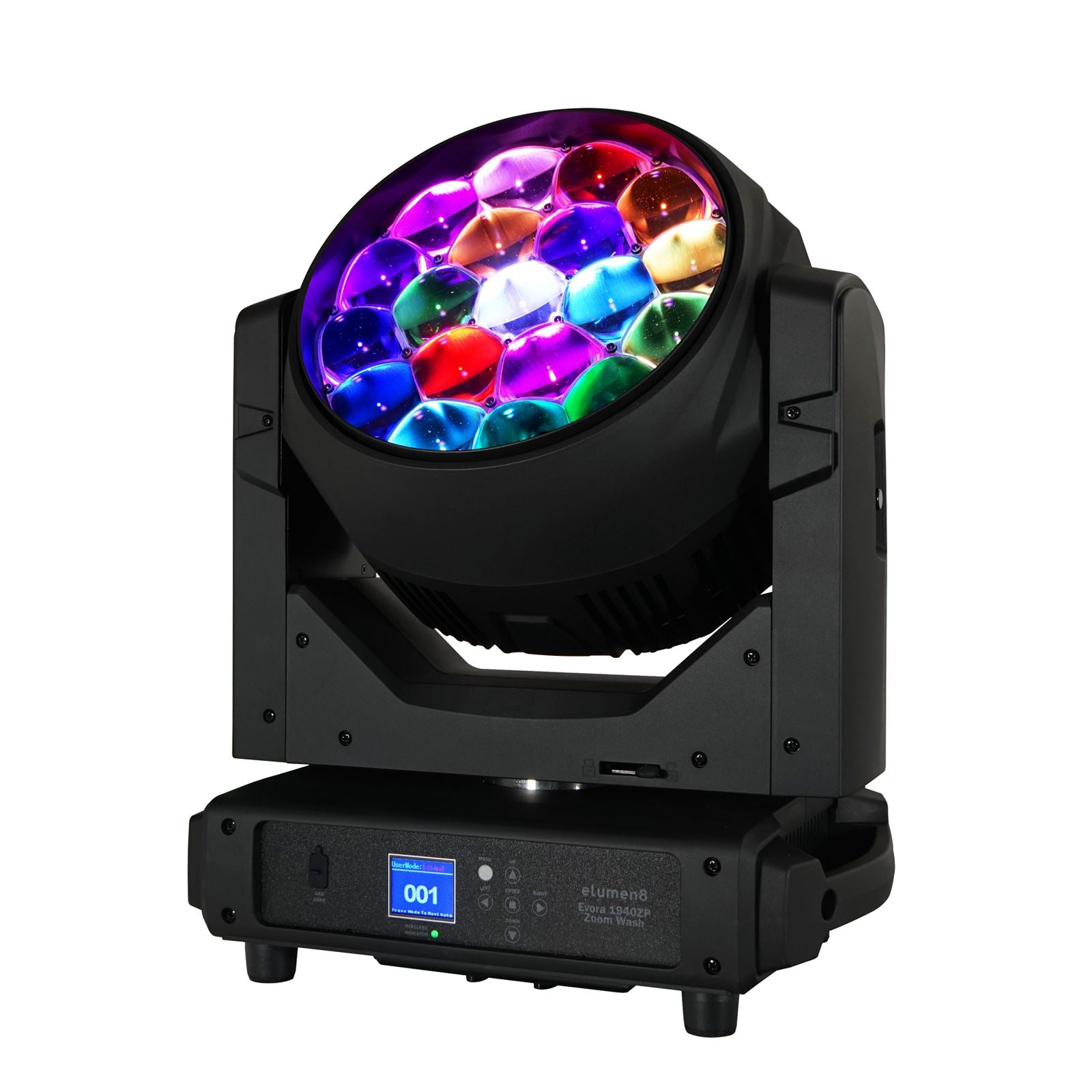

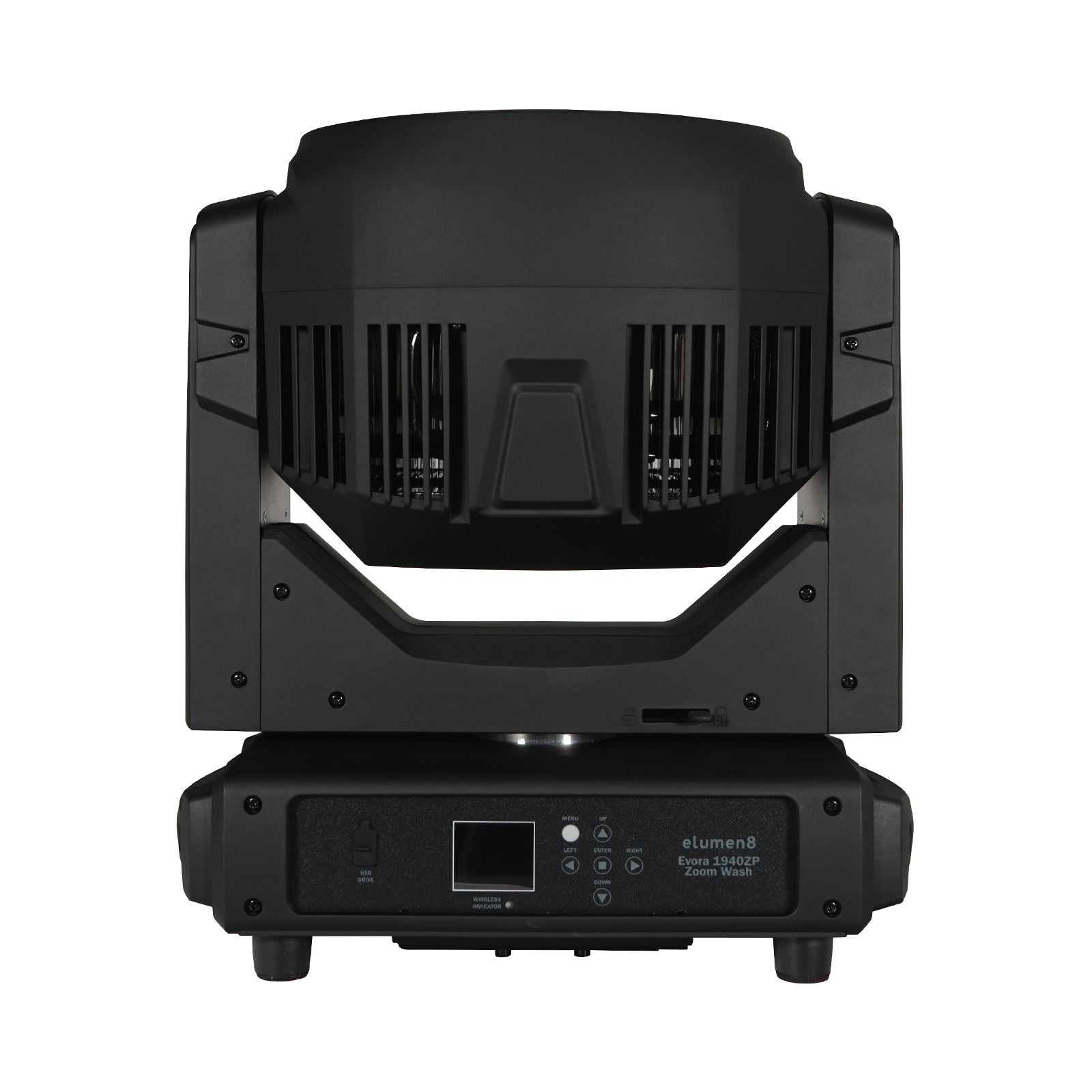

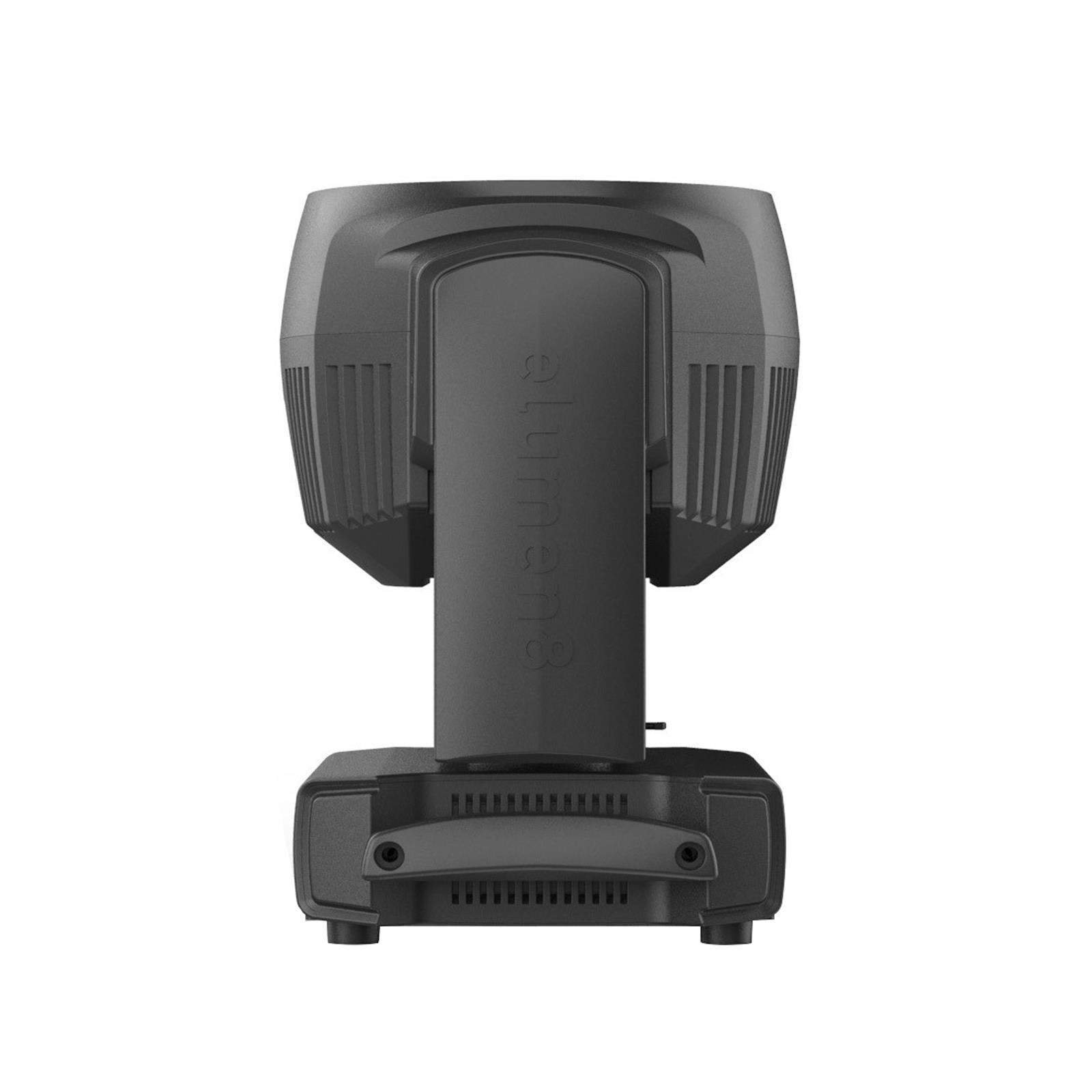

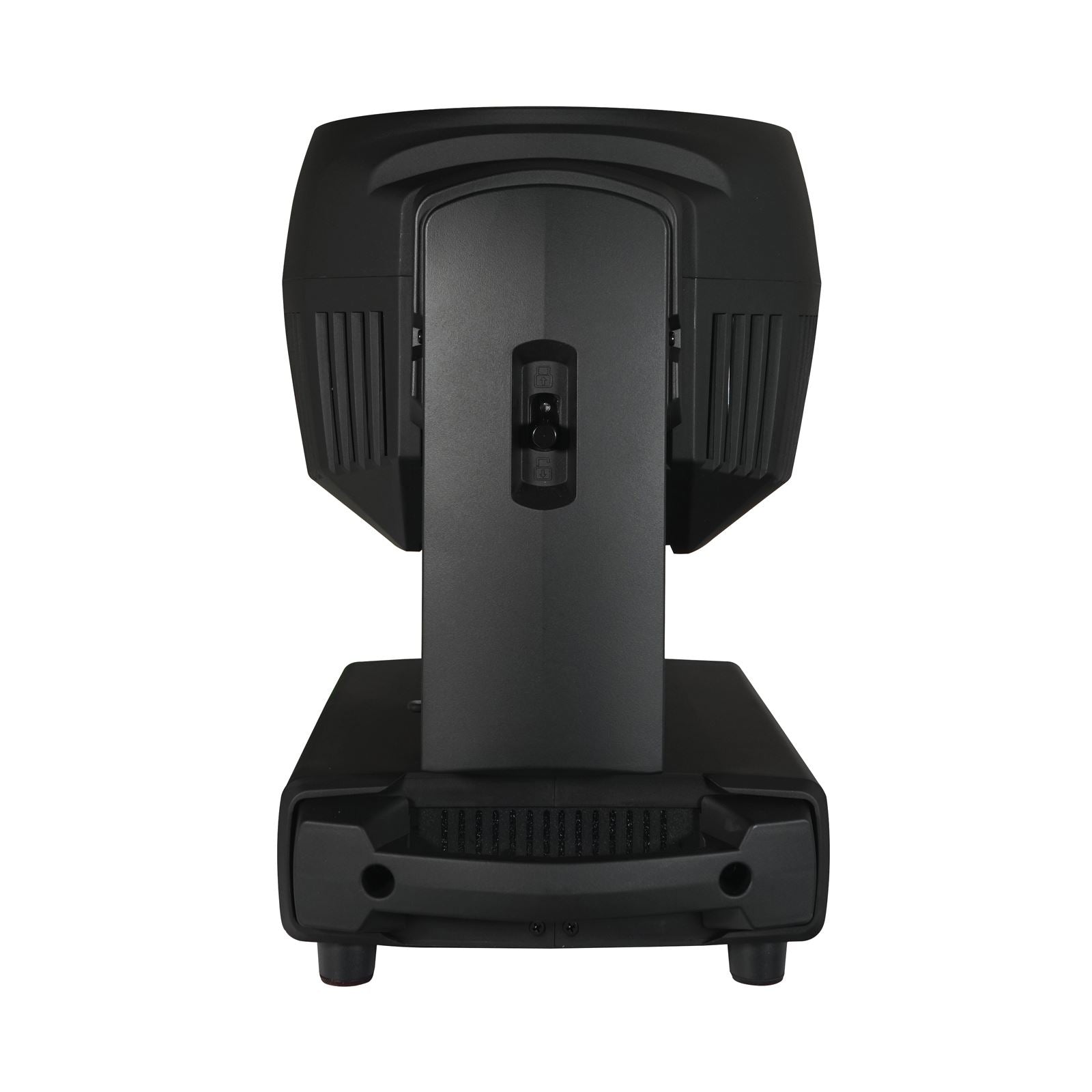

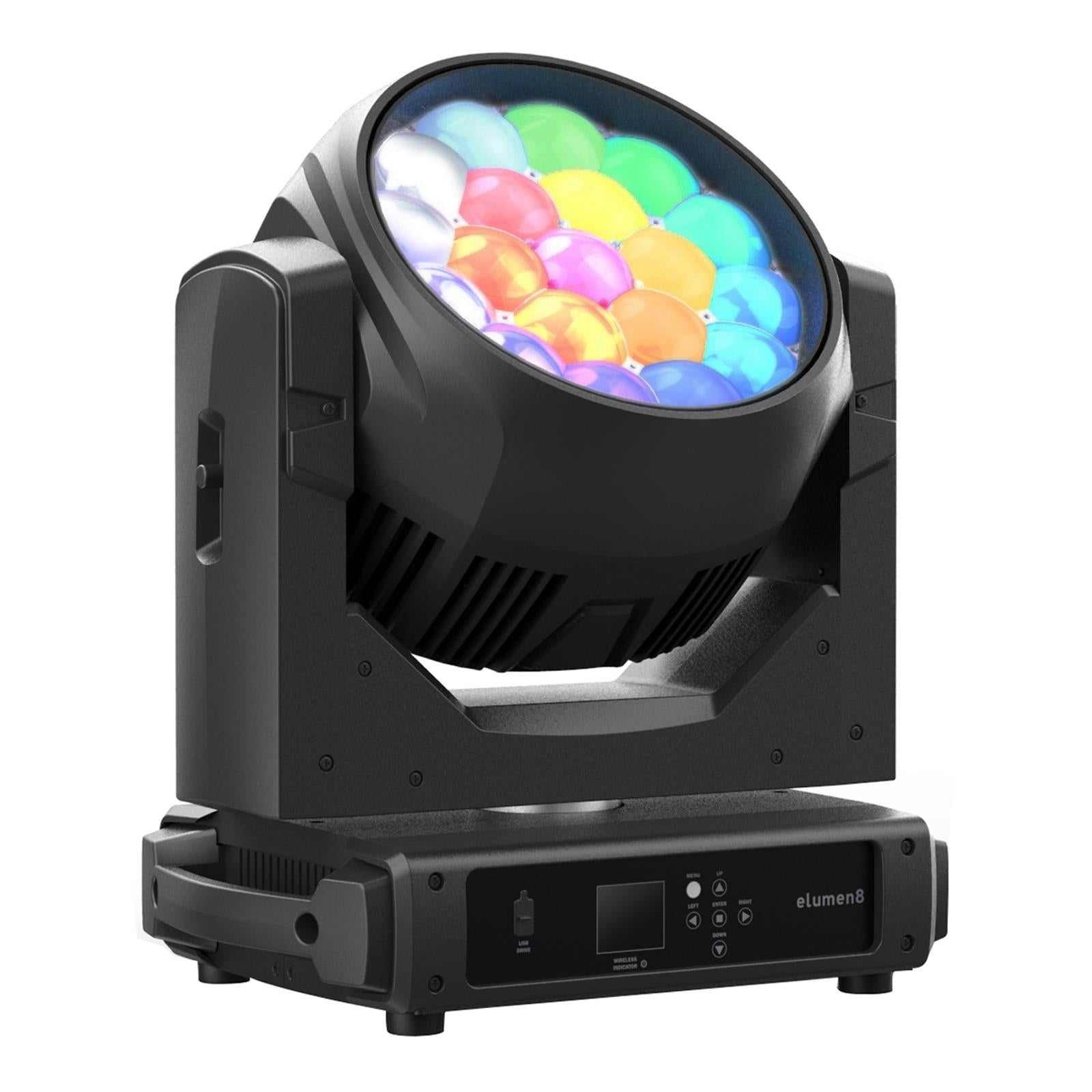

eLumen8 Evora 1940ZP RGBW Zoom Wash

Description:

The Evora 1940ZP LED Zoom Wash produces an incredible high output from a sleek and durable chassis, making it an incredibly versatile yet affordable solution for both rental and installation applications. The first-class optical system presents a high intensity adjustable zoom; the narrow 4 degree beam angle creates sharp mid-air effects, whilst the wider angles produce uniform colour mixing, bathing concerts and events in rich colours. Full pixel control over the 19 x 40W Osram Ostar™ quad-colour LEDs gives lighting designers a further level of creativity, whilst colour calibration ensures colours match from batch to batch.

Features:

2 year warranty

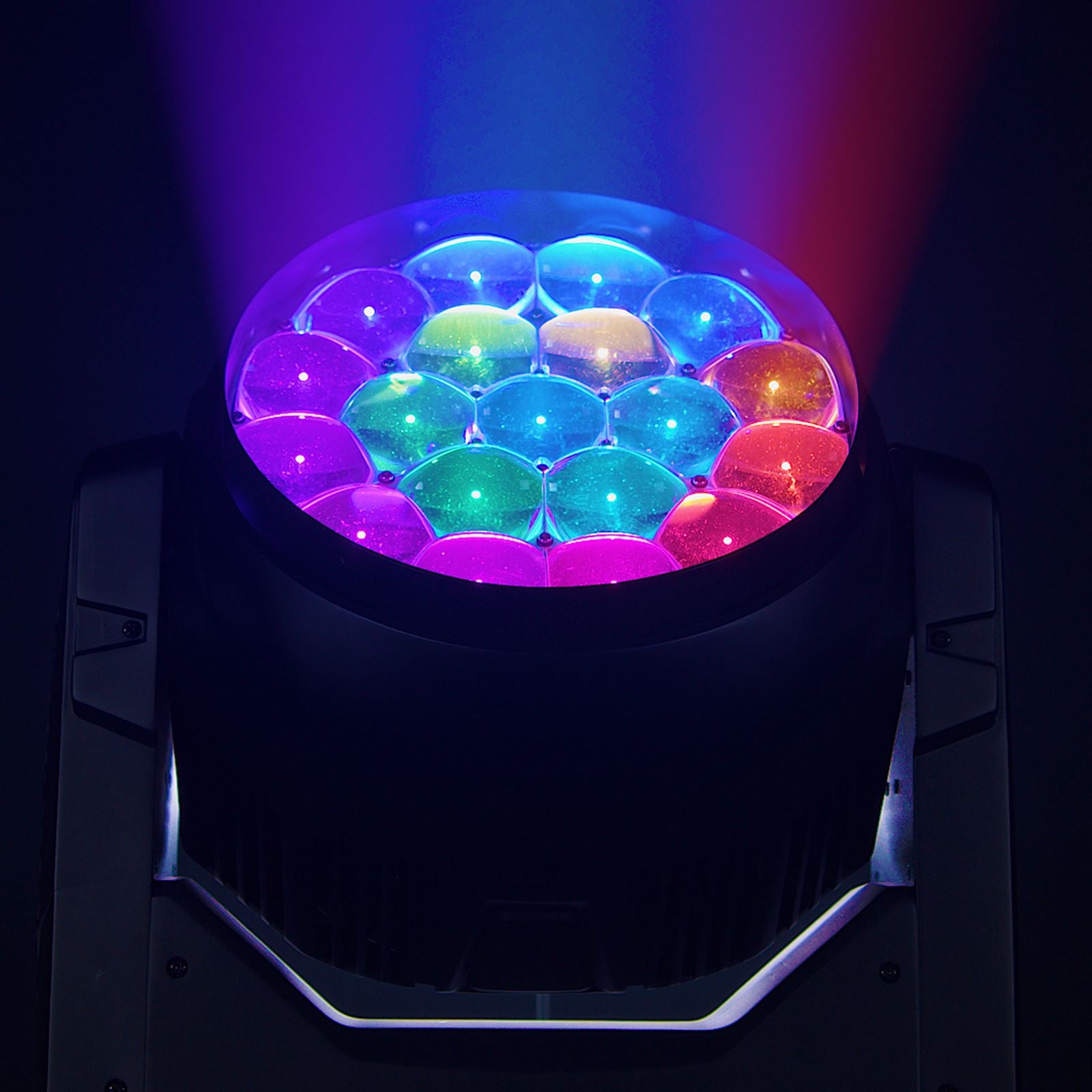

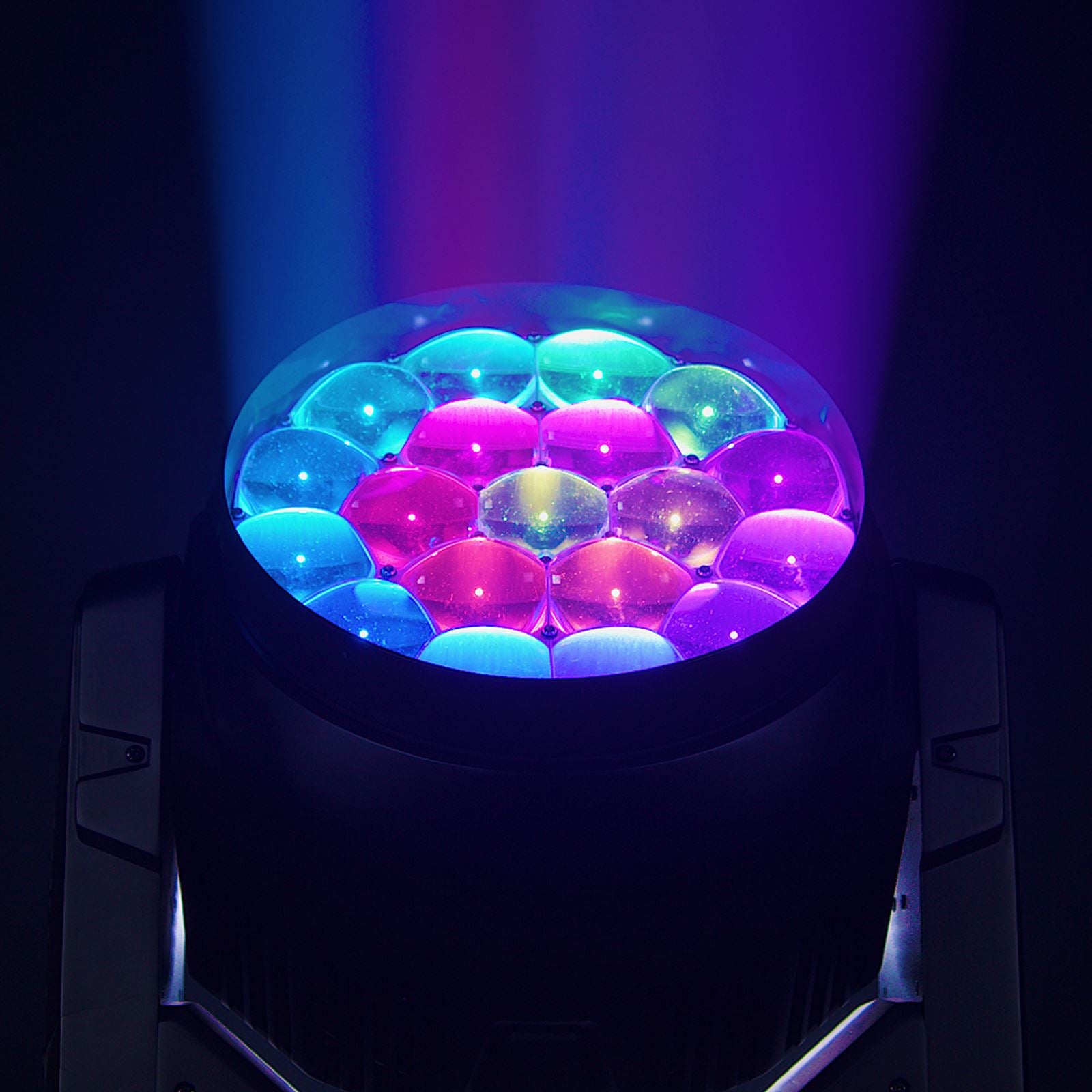

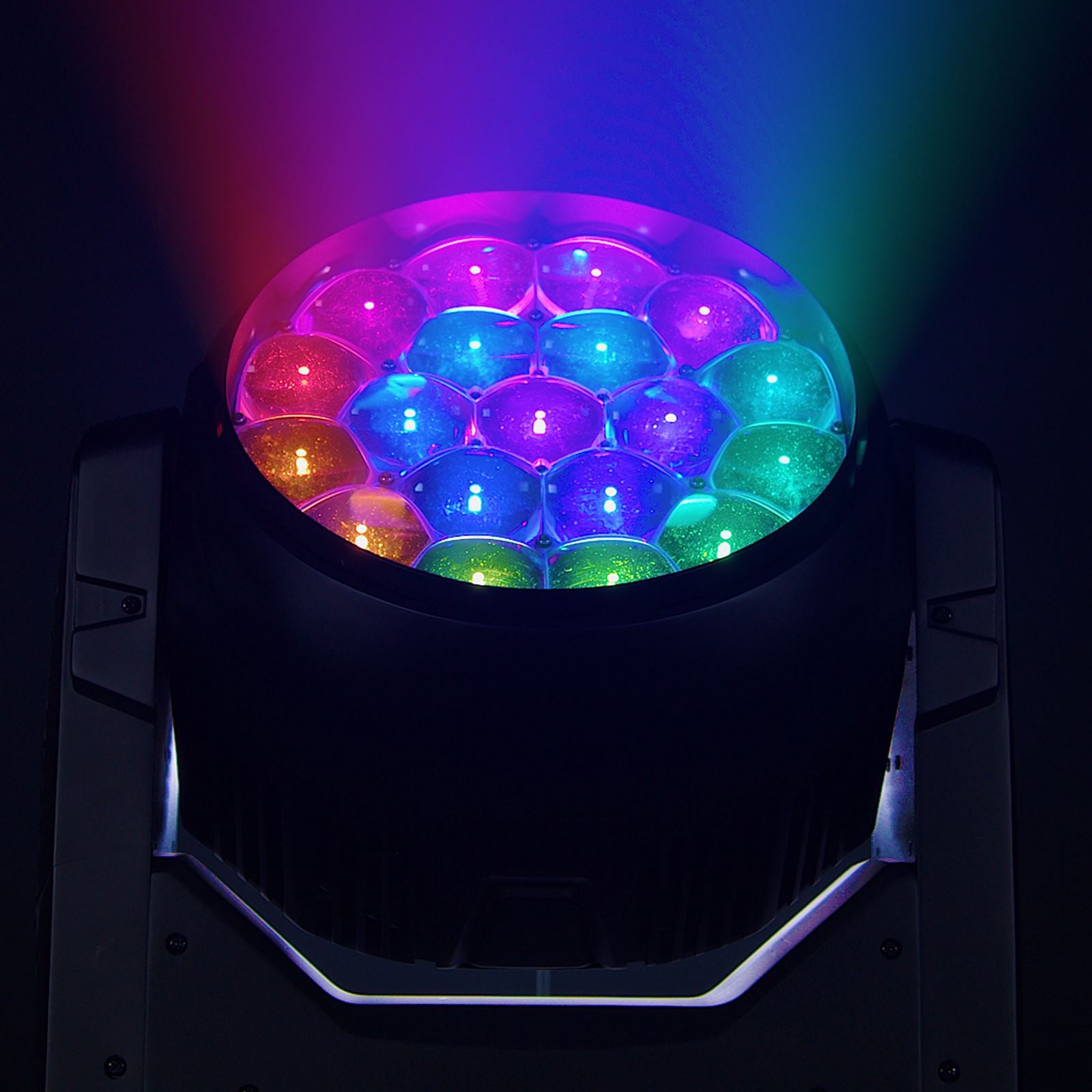

19 x 40W Osram Ostar™ quad-colour LEDs (RGBW)
Adjustable beam angle: 4°50°
4° 124,972 Lux @ 2m (full on), 50° 8,876 Lux @ 2m (full on)
CRI: 60
Refresh rate: 900Hz-25kHz
Motorised zoom
Full pixel mapping capabilities
Control protocols: DMX, Kling-net, Art-net and sACN
DMX channels: 11/17/24 or 101 selectable
Wireless control (W-DMX Sweden transceiver)
Can be used to receive wireless DMX and relay the DMX signal via the XLR output
Features an integral Art-Net to DMX for control of DMX fixtures downstream on the same universe
Manual control and master/slave modes
Built-in colour macros and patterns
Colour temperature presets
Pan/tilt transit lock and auto correction
16-Bit pan/tilt positioning
Pan: 540° or 630° selectable, Tilt: 250°
0 100% dimming
5 dimming modes: Standard, stage, TV, architectural and theatre
Variable strobe

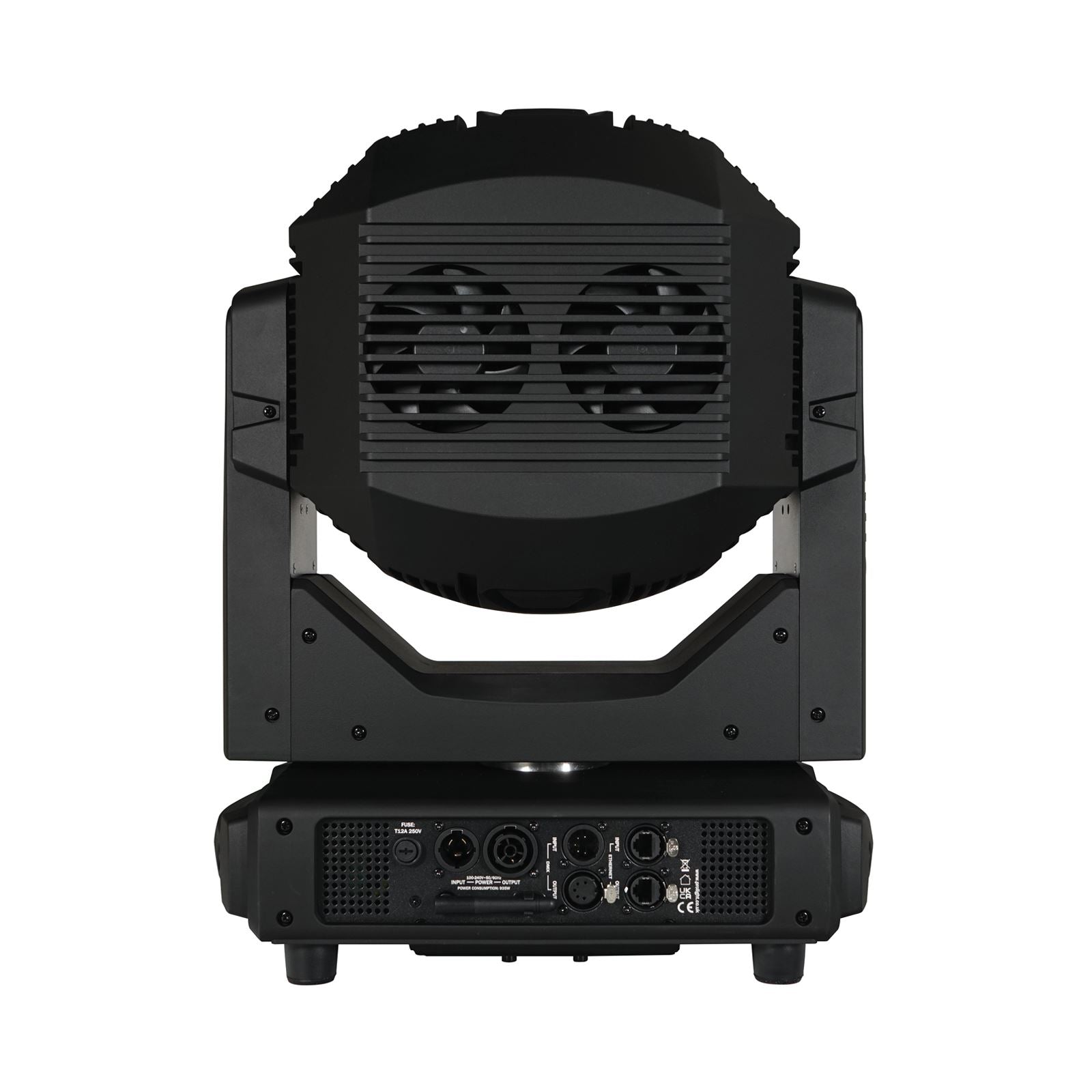

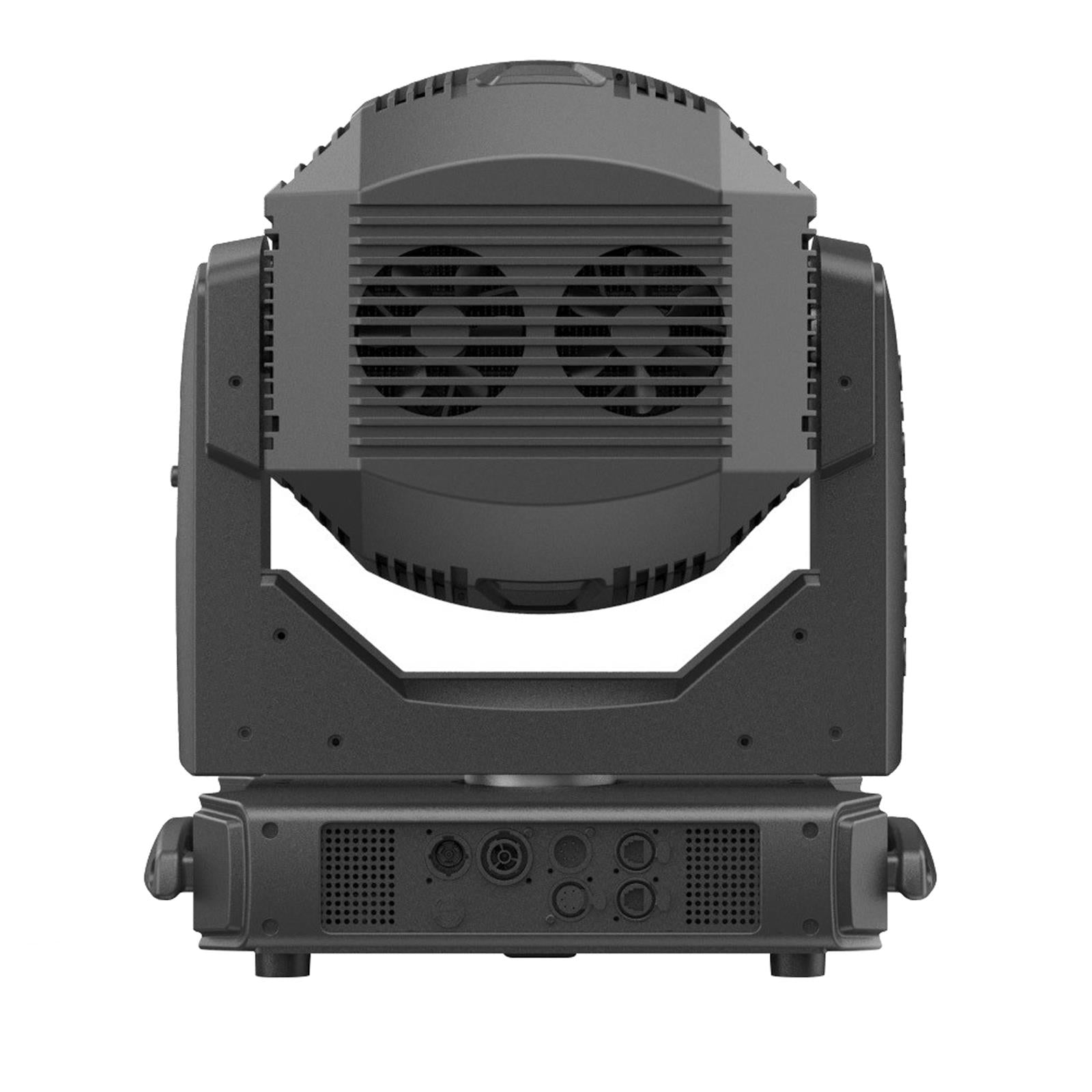

PowerCON TRUE1, 5-Pin XLR and EtherCON inputs/outputs
RDM (Remote Device Management)

6 push button menu with 1.8” LCD display
Display battery backup for offline configuration

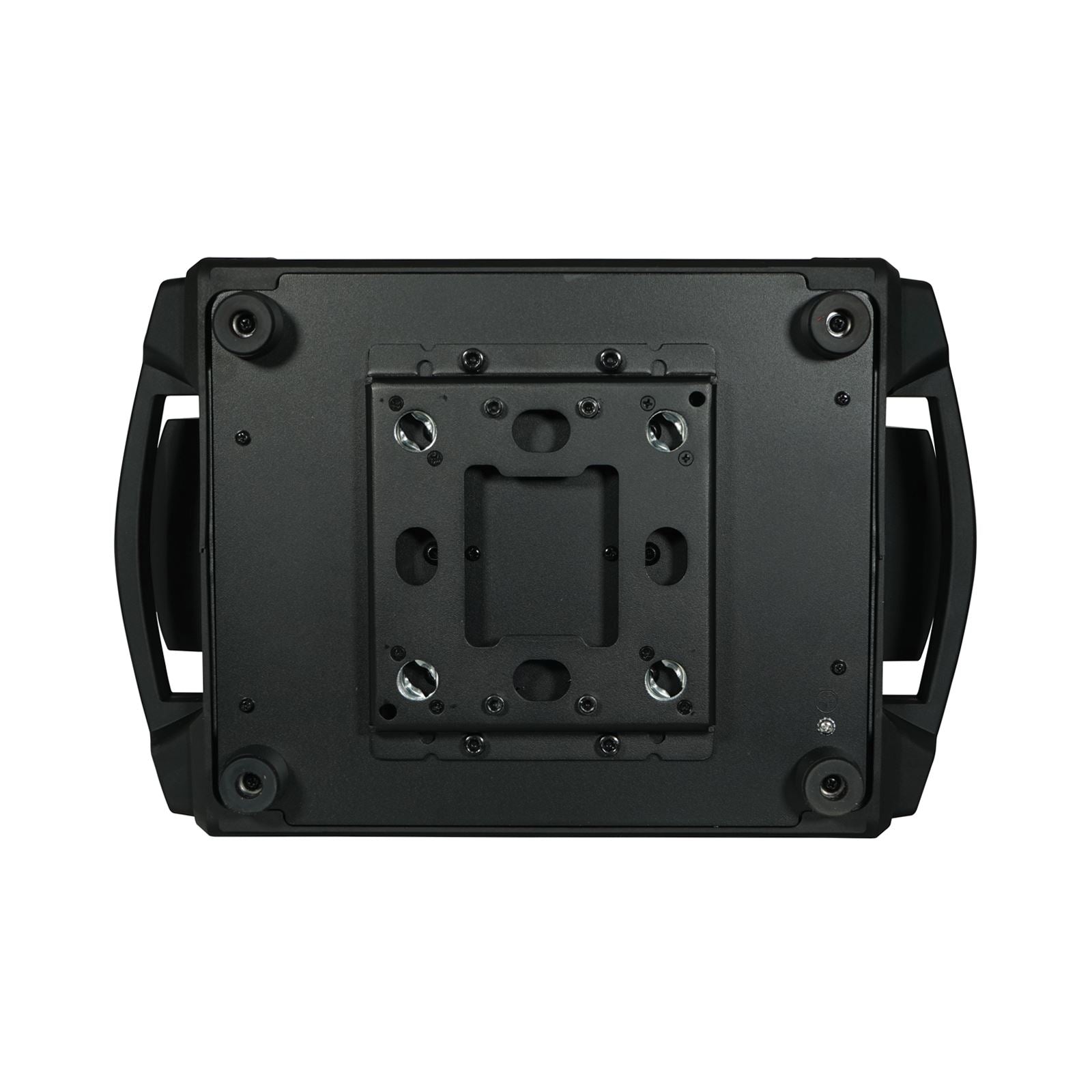

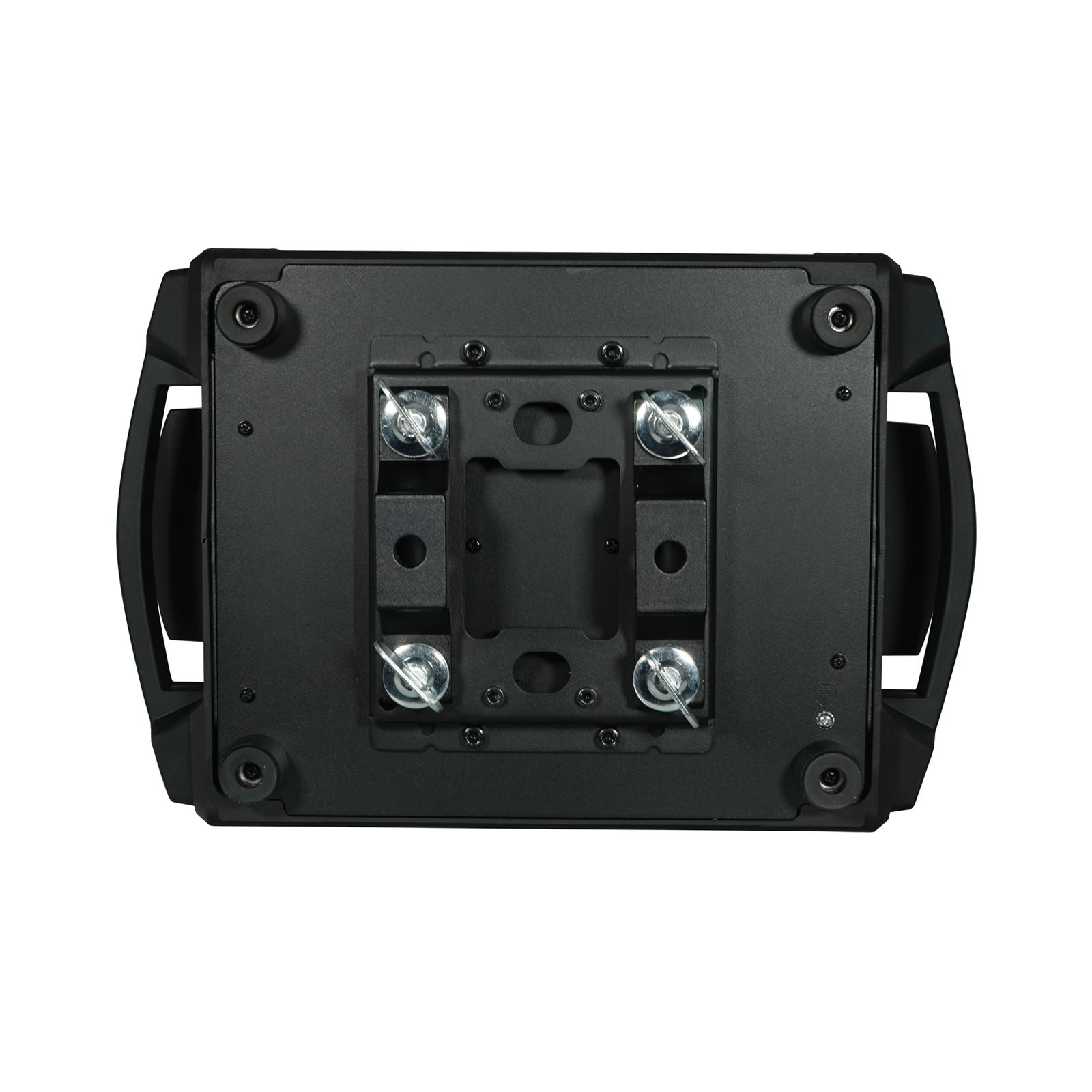

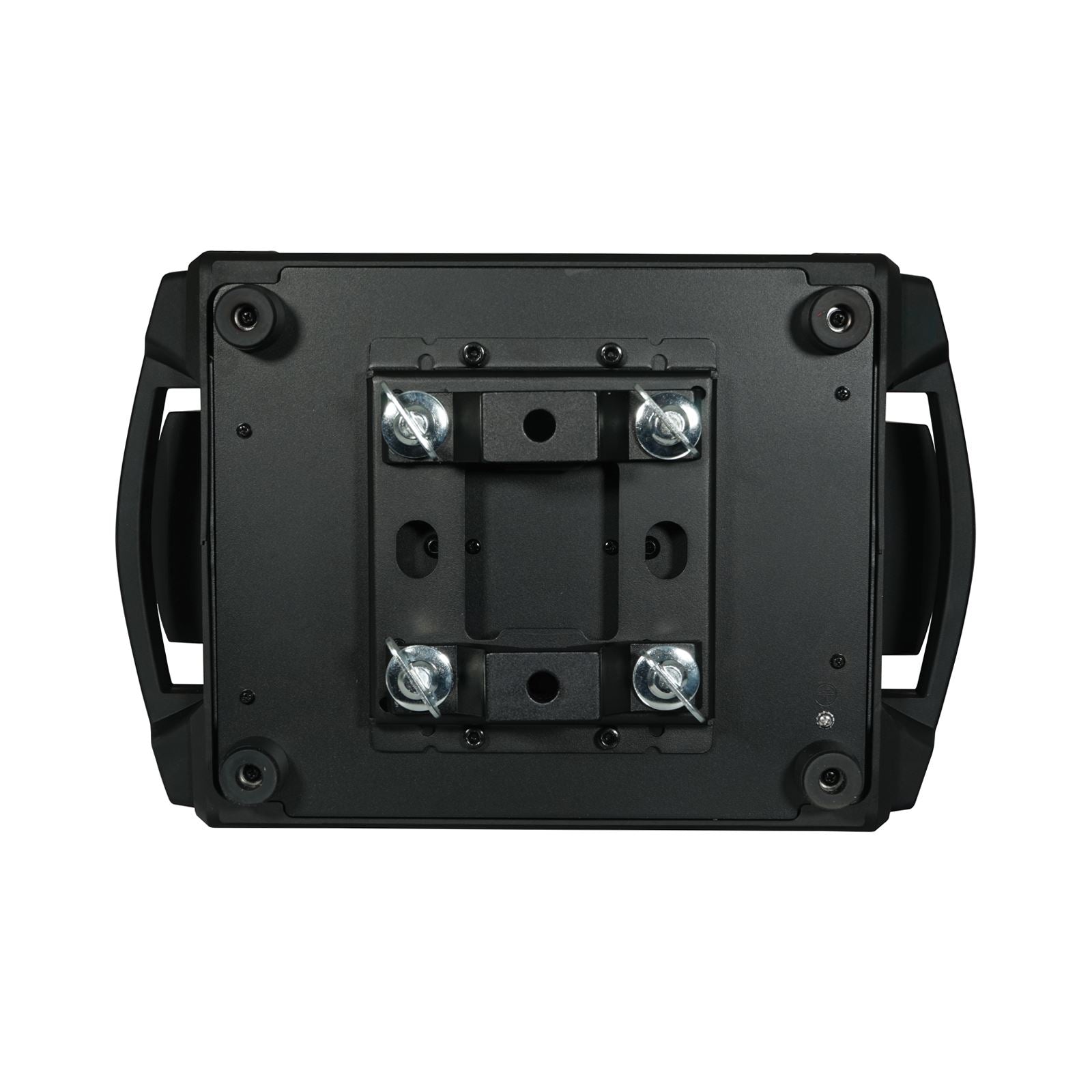

Supplied with quick release omega clamps
USB port (firmware updates)

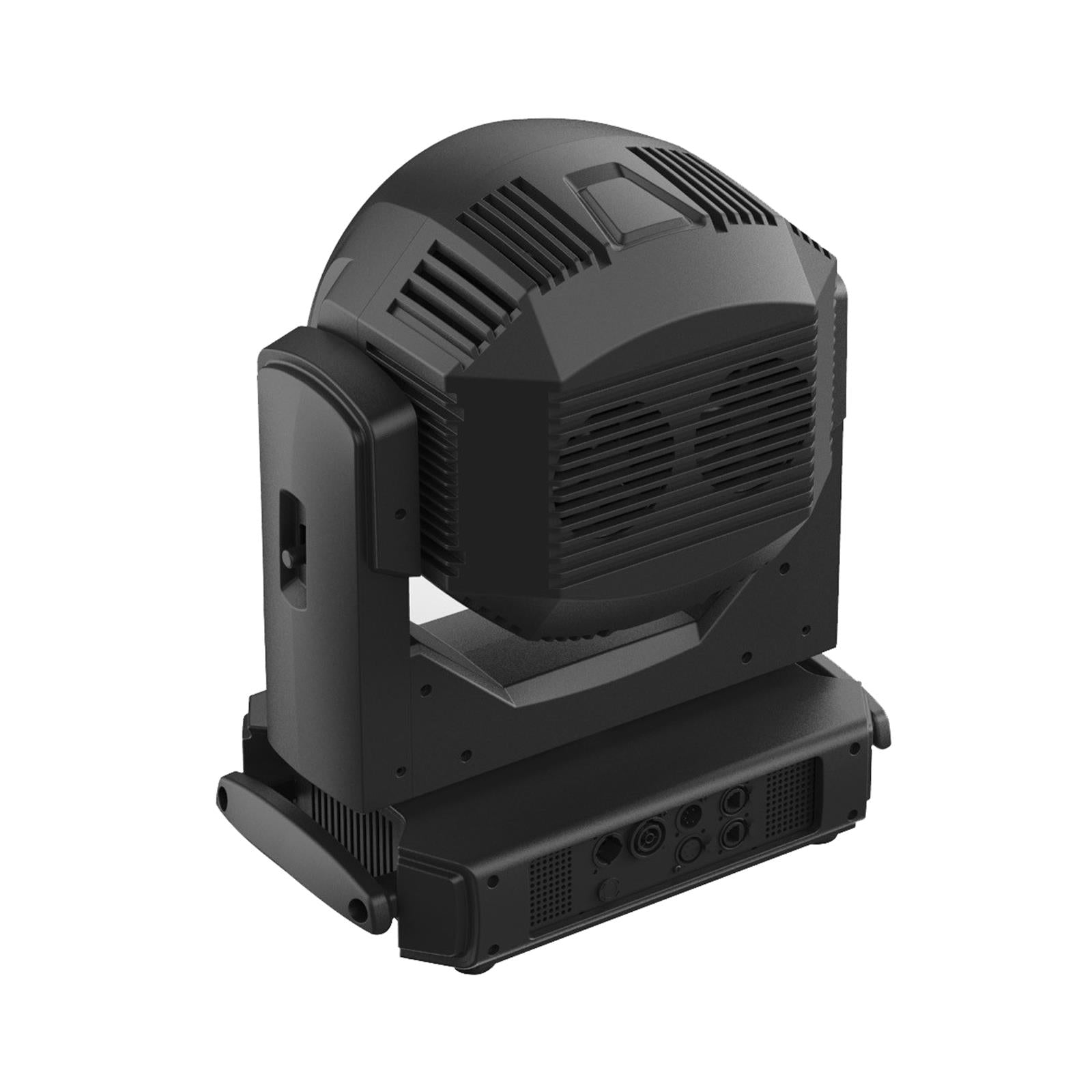

Temperature controlled fan

Specification:

Power consumption: 935W
Power supply: 100~240V 50/60Hz
Fuse: T12A 250V
Noise level: 45dBA @ 1m (low speed), 52dBA @ 1m (high speed)

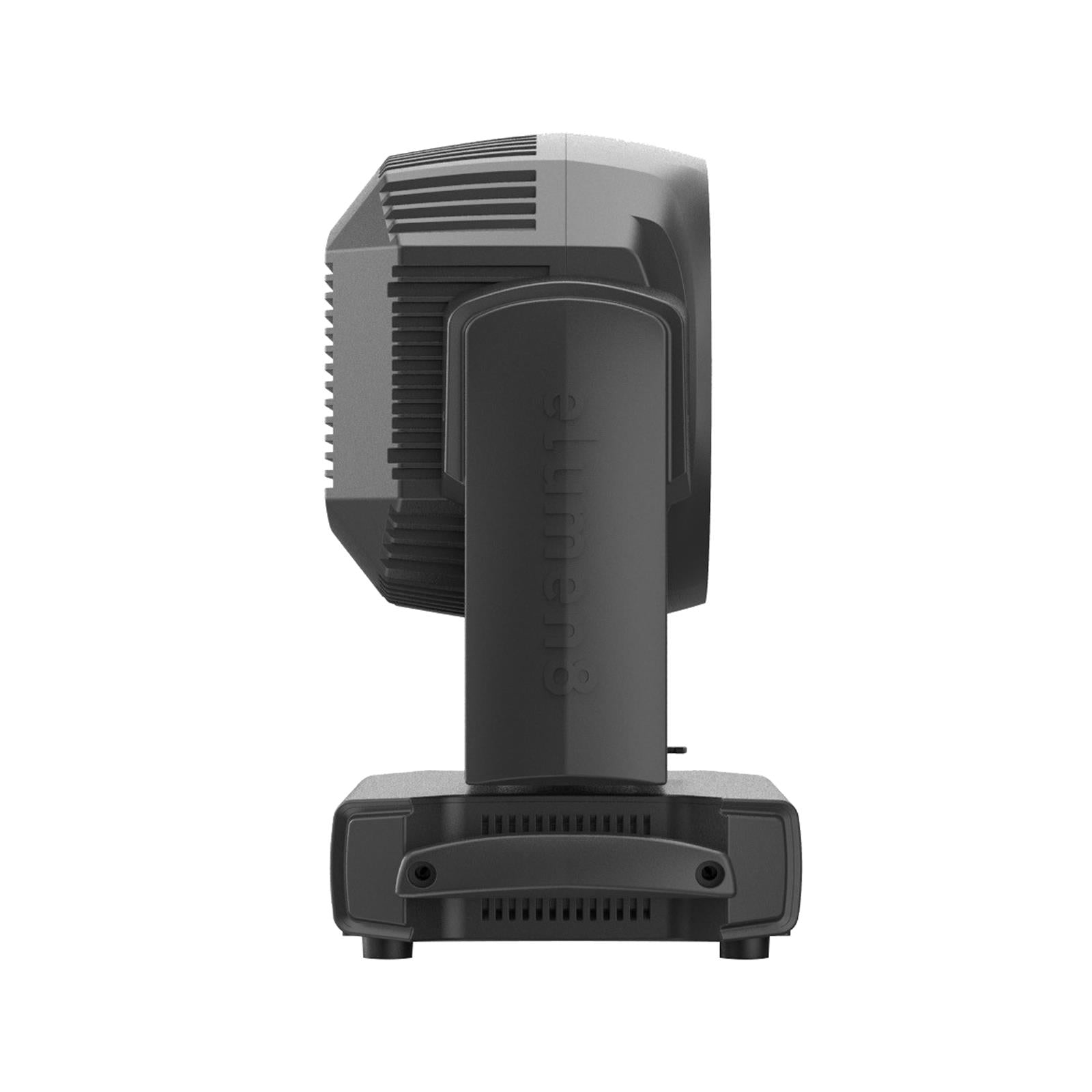

Dimensions (H x W x D): 460 x 400 x 259mm
Weight: 19kg
