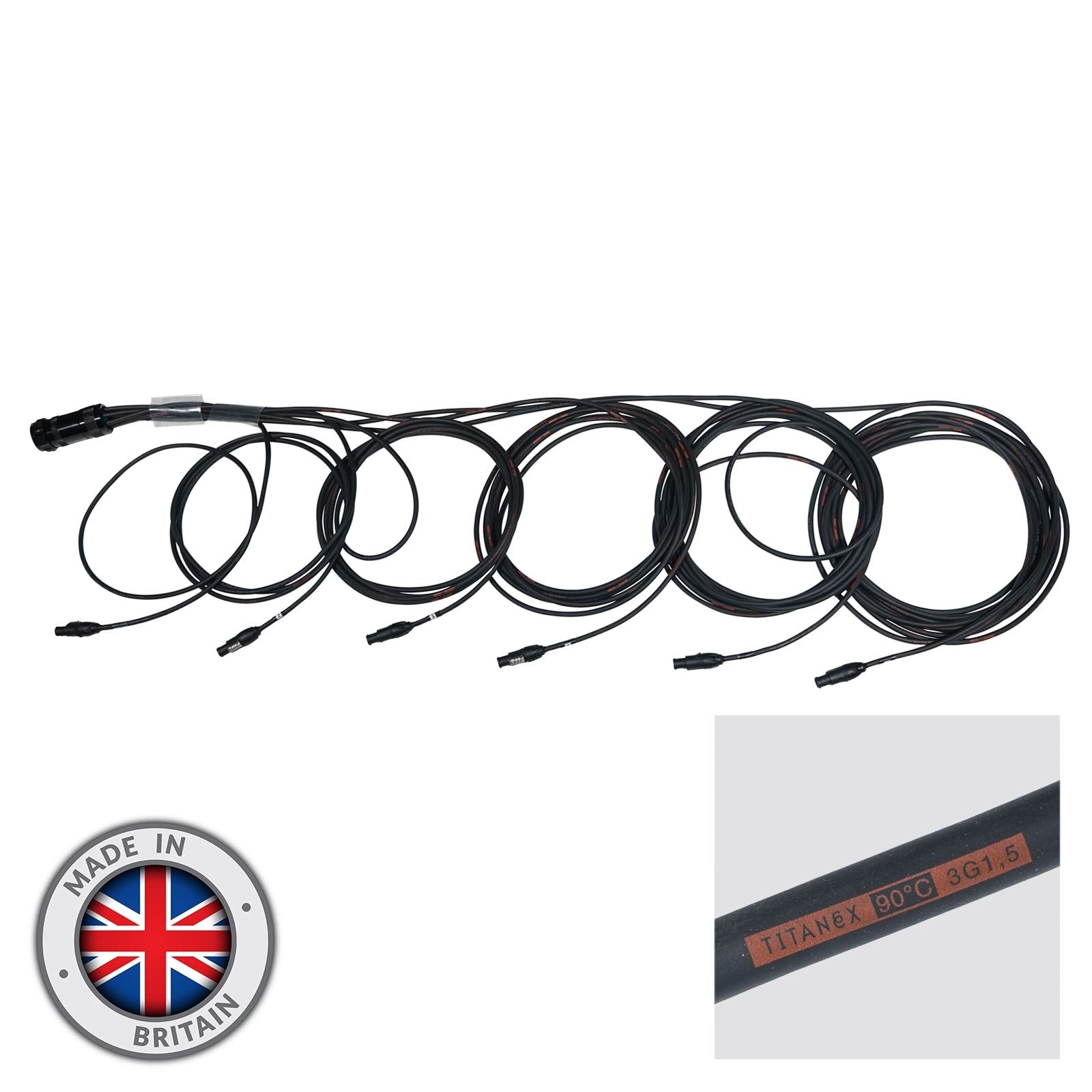

eLumen8 Socapex 19-Pin Male - To PowerCON True1 1.5mm 2m Staggered Fan-Out Cable

Description

Get your hands on this high-quality, rental-ready Socapex fan out cable, perfect for all your power distribution needs. Made in the UK from Titanex H07-RNF cable and eLumen8 Showsafe 19-Pin UL certified Socapex connectors, this cable is built to last and withstand the rigors of live events.

Features

Made in Britain
Titanex H07-RNF 1.5mm cable
eLumen8 Showsafe 19-Pin connectors complete with 6-way cable gland
6 x Neutrik NAC3FX-W-TOP powerCON TRUE1 connectors
Clear heatshrink suitable for identification or asset label
Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard
Chemical resistant cross-linked elastomer insulation
Bare copper conductors
Operating temperature range: -25 to 55C
Maximum conductor temperature in service: 90C
Amphenol Socapex SL419 compatible
IP67* ingress protection when mated (*Socapex end)
FMLB (first make, last break) earth contacts
Multi-point gold plated contacts
Staggered tails lengths at 2m intervals (2m thru 12m)
Circuit 1 at 2m, circuit 6 at 12m

Specifications

- Cable Type: Titanex H07-RNF

- Cable Size: 1.5mm

- Connector Type: eLumen8 Showsafe 19-Pin

- Connector Quantity: 6

- Connector Type: Neutrik NAC3FX-W-TOP powerCON TRUE1

- Operating Temperature Range: -25 to 55C

- Maximum Conductor Temperature: 90C

- Ingress Protection: IP67

- Earth Contacts: FMLB

- Contact Material: Gold plated

- Tail Lengths: 2m intervals (2m thru 12m)

- Circuit Configuration: 1 at 2m, 6 at 12m
