Omnitronic Em-260 Entertainment Mixer

£150.20
£185.70
£150.20
6-channel microphone/line mixer
Vendor: Omnitronic
SKU: 154-10007075
Icon In Stock In Stock
Icon Delivery Time

Description
OMNITRONIC Entertainment Mixer SeriesThe modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.

6-channel microphone/line mixer

  • 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
  • Ideal e.g. for karaoke when microphones need to mixed with CDs
  • 3 mono input channels mic/line (XLR, bal.), switchable
  • 3 stereo line input channels (RCA)
  • Clip LED for each microphone channel
  • Each microphone input with optional 12 V phantom power
  • FX send/return with FX level control
  • Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
  • Stereo record output (RCA)
  • Rack installation, 1 U
  • (19") 48.3 cm rack installation 1 U


Power supply: 115/230 V AC, 50/60 Hz
Power consumption: 35 W
Protection class: Class I
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range: 20 - 20000 Hz
Phantom power: 12 V DC
Housing color: Silver
Control elements: Phantom power switch, power switch, FX send/returne control
Status LED: Power, clip

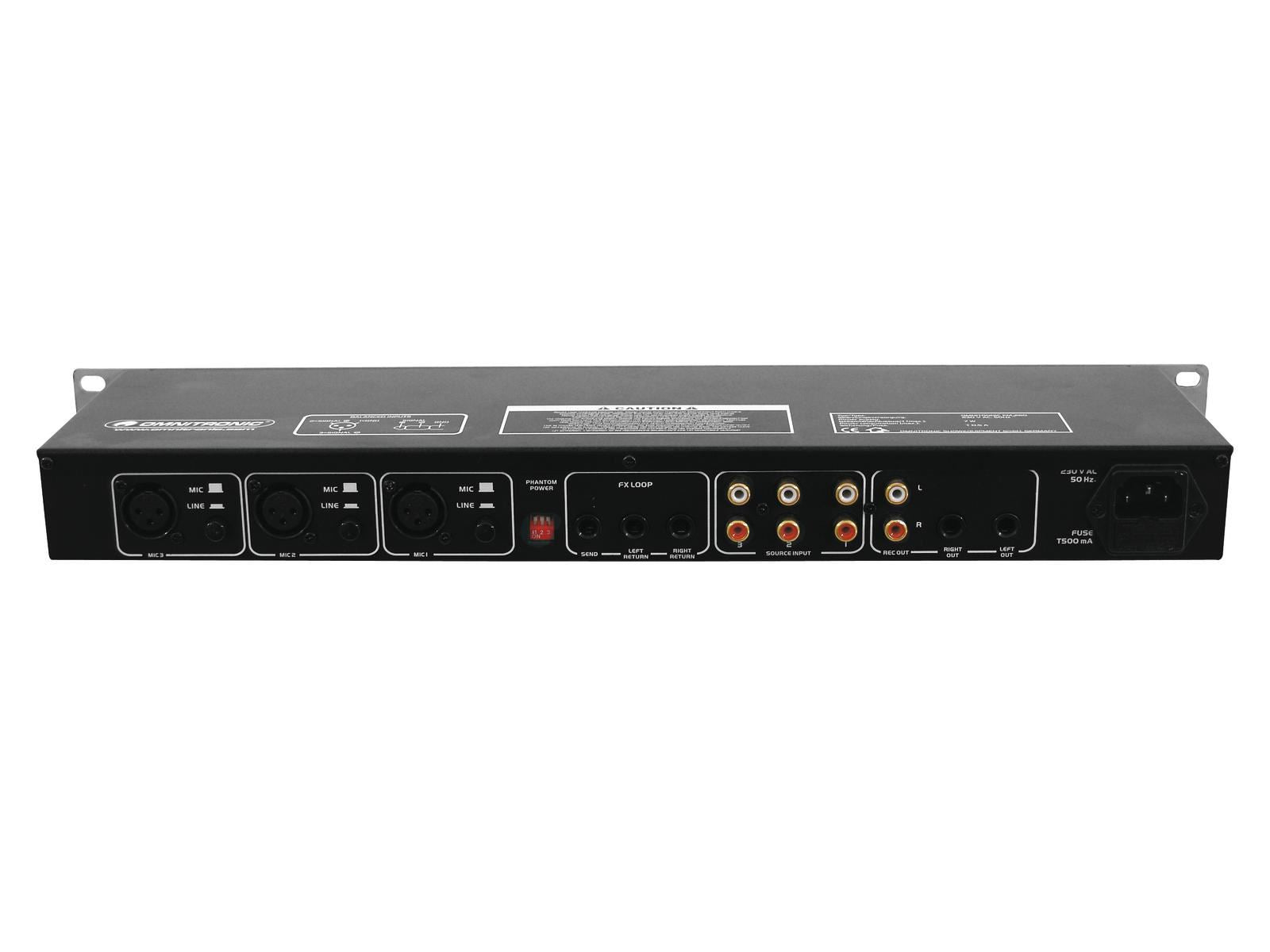

Connections: Input: 3 x mic/line via 3-pin XLR
Input: 3 x line via stereo RCA
Input: 2 x FX via 6.3 mm jack socket (mono) mounting version
Output: 1 x rec. via stereo RCA
Output: 2 x master via 6.3 mm jack socket (mono) mounting version
Output: 1 x FX via 6.3 mm jack socket (stereo) mounting version
Chanals: Input chanel: 3 x stereo via RCA, channel control via Rotary knob, 2-band tone control EQ 100Hz/10kHz
Microphon chanal: 3 x mono with Mic-line switch via XLR, channel control via Rotary knob
Master output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob
Max. level: Input: Microphone +14 dB
Input: line +24 dB
Material: Metal
Color: Silver
Housing design: (19") 48.3 cm rack installation 1 U
Dimension: Width: 48.3 cm
Depth: 12.3 cm
Height: 4.45 cm
Weight: 2.20 kg
