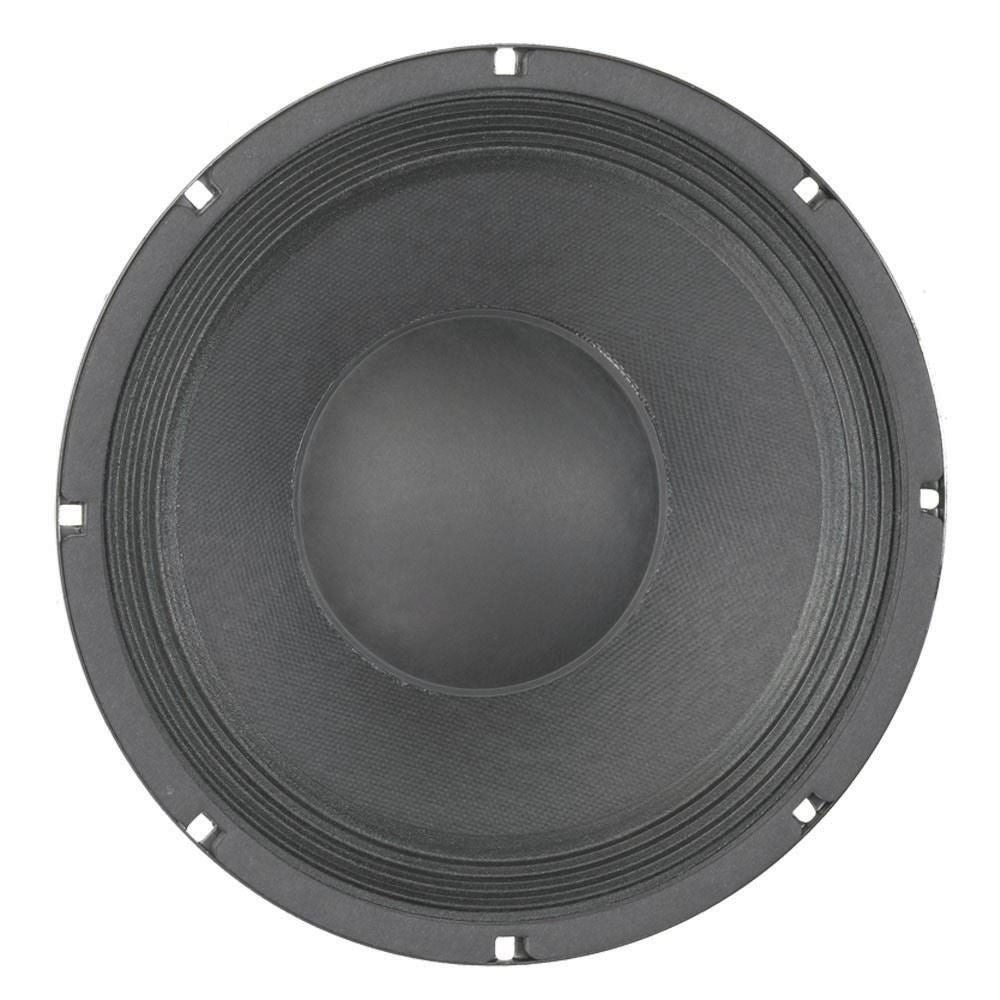

Recommended for professional audio, bass guitar, mid-bass or floor monitor applications in sealed enclosures. Also works well as a mid-bass or woofer in vented enclosures.
Recommended for professional audio, bass guitar, mid-bass or floor monitor applications in sealed enclosures. Also works well as a mid-bass or woofer in vented enclosures.
Specifications
Nominal Diameter 10 "
Nominal Diameter 254 mm
Voice Coil 2 "
Voice Coil 50.8 mm
Pitch Circle Diameter 243.8 mm
Cut- out Measurement 231.8 mm
Diameter of fixing holes 5.7 mm
Depth 101 mm
Nominal Impedance 8 Ohm(s)
Nominal Load Capacity 250 W
maximum rated load 500 W
Sensitivity (1 W / 1 m) 97 dB
Frequency response 51 - 3800 Hz
Voice Coil Material Aluminium
Magnet Ferrite
Depth of the magnetic gap 7.92 mm
Fs (Resonance Frequency) 53 Hz
Re (DC resistance) 5.75 Ohm(s)
Qms (mechanical quality) 8.14
Le (inductance of the voice coil) 0.67 mH
Qes (electrical quality) 0.52
Qts (overall quality) 0.49
Vas (equivalent volume) 60.1
Mms (moving mass) 25 g
BL (power factor) 9.6 T/m
Xmax (maximum displacement) 3 mm
Cms (elasticity of the suspension) 0.36 mm/N
Sd (membrane area) 344.9 cm²
Dimensions
Overall diameter: 256.8 mm
Weight
3.54 kg
