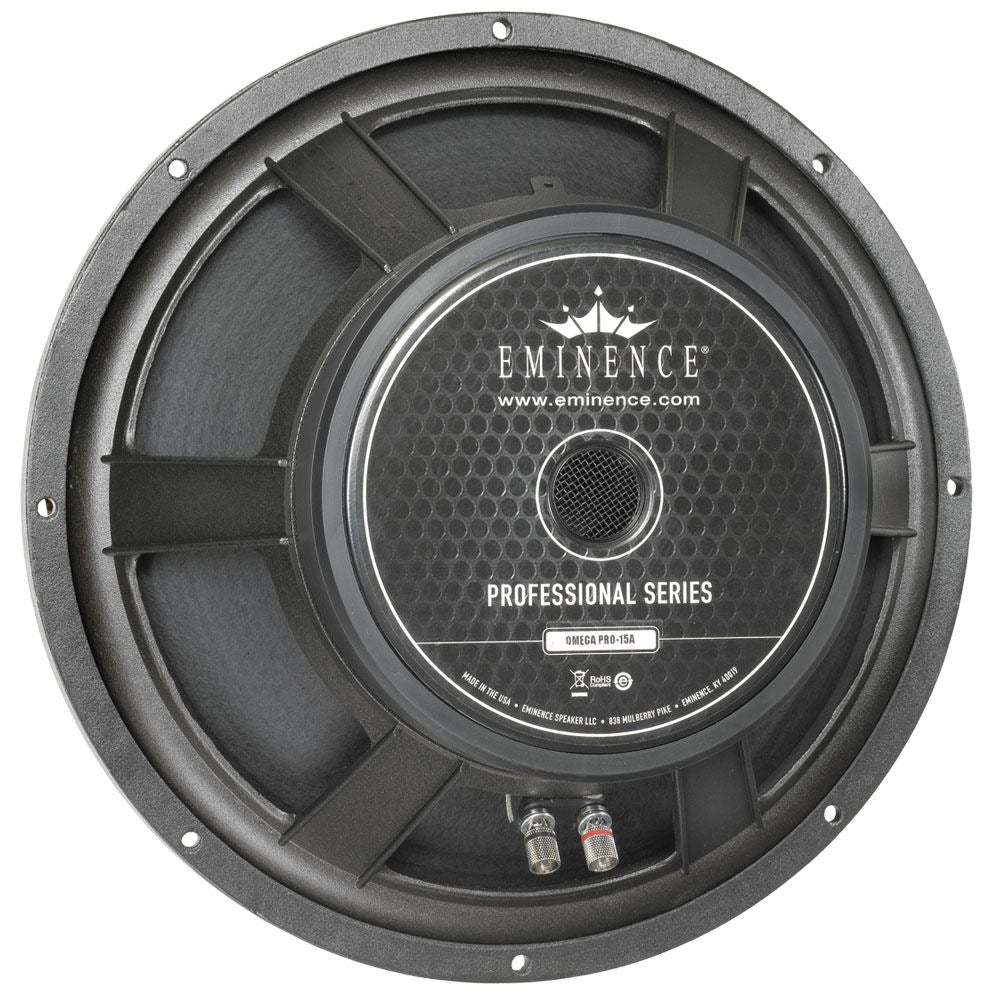

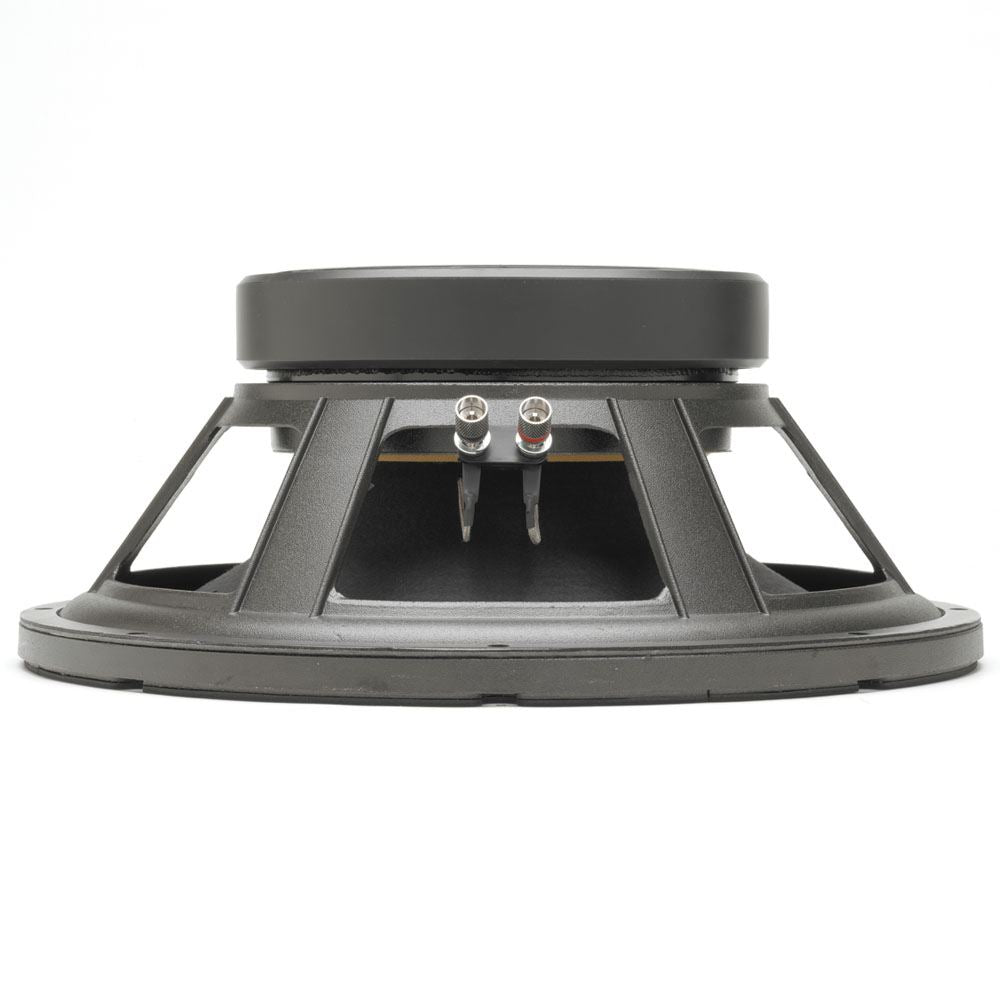

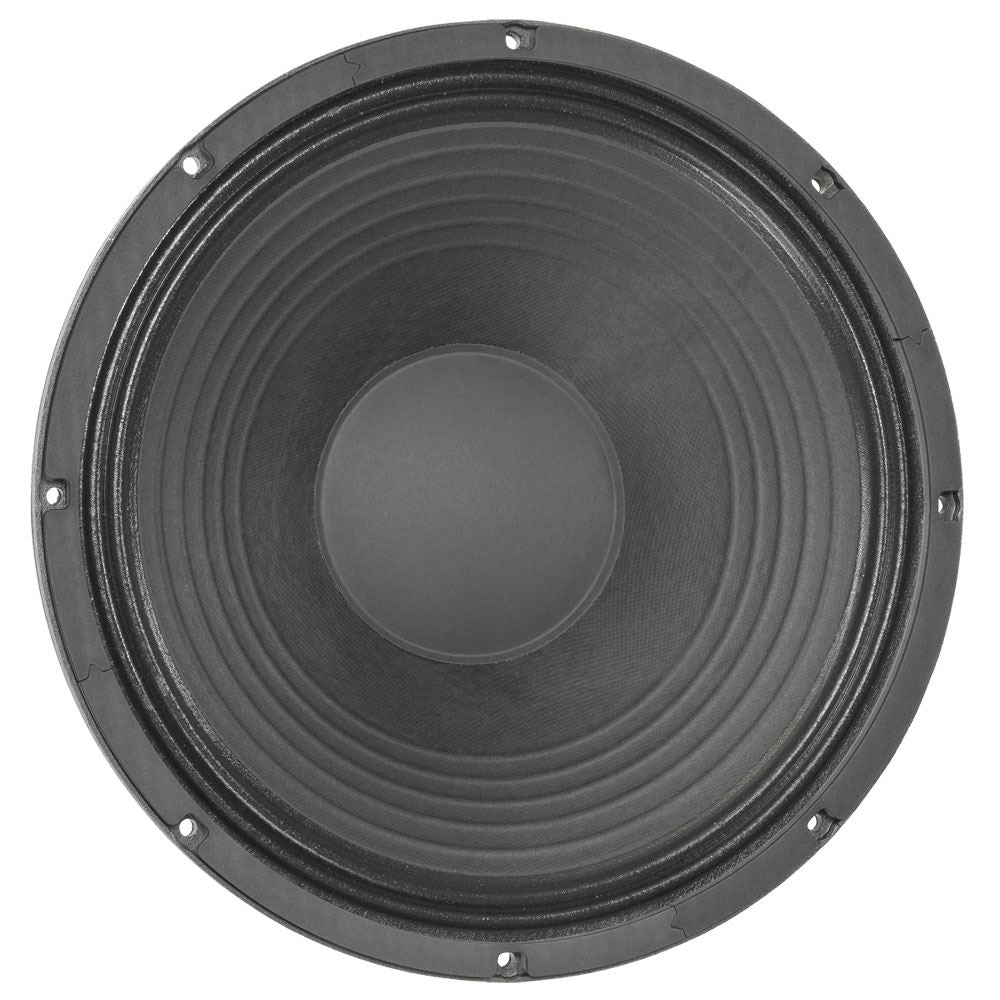

Eminence Omega Pro 15 A 15" Speaker 800 W 8 Ohm - die-cast Basket

OMEGA PRO-15A Professional Series

Recommended for professional audio as a woofer in vented enclosures. Also good for horn loading and scoops.

Specifications
Product type: Loudspeaker Chassis
Type: PA
Nominal Diameter: 15 ", 381 mm
Voice Coil: 4 ", 101.6 mm
Overall diameter: 386.4 mm
Pitch Circle Diameter: 369.9 mm
Cut- out Measurement: 355.6 mm
Diameter of fixing holes: 7.1 mm
Depth: 161 mm
Nominal Impedance: 8 Ohm(s)
Nominal Load Capacity: 800 W
maximum rated load: 1600 W
Sensitivity (1 W / 1 m): 97.3 dB
Frequency response: 51 - 1700 Hz
Voice Coil Material: copper
Magnet: Ferrite
Depth of the magnetic gap: 9.53 mm
Thiele & Small Parameter
Fs (Resonance Frequency): 33 Hz
Re (DC resistance): 5.28 Ohm(s)
Qms (mechanical quality): 5.69
Le (inductance of the voice coil): 1.04 mH
Qes (electrical quality): 0.33
Qts (overall quality): 0.32
Vas (equivalent volume): 258.5
Mms (moving mass): 94 g
BL (power factor): 17.5 T/m
Xmax (maximum displacement): 4.8 mm
Cms (elasticity of the suspension): 0.25 mm/N
Sd (membrane area): 856.3 cm²
Weight: 10,839 kg
