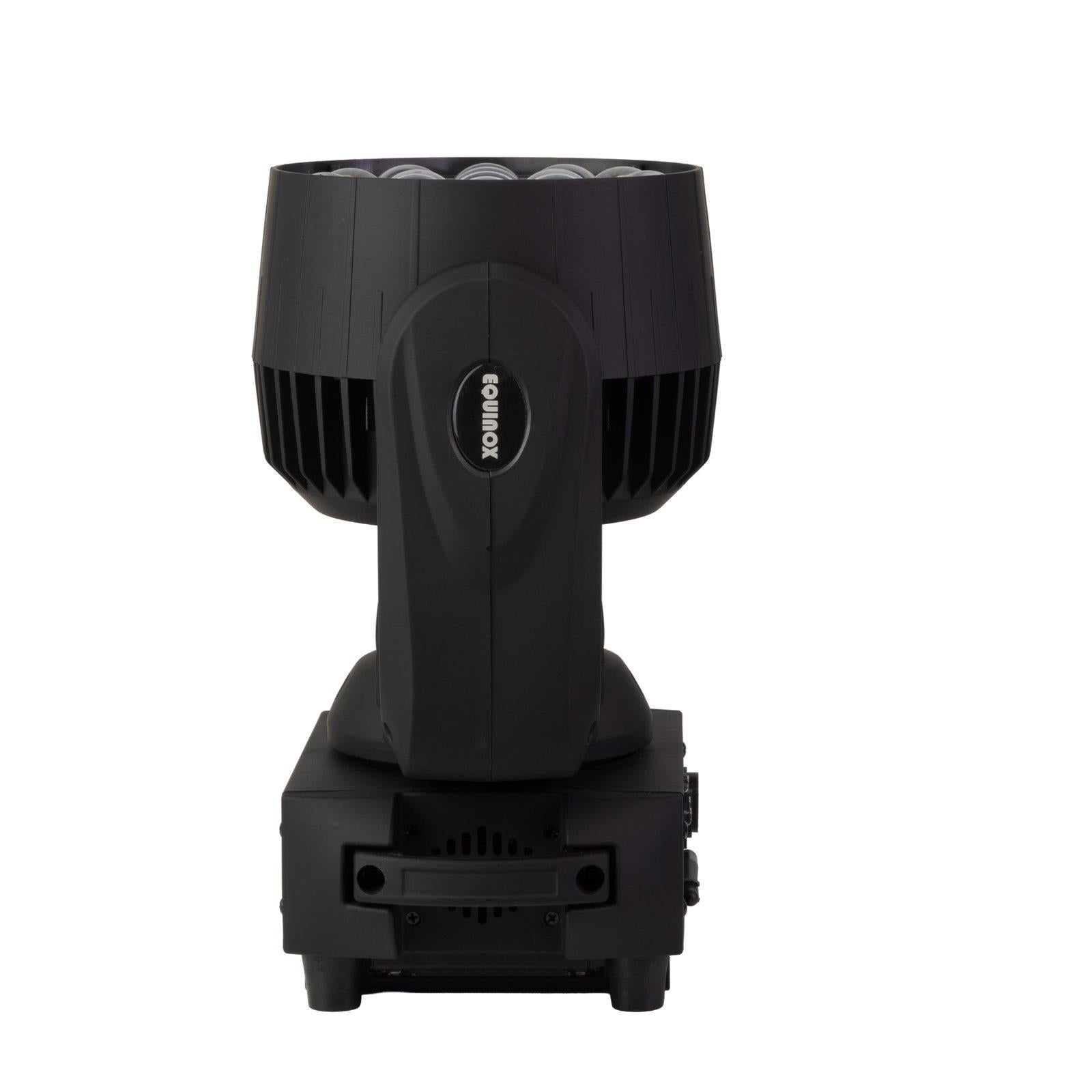

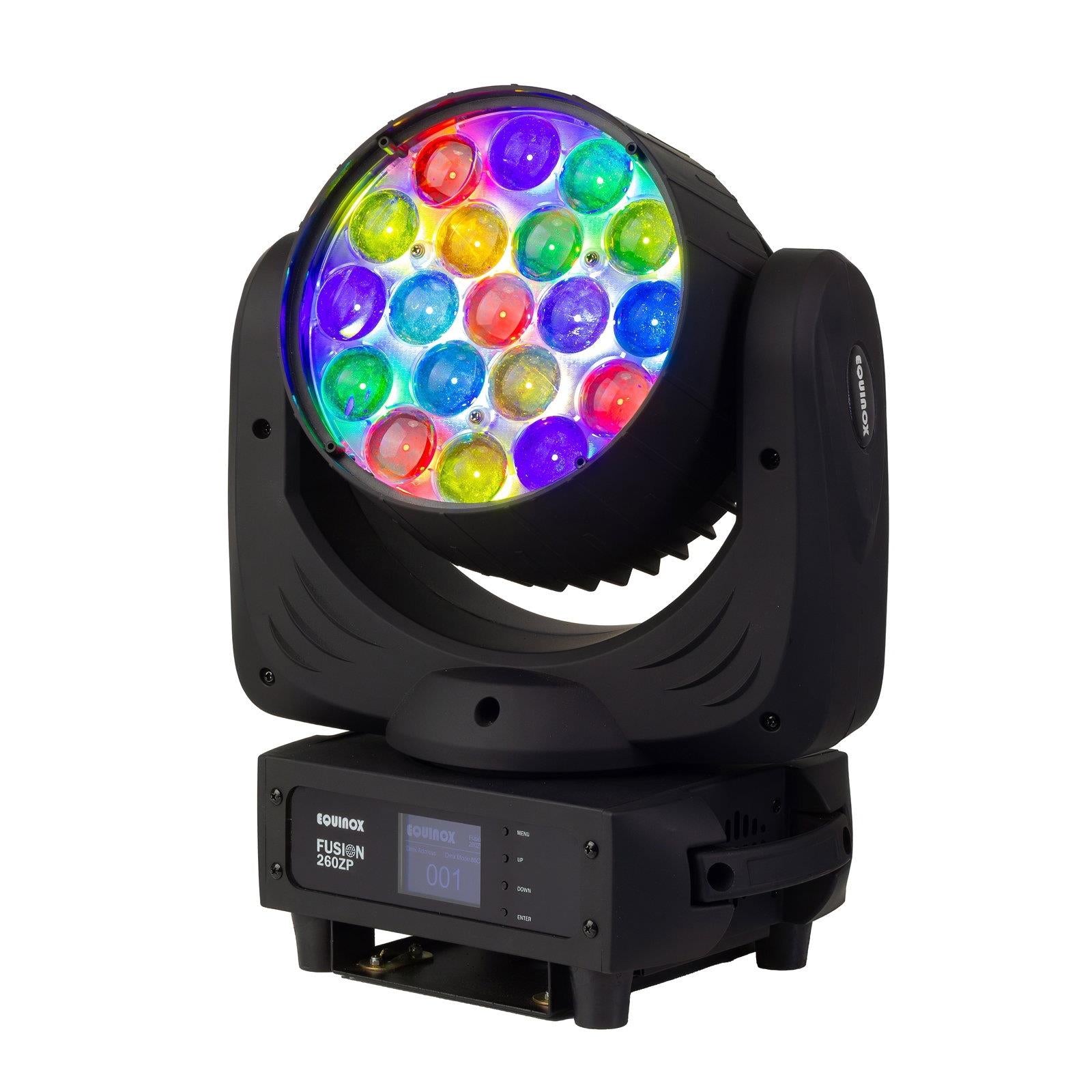

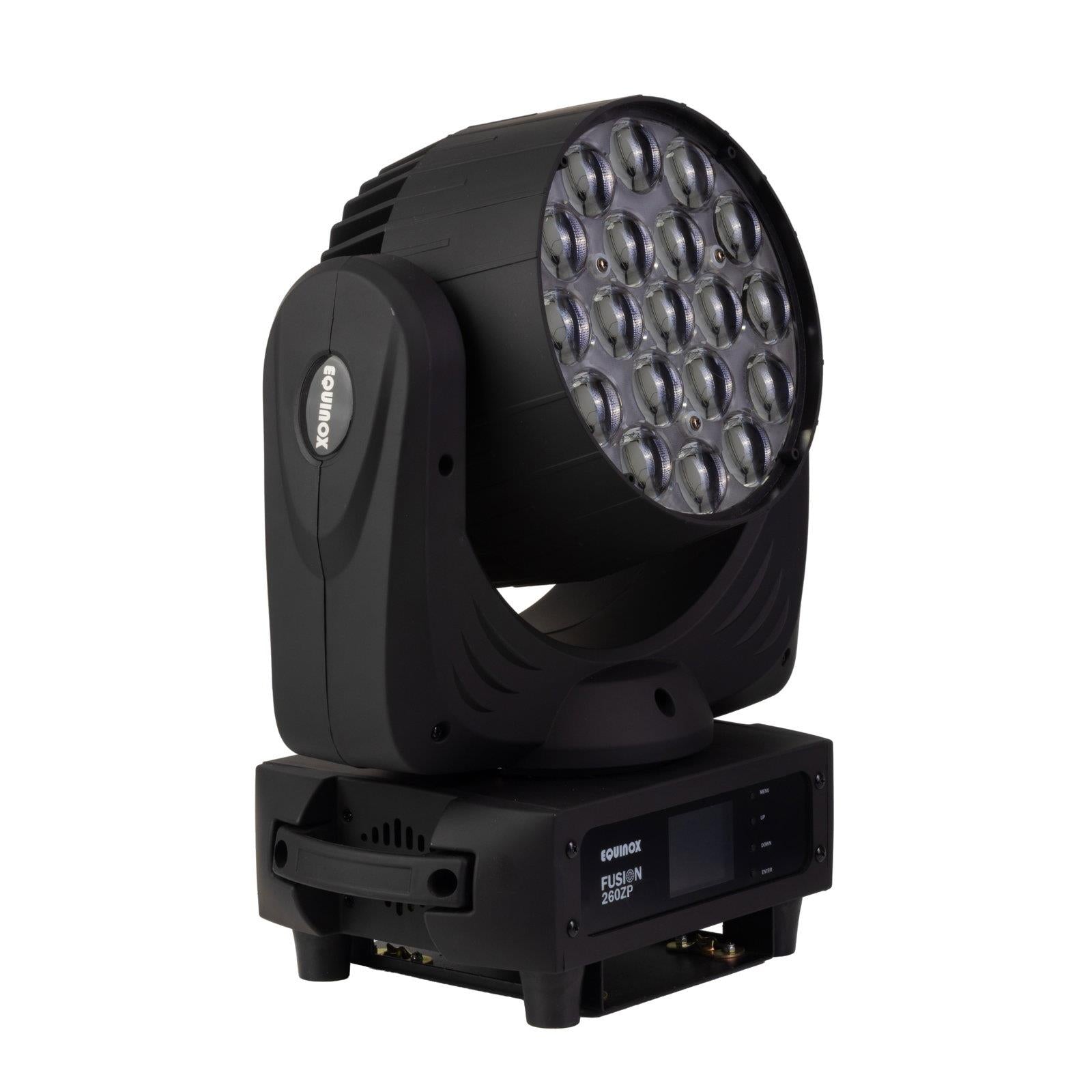

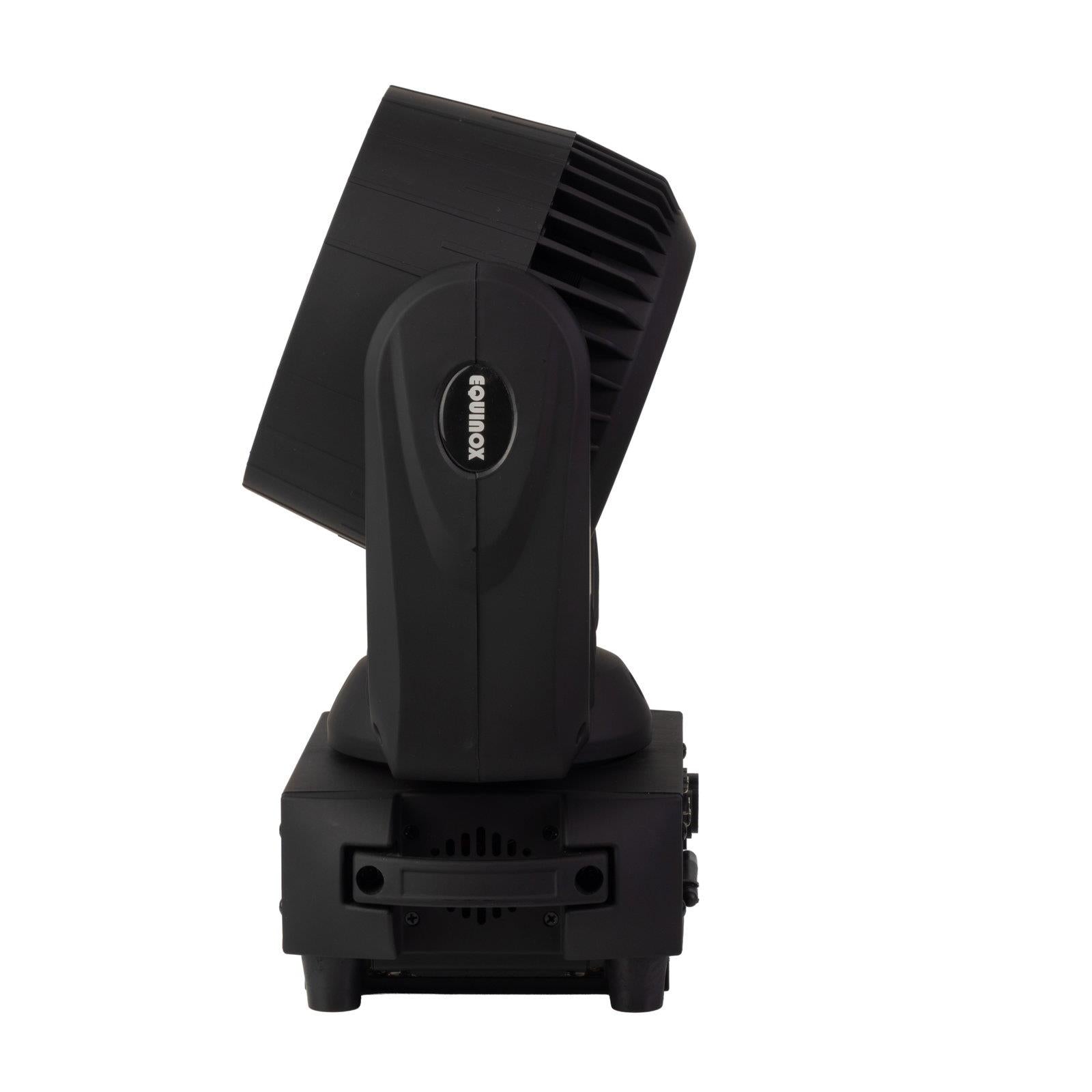

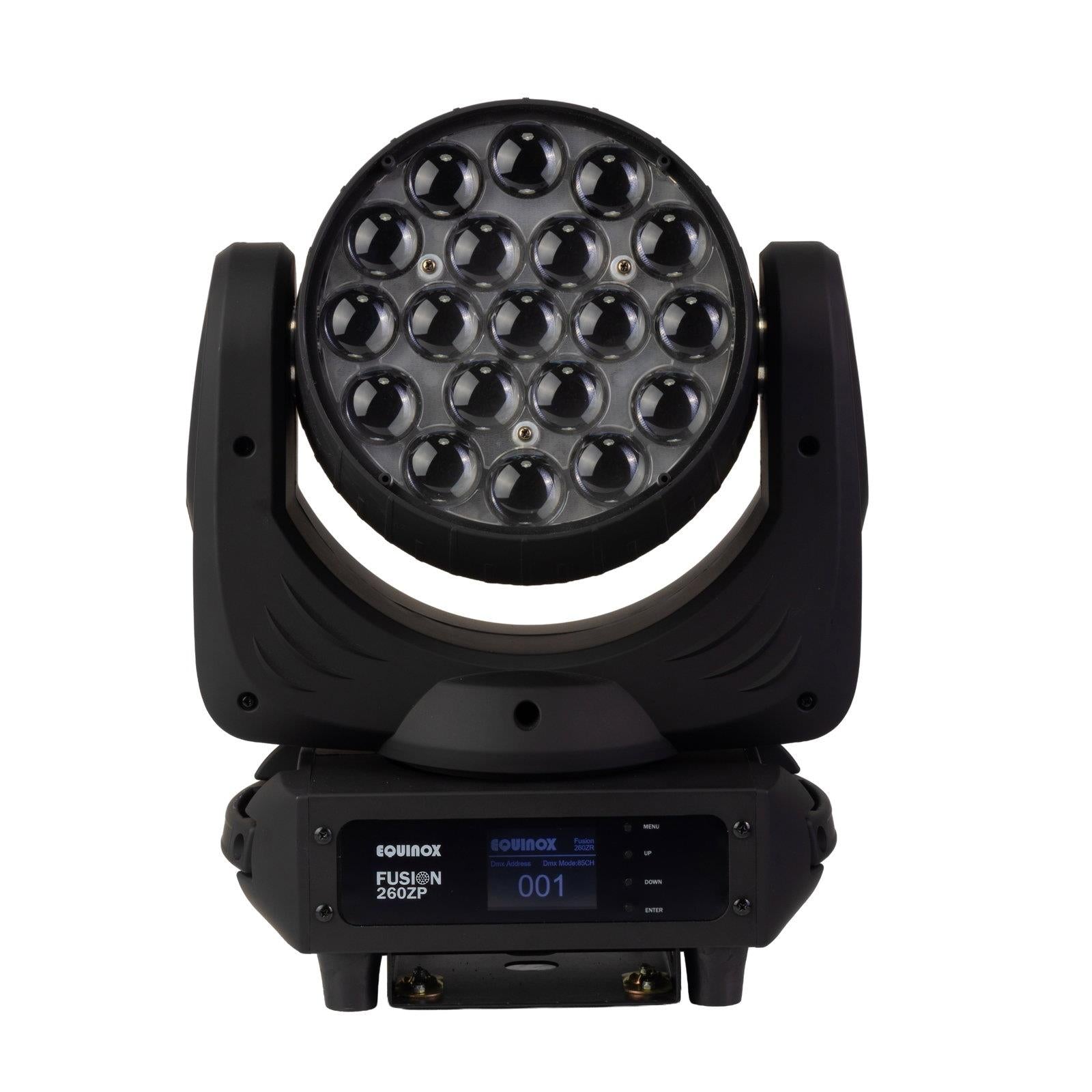

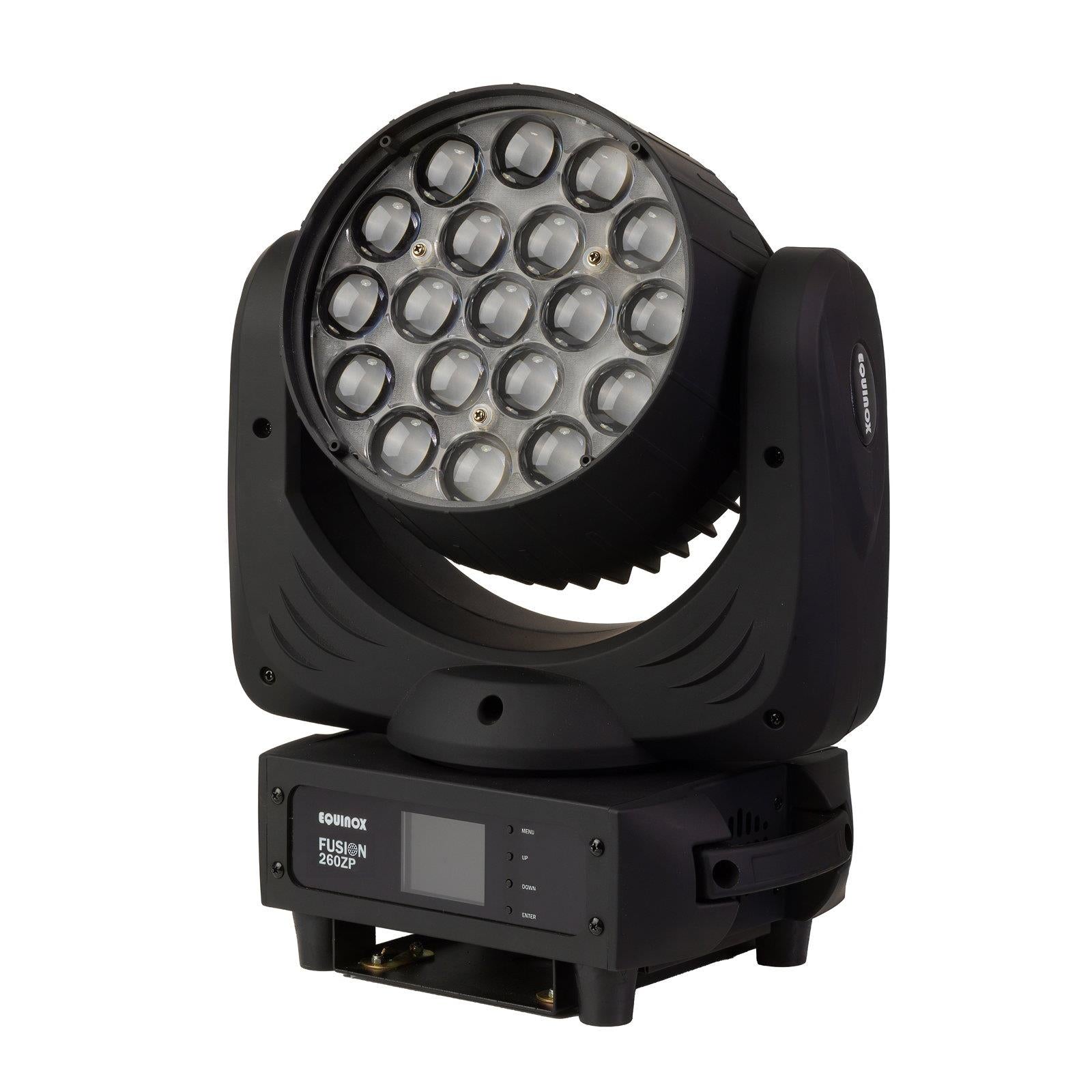

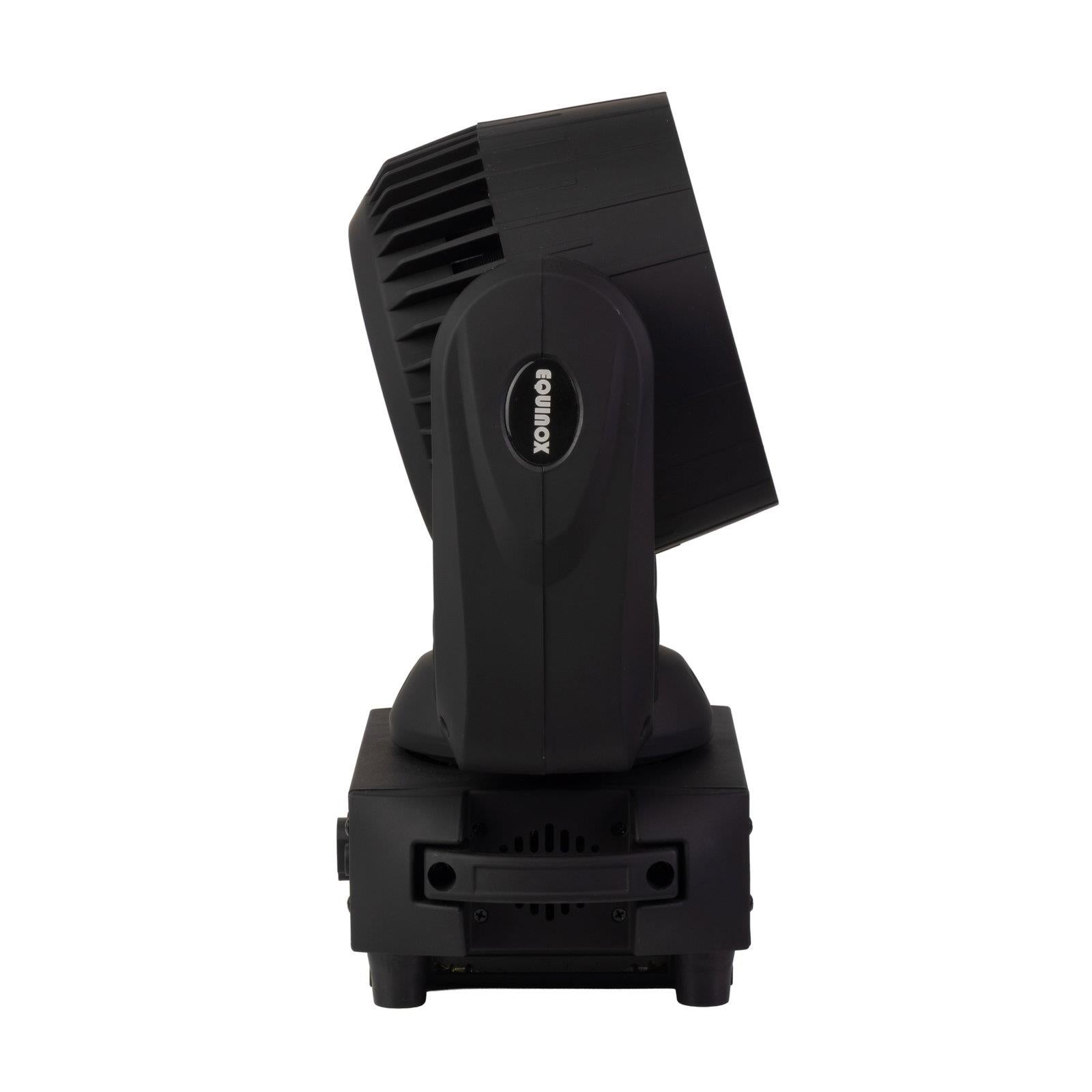

Equinox Fusion 260ZP LED Moving Wash 19 x 12W RGBL

Description

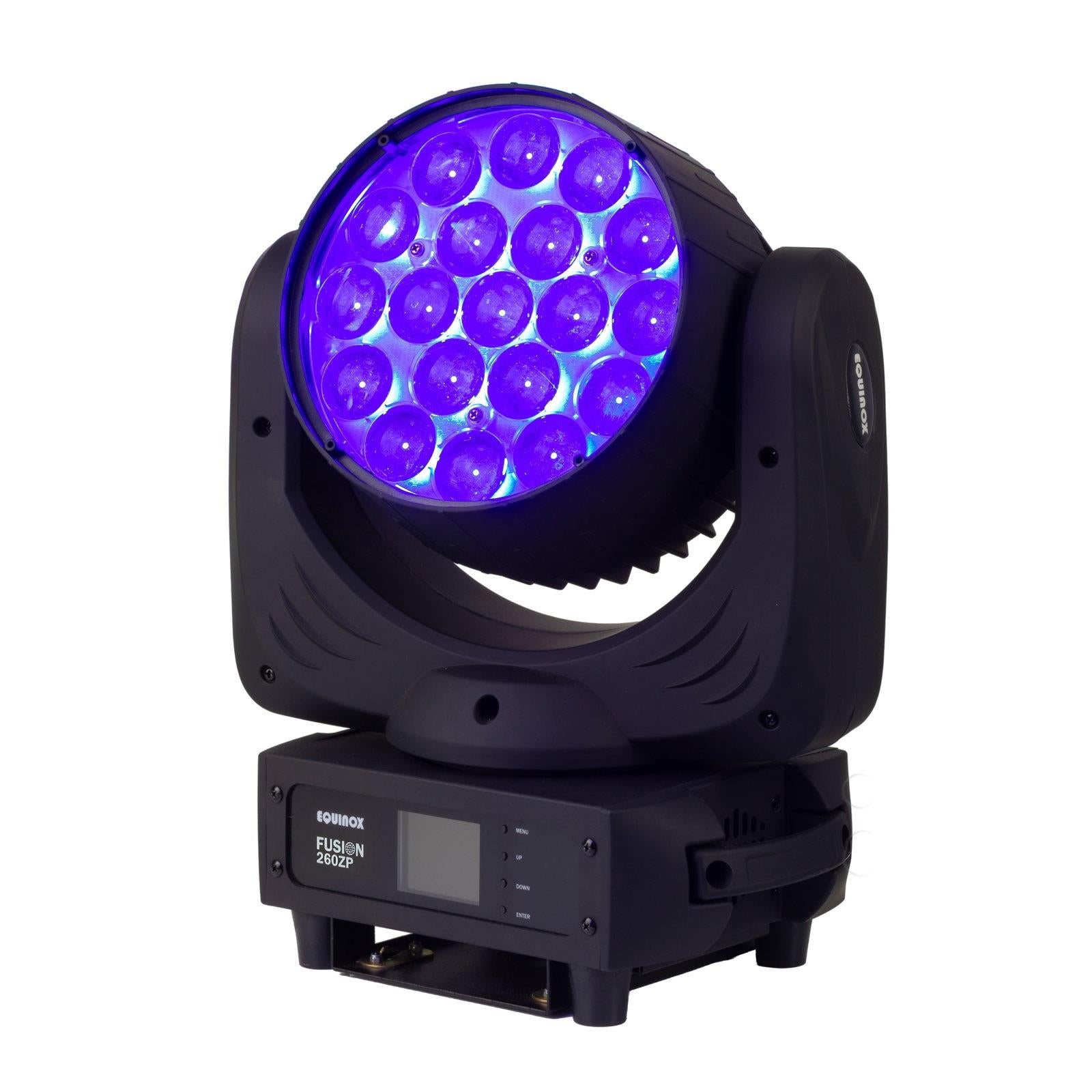

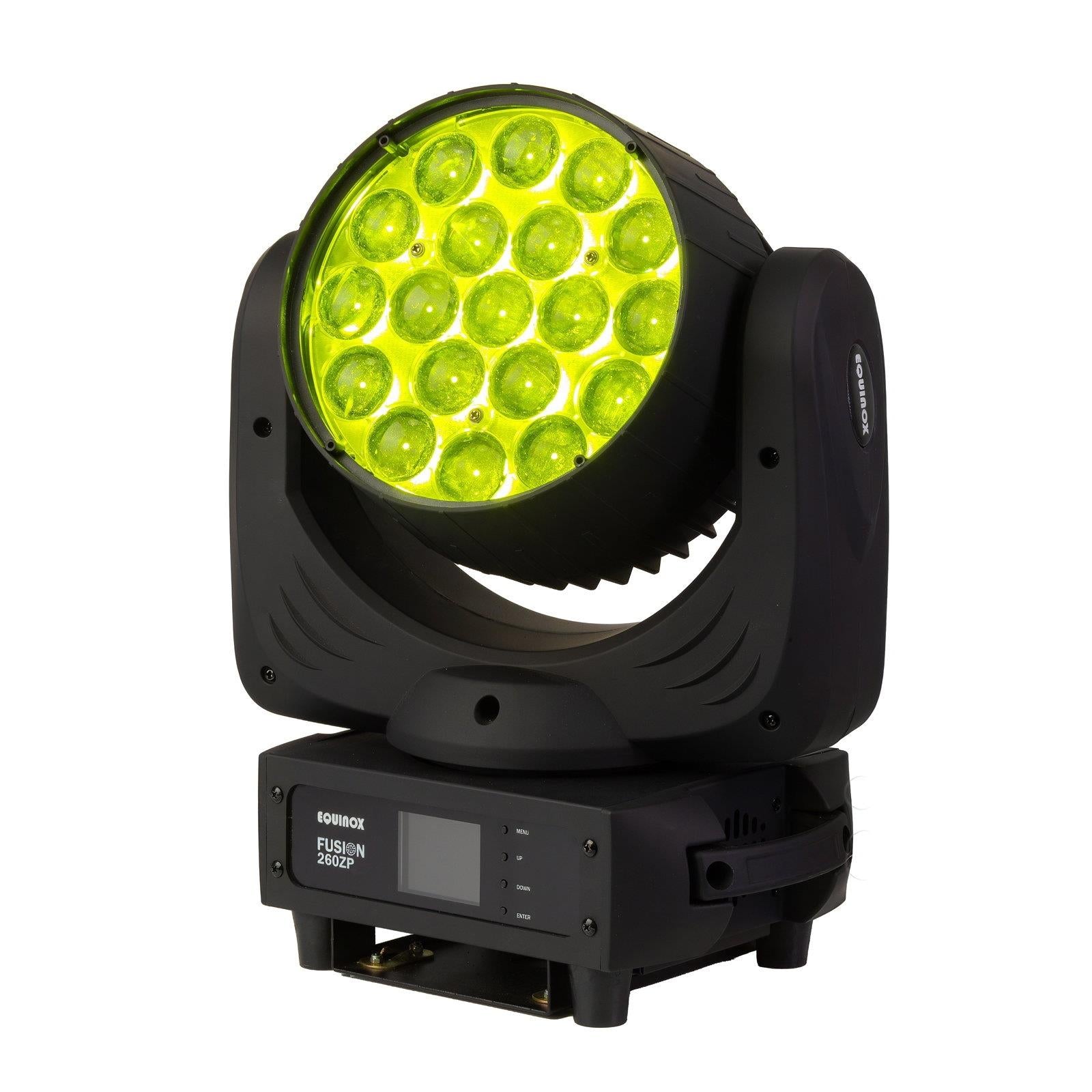

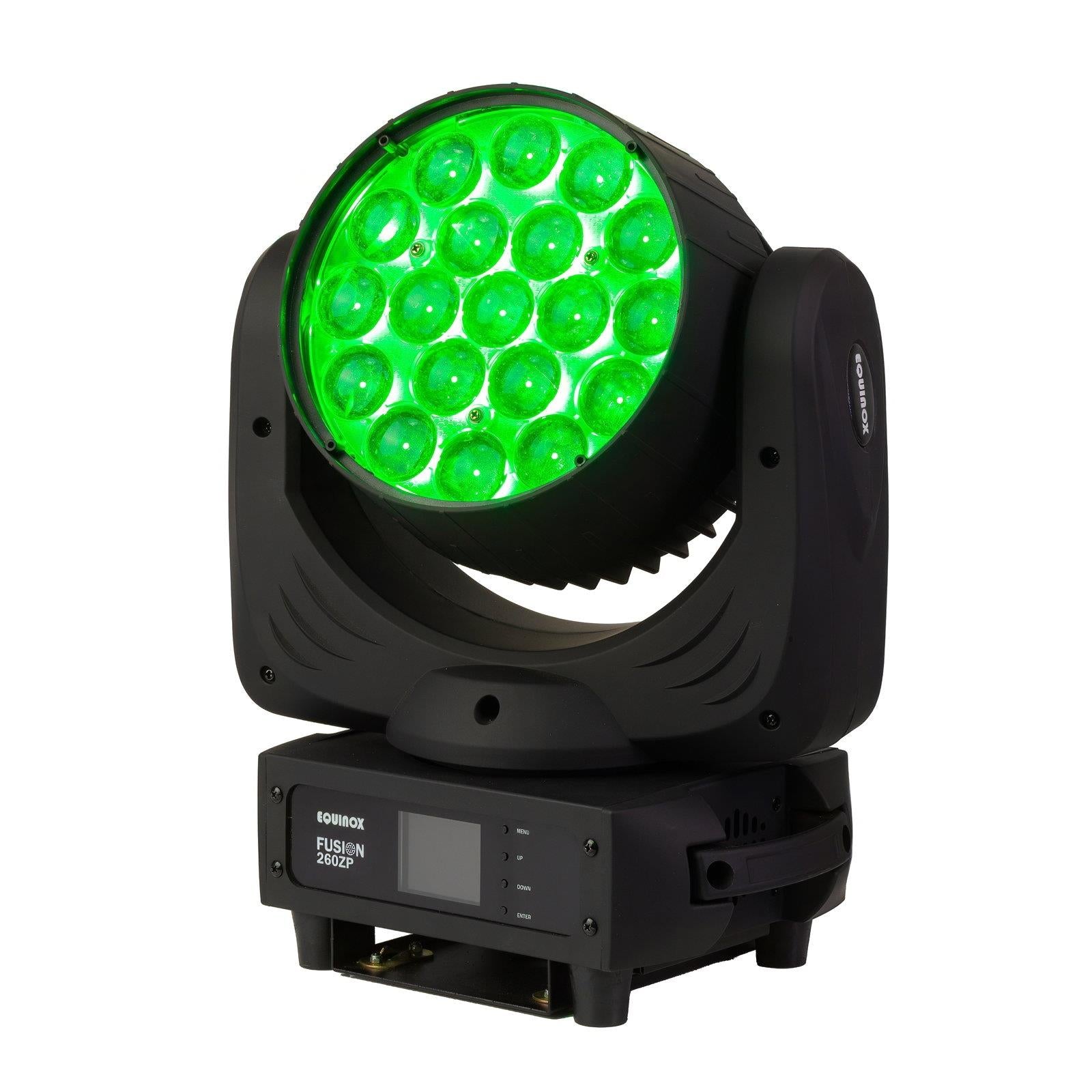

The Equinox Fusion 260ZP is a high-performance moving head wash light designed for concerts, theatre productions, live events, venues, and professional lighting installations. Equipped with 19 x 12W RGBL quad-colour LEDs, it delivers powerful output, smooth colour mixing, soft pastel tones, vivid saturated colours, and a wide range of colour temperature presets for creative lighting design.

Designed for maximum versatility, the Fusion 260ZP features full pixel mapping capabilities, allowing dynamic colour chases, animated effects, and eye-catching visual patterns across the LED array. Its motorised zoom range of 6° to 50° enables both narrow beam effects and wide wash coverage, making it suitable for everything from dramatic aerial looks to large-area stage illumination.

With 16-bit pan and tilt positioning, pan/tilt auto correction, selectable refresh rates, multiple dimming curves, wireless DMX compatibility, and support for DMX, Kling-Net, Art-Net, and sACN protocols, the Fusion 260ZP integrates easily into professional lighting systems. PowerTwist TR1 connections, Ethernet input/output, 5-pin XLR connectivity, quick-release omega clamps, and temperature-controlled fans make it a reliable and flexible fixture for demanding production environments.

Features

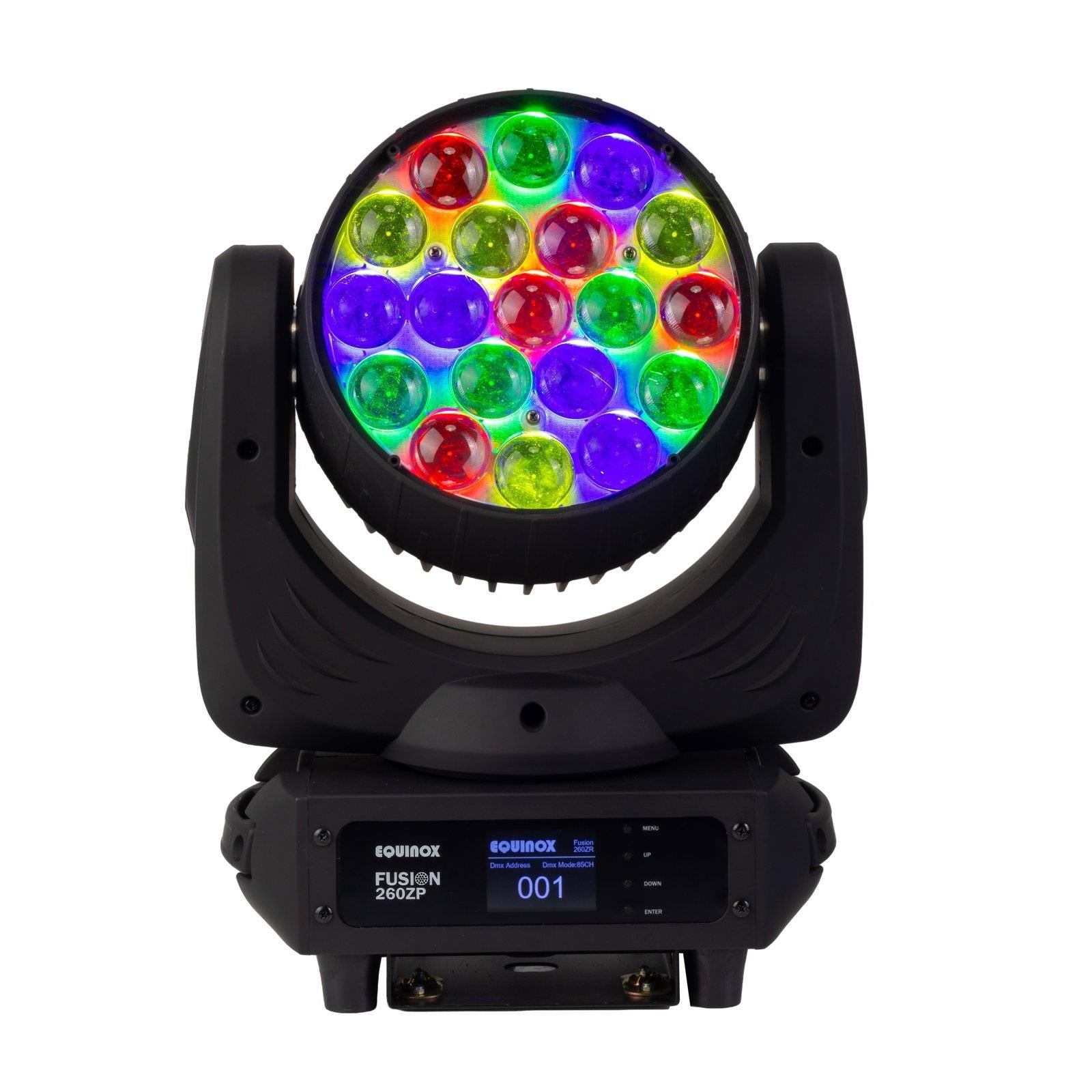

19 x 12W RGBL quad-colour LEDs
Motorised zoom with 6° to 50° beam angle
Full pixel mapping capabilities
Powerful wash output with vivid colours and soft pastel tones
Colour temperature presets
6° output of 32,722 lux at 2m
50° output of 3,896 lux at 2m
CRI of 89
Selectable refresh rates up to 25kHz
DMX, Kling-Net, Art-Net, and sACN control protocols
Wireless DMX with W-DMX Sweden compatible transceiver
7 selectable DMX channel modes
Auto, sound active, and primary/secondary modes
Forward-facing show modes
16-bit pan and tilt positioning
Pan and tilt auto correction
540° pan and 270° tilt movement
0–100% dimming
Variable strobe
4 selectable dimming curves
Temperature-controlled fans
PowerTwist TR1 input and output
Ethernet input and output
5-pin XLR input and output
4-button menu with LCD display

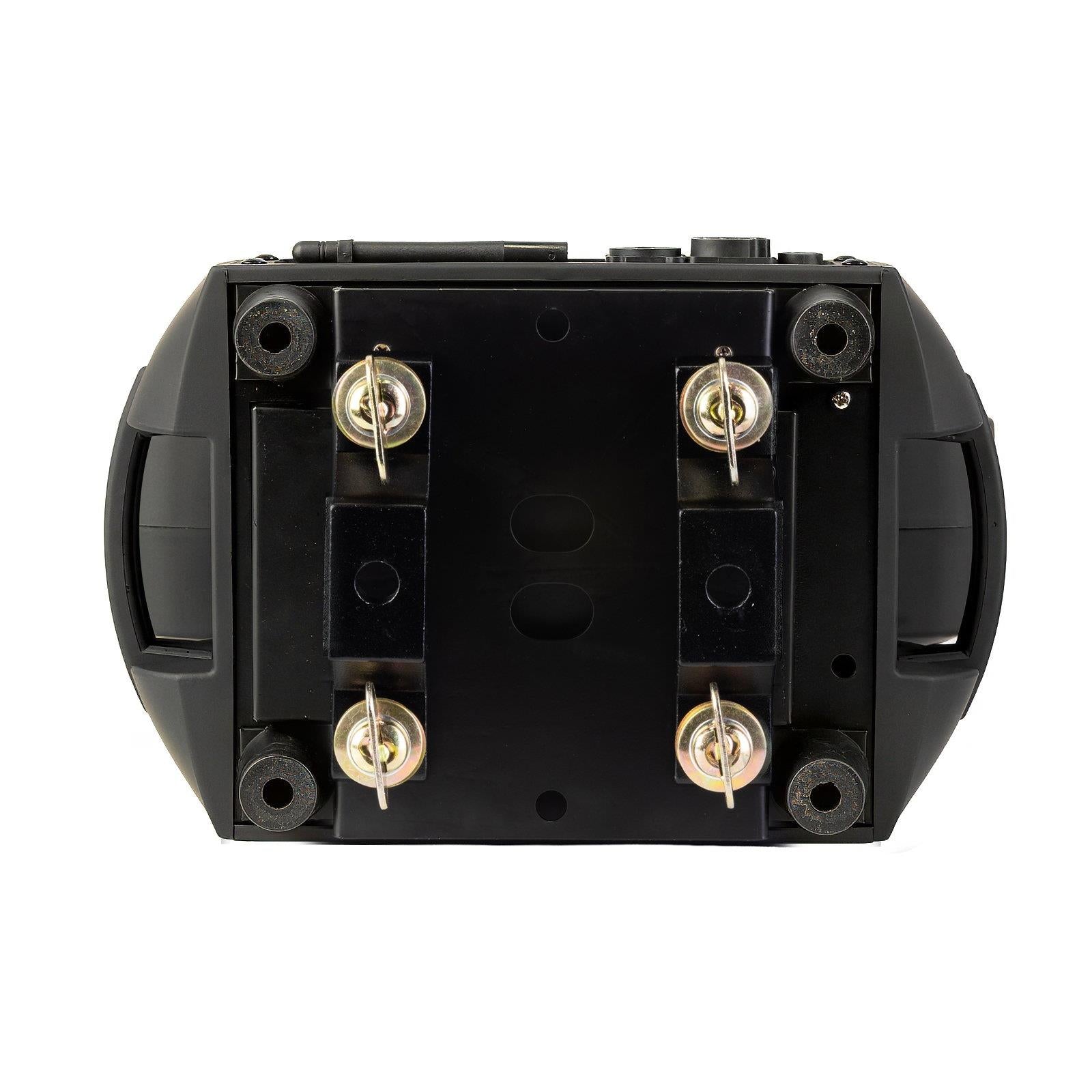

Supplied with quick-release omega clamps

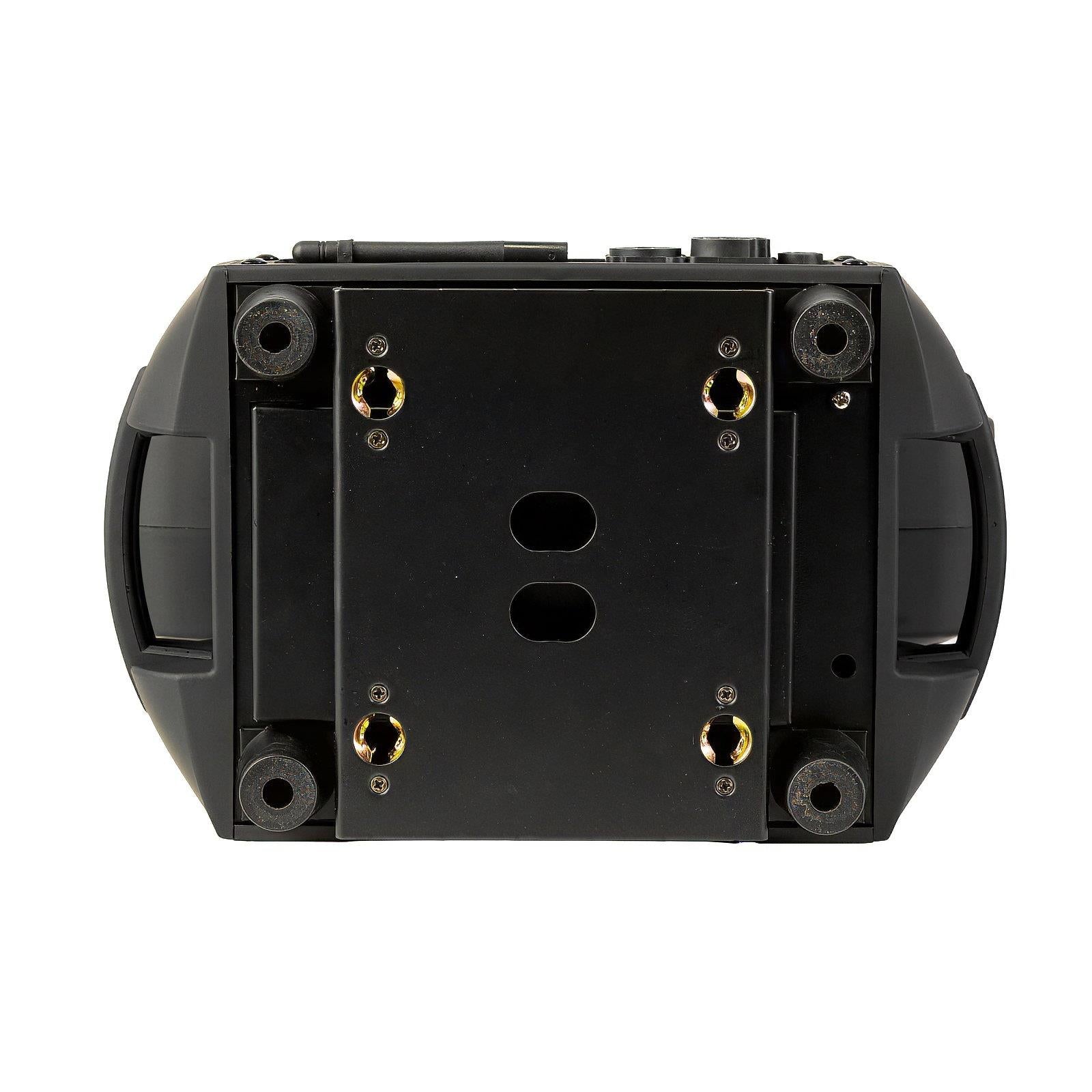

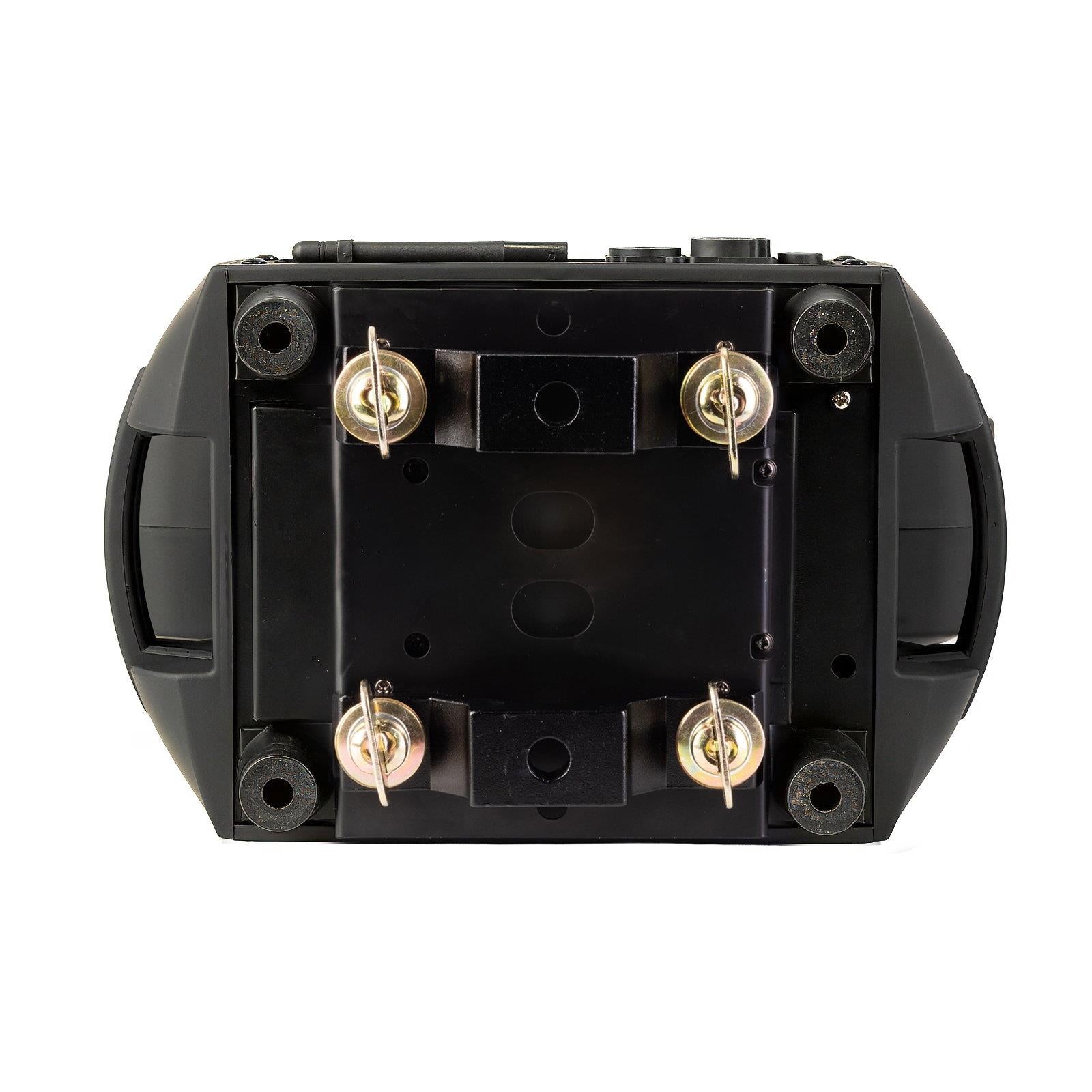

Square hole spacing allows clamp mounting in all orientations

Specifications

Brand : Equinox
Product name : Fusion 260ZP
Product type : Moving head wash light
Light source : 19 x 12W RGBL quad-colour LEDs
LED colours : RGBL
Beam angle : 6° – 50°
Zoom : Motorised
Lux output at 6° : 32,722 lux @ 2m full on
Lux output at 50° : 3,896 lux @ 2m full on
CRI : 89
Pixel mapping : Yes
Refresh rate : 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable
Control protocols : DMX, Kling-Net, Art-Net, sACN
Wireless control : W-DMX Sweden compatible transceiver
DMX channels : 2, 9, 18, 23, 27, 85 or 93 selectable
Operating modes : Auto, sound active, primary/secondary
Show modes : Forward facing
Pan : 540°
Tilt : 270°
Pan/tilt positioning : 16-bit
Pan/tilt correction : Auto correction
Dimming : 0–100%
Dimming curves : Linear, square law, inverse square law, S-curve
Strobe : Variable
Display : LCD display
Menu : 4-button menu

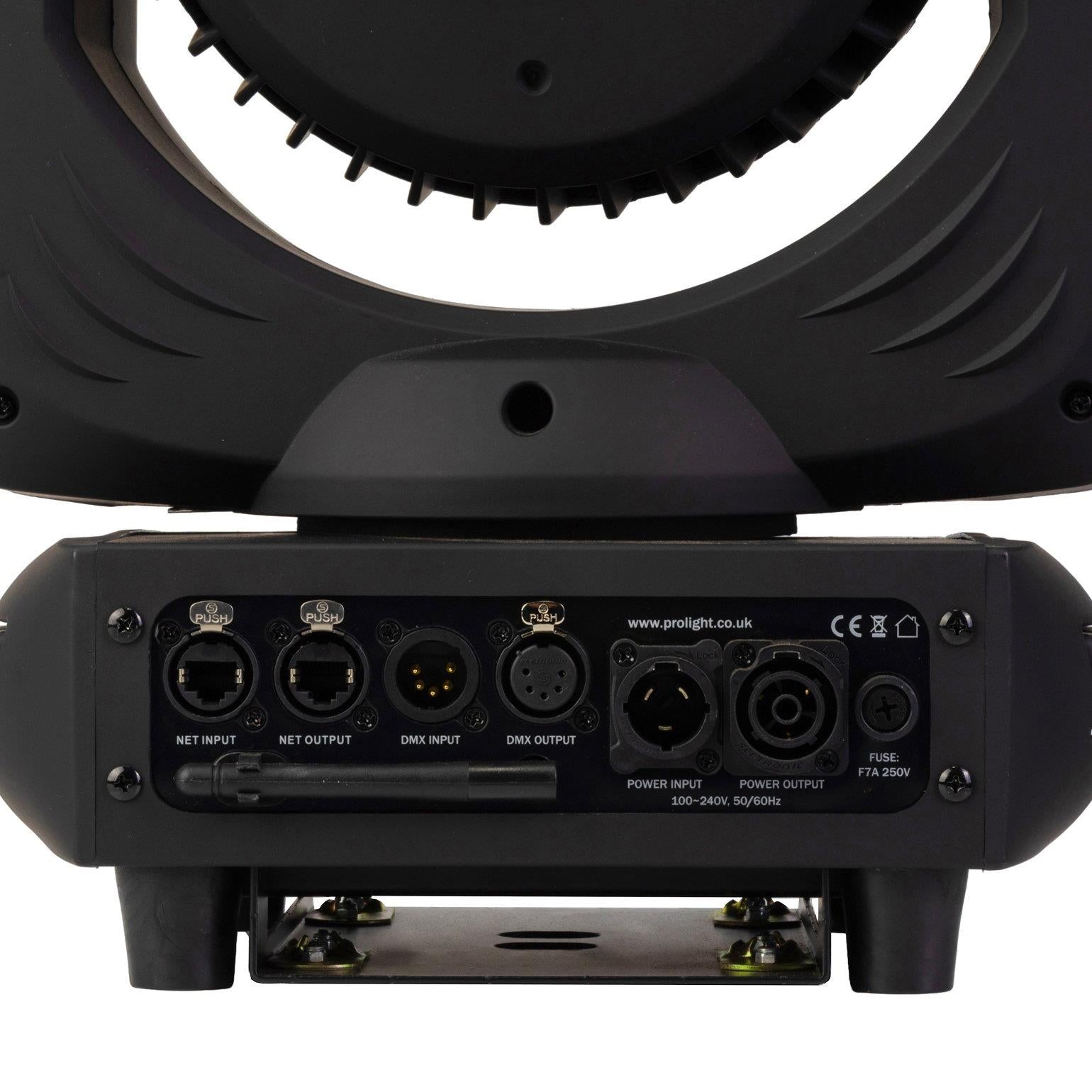

Power connections : PowerTwist TR1 input/output

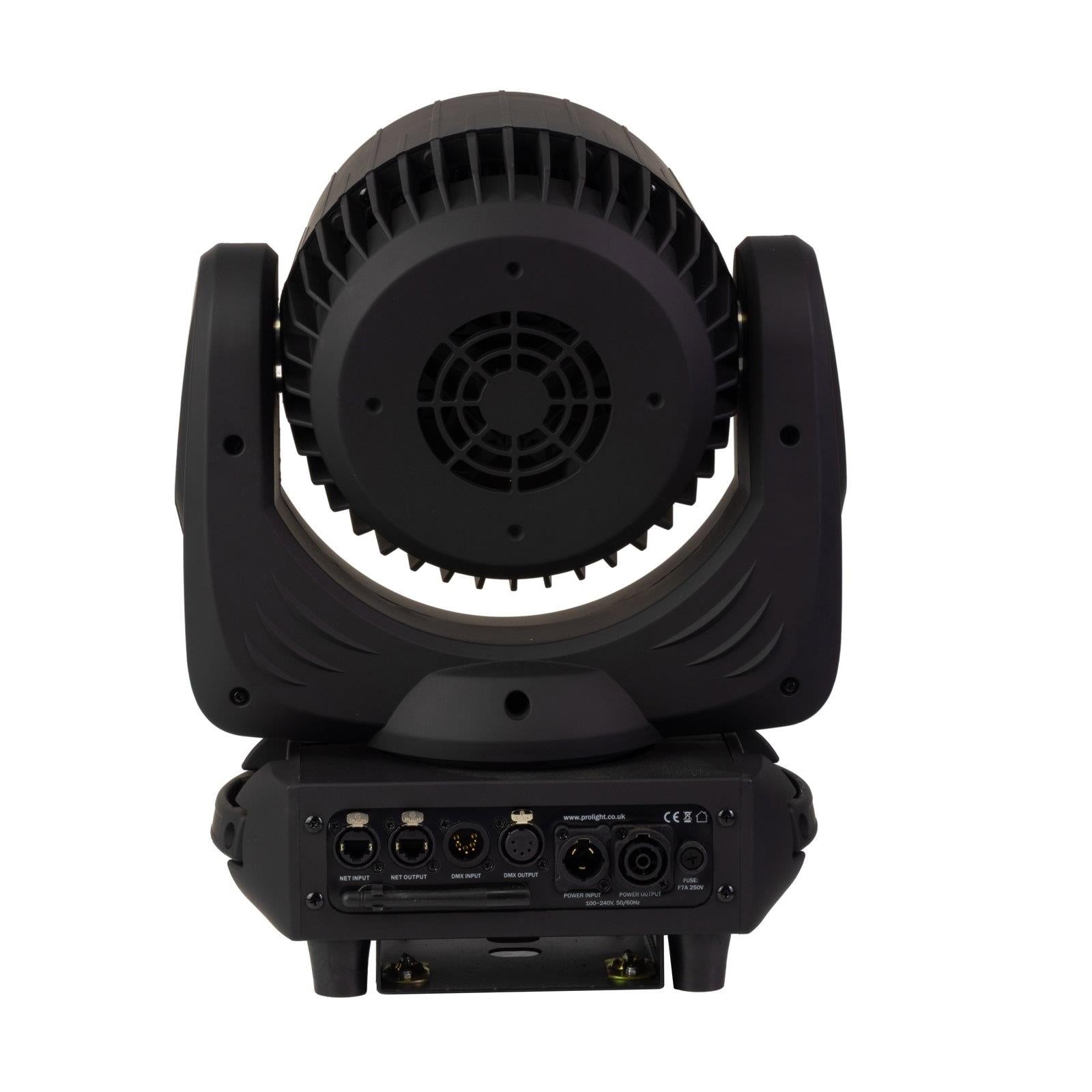

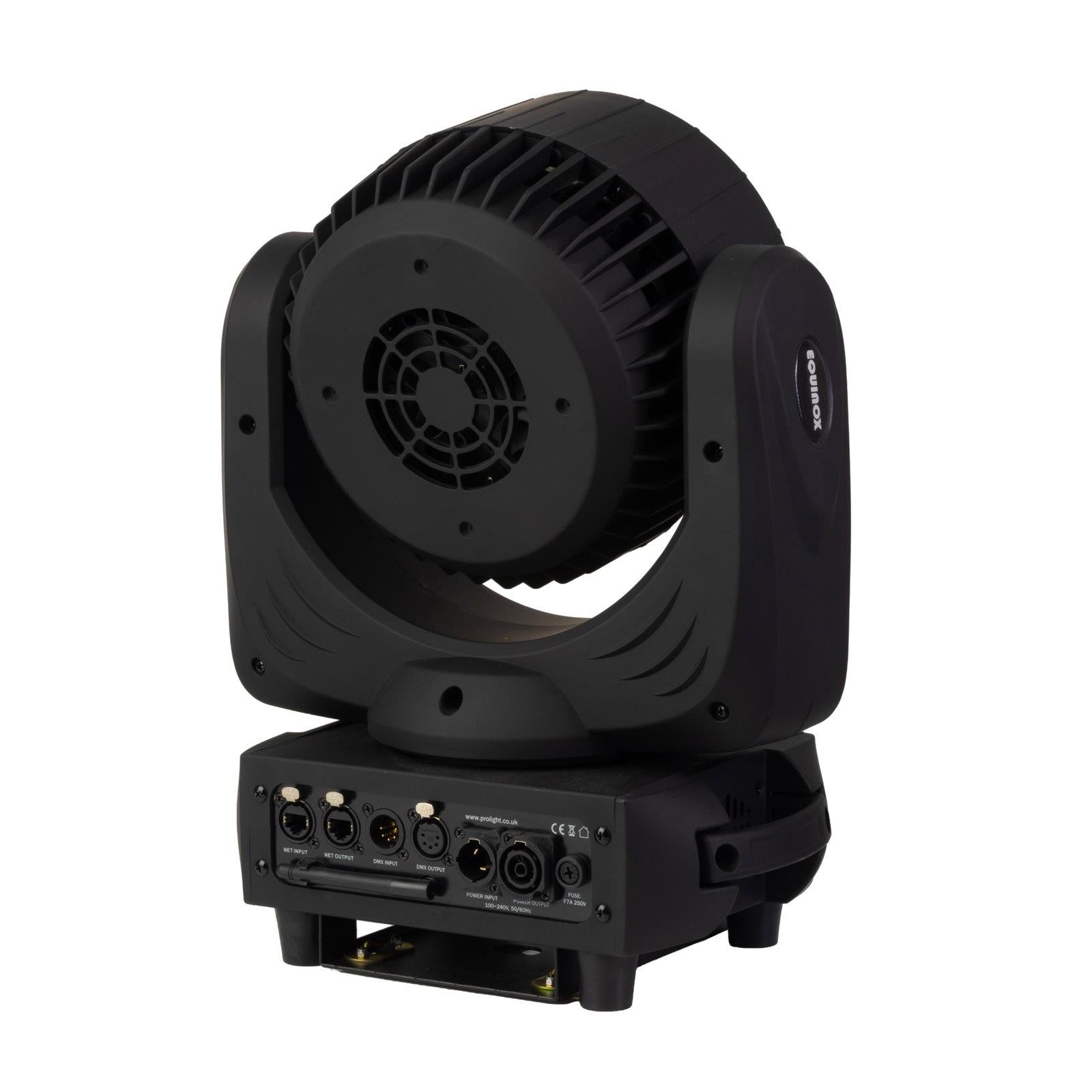

Data connections : Ethernet input/output, 5-pin XLR input/output

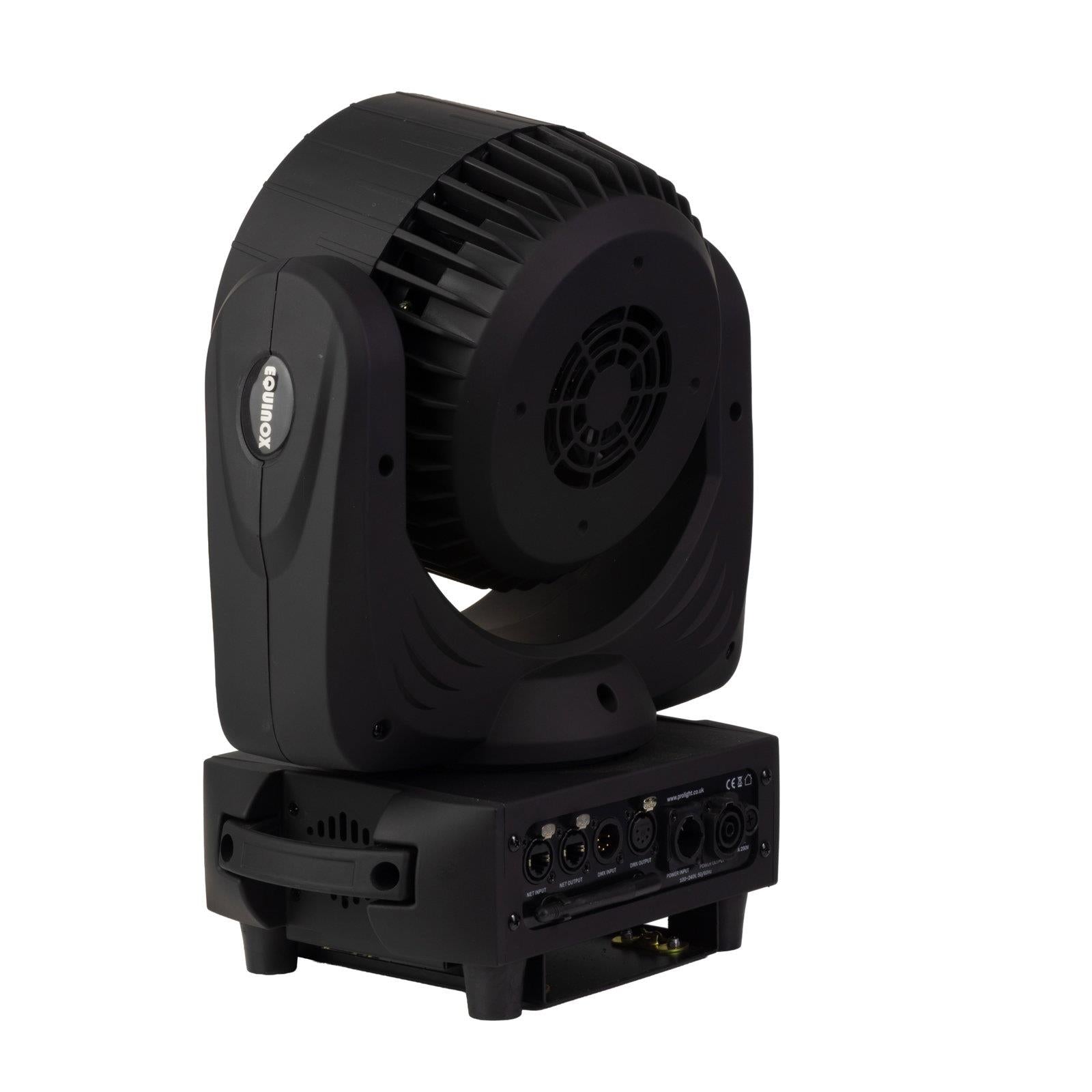

Cooling : Temperature-controlled fans
Included accessories : Quick-release omega clamps
Power consumption : 323W
Power supply : 100–240V, 50/60Hz
Fuse : F4A 250V
Dimensions : 414 x 324 x 193 mm
Weight : 8.5 kg
