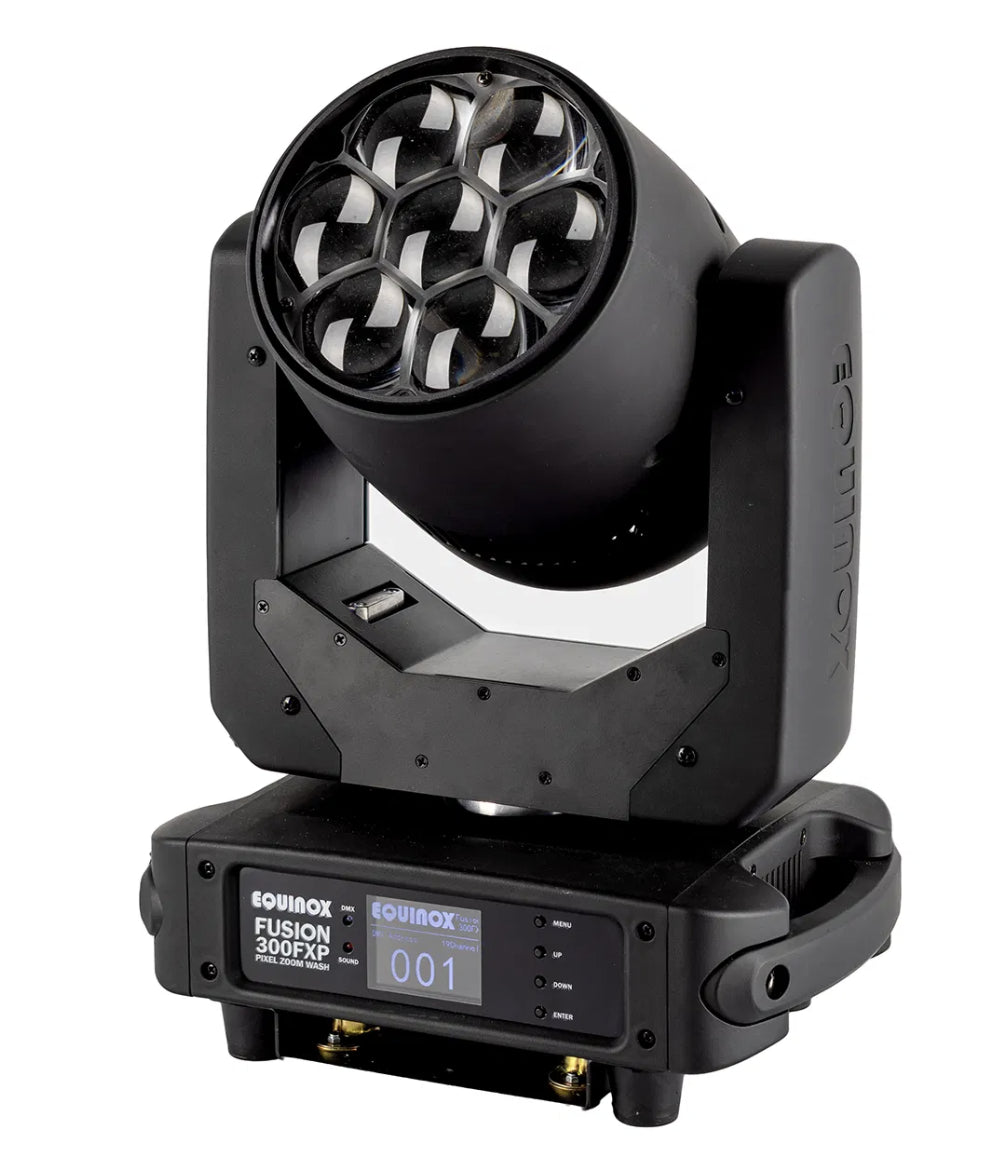

Equinox Fusion 300FXP Pixel Zoom Wash Moving Head 7 x 40W RGBW

Description

The Equinox Fusion 300FXP Zoom Wash is a compact RGBW moving head fixture featuring 7 x 40W quad-colour LEDs (RGBW), fully pixel mappable to create stunning eye candy effects. A motorised zoom function ranges from a narrow 5° beam angle to a wide 40°, and the front-lens rotation allows superb mid-air multibeam effects and wide washes of colour. This powerful stage lighting unit also includes colour temperature presets, DMX, auto, sound active, manual control, and primary/secondary modes – all accessible via the onboard 4-button menu.

7 x 40W quad-colour LEDs (RGBW)

Adjustable beam angle: 5°–40°

5° – 86,570 Lux @ 2m (full on), 40° – 6,156 Lux @ 2m (full on)

CRI: 70

Refresh rate: 3kHz

Motorised zoom

Full pixel mapping capabilities

Front lens rotation

DMX channels: 2/10/14/19/40/45 or 49 selectable

Auto, sound active, manual control and primary/secondary modes

Colour temperature presets

Forward facing show mode

Pan/tilt auto correction

16-Bit pan/tilt positioning

Pan: 540°, Tilt: 270°

0–100% dimming

Variable strobe

Quick release omega clamps included

Square hole spacing supports multiple clamp orientations

4 button menu with 2.6” LCD display

PowerTwist TR1 input/output

5-Pin XLR input/output

3-Pin XLR input/output

Fan cooled

Power consumption: 300W

Power supply: 100~240V, 50/60Hz

Fuse: F4A 250V

Noise level: 49.3dBA @ 1m

Dimensions (H x W x D): 385 x 310 x 190mm

Weight: 8.7kg
