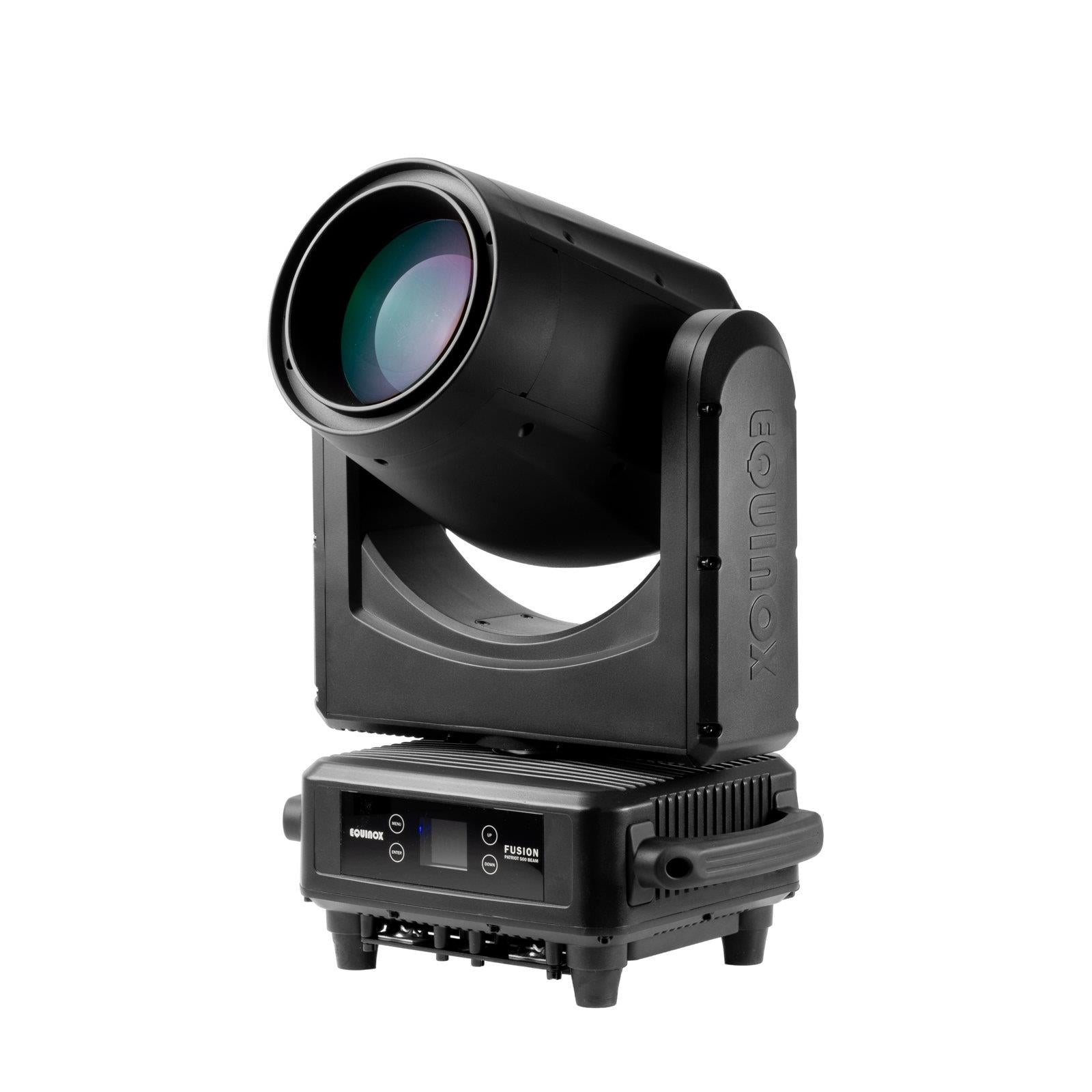

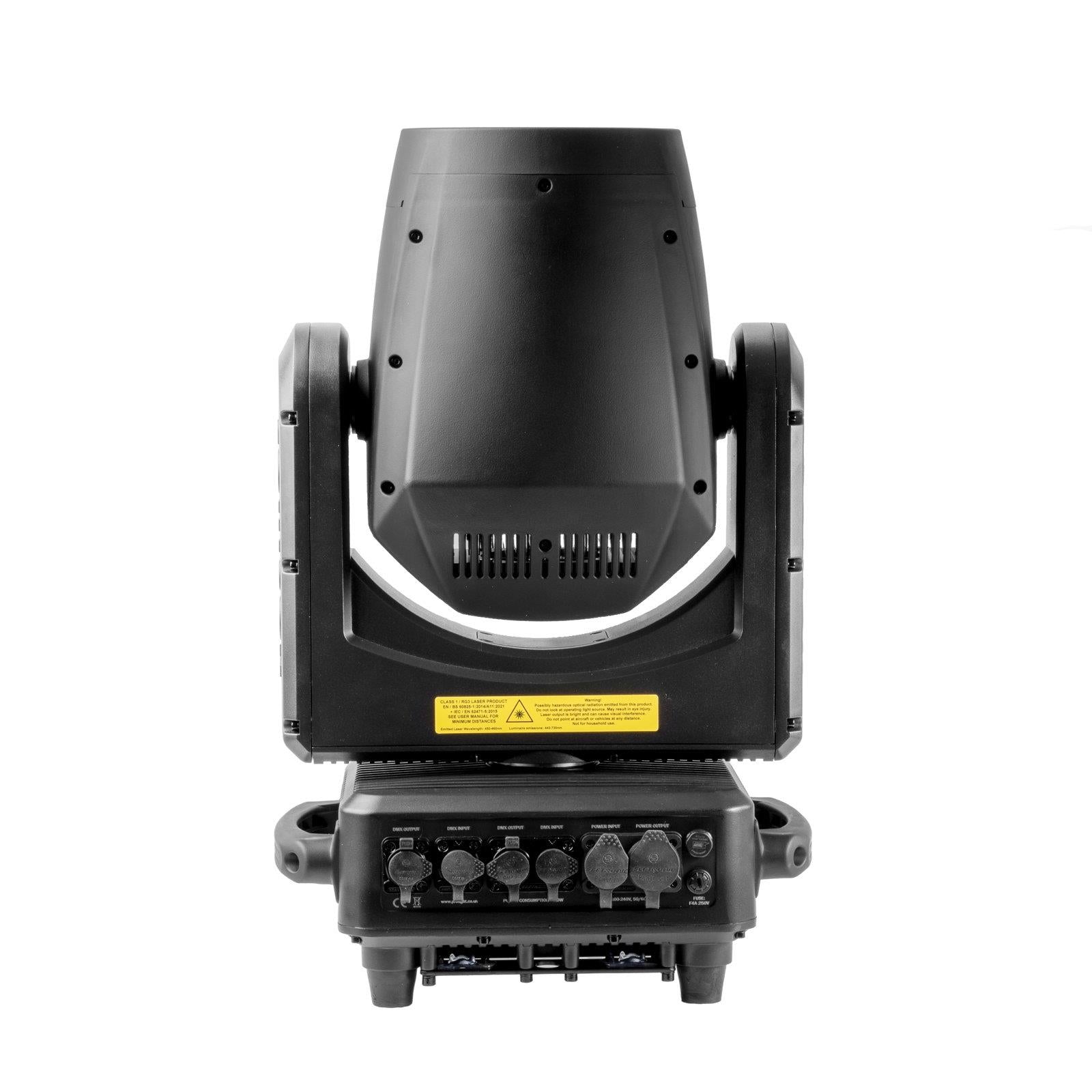

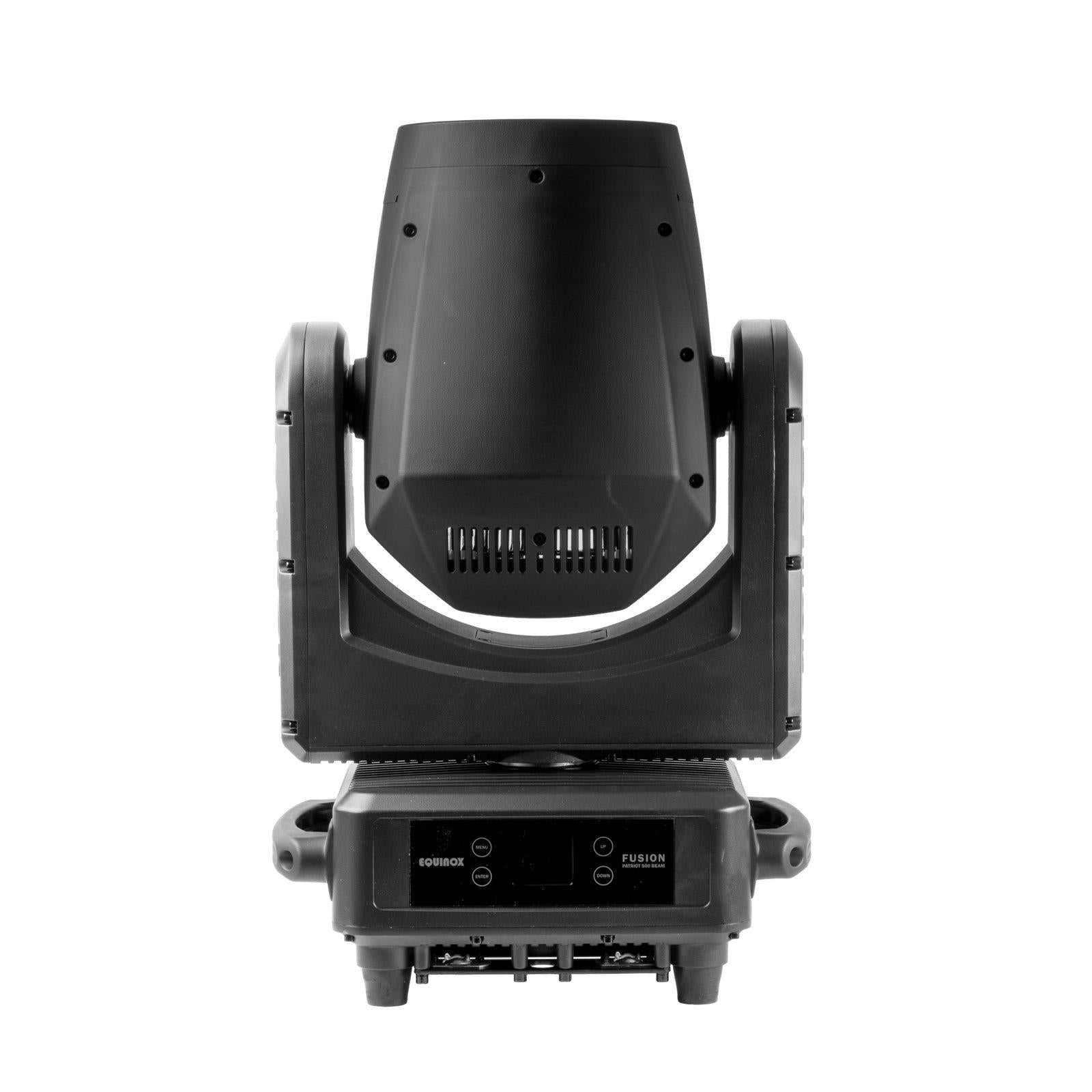

Equinox Fusion Patriot 500 Beam Laser Moving Head IP65

Description

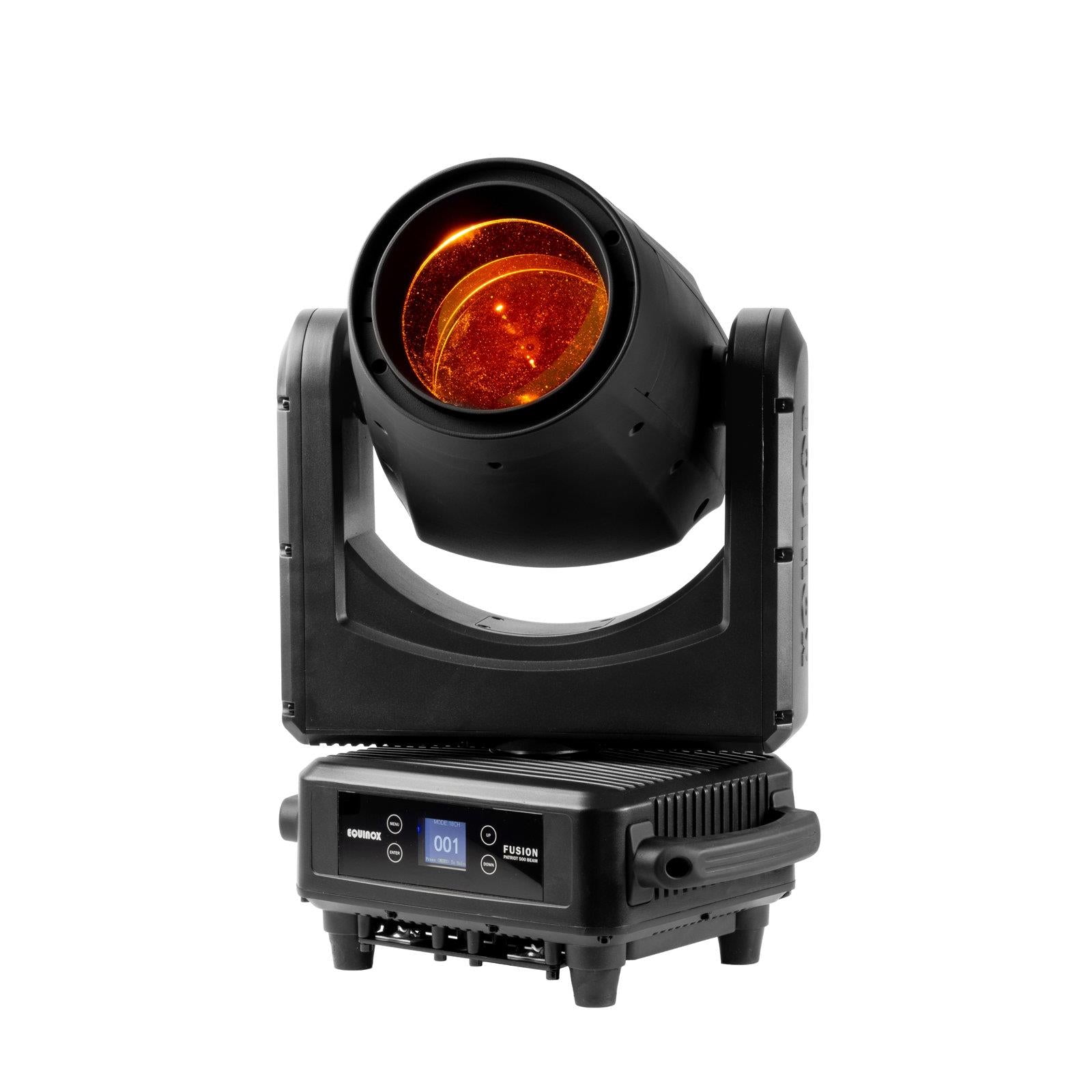

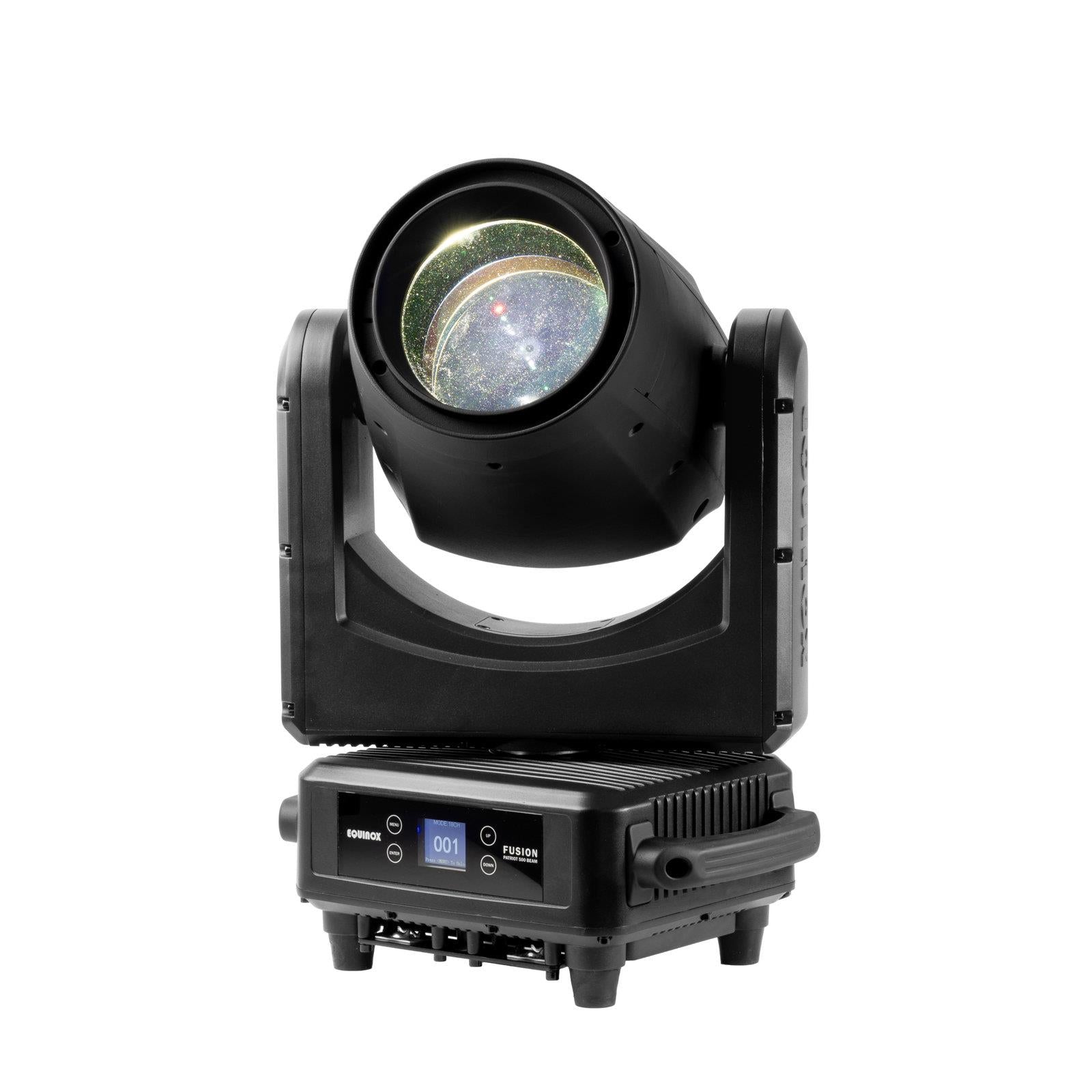

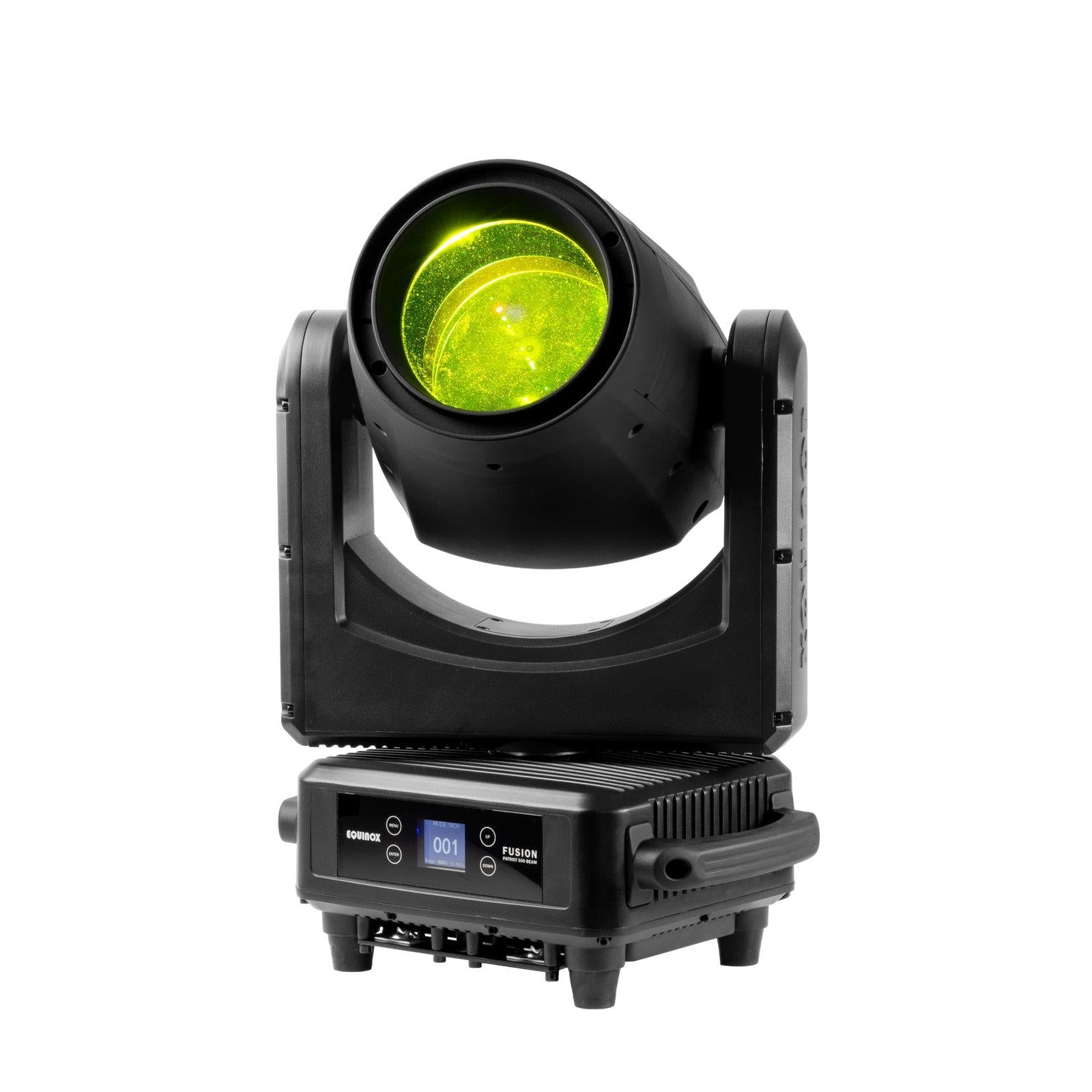

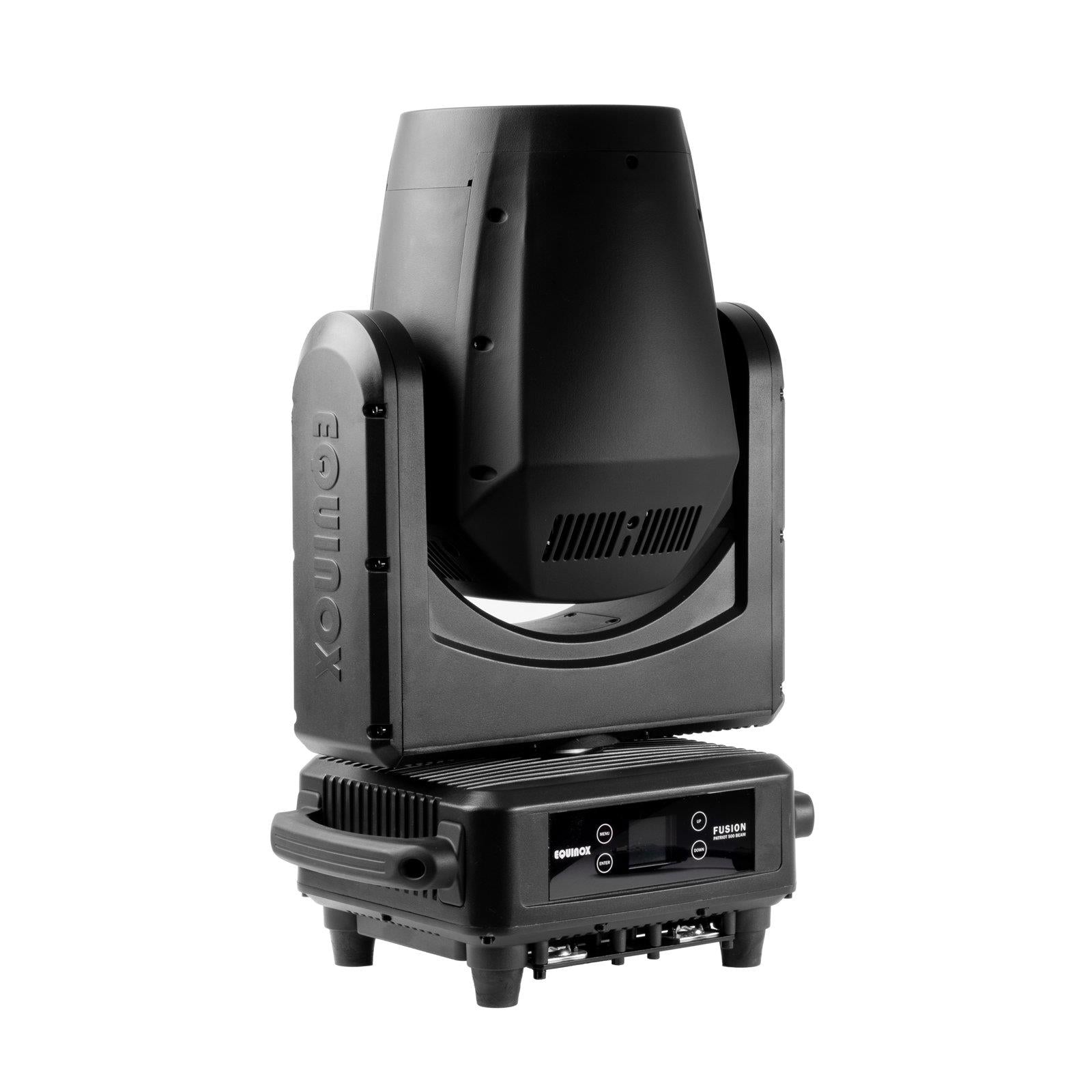

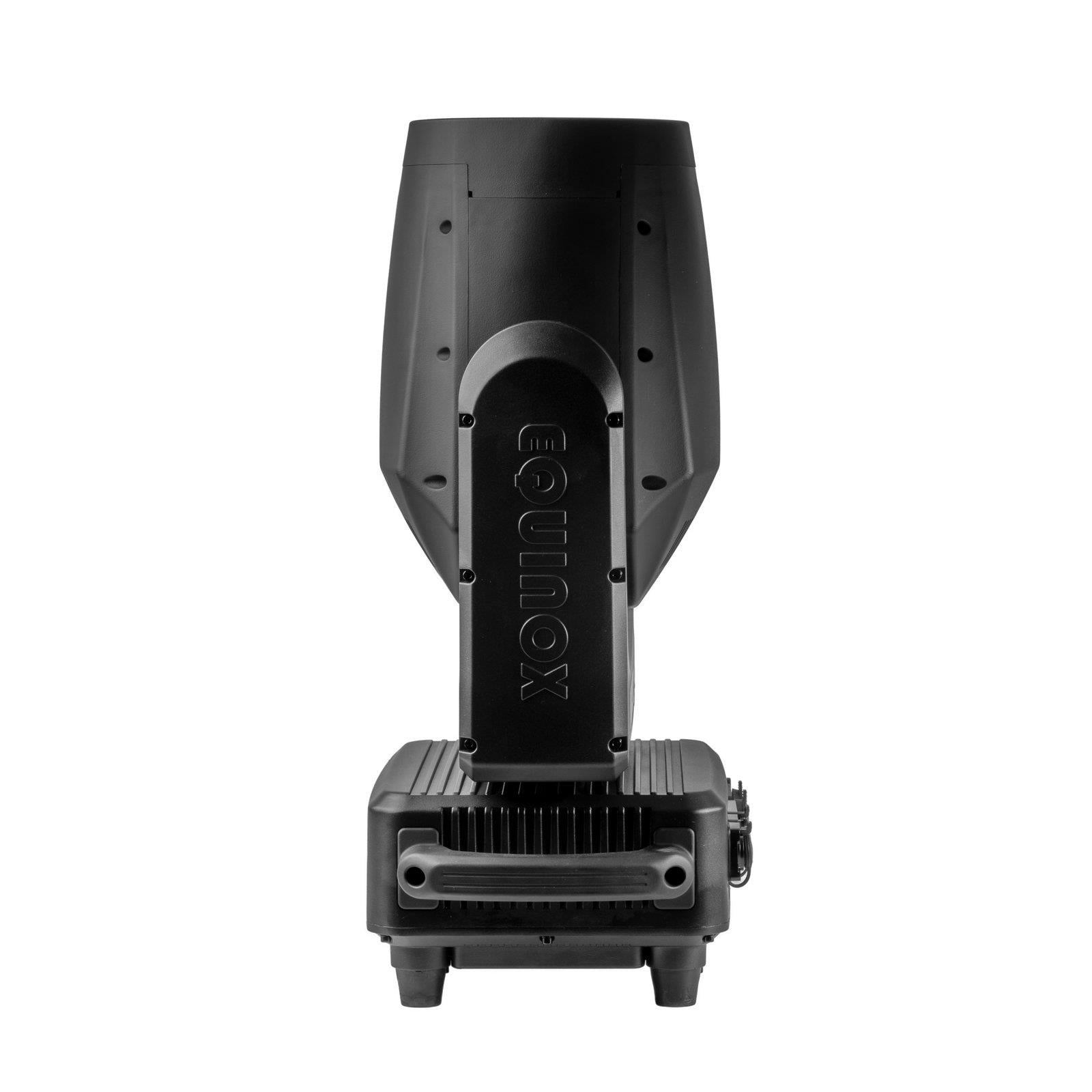

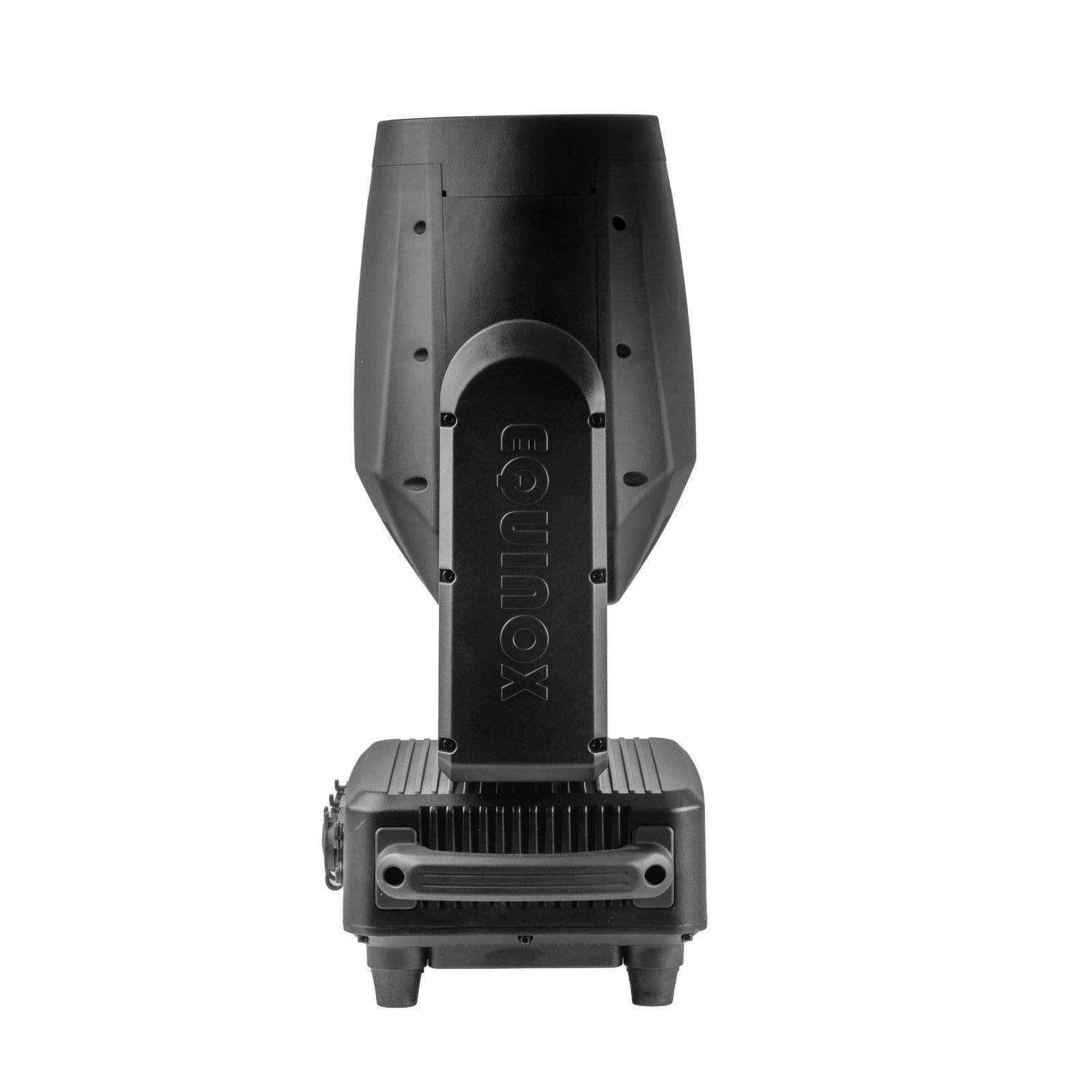

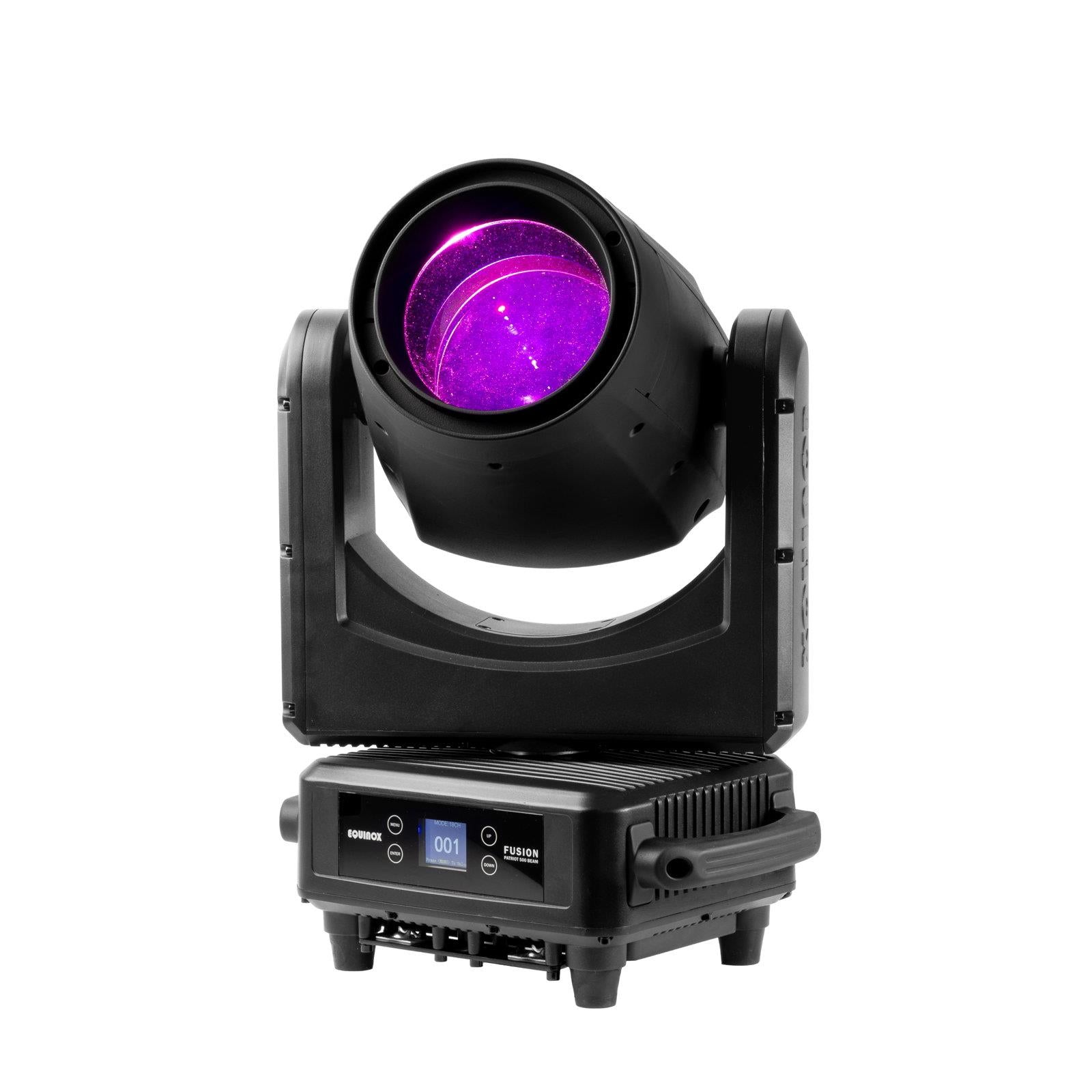

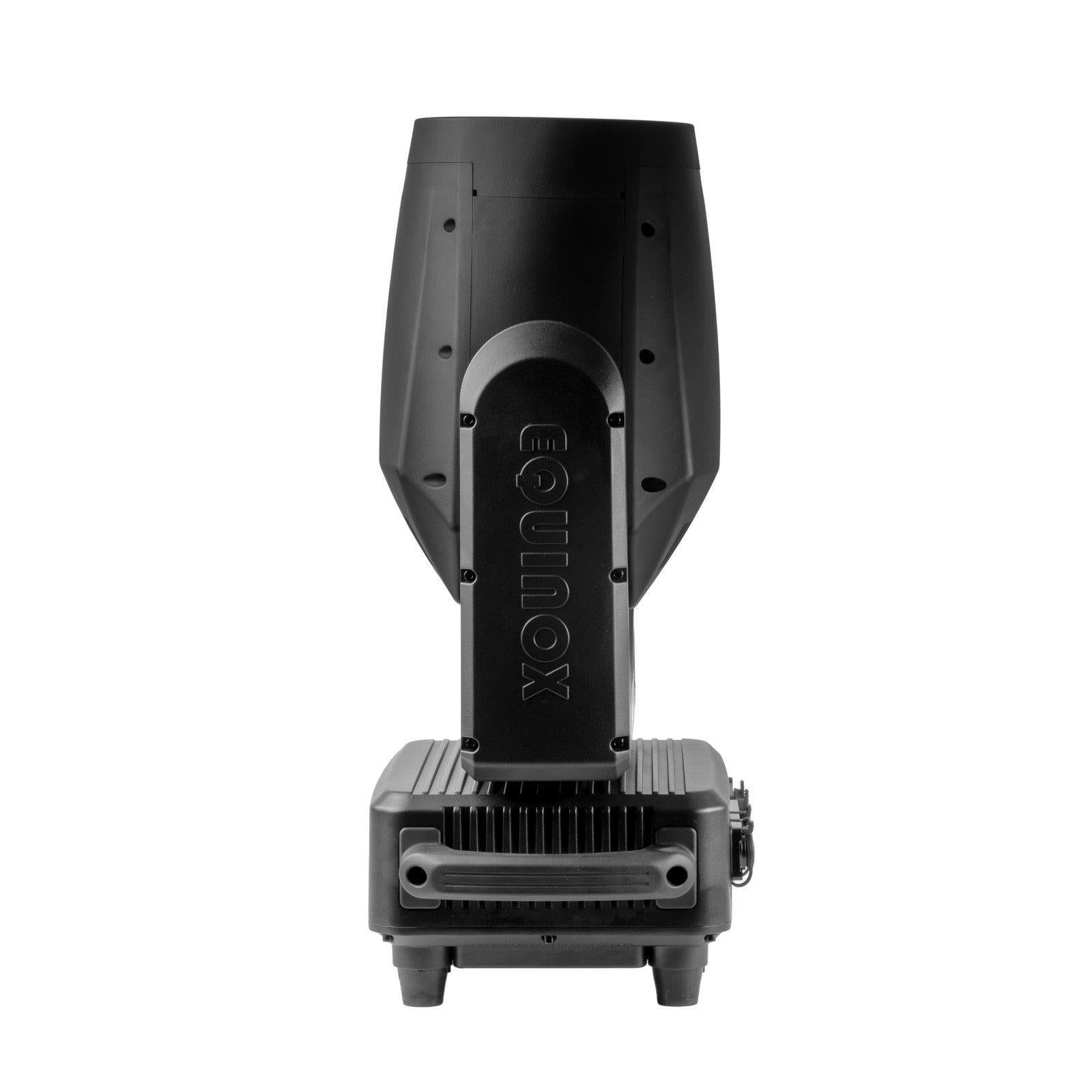

The Equinox Fusion Patriot 500 Beam is a compact IP65-rated moving head designed for professional stage, touring and event use. Its 50W white laser source produces a powerful 105,000 lux at 10 metres through a tight 1° beam for highly defined aerial effects.

Creative options include 19 static gobos, a 12-colour wheel, rainbow effects, dual prism wheels, frost and motorised focus. 16-bit pan and tilt, auto correction and variable strobe provide precise movement and effect control.

DMX, wireless W-DMX compatible control and primary/secondary modes provide flexible operation, while PowerTwist TR1, 3-pin and 5-pin DMX connections allow straightforward integration into professional rigs.

Features

50W white laser source
1° beam angle
105,000 lux at 10 m
19 static gobos plus open
12-colour wheel plus open
6-colour rainbow effect
Dual prism wheels
Motorised focus
Frost filter
16-bit pan and tilt
Pan/tilt auto correction
Wireless DMX compatible
14 or 18 DMX channels
IP65 rated

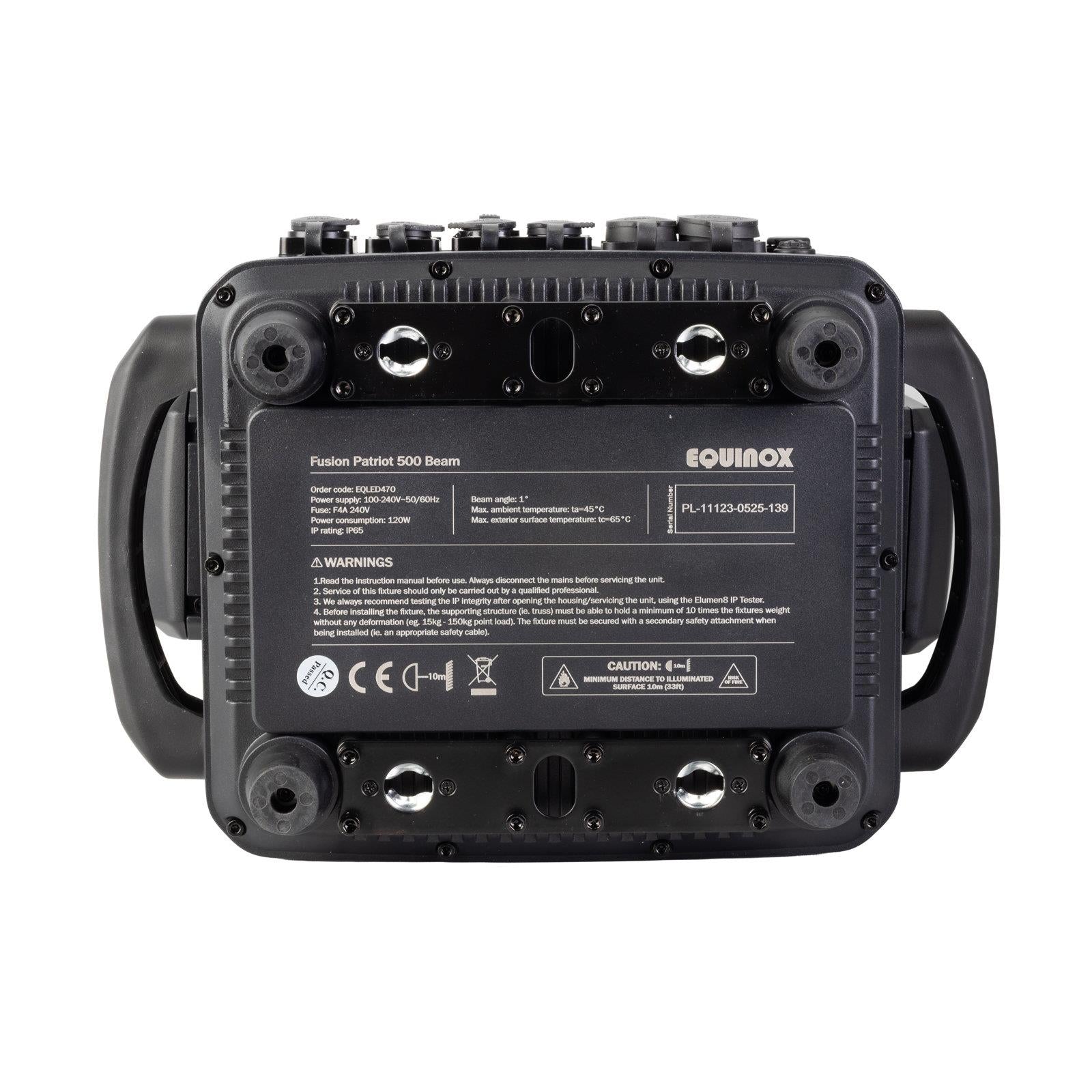

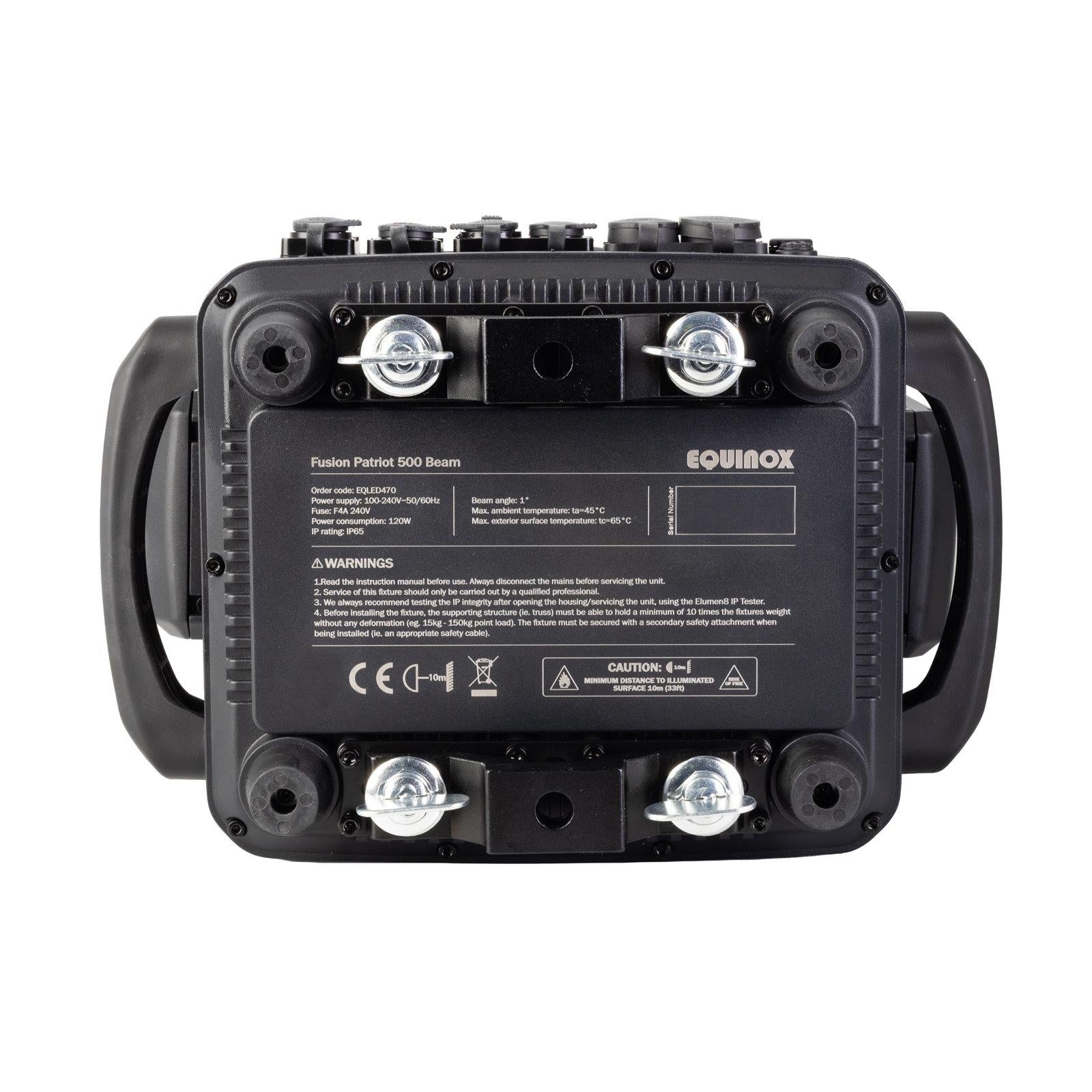

Quick-release omega clamps included

Specifications

Light Source : 50 W White Laser
Colour Temperature : 7000 K
Rated Life : Up to 12,000 Hours
Beam Angle : 1°
Illuminance : 105,000 Lux at 10 m
Pan : 540°
Tilt : 220°
DMX Channels : 14 or 18
Dimming : 0-100%
Refresh Rate : 650 Hz - 25 kHz
Power Consumption : 120 W
Power Supply : 100-240 V AC, 50/60 Hz

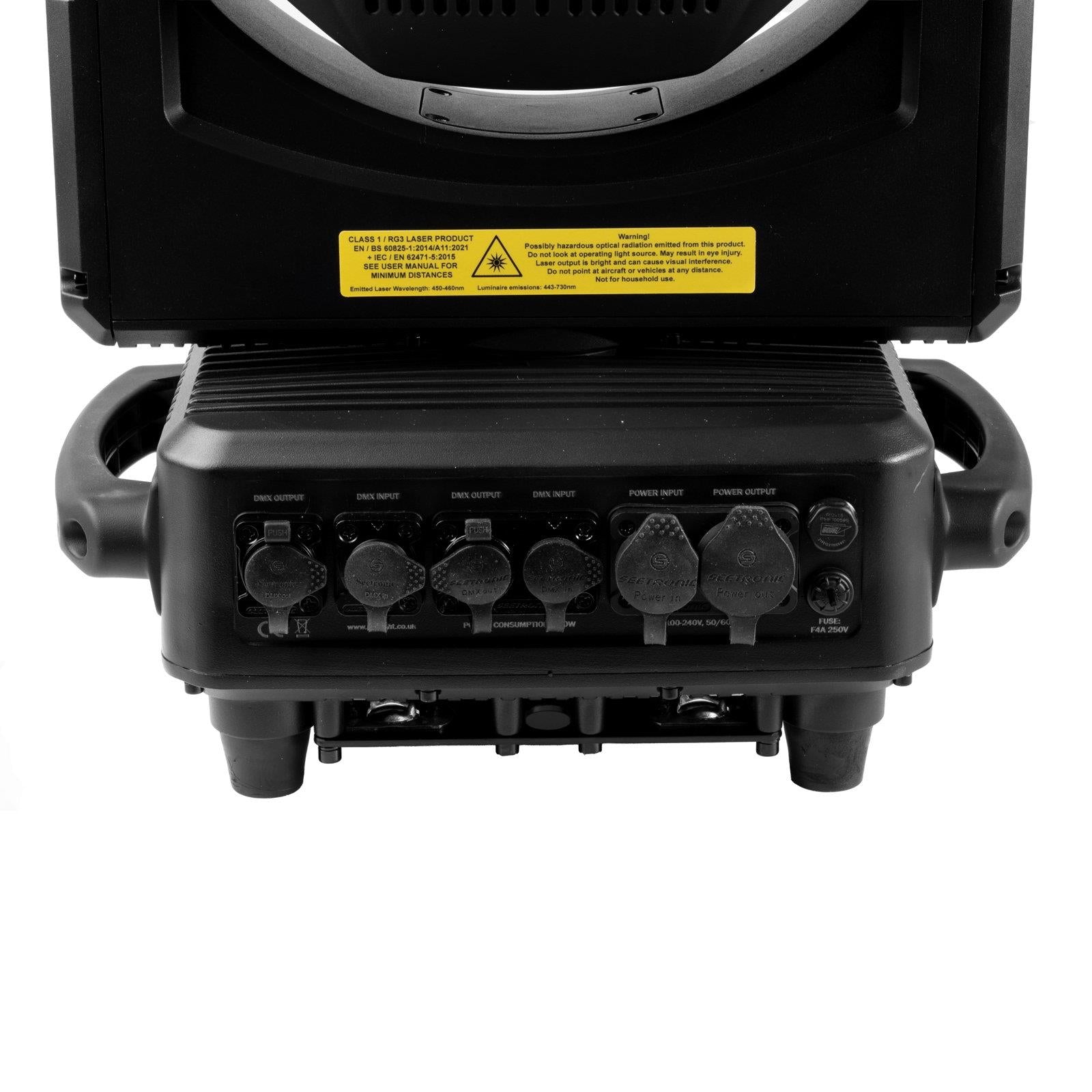

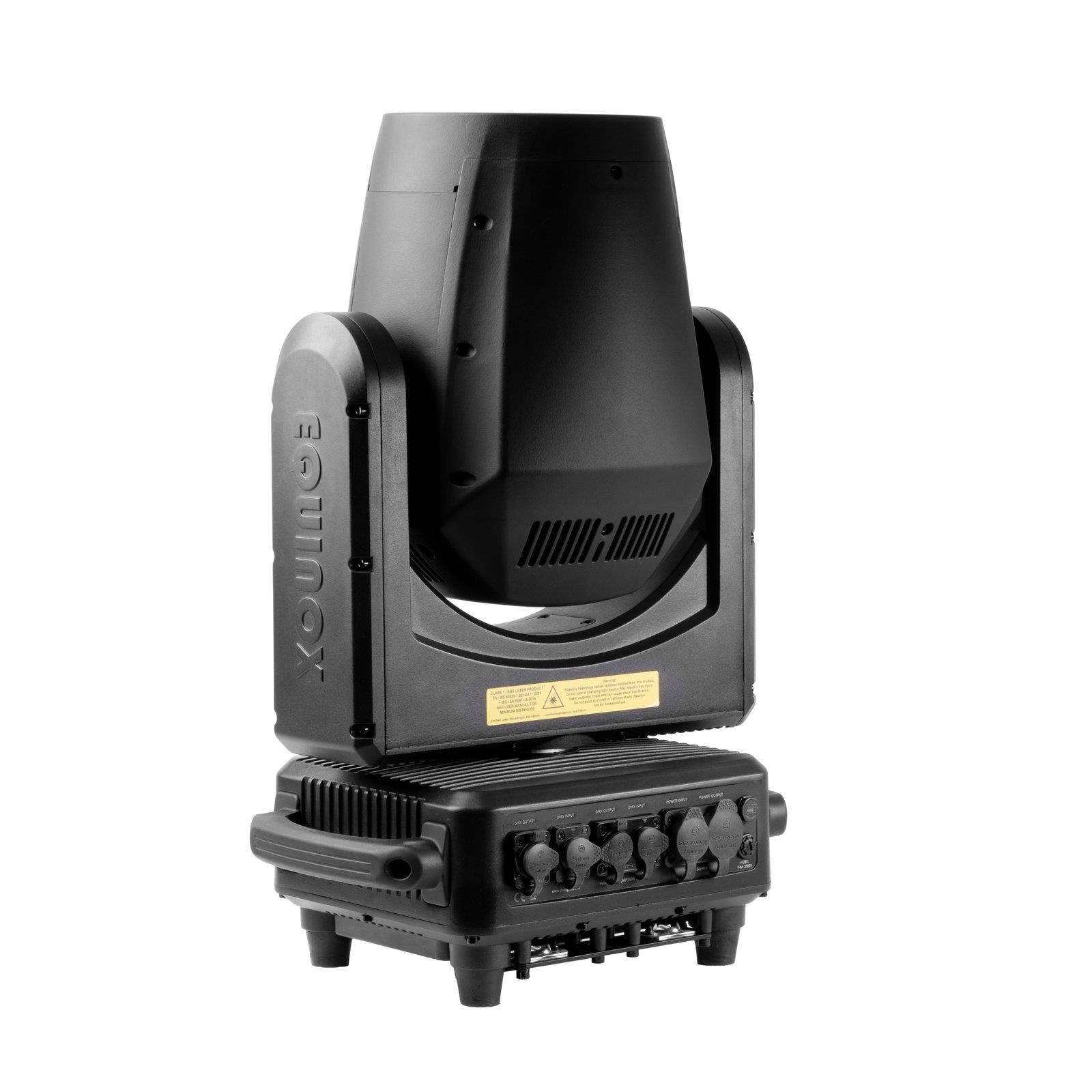

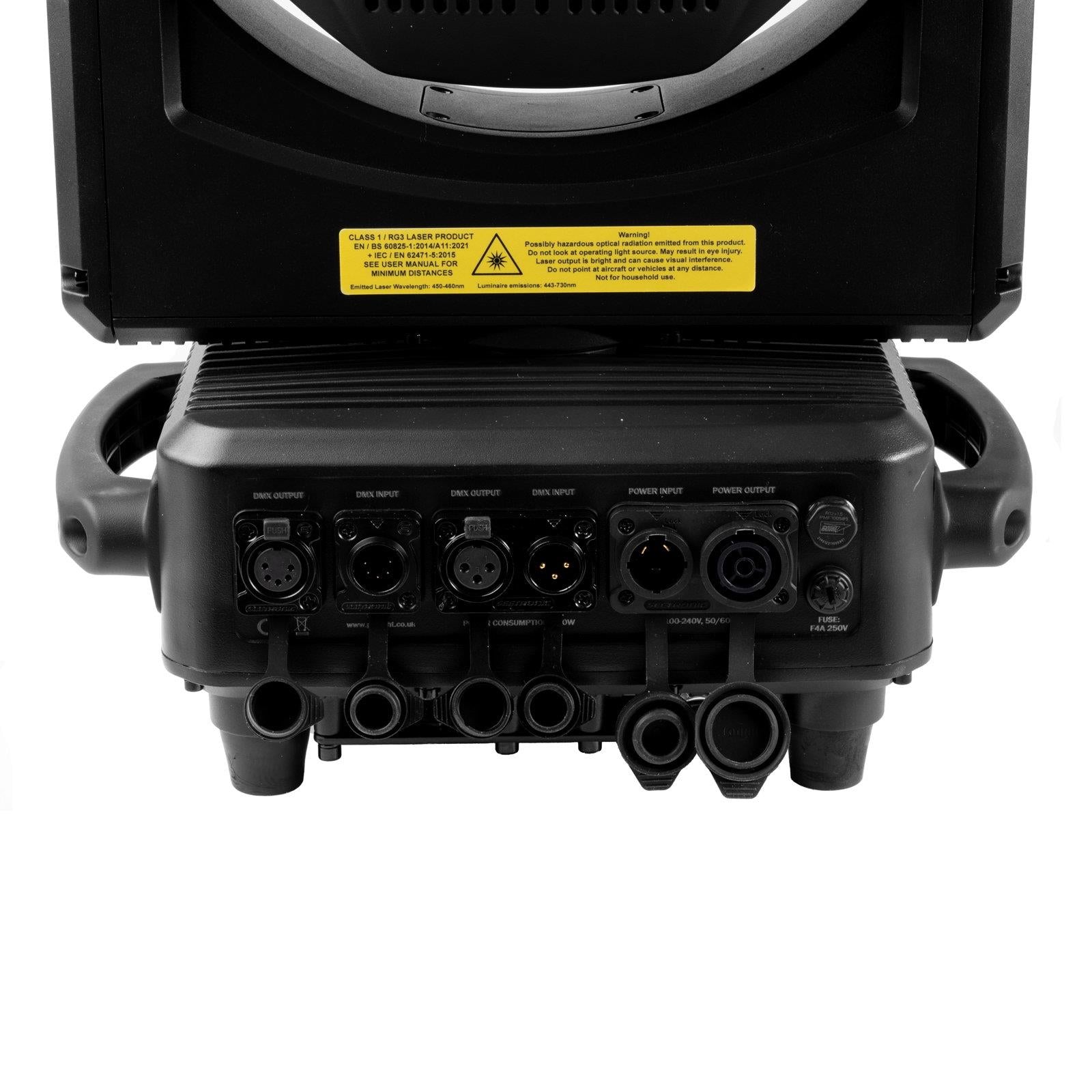

DMX Connections : 3-Pin and 5-Pin XLR In / Out
Power Connections : PowerTwist TR1 In / Out
IP Rating : IP65
Height : 545 mm
Width : 344 mm
Depth : 227 mm
Weight : 11.5 kg
