Equinox MaxiPar Quad MKII LED

Description:

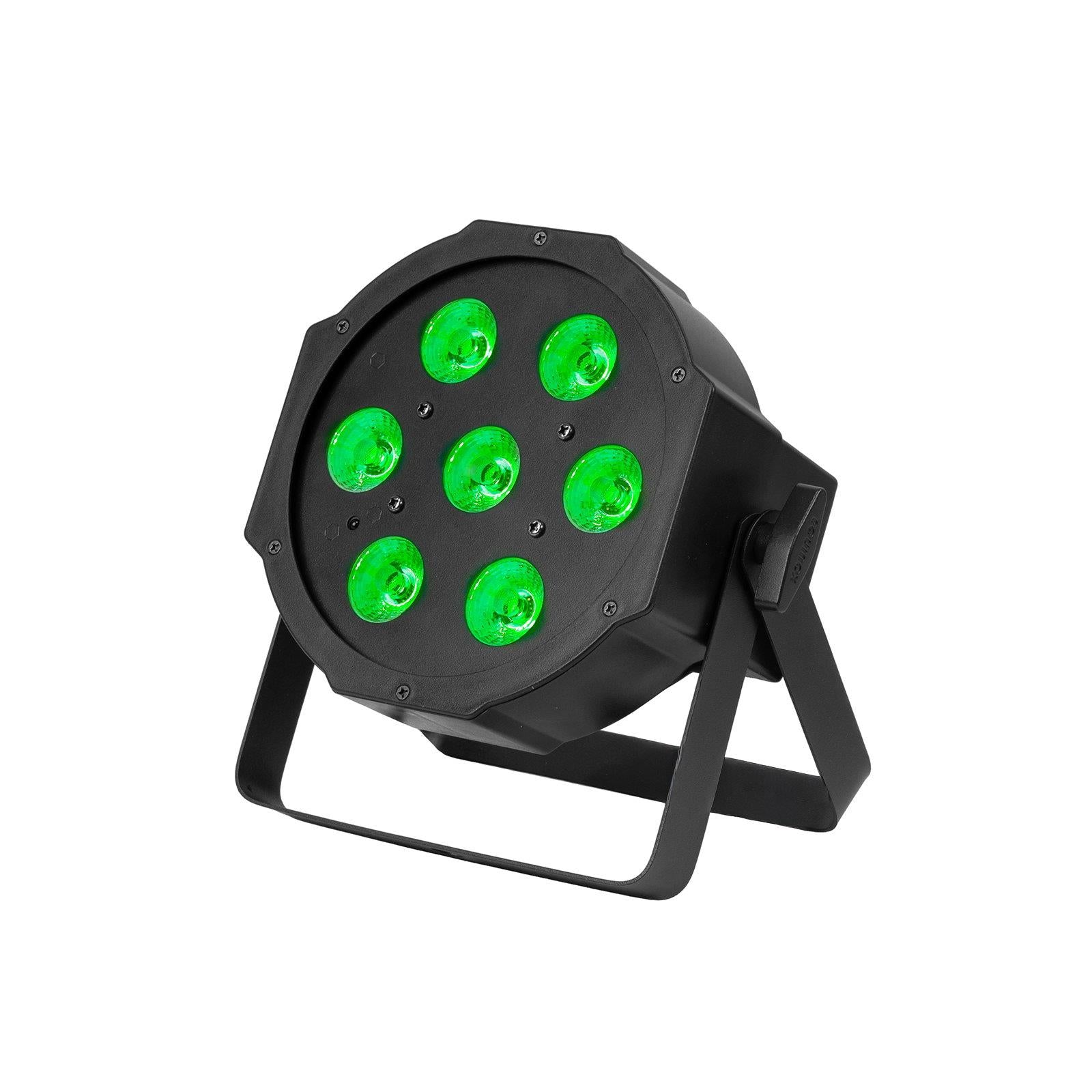

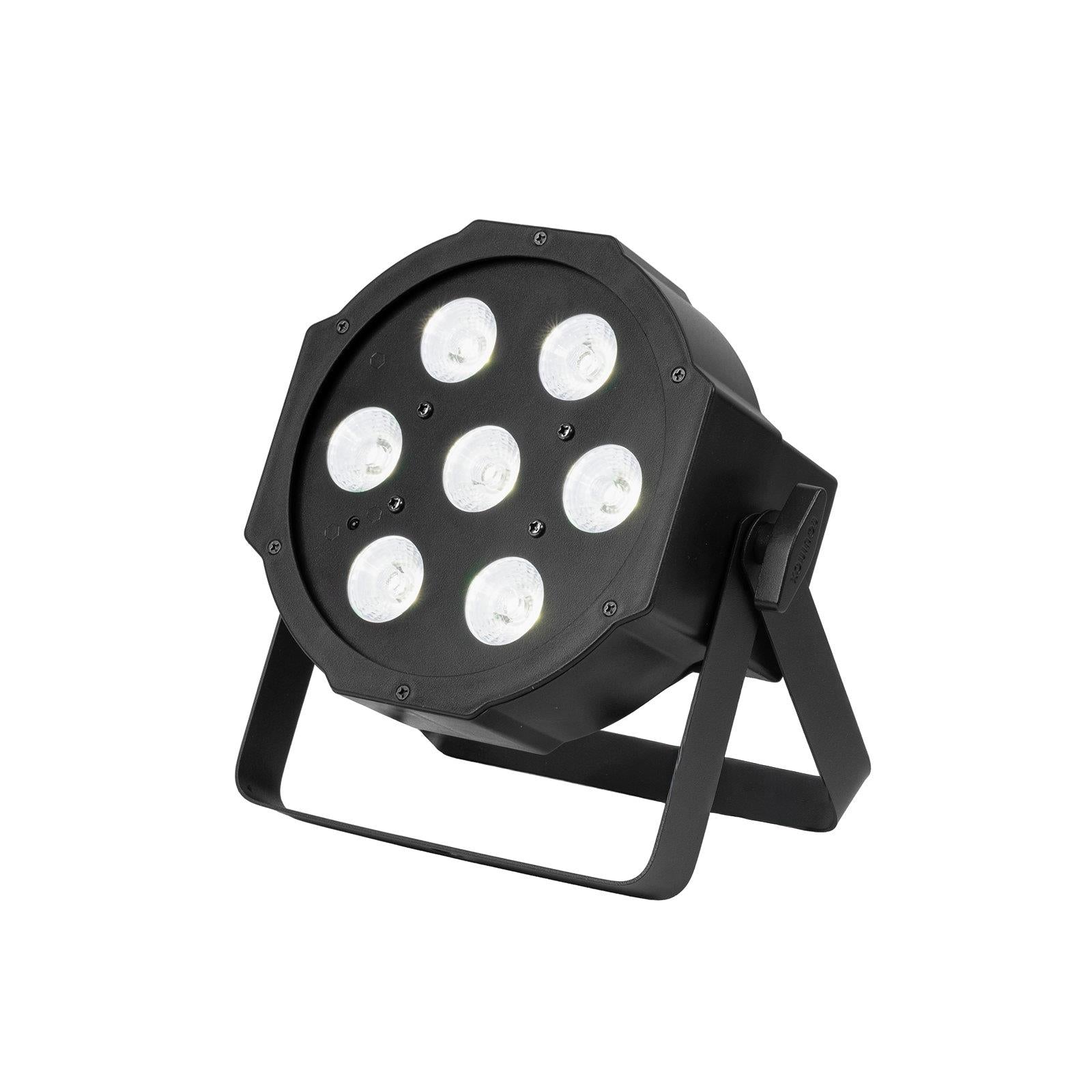

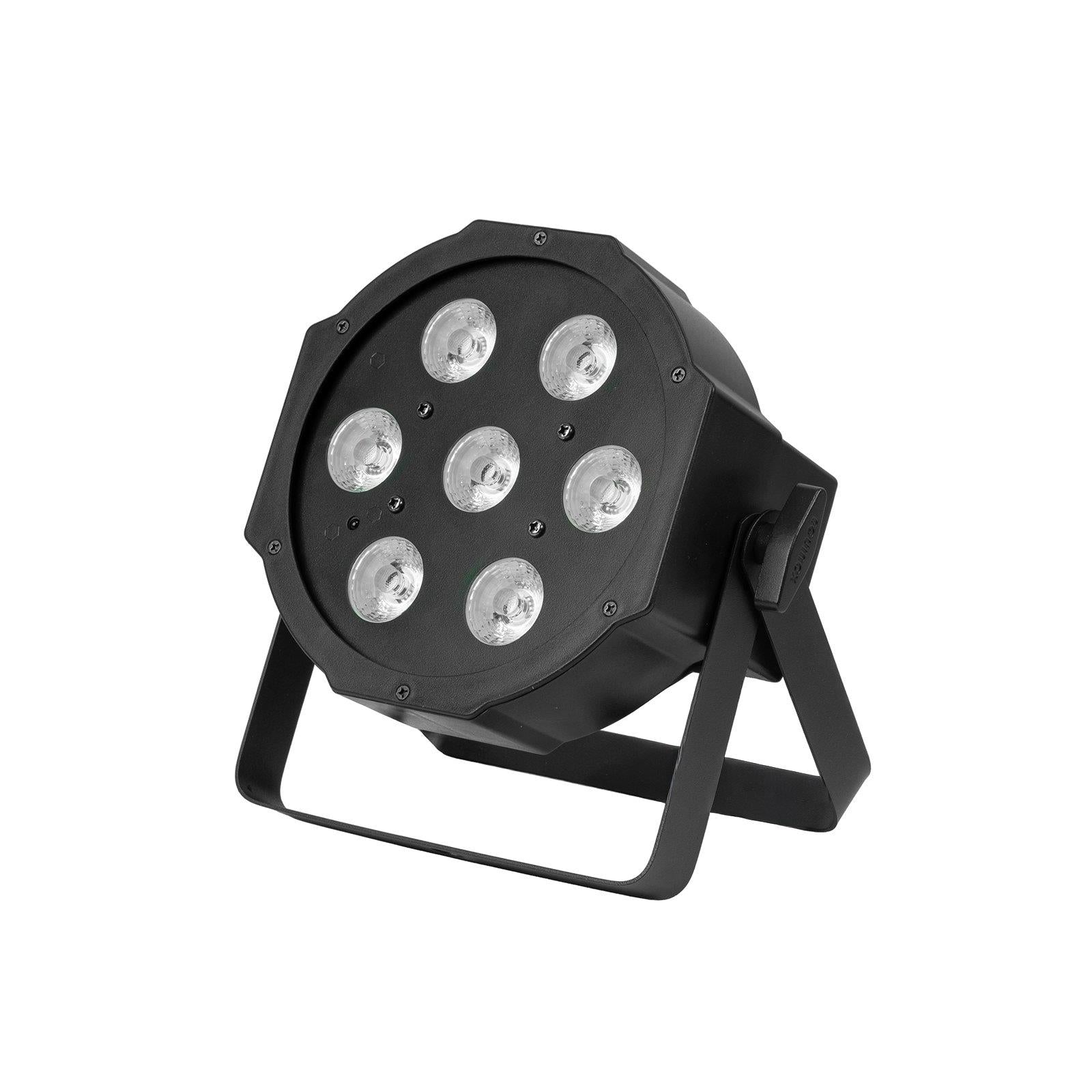

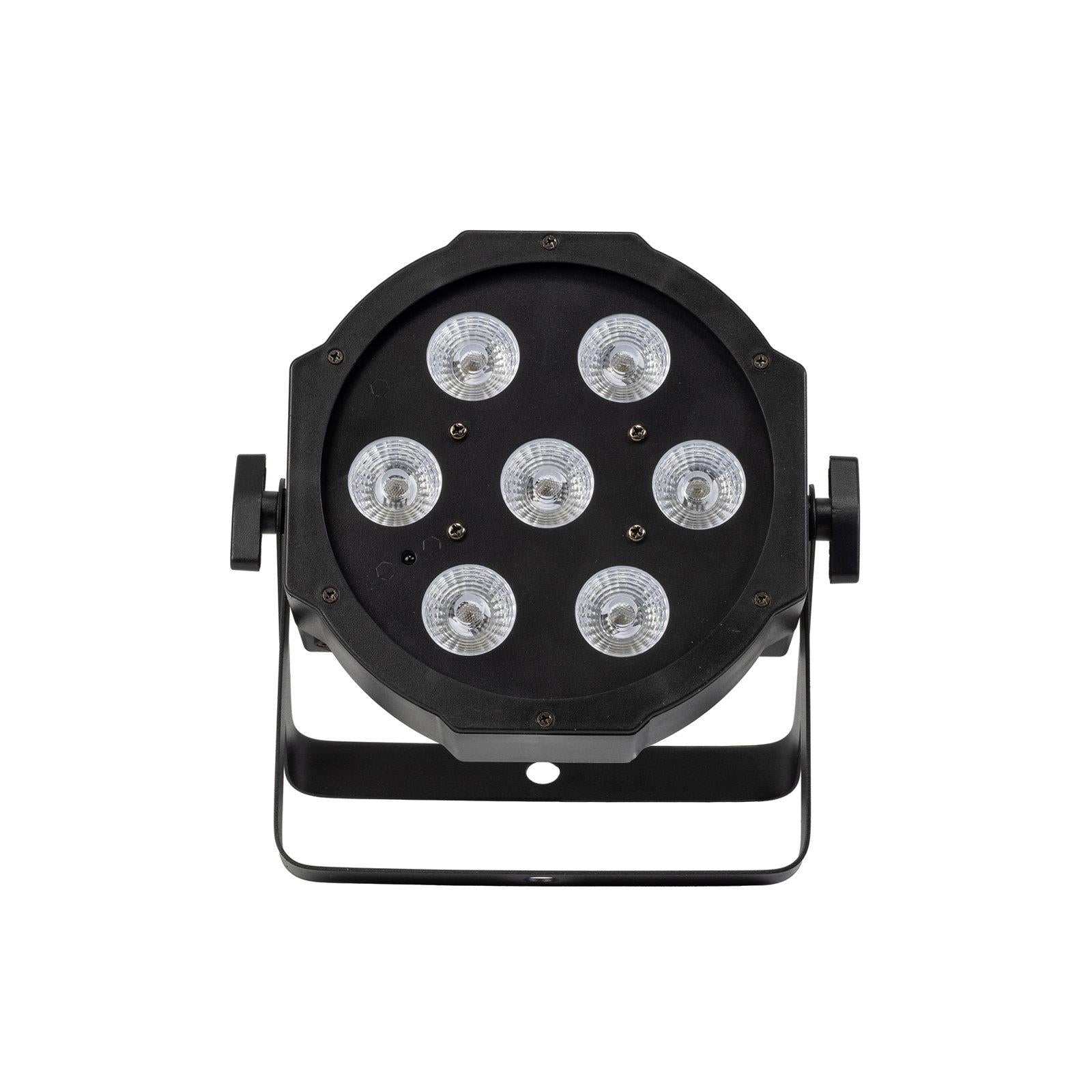

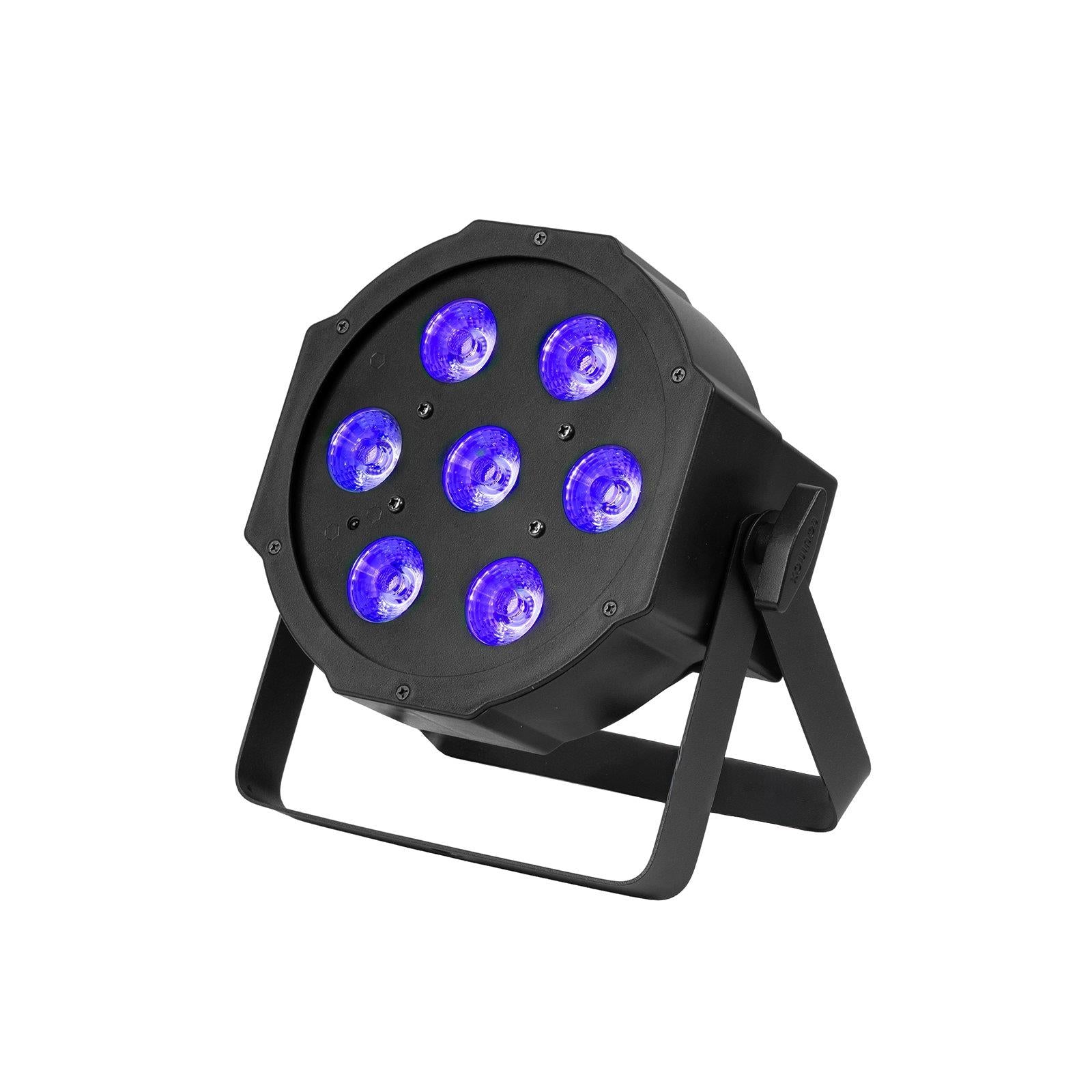

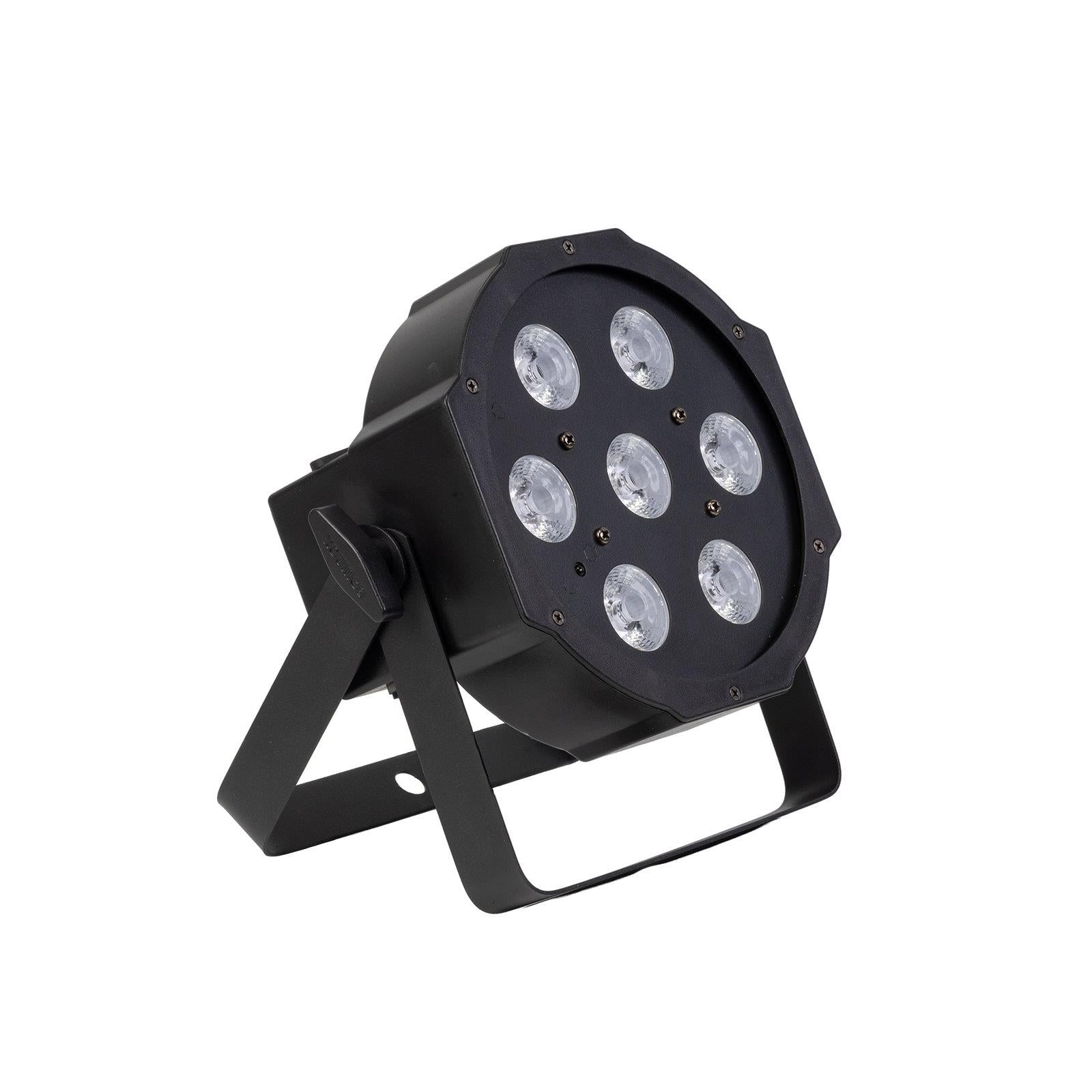

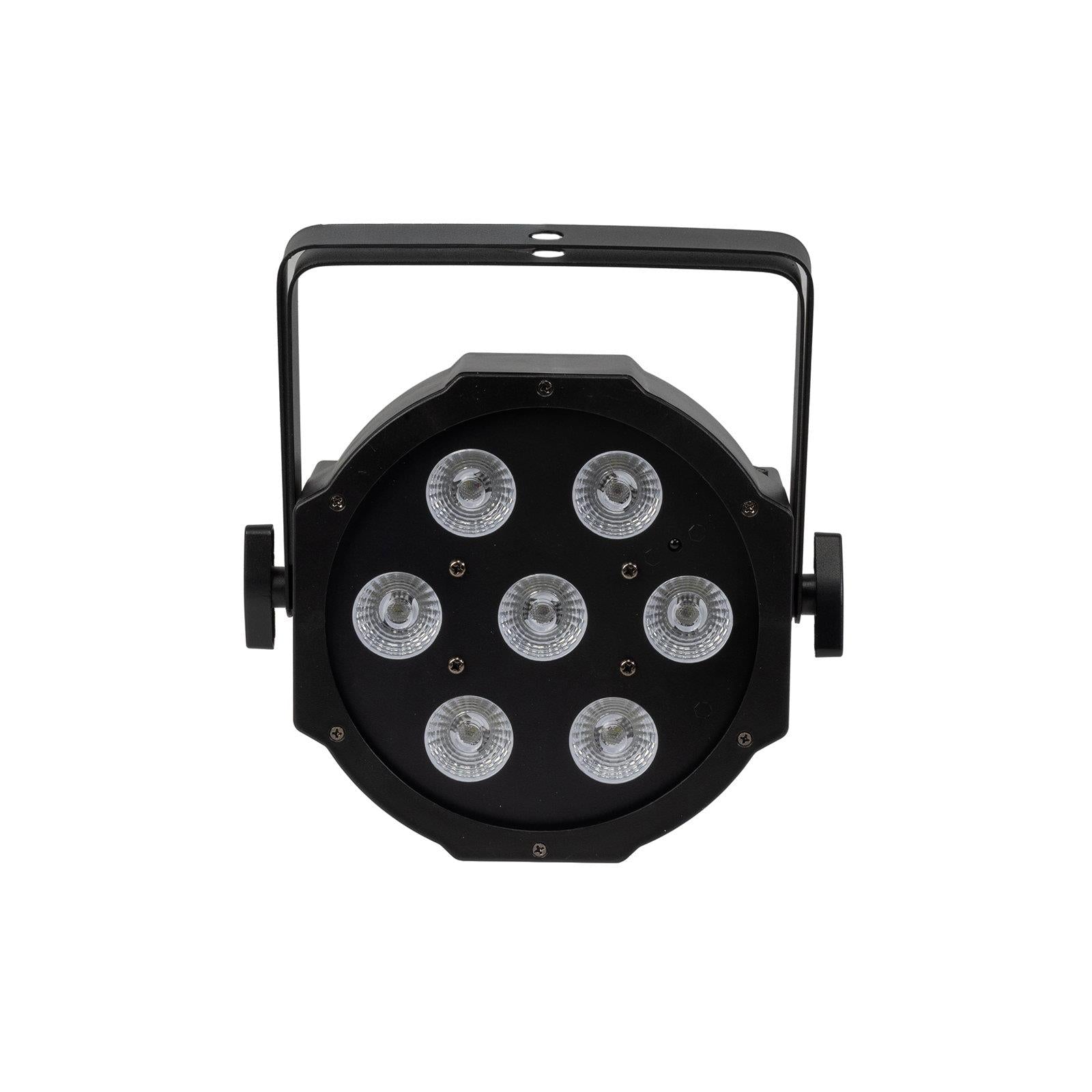

This compact, slimline PAR fixture is designed for both uplighting and stage lighting applications, delivering deep, rich colours that enhance any event or venue. Equipped with 7 x 5W quad-colour RGBW LEDs, it provides smooth and consistent colour mixing, allowing for a wide range of vibrant washes and subtle tones.

With multiple operational modes including DMX, auto, sound active, and primary/secondary (master/slave), this fixture offers flexibility for both standalone use and integrated lighting setups. The selectable DMX channel modes (2/3/3/4 or 10 channels) allow for varying levels of control depending on your requirements.

A 25° beam angle ensures focused output, while delivering an impressive 3,280 lux at 2 metres (full on), making it suitable for both ambient uplighting and more direct stage illumination. The fixture also features 0–100% dimming and variable strobe effects for dynamic lighting control.

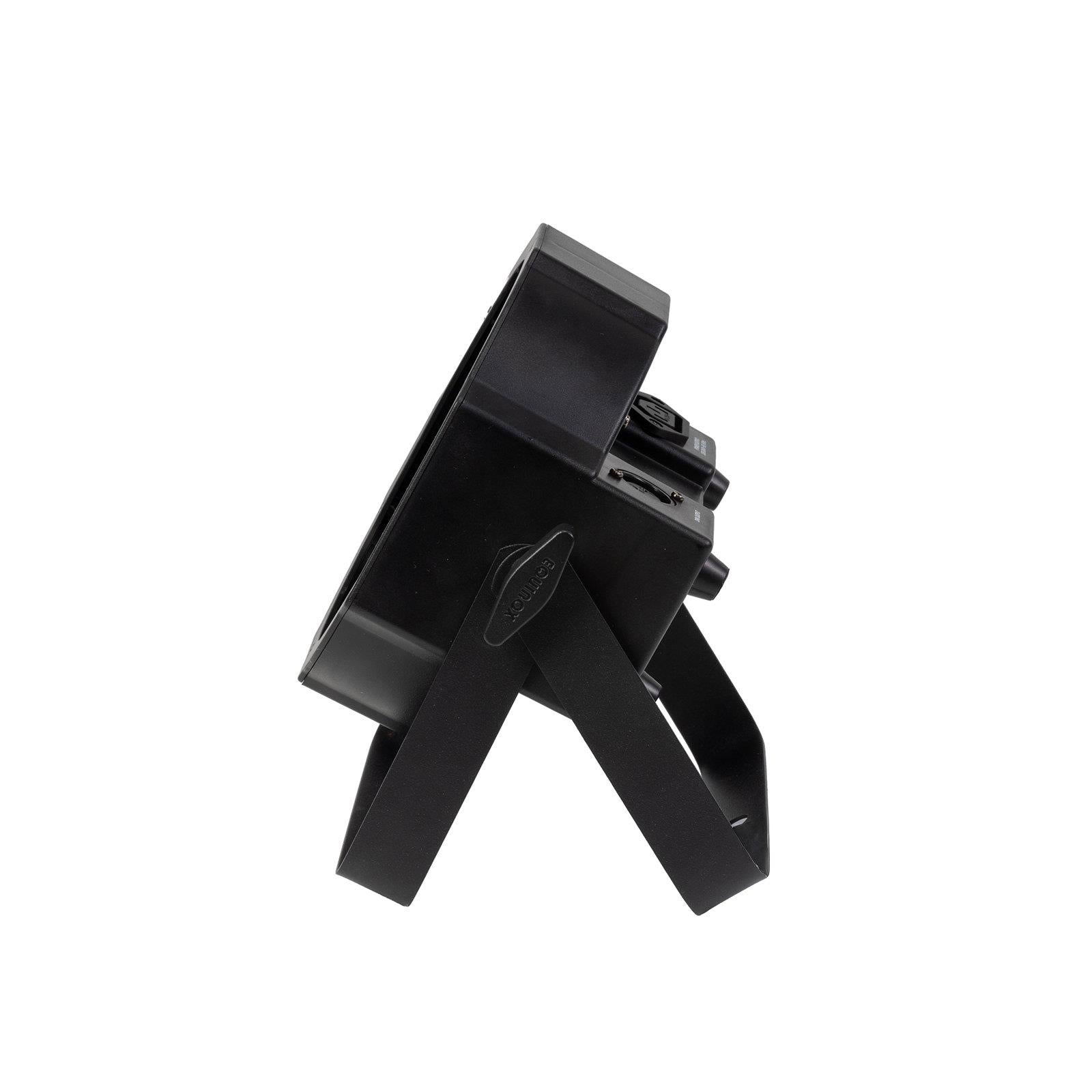

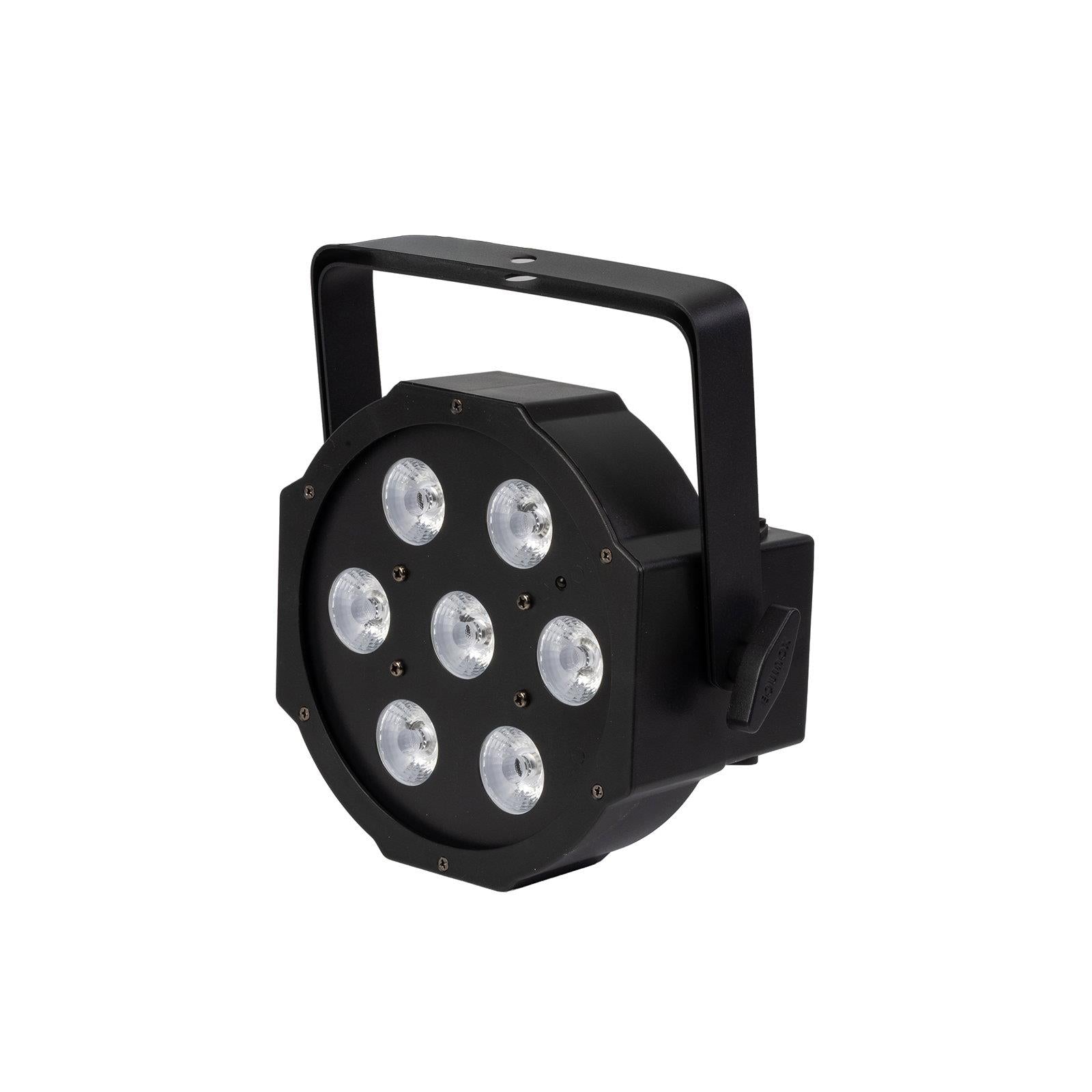

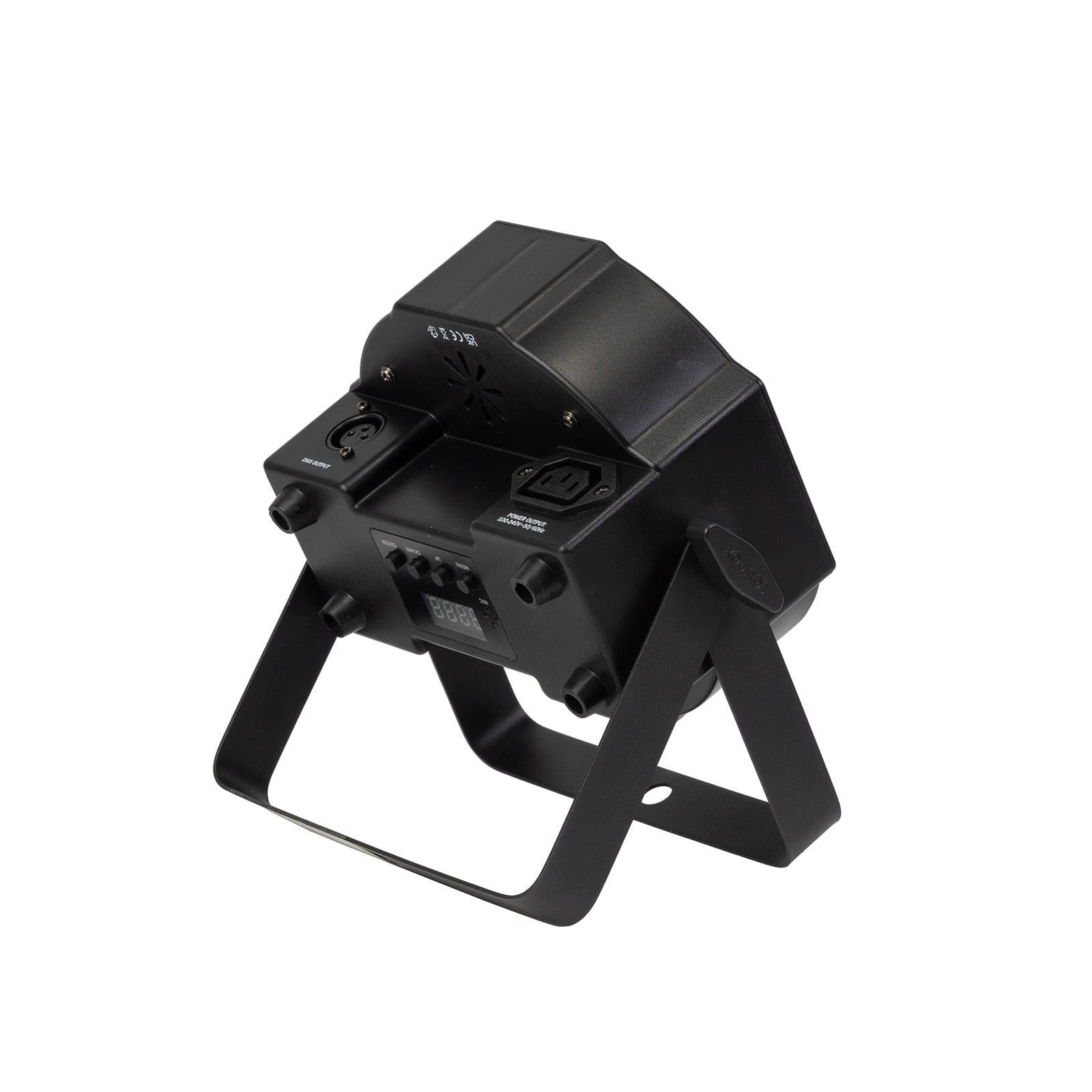

Designed with practicality in mind, the adjustable bracket supports multiple rigging options or floor standing use, while integrated rubber feet allow the unit to sit flat for uplighting applications. Side-entry power and DMX connections ensure a neat and space-saving installation, particularly useful in tight setups.

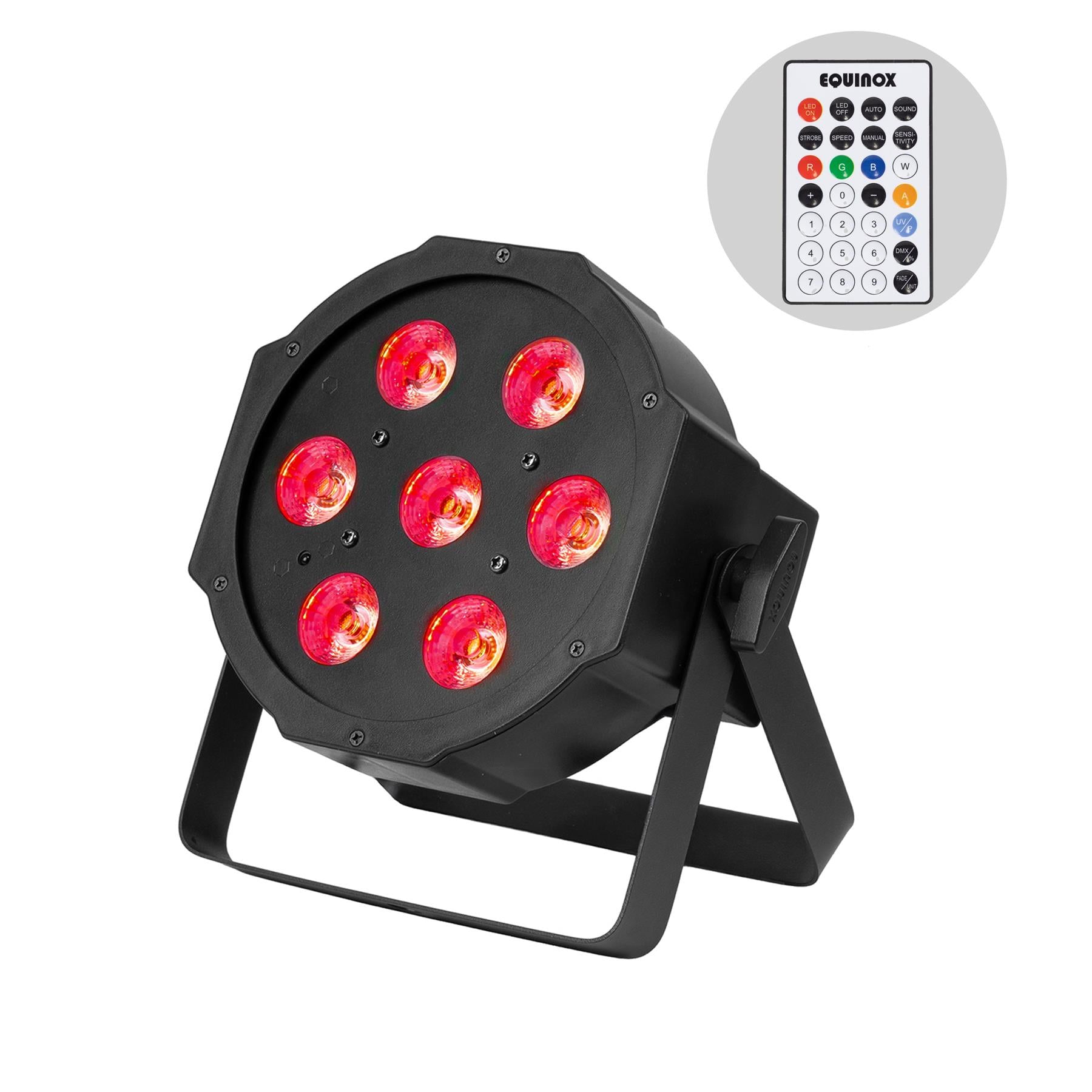

Complete with a 4-button LED display for easy navigation and an included IR remote for convenient control, this unit is ideal for DJs, venues, and event professionals seeking reliable and versatile lighting performance.

Features:

Type: Slim LED PAR Fixture
Light Source: 7 x 5W Quad-Colour LEDs (RGBW)
Beam Angle: 25°
Output: 3,280 Lux @ 2m (full on)
DMX Channels: 2 / 3 / 3 / 4 or 10 selectable
Control Modes: DMX, Auto, Sound Active, Primary/Secondary
Dimming: 0 – 100%
Strobe: Variable

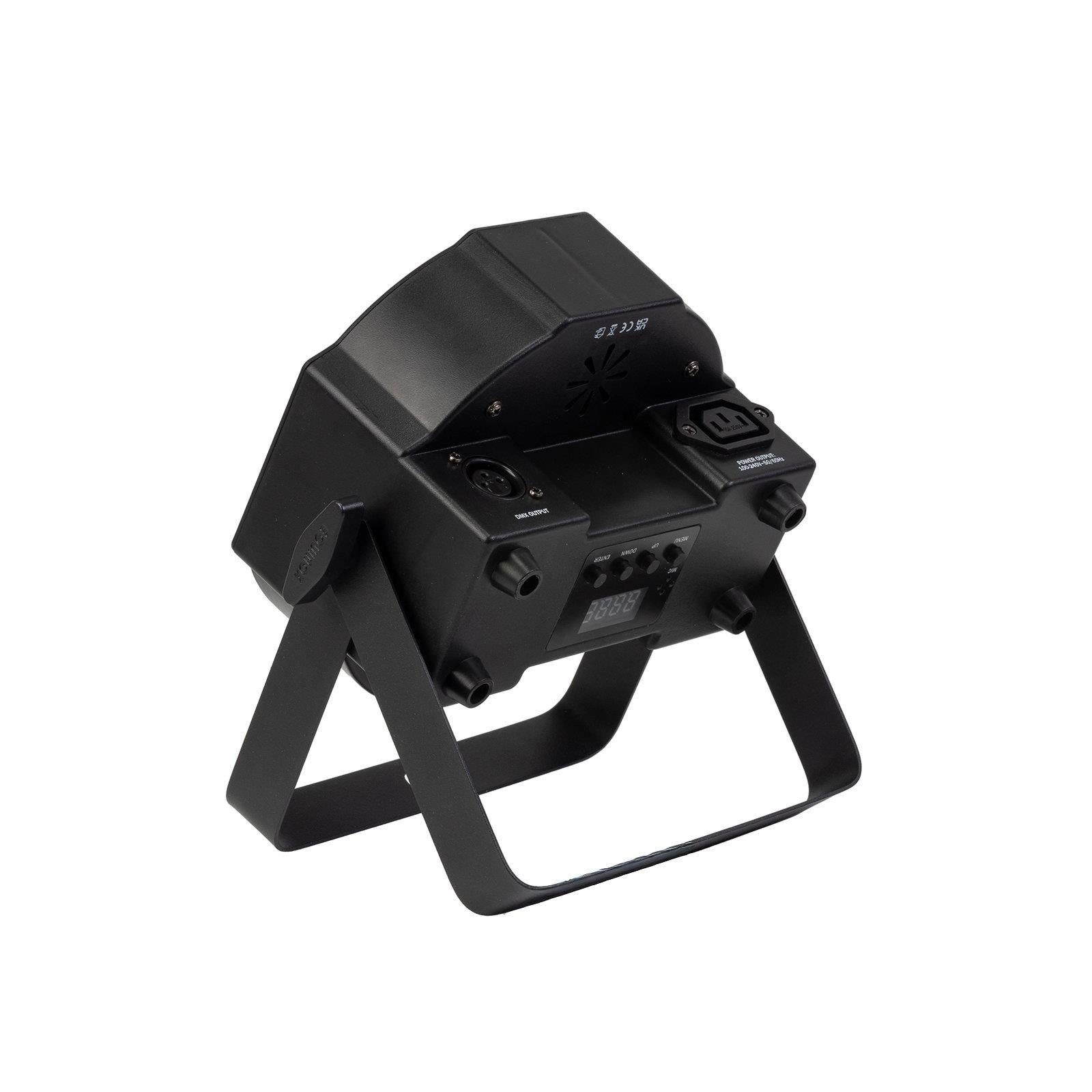

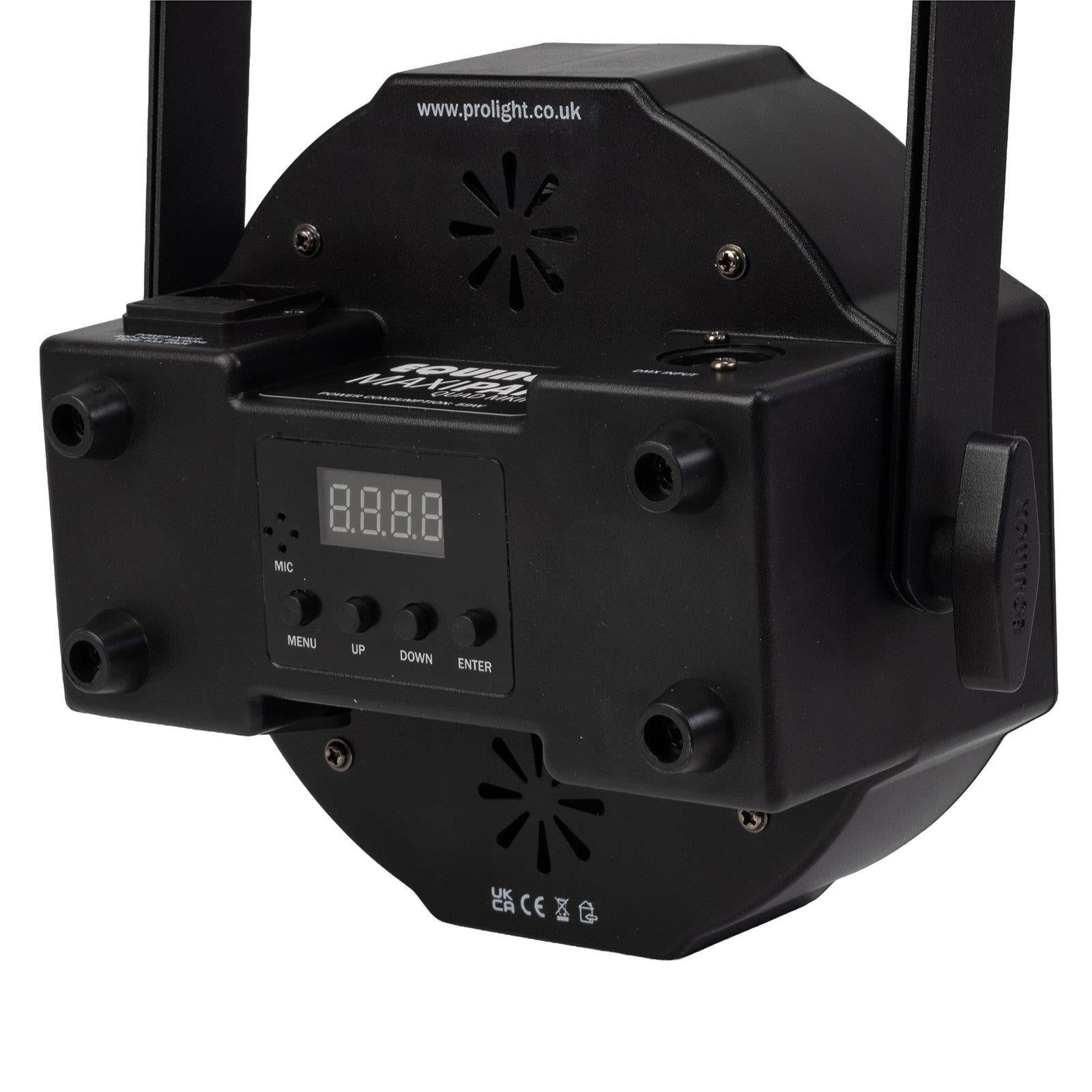

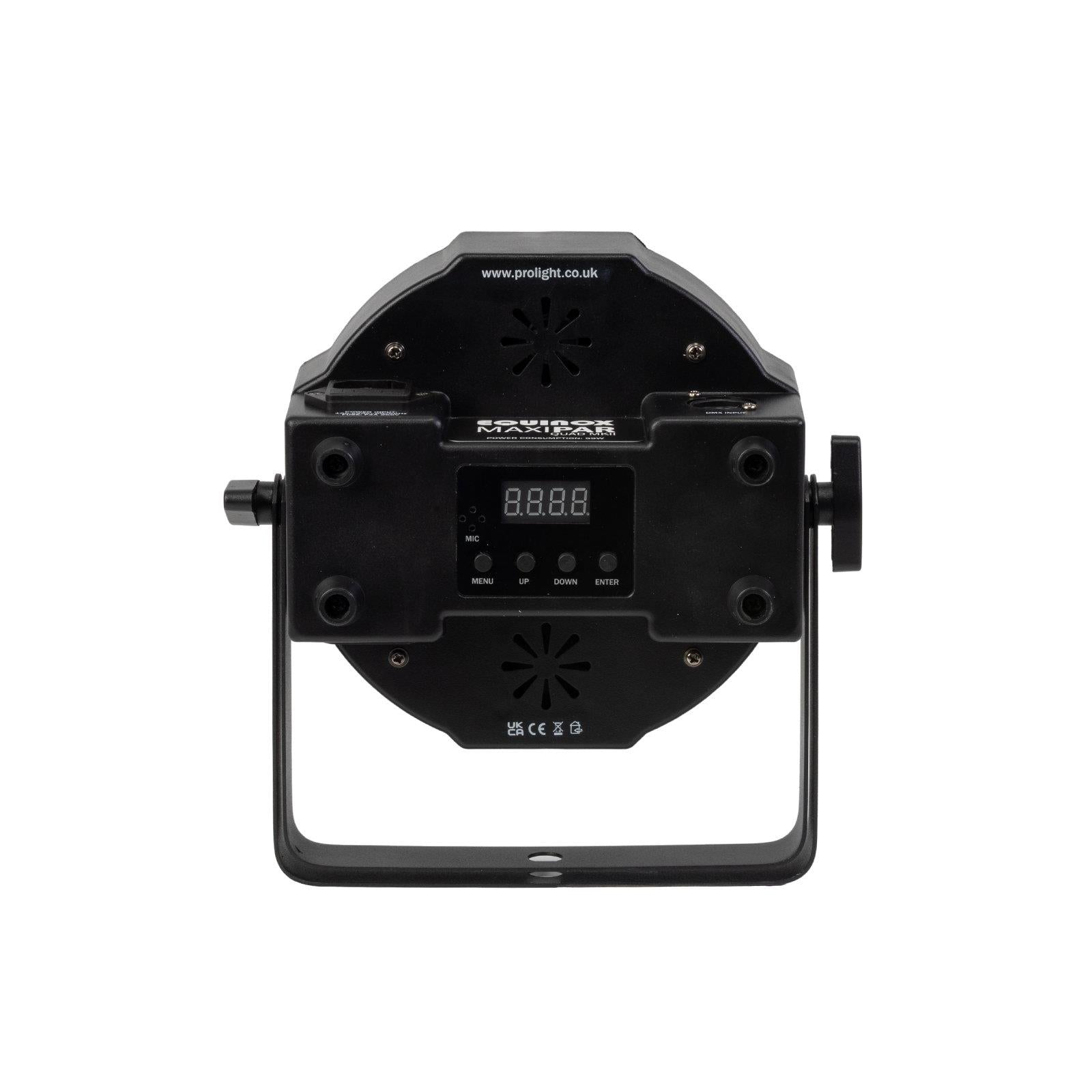

Display: 4-button menu with LED display

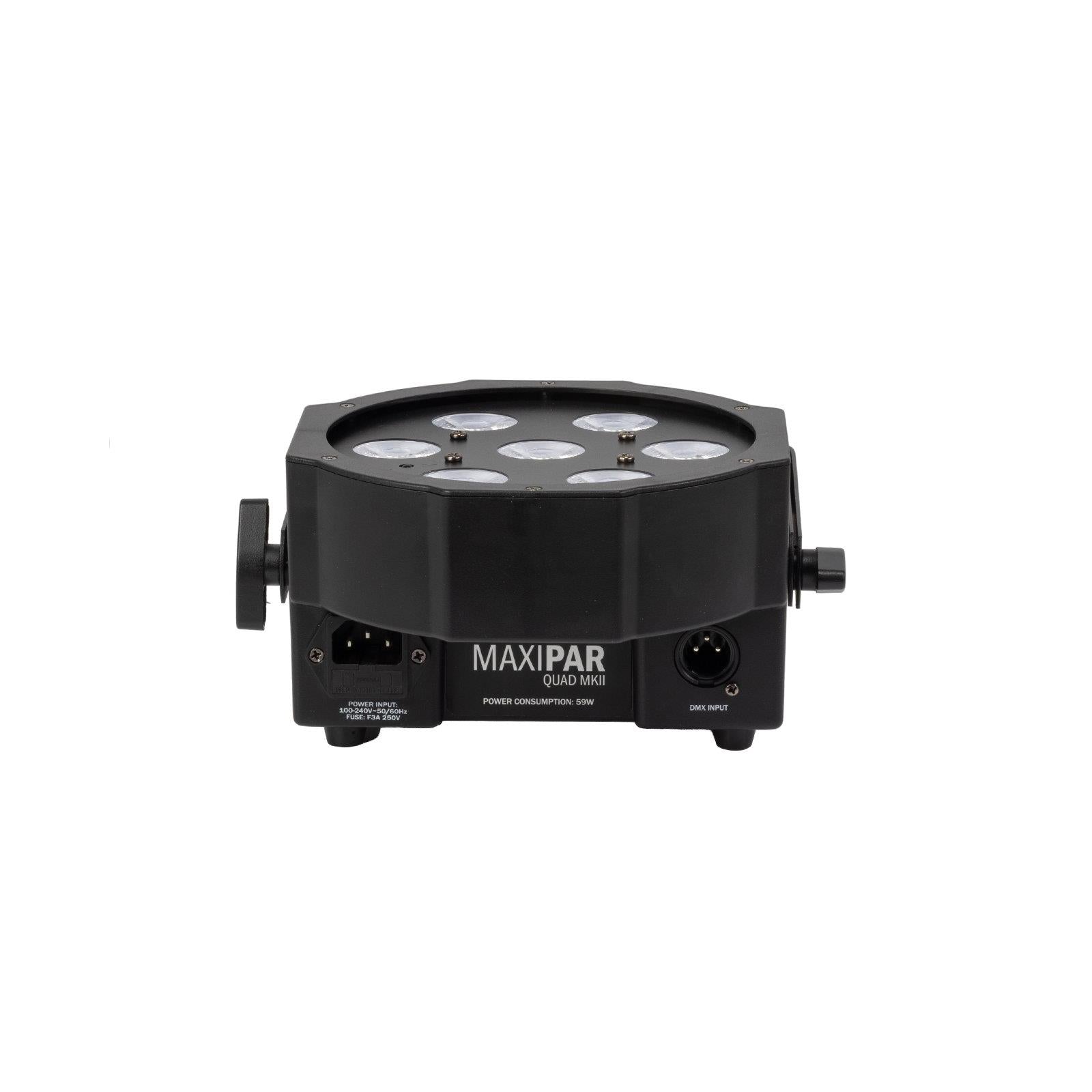

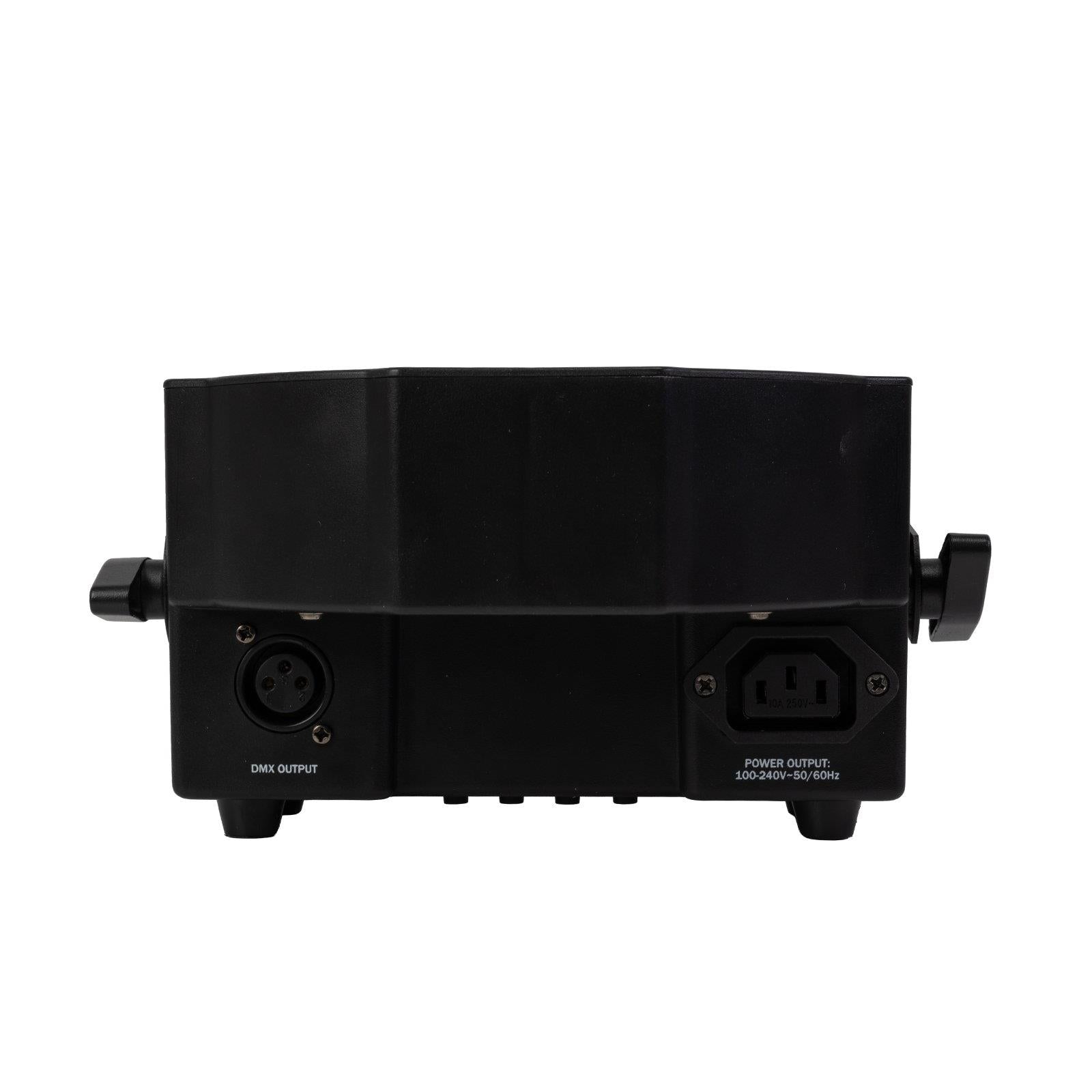

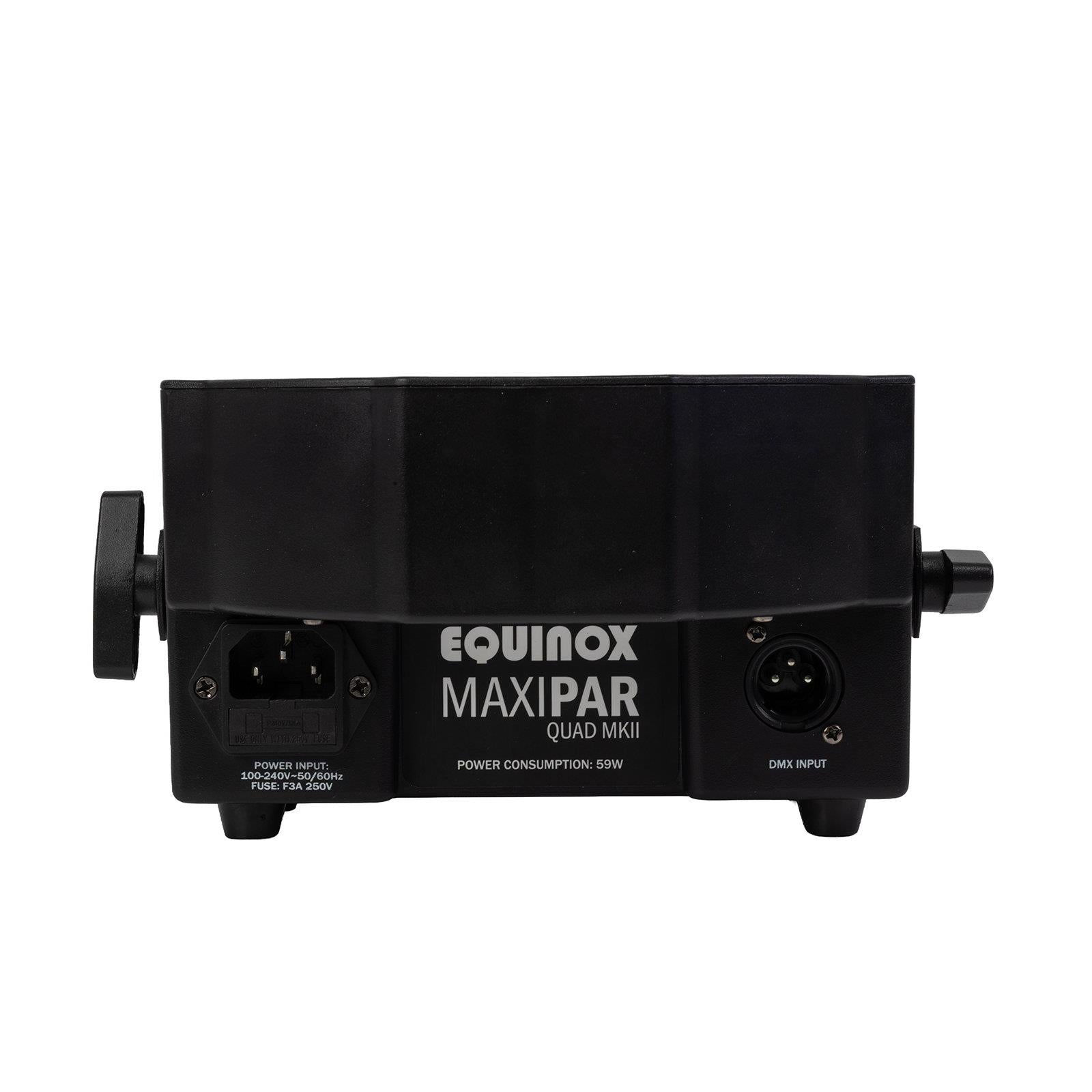

Connections: IEC power input/output, 3-Pin XLR input/output (side entry)
Cooling: Fan cooled

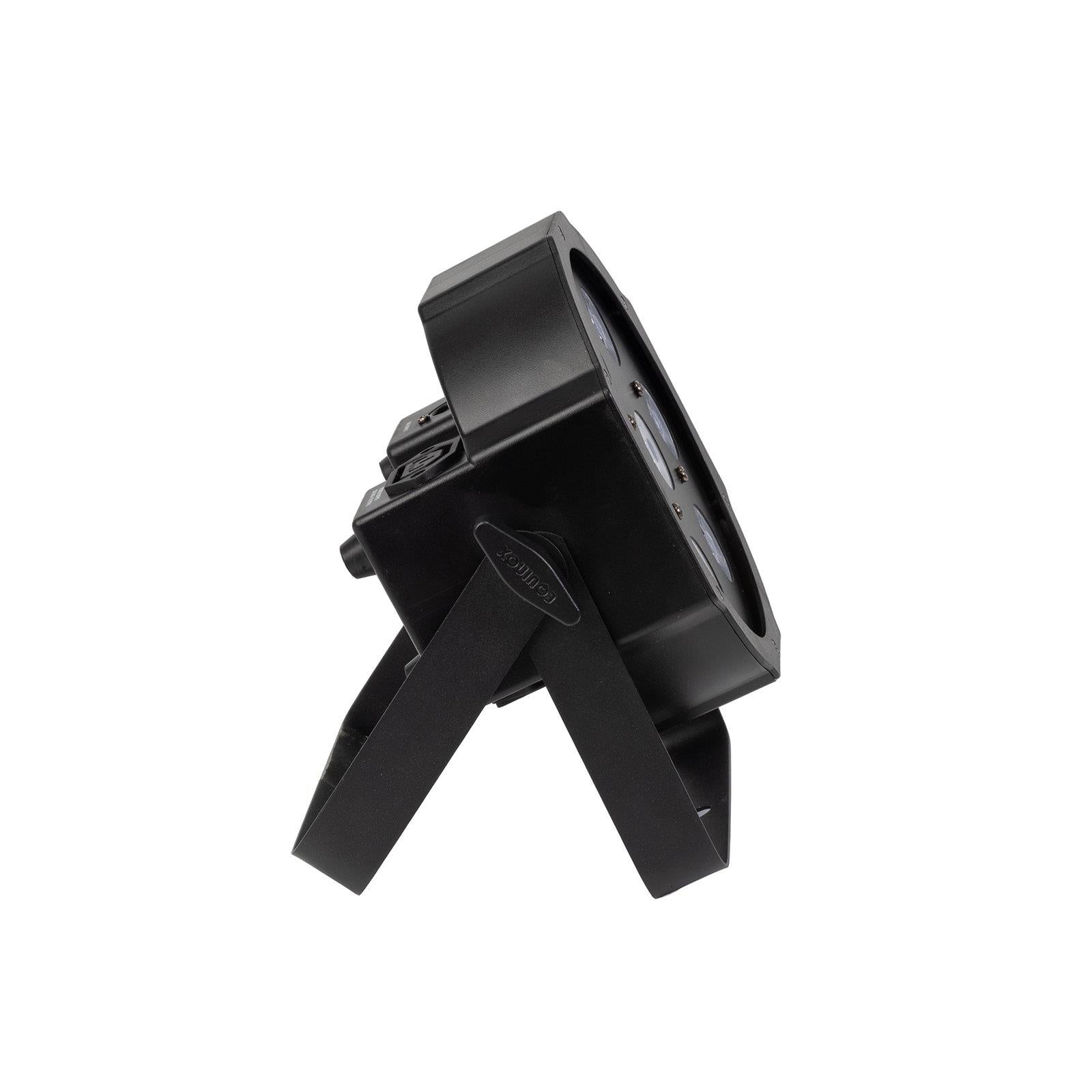

Mounting: Adjustable bracket for rigging or floor standing

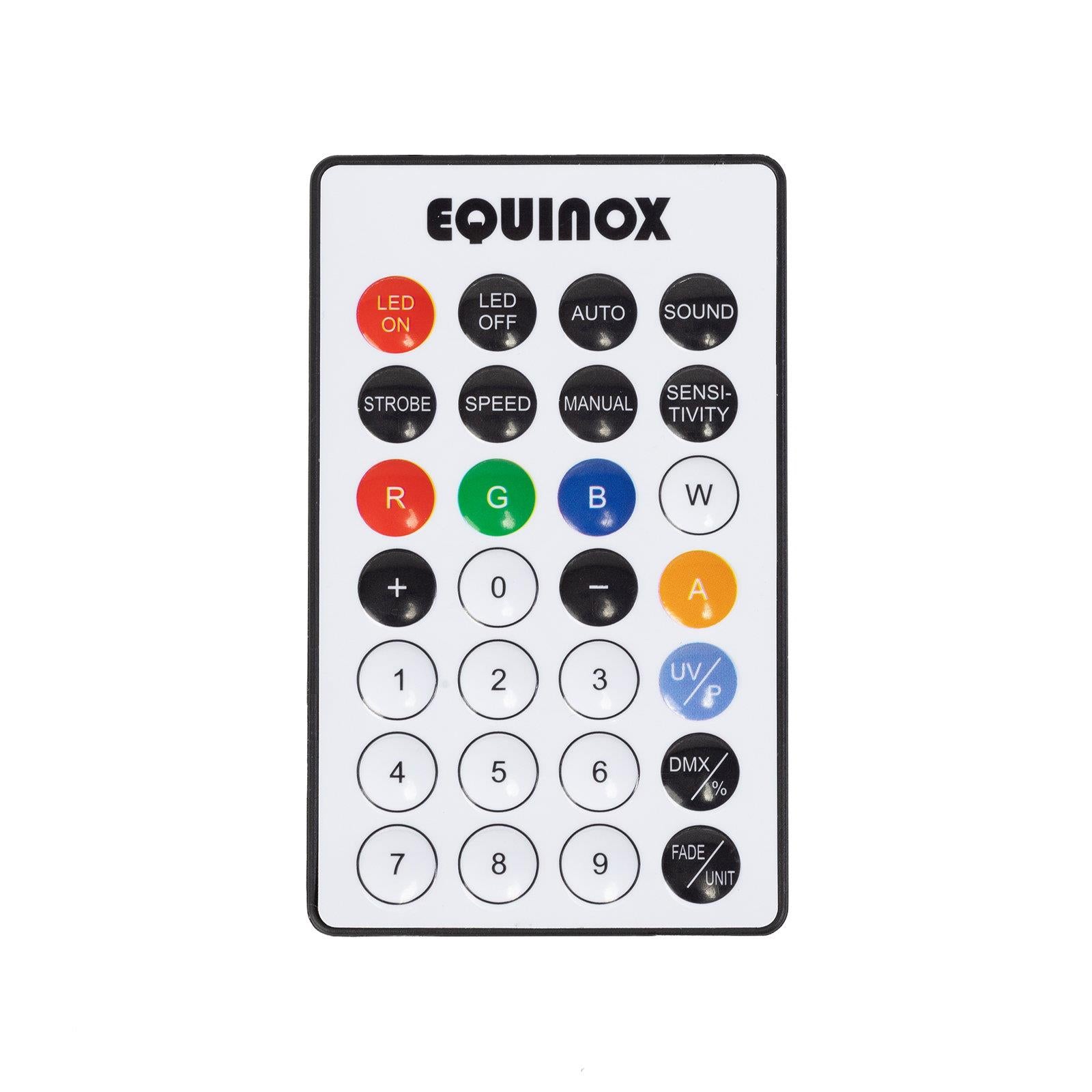

Additional Features: Rubber feet for uplighting, IR remote included
Power Consumption: 35W
Power Supply: 100~240V, 50/60Hz
Fuse: F1A 250V
Dimensions (H x W x D): 215 x 225 x 110mm
Weight: 1.1kg
