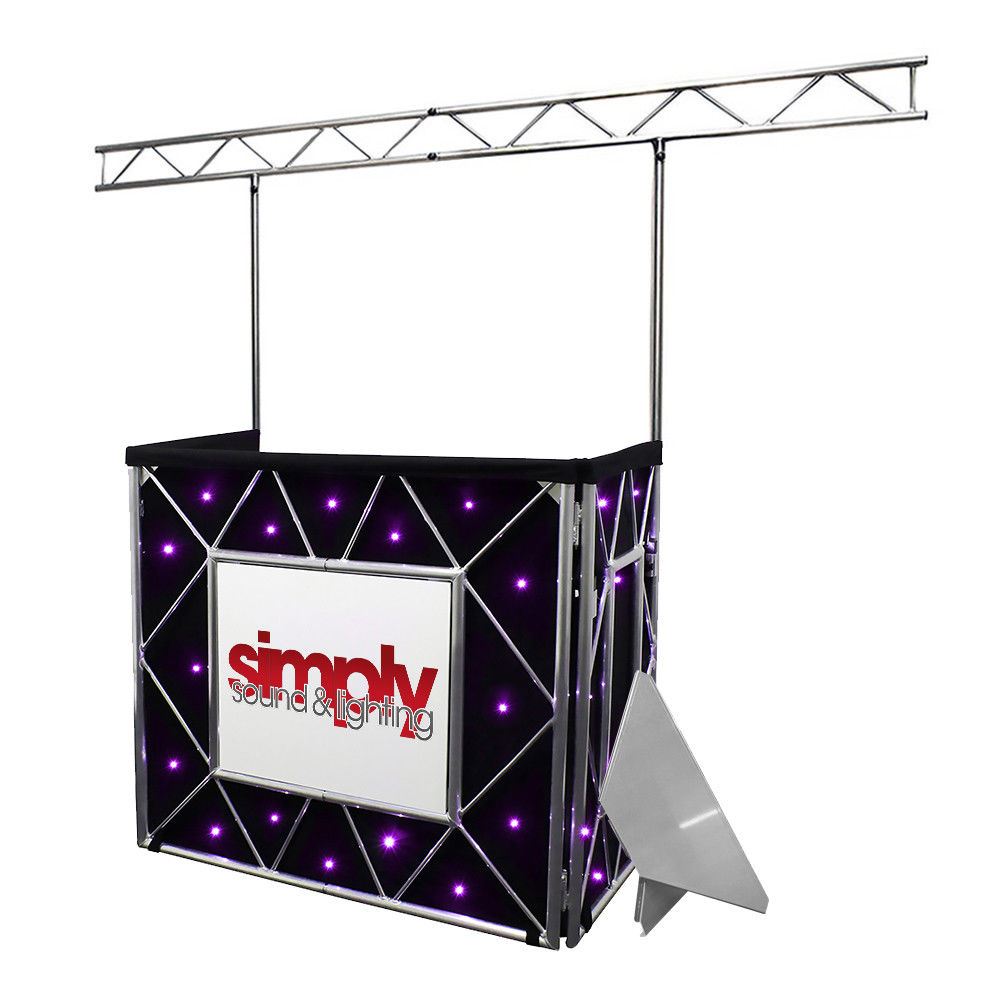

Equinox Truss Booth Complete Setup inc. Booth, Gantry, Shelves & Star Cloth (Quad LEDs)

Vendor: Equinox
SKU: SKU4583
Icon Out of Stock Out Of Stock

This lightweight, compact and collapsible Equinox Truss Booth system is perfect for professional DJs and comes supplied with a sturdy shelf, cross bars and white front board for your own branding and vanity screen.
Lightweight aluminium frame only 10.9kg
Tool free assembly
Lightweight, compact and collapsible Truss Booth


4 sided folding Truss Booth
white front board for your own branding
vanity screen
shelf support cross bars and 1 carpet covered shelf


1150 x 140 x 650 mm (folded)
1150 x 1280 x 635 mm (set-up)
1150 x 1210 x 595 mm (internal)
Shelf height: 880 mm

Shelf max. load: 25kg evenly distributed
Frame weight: 10.9kg
Shelf weight: 4.6kg
System weight: 18.5 kg

Equinox Truss Booth Overhead Gantry Description
Overhead kit for the Equinox Truss Booth & Pro Event Table II.

Tube diameter: 32 mm
4x upright clamps
Carry bag included

Set Up: 2215 x 2515 x 70 mm
Fixed to Truss Booth: 2215 x 2515 x 710 mm
Overhead Kit max. load: 45 kg evenly distributed

7 kg

Equinox Truss Booth Shelf Kit (Pair) Description
Corner Shelf Kit for the Equinox Truss Booth System

Perfect for lighting, audio and display applications
Includes: 1 x left shelf and 1 x right shelf
Please note: as these are unfinished pieces of folded aluminium, some marks/blemishes may be present

25 x 670 x 260 mm (per shelf)

0.8 kg (per shelf)

Equinox Truss Booth Quad Starcloth Description
Featuring 72 quad-colour 5050 LEDs, this DJ Booth starcloth comes supplied with an advanced DMX controller. The controller features solid colour selection coupled with pattern and speed control, allowing the DJ to match the starcloth colour to any other room lighting. Supplied with heavy duty carry bag.


72 quad-colour 5050 LEDs (RGBW 3200K)
Fast fixx™ velcro tabs
Low reflection, fire retardant material
Includes an advanced DMX controller
Carry bag included

DMX channels: 3, 9 or 28 selectable
Static colour, auto, sound active and master/slave modes
IEC power input
3-Pin XLR input/output

Power supply: 100~240V, 50/60Hz
Fuse: T1A 250V


Controller: 55 x 205 x 145 mm
Starcloth: To fit the Truss Booth


5.5 kg
